ZC-OPS7200-V2 OPS PC 7th Gen Kabylake i5-7200u CPU-OPS PC Module-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

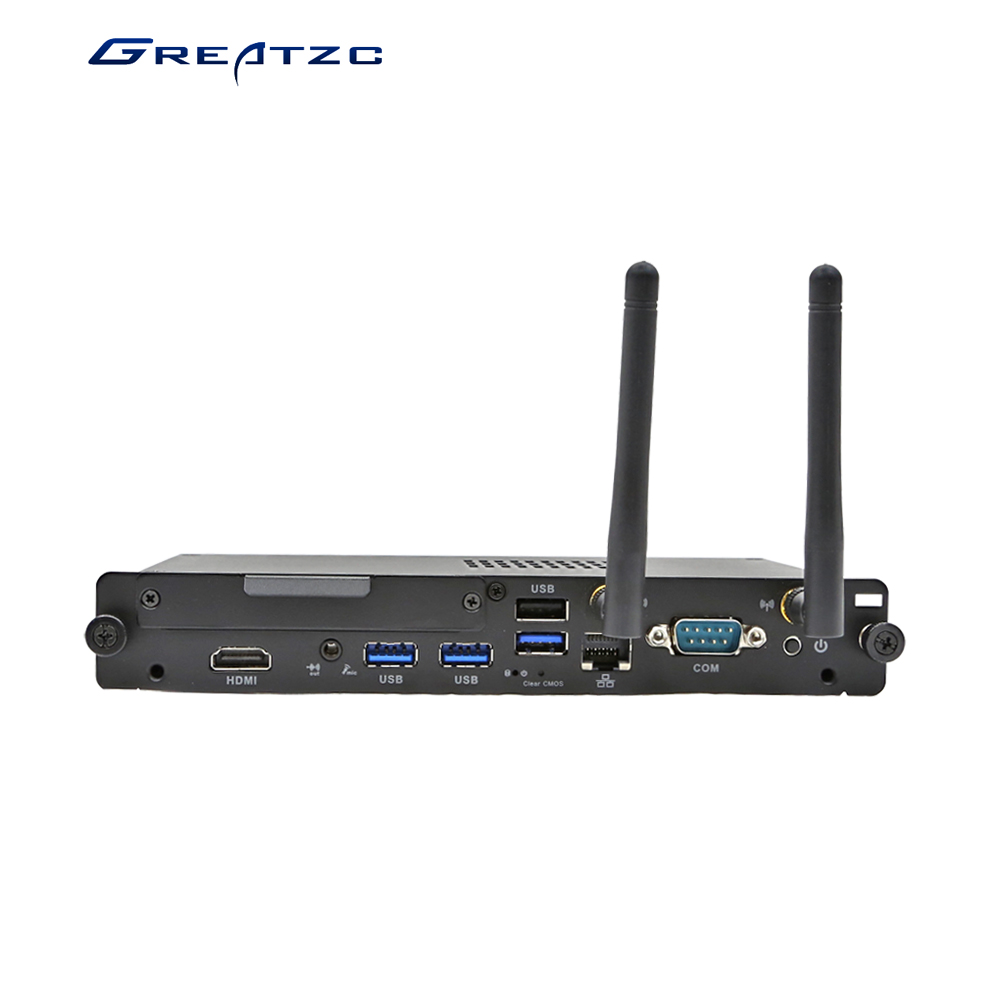

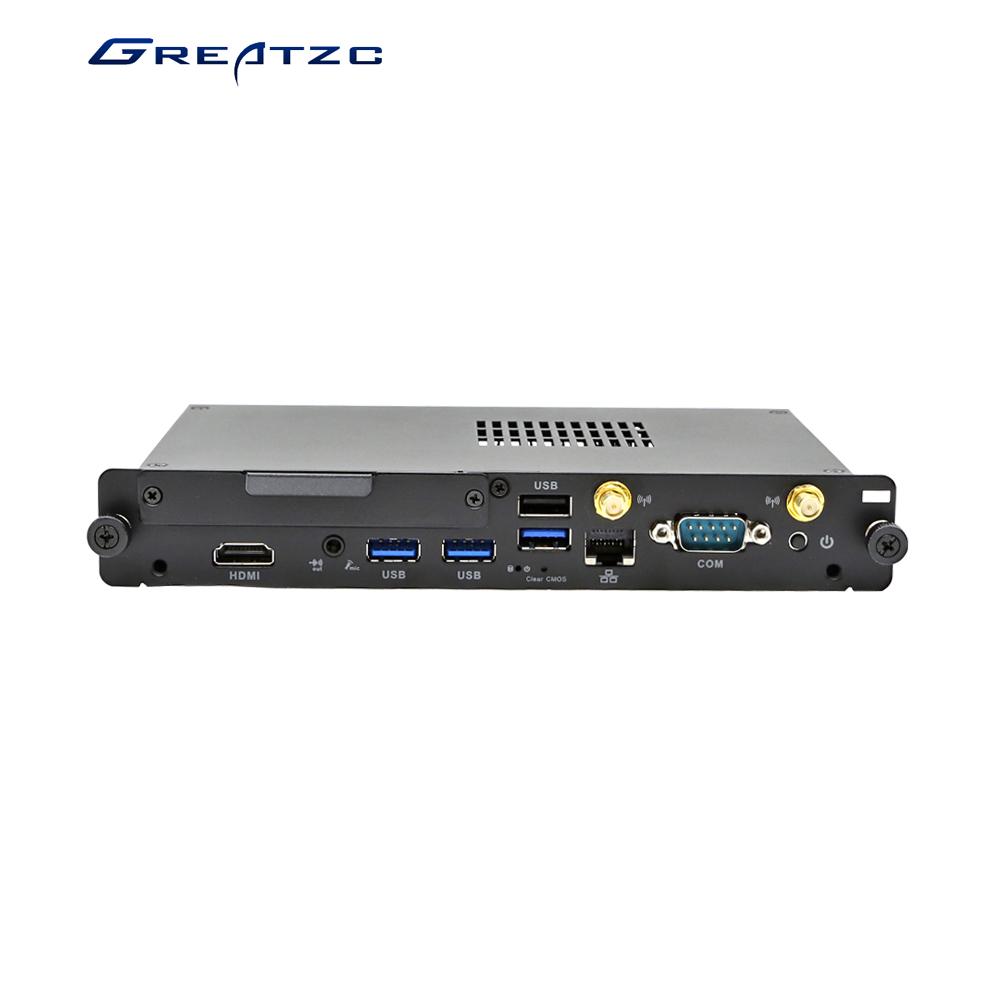

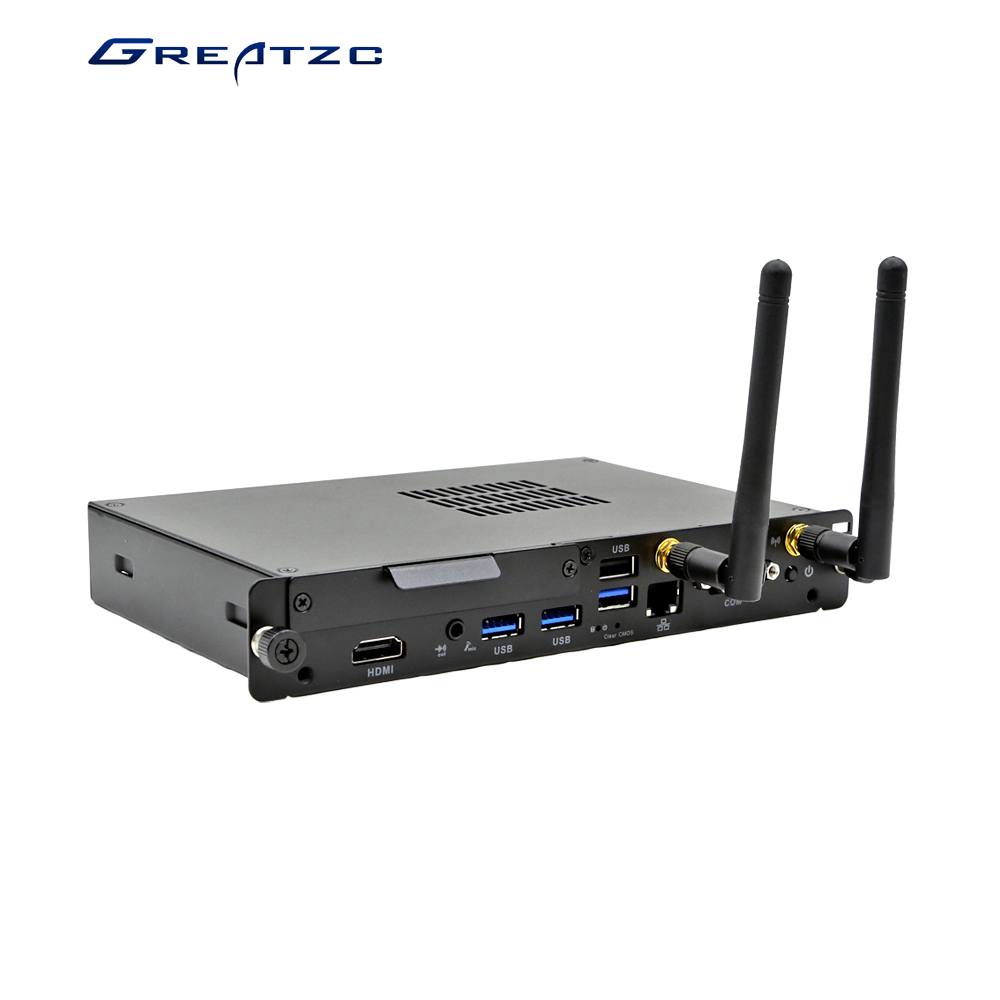

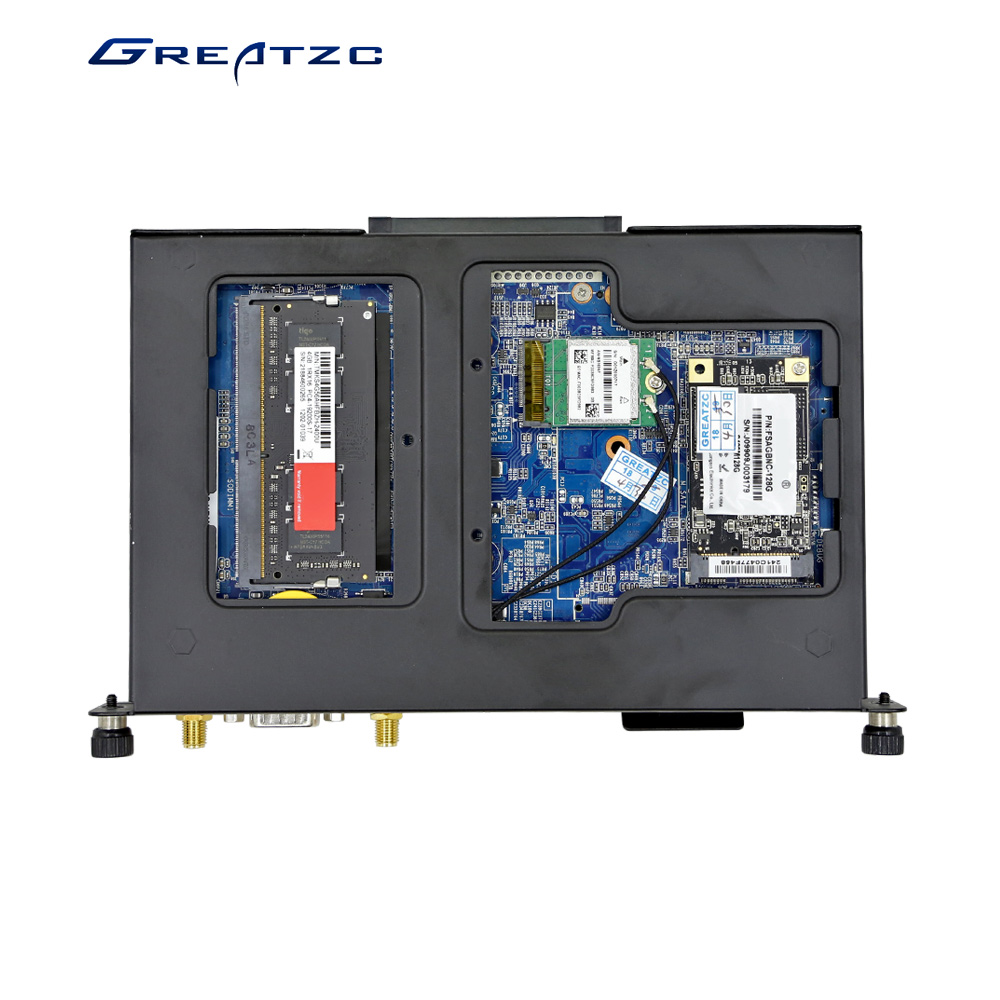

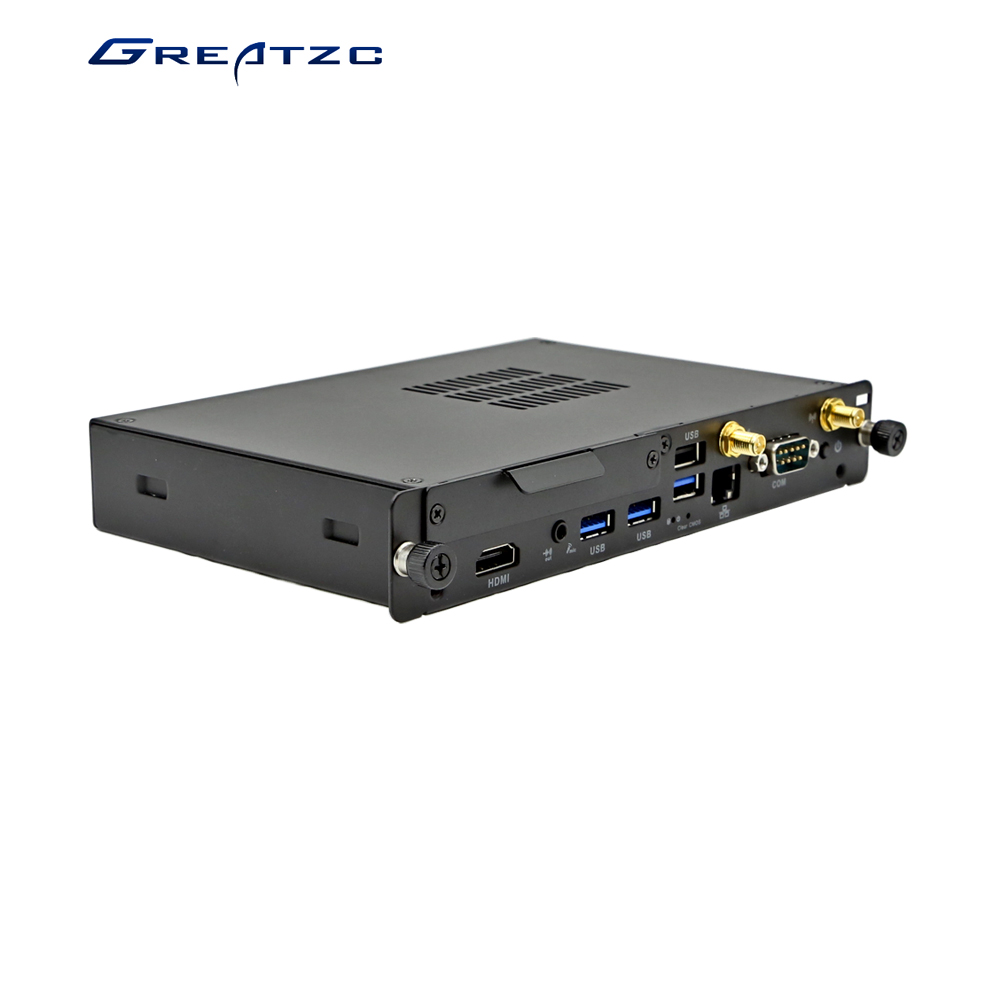

ZC-OPS7200-V2 OPS PC 7th Gen Kabylake i5-7200u CPU

ZC-OPS7200-V2 OPS Mini PC With 7th Gen Kaby lake I5-7200u Dual Core 4 Thread 2.5GHz

Turbo Boost 3.1GHz,Intel HD 620 GPU,Support 4K,3*USB 3.0,1*USB 2.0

1*RJ45 Lan Port,1*JAE Port,1*HDMI,DC12V-19V.

Main Features:

1.Onboard CPU INTEL I5-7200u Dual Core 4 Thread 2.5GHz.

Turbo Boost 3.1GHz,3MB L3 Cache TDP only 15W.

2.Standard OPS Frame,the Size is 180*119*30mm.

3.With Graphic Card:Intel HD620,Support 4K.

4.With MINI SATA ,SATA,Support Both SSD and 2.5 inch HDD.

5.Onboard M.2 Slot,Support WIFI/Bluetooth Module.

6.Silent Fan,Low Noise,Excellent Heat Exchange.

7.Good Quality:All Solid Cap,With Stable and Reliable Performance.

ZC-OPS7200-V2 OPS Mini PC Specification

CPU	7th Gen INTEL Kaby Lake I5-7200u Dual Core 4 Thread 2.5GHz Turbo Boost 3.1GHz 3MB L3 Cache TDP only 15W
RAM	2*SO-DIMM DDR4, Max 32GB
Hard Drive	1SATA 2.5inch 1mSATA
Graphics Card	Intel HD 620 Support 4K
Display	OPS JAE 80Pins: 4096*2160@60Hz
Network Card	1*Intel I219 Gigabit Network Card WIFI Optional
Outside I/O Ports	1DC Port 1HDMI 1OPS JAE Port 3USB 3.0 1USB 2.0 1RJ45 1COM 1Power Button 2*WIFI Antenna Ports
Internal I/O Port	1SATA 3.0 1MINI SATA 3.0,Support SSD 1*M.2(Support WIFI/Bluetooth Module)
Size	Product Size:18011930mm
