ZC-OPSH310 Intel 8th Gen Core i3 i5 i7 CPU OPS Module Support 4K-OPS PC Module-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

ZC-OPSH310 Intel 8th Gen Core i3 i5 i7 CPU OPS Module Support 4K

ZC-OPSH310 OPS Mini PC With Intel LGA1151 Socket,Support 9th,8th Gen Coffee Lake

I3/I5/I7 CPU,Intel H310 Chipset,With DP,HDMI,Support Double Display,4*USB 3.0,

2*USB 2.0,1*MIC,1*SPK,1*RJ45 Lan Port,1*OPS Port,2*WIFI Antenna Ports,12V/19V DC IN

Main Features:

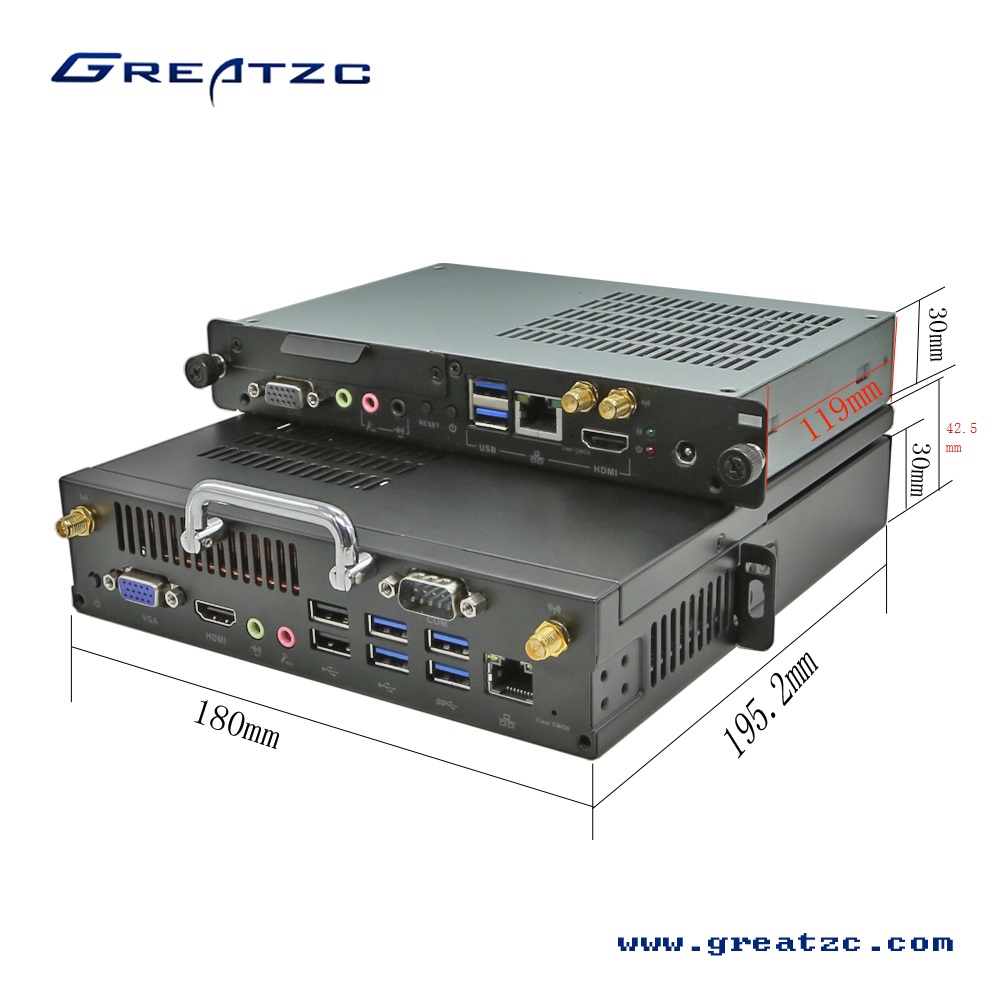

1. Standard OPS Frame,the Size is 195*180*42.5mm.

2. With Intel LGA 1151 Socket,Support 9th,8th,7th,6th Gen CPU

3. Double Display:With DP and HDMI,Support Double Display.

4. Silent Fan,Low Noise,Excellent Heat Exchange.

5. Onboard MINI PCIE ,Support WIF.SIM Card Can Be Customized.

6. With MINI SATA and SATA,Support Both SSD and 2.5 inch HDD.

7. Good Quality:All Solid Cap,With Stable and Reliable Performance.

ZC-OPSH310 OPS Module With 8th Gen CPU Specification

CPU	With Intel LGA 1151 Socket Support LGA 1151 i3/i5/i7 CPU Support all 9th,8th,7th,6th Generation
Chipset	Intel H310C
RAM	1*SO-DIMM DDR4
Hard Disk	SATA 2.5inch 500GB,1TB,2TB mSATA SSD 32GB,64GB,128GB,256GB,500GB
Network Card	1*Intel I218LM Gigabit Card WIFI Optional

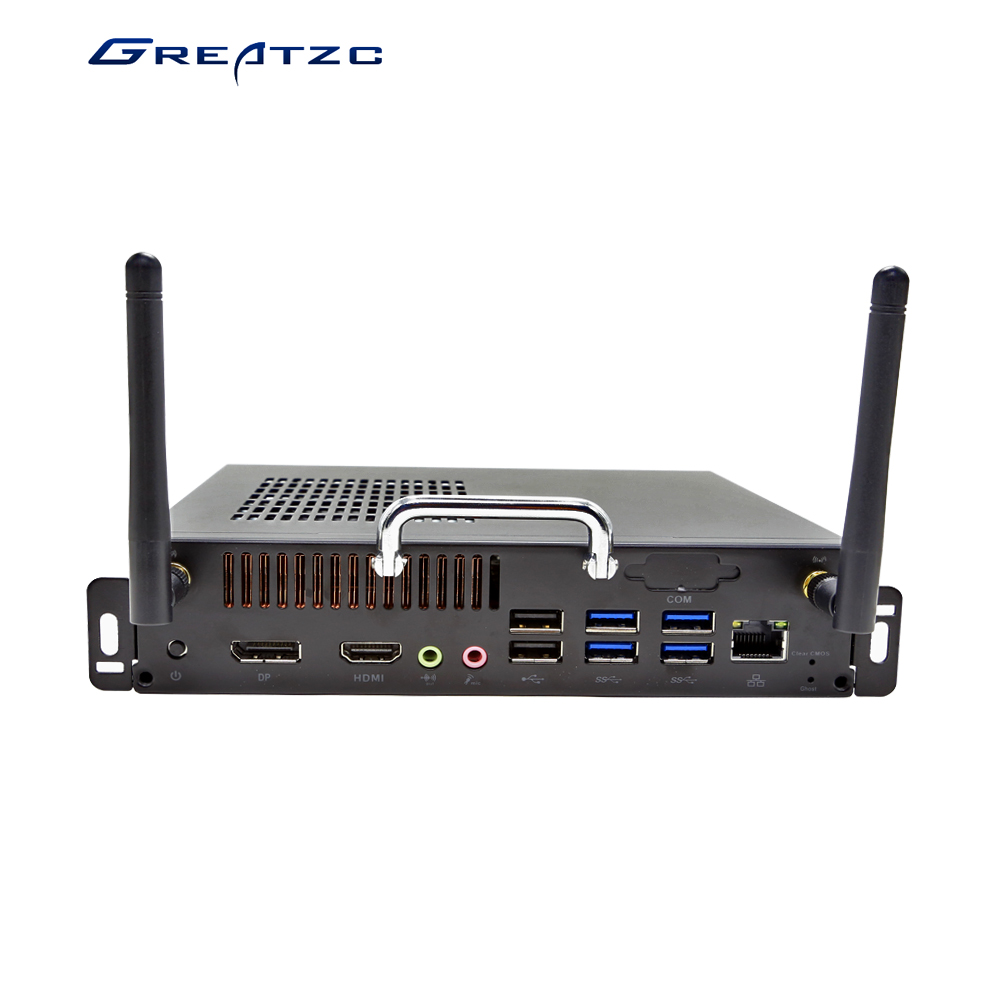

OUT I/O Port	1DC Port 1HDMI 1DP 4USB 3.0 2USB 2.0 1RJ45 1MIC 1SPK 2WIFI Antenna Port 1Power Button 1OPS Port 1RS232 Optional
Size	19518042.5mm
Weight	N.W.:1.8KG
