ZC-OPS6500 OPS PC i7 6500u Support 4K

ZC-OPS6500 OPS Mini PC With 6th Generation i7-6500U Dual Core 4 Thread 2.5GHz

Turbo Boost 3.1GHz,Intel HD 520 GPU,Support 4K.3*USB 3.0,1*USB 2.0

1*RJ45 Lan Port,1*OPS,1*VGA,DC12V-19V.

Main Features:

1.Onboard CPU INTEL i7-6500U Dual Core 4 Thread 2.5GHz

Turbo Boost 3.1GHz,4 MB SmartCache,TDP only 15W.

2.Standard OPS Frame,the Size is 200*119*30mm.

3.With Graphic Card:Intel HD520,Support 4K.

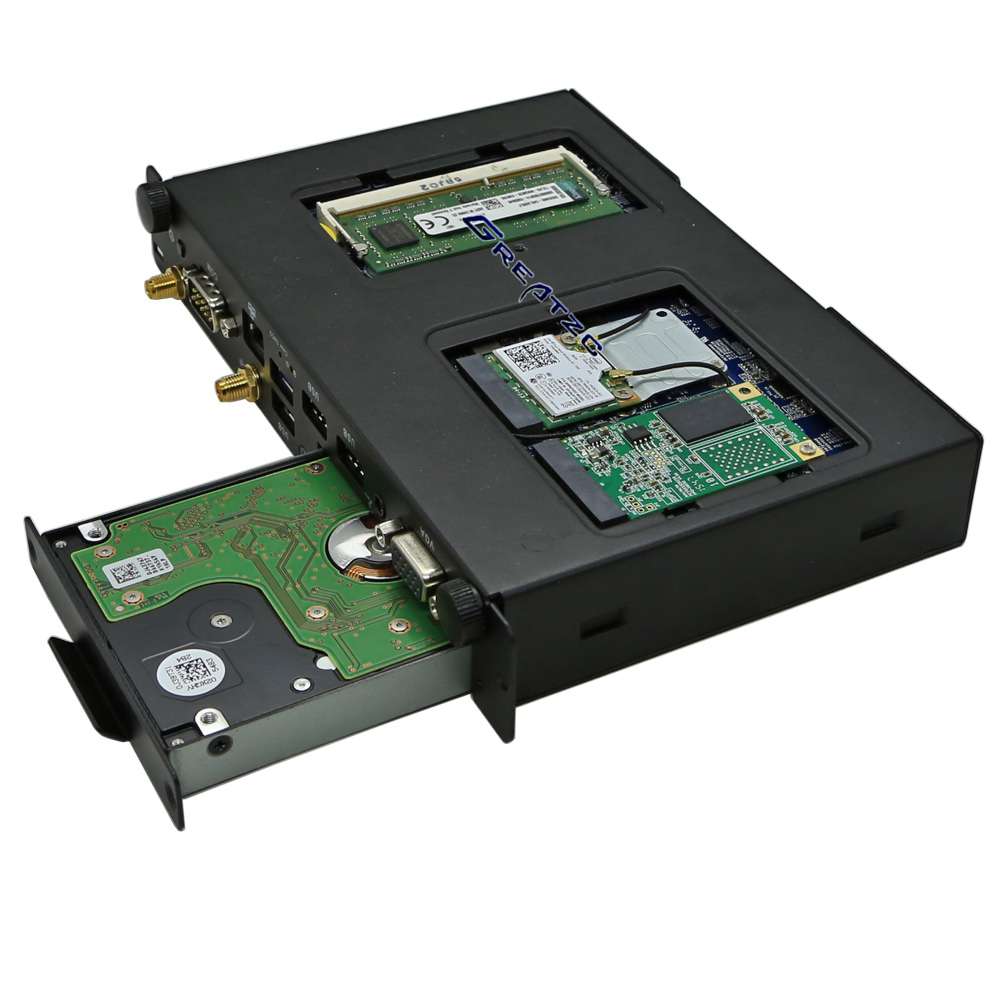

4.With MINI SATA and SATA,Support Both SSD and 2.5 inch HDD.

5.Onboard MINI PCIE and SIM Card Slot,Support WIFI/3G/4G Module.

6.Silent Fan,Low Noise,Excellent Heat Exchange.

7.Good Quality:All Solid Cap,With Stable and Reliable Performance.

ZC-OPS6500 Mini PC Specification

CPU	INTEL Skylake i7-6500U Dual Core 4 Thread 2.5GHz Turbo Boost 3.1GHz 4 MB SmartCache TDP only 15W
RAM	2*SO-DIMM DDR3L(1.35V) 1600MHz Memory Max 16GB
Hard Drive Capacity	SATA 2.5 500GB,1TB or mSATA SSD 32GB,64GB,128GB,256GB
Graphics Card	Intel HD 520 Support 4K
Network Card	1*Intel I219 Gigabit Network Card WIFI Optional

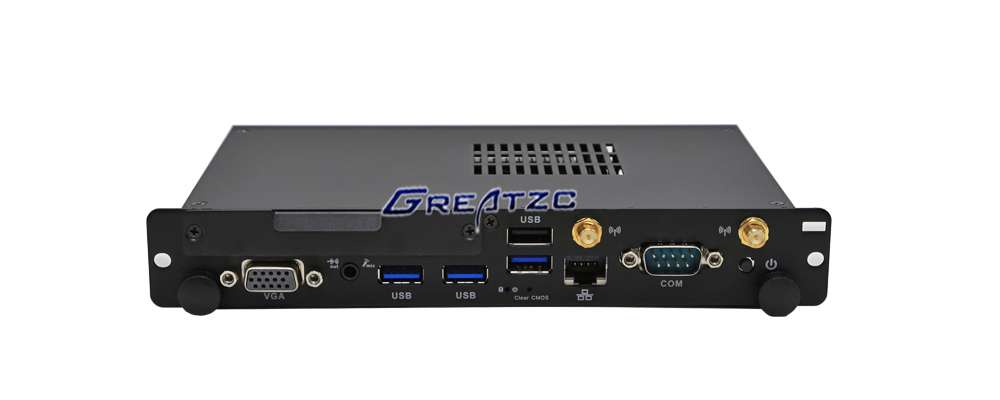

Outside I/O Ports	1DC Port 1VGA 1OPS 3USB 3.0 1USB 2.0 1RJ45 1COM 1Power Button 2*WIFI Antenna Ports
Internal I/O Port	1SATA 3.0 1MINI SATA 3.0,Support SSD 1*MINI PCIE(Support WIFI or 3G/4G Module)
Size	Product Size:20011930mm
Power Adapter	Input 100-240V(AC) Output:12V-19V DC-IN
