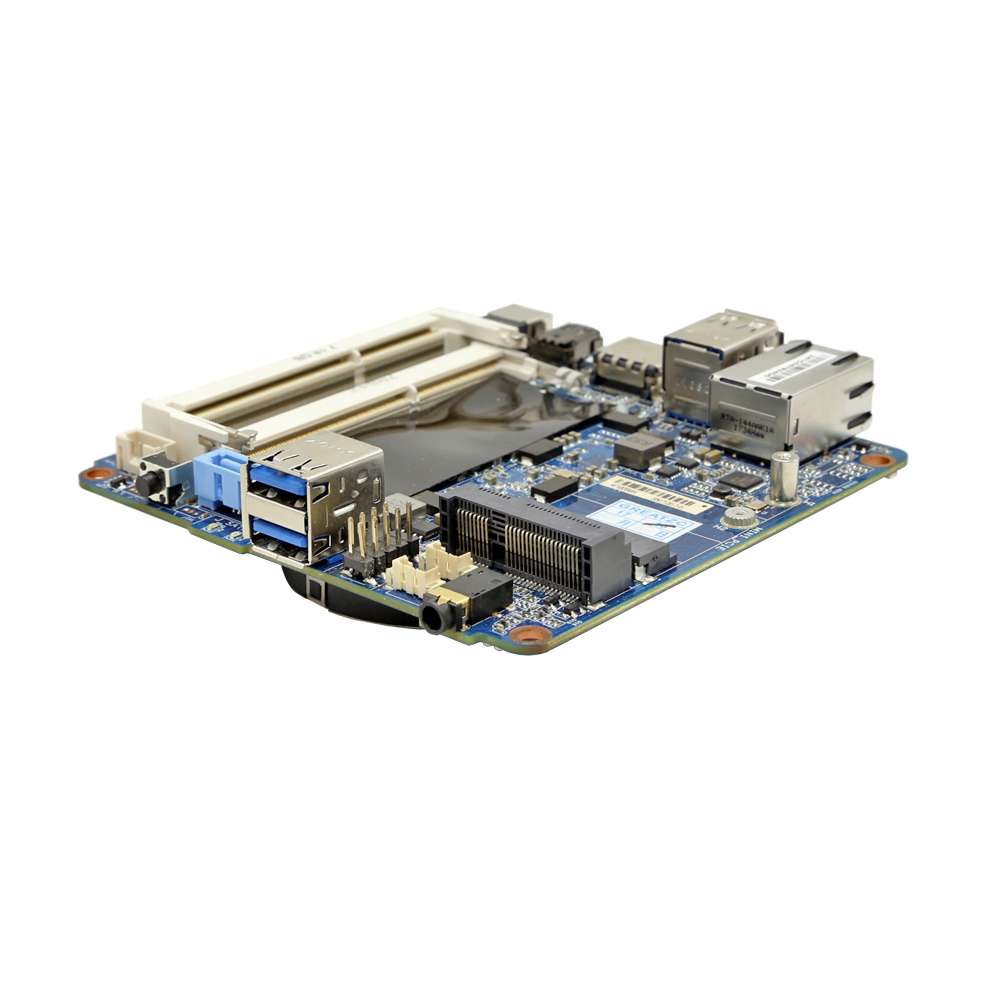

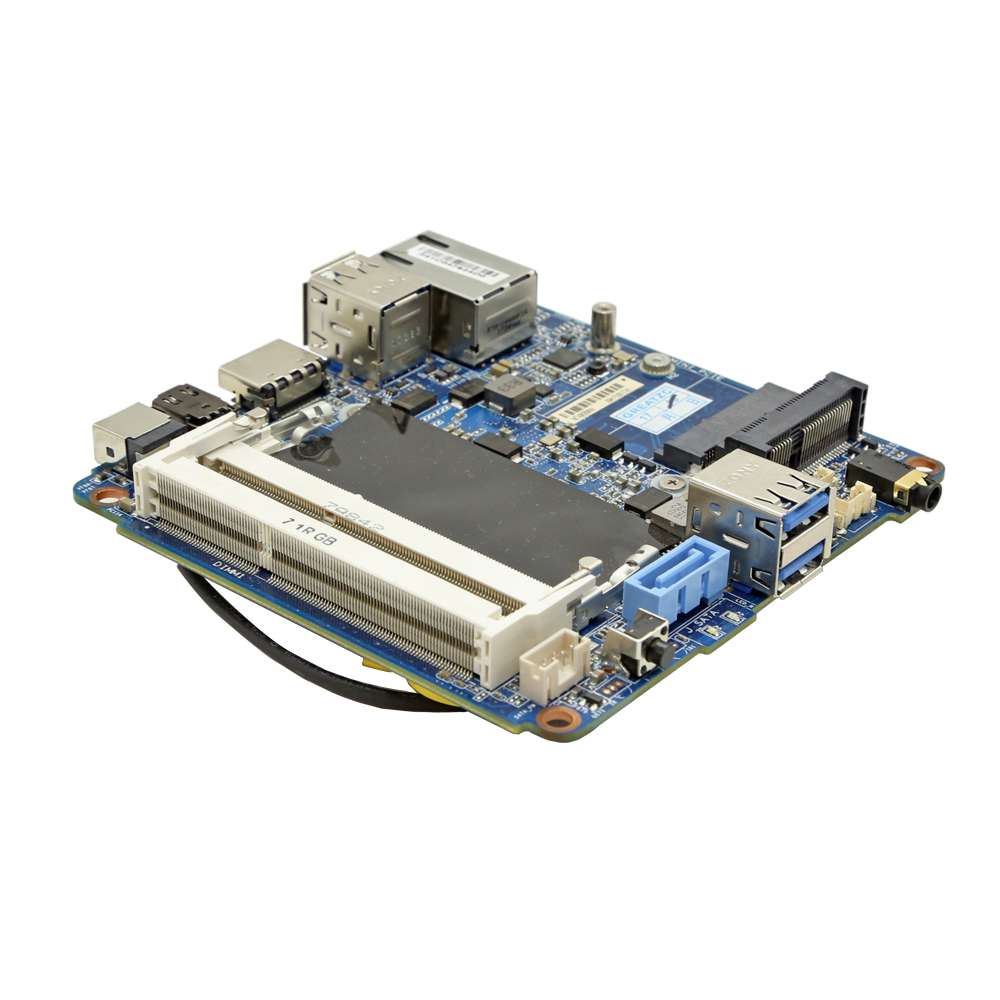

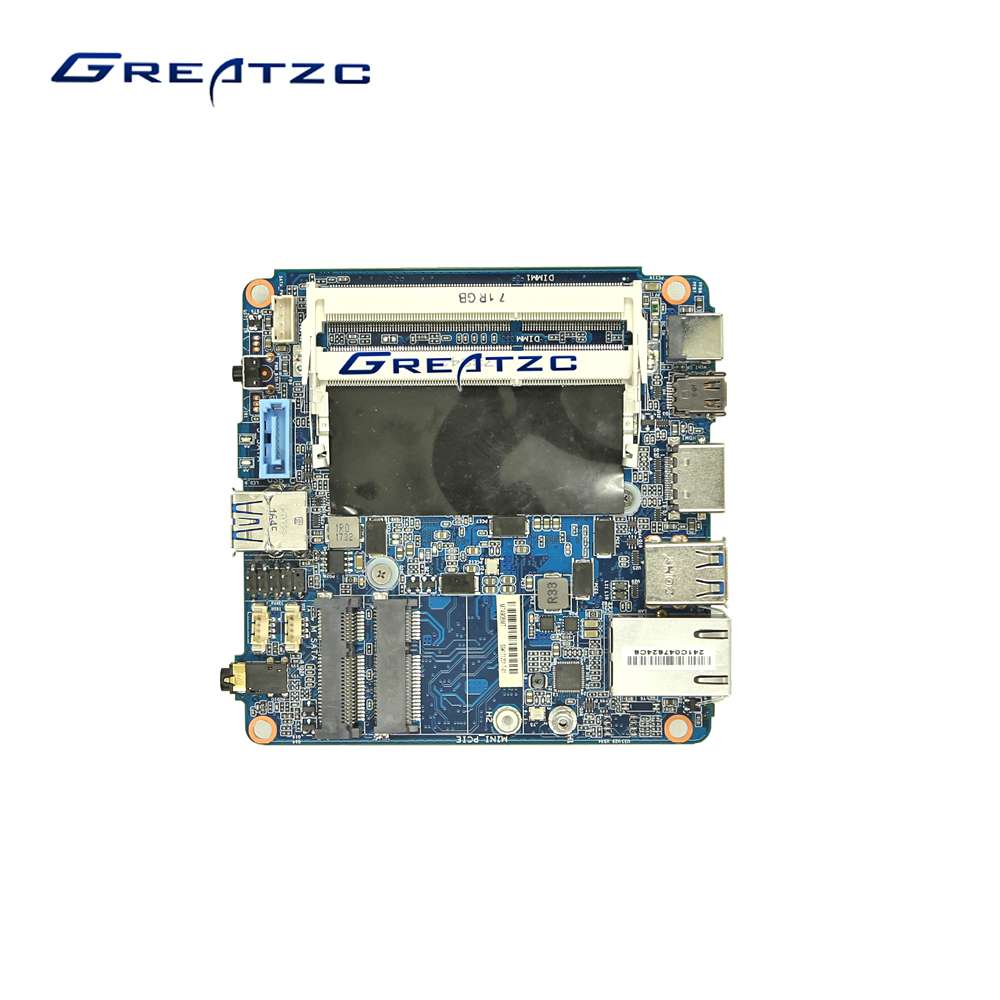

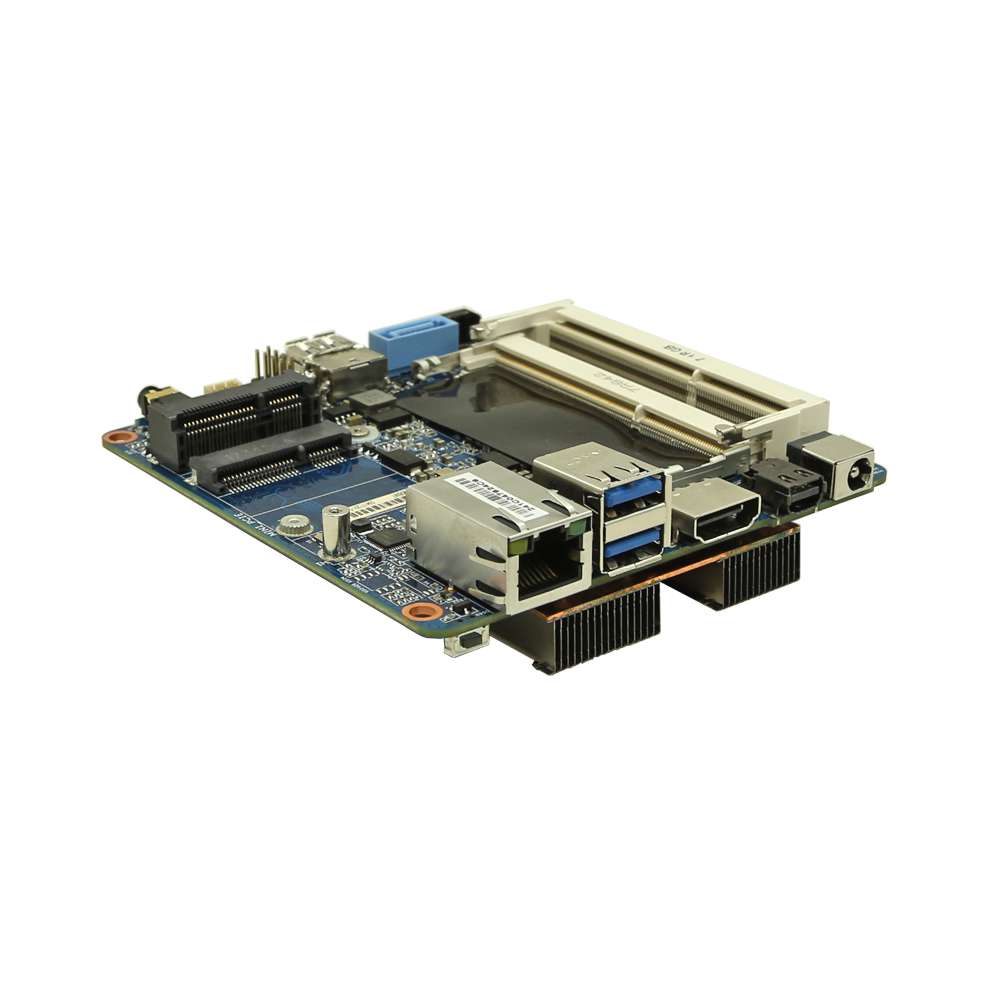

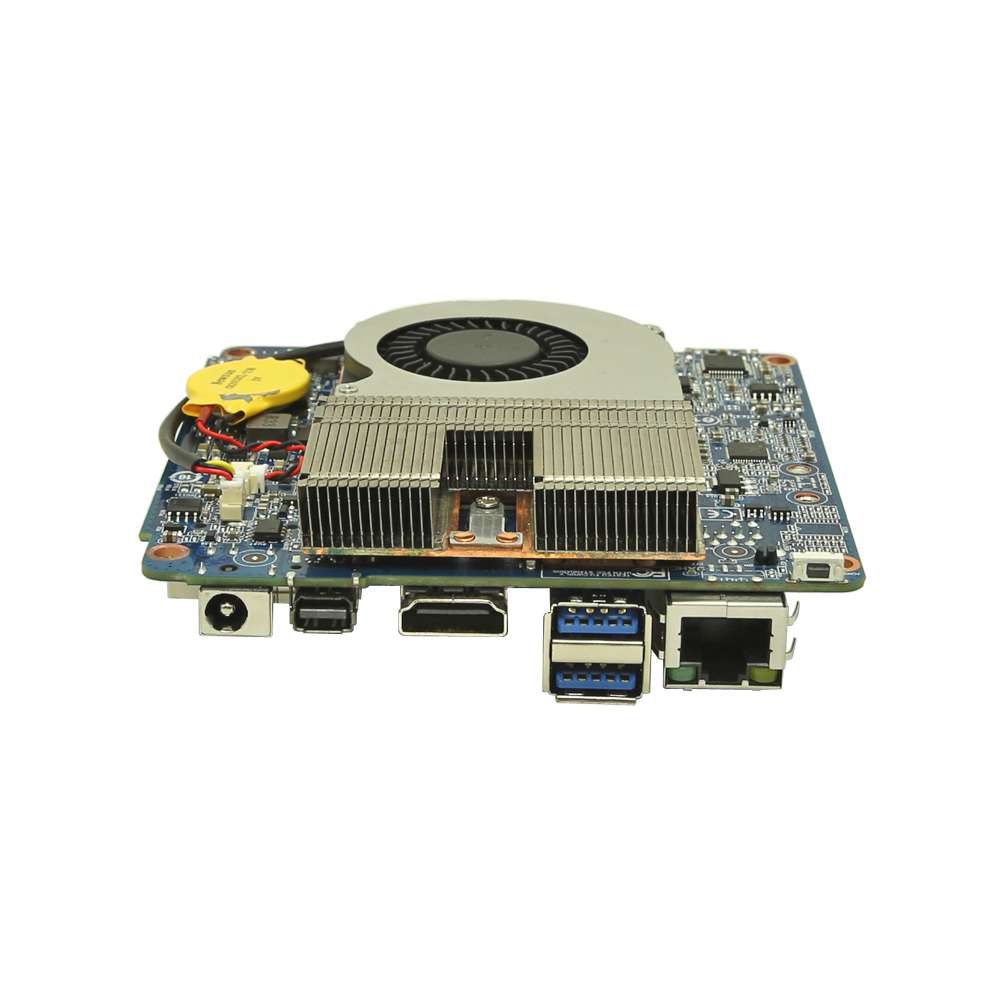

ZC-NI6200U NUC Mainboard With i5-6200u CPU

ZC-NI6200U Ultra Small Board Onboard Skylake Core i5-6200uDual Core 2.3GHz,

Turbo Boost 2.8GHz,Intel Graphics HD520,Support 4K.With 1*HDMI,1*Mini DP

1*RJ-45 LAN,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,3*USB 3.0,2*USB 2.0,DC 12V-19V

Main Features:

1. Onboard Processor Intel Skylake Core i5-6200U CPU,TDP 15W

2. INTEL HD520 Graphics,Support 4K

3. With MINI SATA,MINI PCIE,Support SSD,WIFI

4. With 1*HDMI,1*Mini DP,Support Double Display

5. DC 12V-19V Power Supply, Can be Used to More Cases

6. Ultra Small,Dimensions is only 104*104mm,Height 30mm

ZC-NI6200U Motherboard Specification

CPU(Default)	Intel 6th Gen Skylake Core i5-6200U Dual Core 4 Thread 2.3GHz Turbo Boost 2.8GHz 3MB L3 Cache TDP only 15W
CPU(Customize)	6th Gen Skylake Celeron 3855u,i3-6100u,i7-6500u 7th Gen Kabylake i3-7100u,i5-7200u,i7-7500u
RAM	2*SO-DIMM DDR4, MAX 32GB
Graphics Card	INTEL HD520 Support 4K Playing
SATA	1*SATA Slot
Audio card	Realtek ALC662
Network Card	1*Realtek 8111F,Gigabit
Display	1HDMI 1Mini DP
Expansion Slot	1MINI SATA 1MINI PCI-E
Front Panel I/O	1Power Button 1USB 3.0 1*Audio
Rear Panel I/O	2USB 3.0 1RJ-45 1HDMI 1Mini DP 1*DC Jack
Internal I/O	USB1(4Pins) USB2(4Pins) 1F-PANEL1(9PINS) 1SATA 3.0 Slot 1SYS-FAN1 PWR(4PINS) 1MINI SATA 1*MINI PCI-E
Power Supply	12V-19V DC
Size	104*104mm,Height 30mm
