ZC-NI3855U NUC Motherboard With 3855U CPU-NUC Motherboard-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

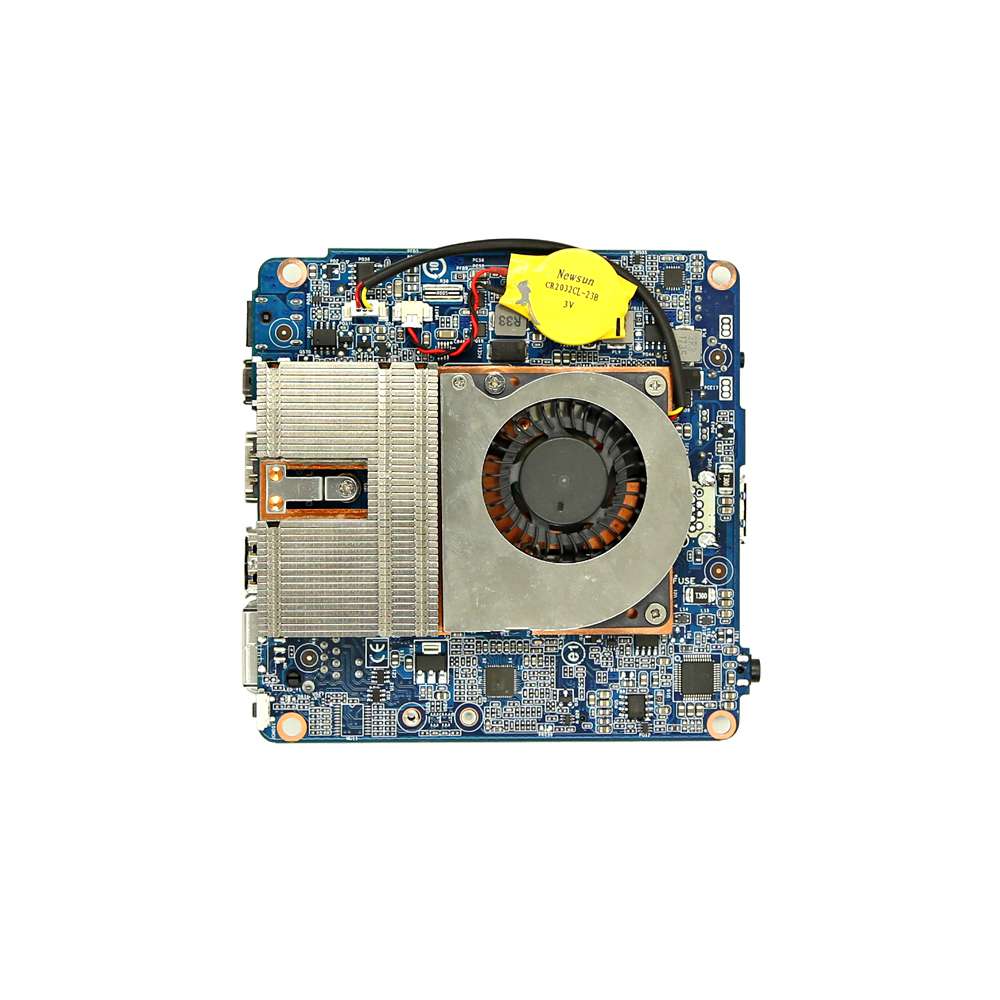

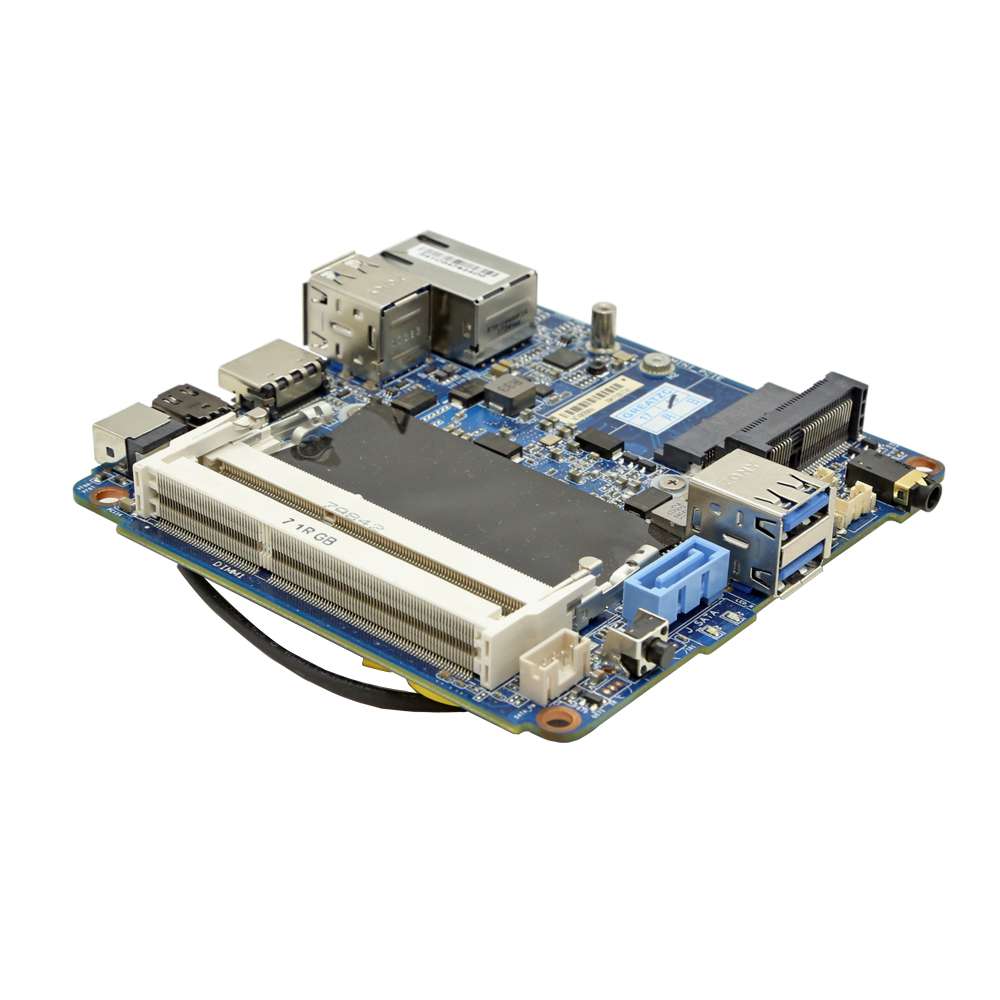

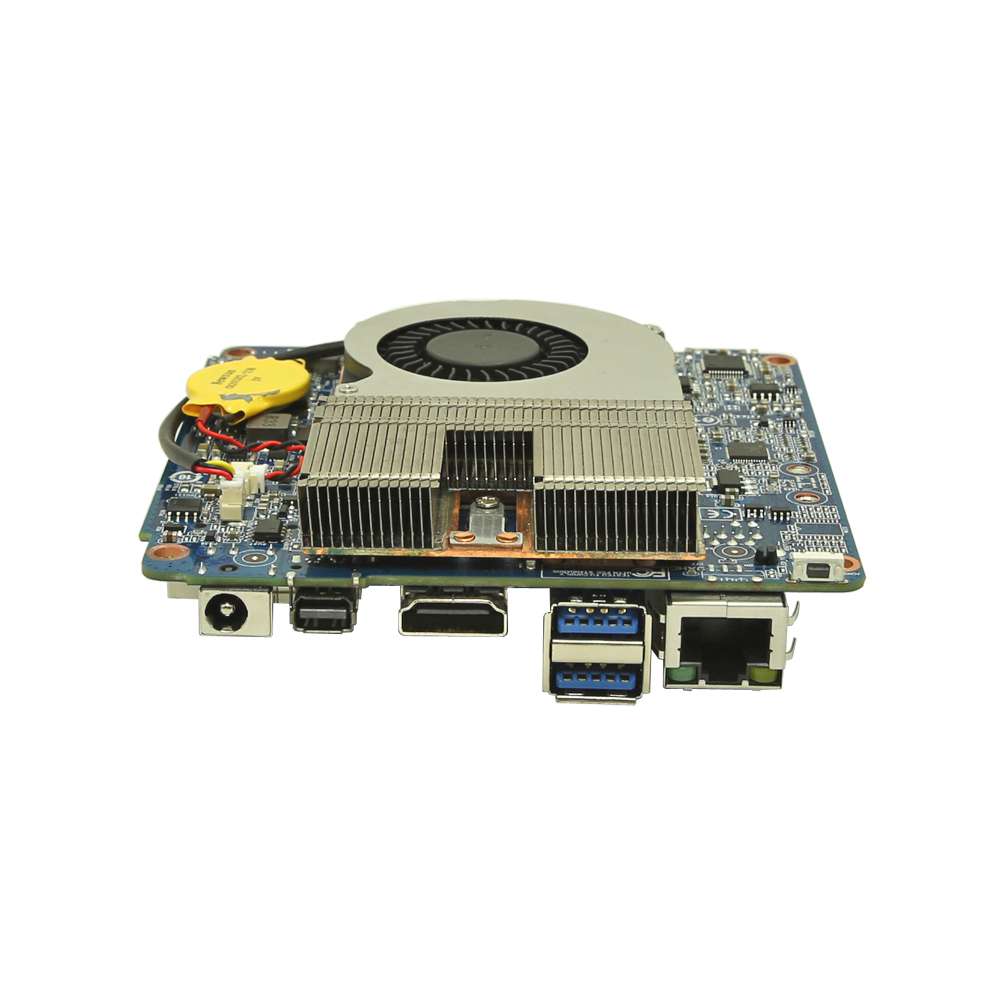

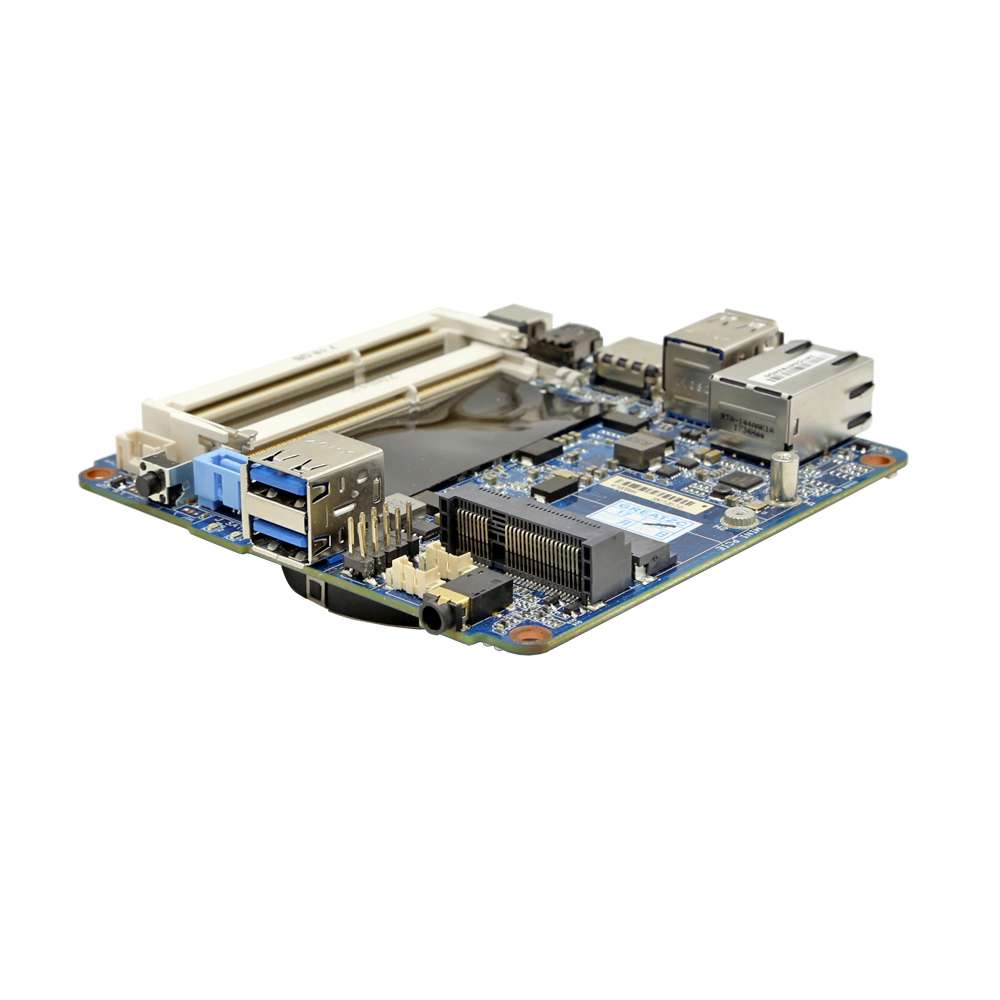

ZC-NI3855U NUC Motherboard With 3855U CPU

ZC-NI3855U Ultra Small Board Onboard Skylake Celeron 3855u CPU,Dual Core 1.6GHz,

Intel Graphics HD510,Support 4K.With 1*HDMI,1*Mini DP 1*RJ-45 LAN,1*SATA Slot,

1*MINI PCIE ,1*MINI SATA,3*USB 3.0,2*USB 2.0,DC 12V-19V

Main Features:

1. Onboard Processor Intel Skylake Celeron 3855u CPU,TDP 15W

2. INTEL HD510 Graphics,Support 4K

3. With MINI SATA,MINI PCIE,Support SSD,WIFI

4. With 1*HDMI,1*Mini DP,Support Double Display

5. DC 12V-19V Power Supply, Can be Used to More Cases

6. Ultra Small,Dimensions is only 104*104mm,Height 30mm

ZC-NI3855U Motherboard Specification

CPU(Default)	INTEL 6th Skylake Celeron 3855U Dual Core 2 Thread 1.6GHz 2MB SmartCache TDP only 15W
CPU(Customize)	6th Gen Skylake i3-6100u,i5-6200u,i7-6500u 7th Gen Kabylake i3-7100u,i5-7200u,i7-7500u
RAM	2*SO-DIMM DDR4, MAX 32GB
Graphics Card	INTEL HD510 Support 4K Playing
SATA	1*SATA Slot
Audio card	Realtek ALC662
Network Card	1*Realtek 8111F,Gigabit
Display	1HDMI 1Mini DP
Expansion Slot	1MINI SATA 1MINI PCI-E
Front Panel I/O	1Power Button 1USB 3.0 1*Audio
Rear Panel I/O	2USB 3.0 1RJ-45 1HDMI 1Mini DP 1*DC Jack
Internal I/O	USB1(4Pins) USB2(4Pins) 1F-PANEL1(9PINS) 1SATA 3.0 Slot 1SYS-FAN1 PWR(4PINS) 1MINI SATA 1*MINI PCI-E
Power Supply	12V-19V DC
Size	104*104mm,Height 30mm
