CPU

Intel Gemini Lake Refresh J4125(Default)

4 Cores 2.00GHz Burst to 2.7GHz.

4MB Cache,TDP 10W

Intel Gemini Lake/Gemini Lake Refresh Serial(Optional)

J4105/J4125/J4025/J4005/ N4000/N4020/N4100/N4120/J5005/J5040/J5000/J5030

Chipset

Soc

Display

Onboard Intel UHD Graphics 600,Support DirectX 12 OpenGL 4.4,Max 4096X2304

2*HDMI+e-DP

Network Card

2*Intel 211 Gigabit(1*LAN and 2*USB Can be replaced）

Memory

1*DDR4 SO-DIMM,Up to32GB

Storage

1*SATA3.0

1*M.2 SATA/NVME 2280(Optional)

Expansion Slot

1*M.2 for WIFI

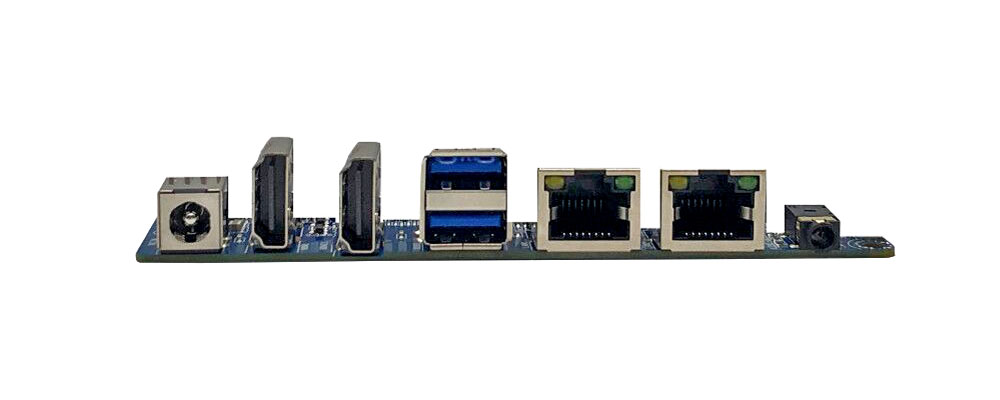

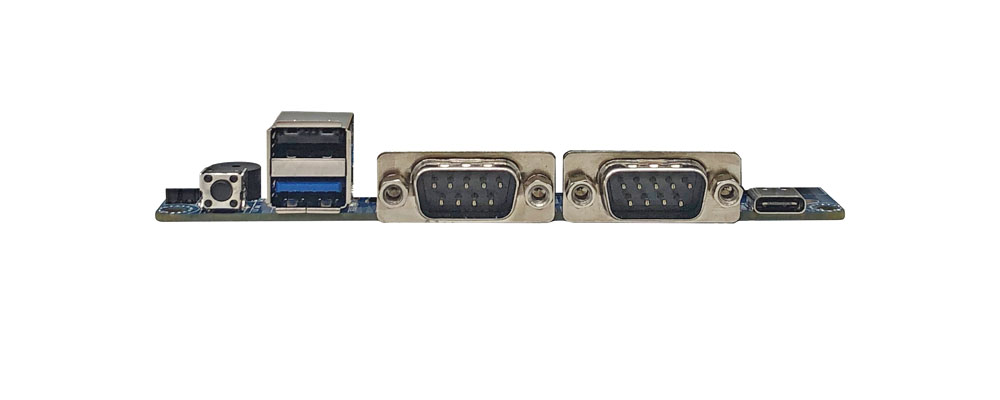

Rear I/O Ports

3*USB 3.0, 3*USB 2.0

1*Type-C(USB3. 1)

2*COM

1*HDMI 2.0,1*HDM 1.4

2*LAN

1*Power Button

1*DC-IN(DC12V-19V)

1*LINE -OUT

Internal I/O

1*F_PANEL Pin

1*AUTO -SEL Pin(Auto Start after Power On)

1*CLR_CMOS

1*LPC_CON

1*3pin FAN

1*4pin Speaker

BIOS

AMI  BIOS 64M

Power Supply

DC12V

Cooling system

Fanless,Passive Cooling

Working Temp

-10℃～60℃

Storage Temp

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

Size

120X120mm
