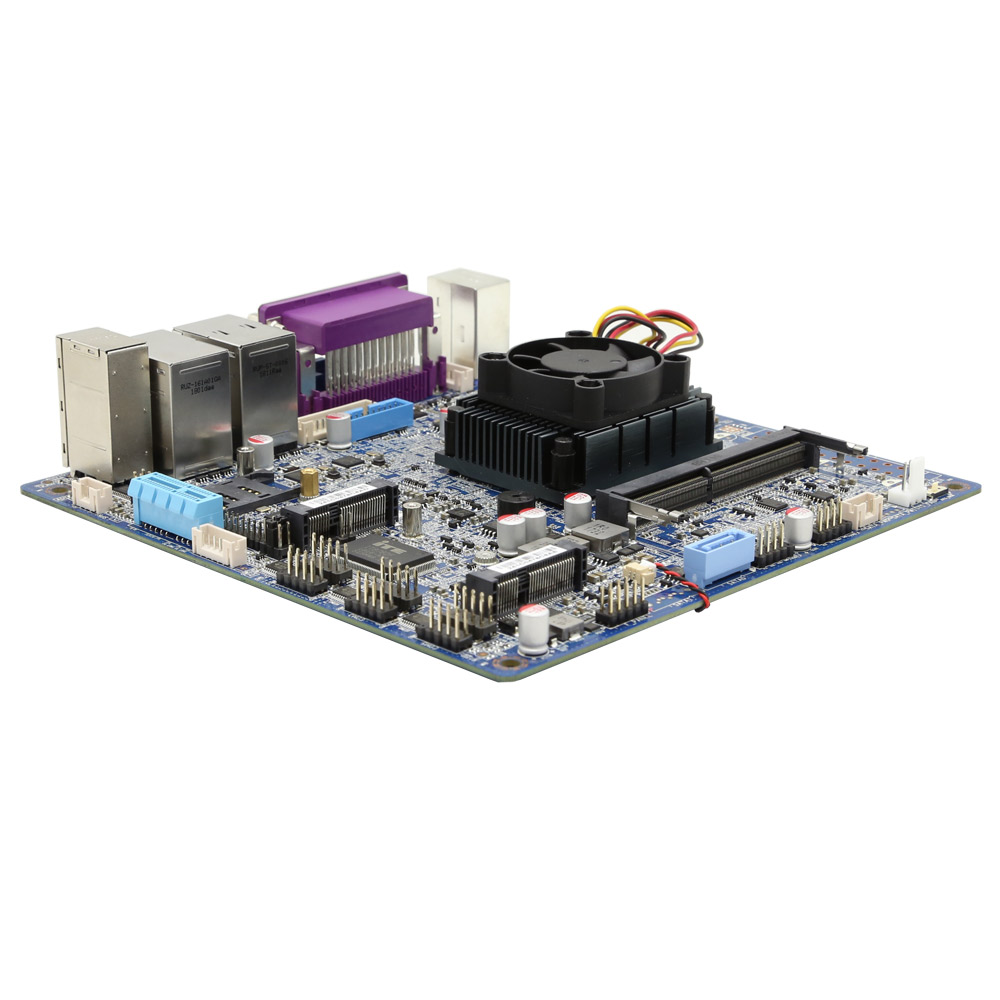

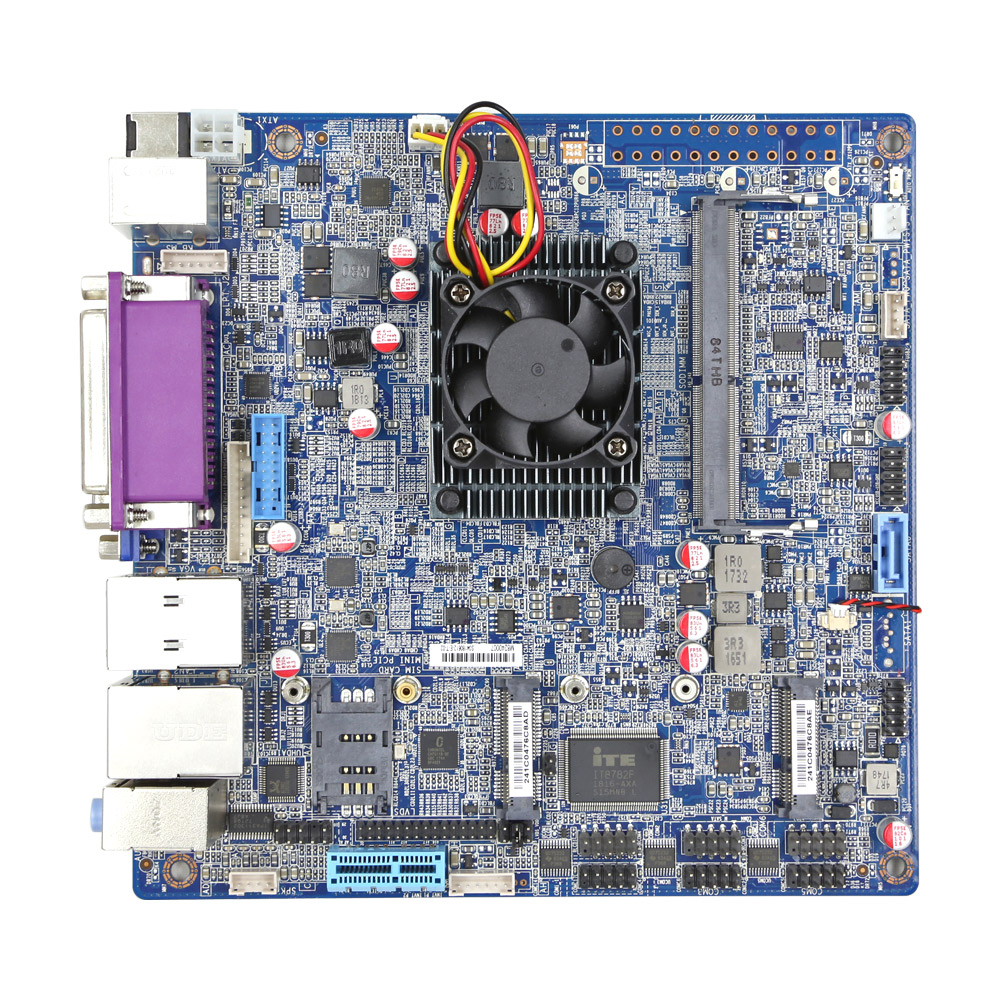

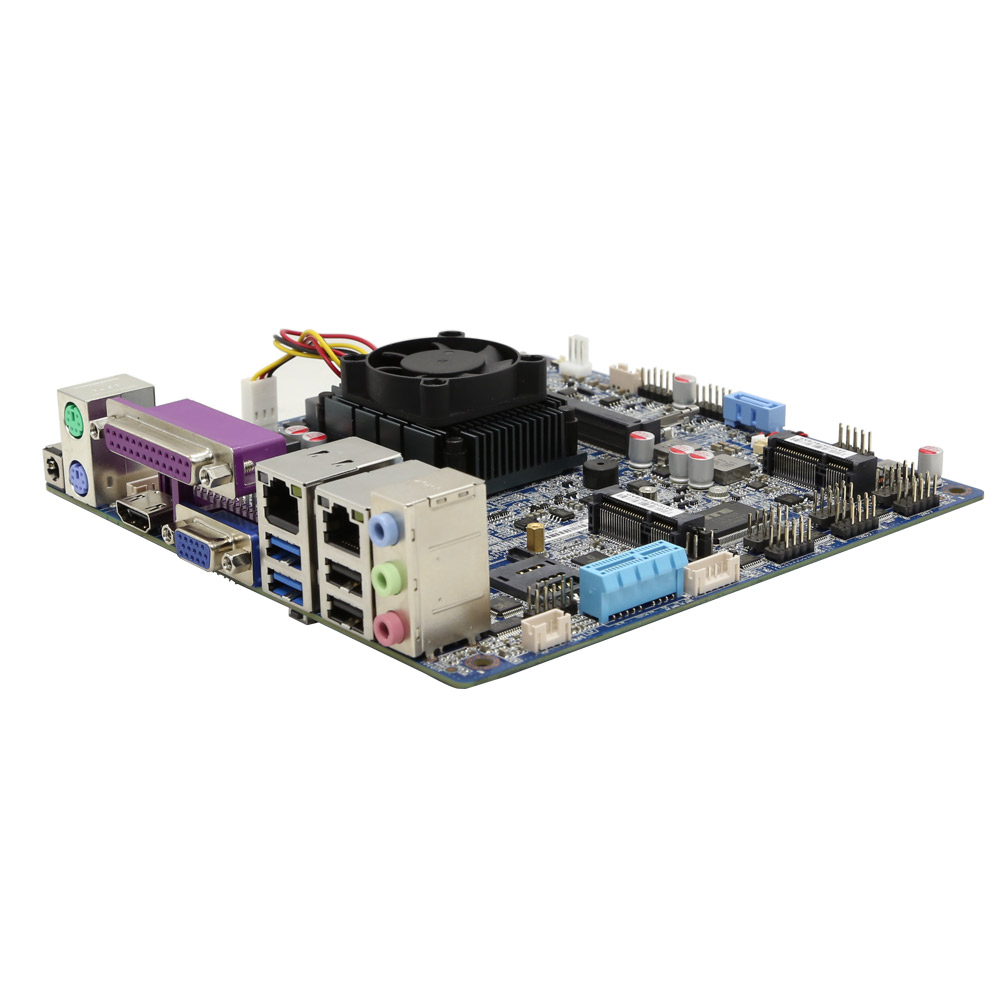

ZC-3855DL-D With 6 COM 1 LPT Dual LAN Skylake 3855u Mini itx Industrial Motherbo
- Description
ZC-3855DL-D Mini ITX Motherboard With Intel Skylake Celeron 3855U CPU,
Dual Core 1.6GHz,INTEL HD510,Support 4K.With 1*HDMI,1*LVDS,1*VGA
2*RJ-45 LAN,6*COM,1*LPT,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V
Main Features:
1. Onboard Processor Intel Skylake Celeron 3855U CPU,TDP 15W
2. INTEL HD510 Graphics,Support 4K
3. With MINI SATA,MINI PCIE,Support SSD,WIFI
4. With 1*HDMI,1*LVDS,1*VGA,Support 3 Display
5.With Dual LAN Gigabit NIC,Support WOL
6.With 6*COM Ports,1*LPT Port
7. DC 12V-19V Power Supply, Can be Used to More Cases
8. MINI ITX Motherboard (17*17),Suitable for Majority Cases
ZC-3855DL-D Motherboard Specification
|
CPU |
INTEL 6th Skylake Celeron 3855U Dual Core 2 Thread 1.6GHz 2MB SmartCache TDP only 15W |
|
RAM |
1*SO-DIMM DDR4, MAX 16GB |
|
Graphics Card |
INTEL HD510 Support 4K |
|
SATA |
1*SATA Slot |
|
Audio card |
Realtek ALC662 |
|
Network Card |
2*Realtek 8111F 1000Mbp/s Network Card |
|
Display |
1*HDMI 1*VGA 1*LVDS |
|
LVDS |
1*Double Channel 8Bit/24Bit LVDS |
|
Expansion Slot |
1*MINI SATA 1*MINI PCI-E 1*SIM Slot |
|

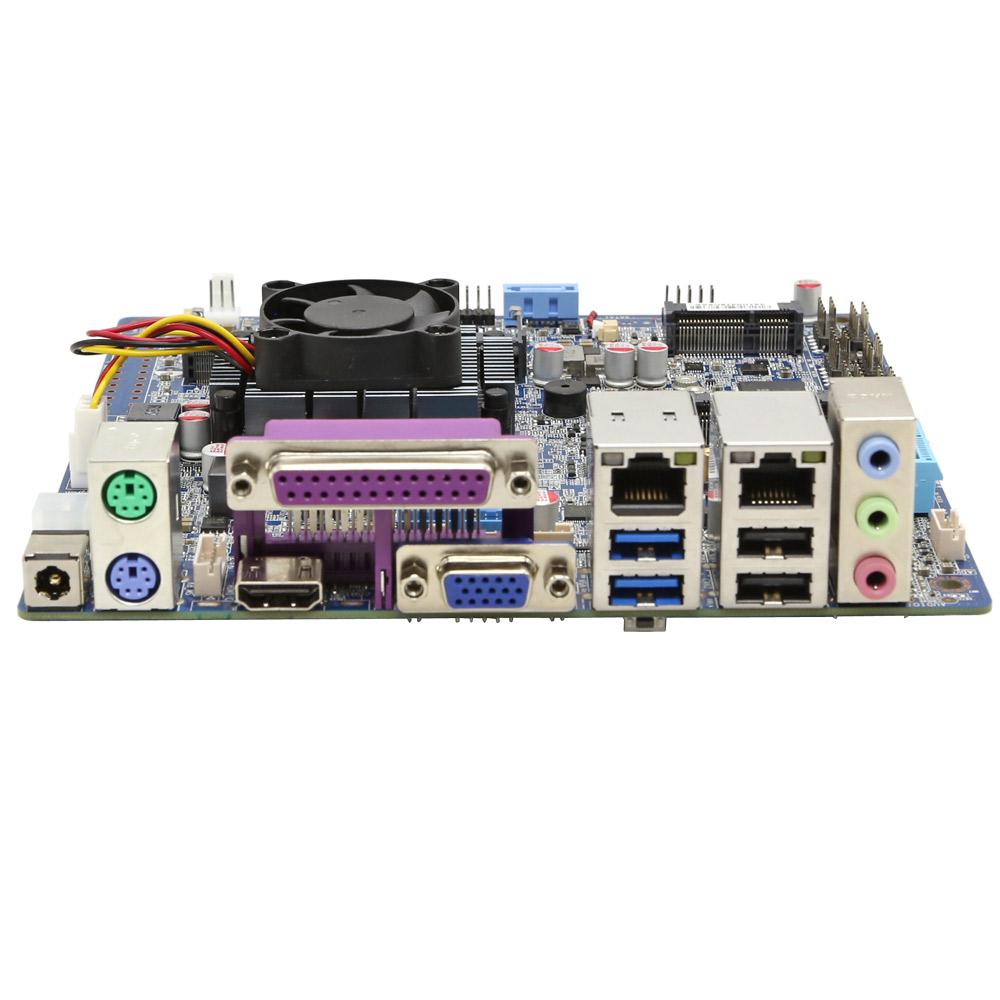

Rear Panel I/O |
2*USB 3.0 2*USB 2.0 2*RJ-45 1*HDMI 1*VGA 1*LPT 1*PS2 1*DC Port 1*Speaker 1*MIC IN |
|
Internal I/O |
1*F-USB(Support 2*USB 2.0 Ports) 1*F-USB(Support 2*USB 2.0 Ports) 1*USB 3.0(Support 2*USB 3.0 Ports) 1*KB-MS(6PINS) 1*F-AUDIO(9PINS)
1*Amplifier(4PINS) 1*SATA 3.0 Slot 1*SATA Power 1*SYS-FAN PWR(3PINS) 1*CPU FAN PWR(3PINS) 1*30PINS LVDS(30PINS) 1*LVDS Backlight(6PINS) 1*LVDS VDD(6PINS) 1*DC ATX(4PINS) 1*MINI SATA 1*MINI PCI-E 1*SIM Slot 1*AUTO Power ON Switcher 1*CMOS Clear Switcher |
|
Power Supply |
12V-19V DC-In 4PIN DC-ATX |
|
Size |
MINI ITX(17cm*17cm) |
