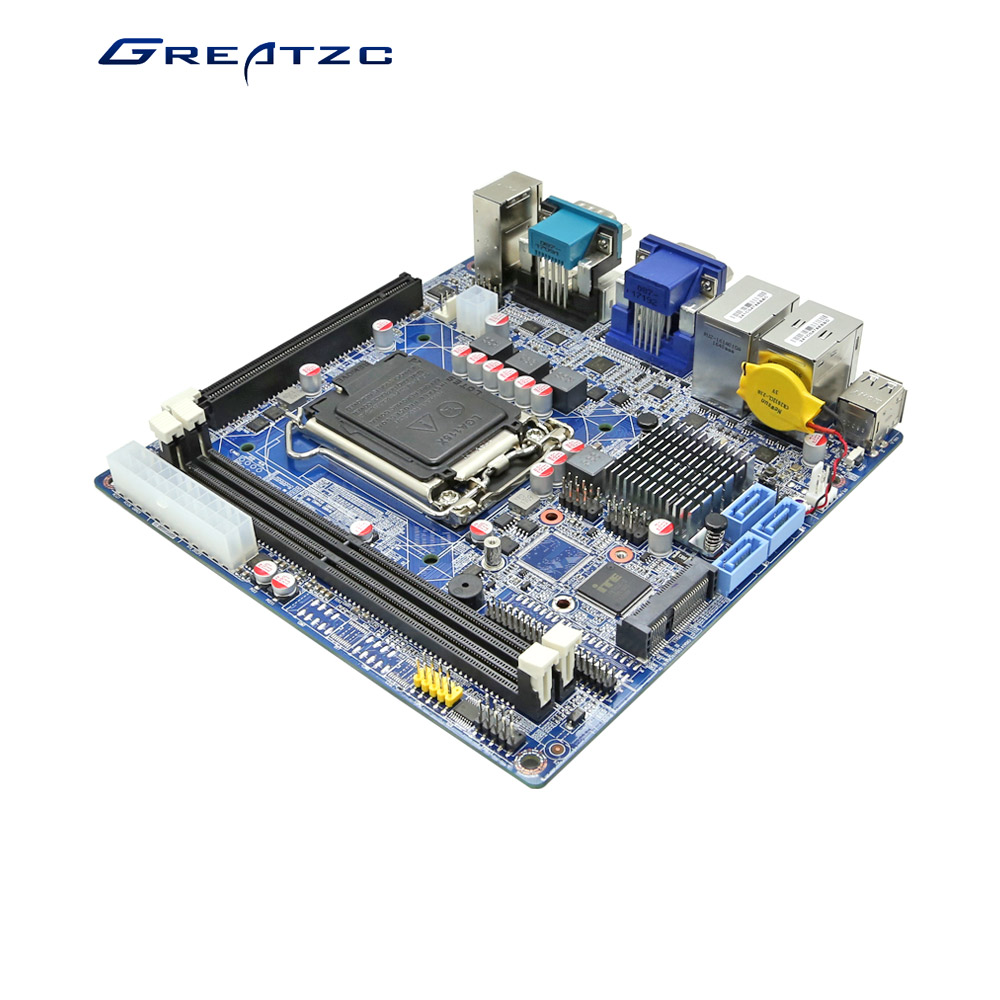

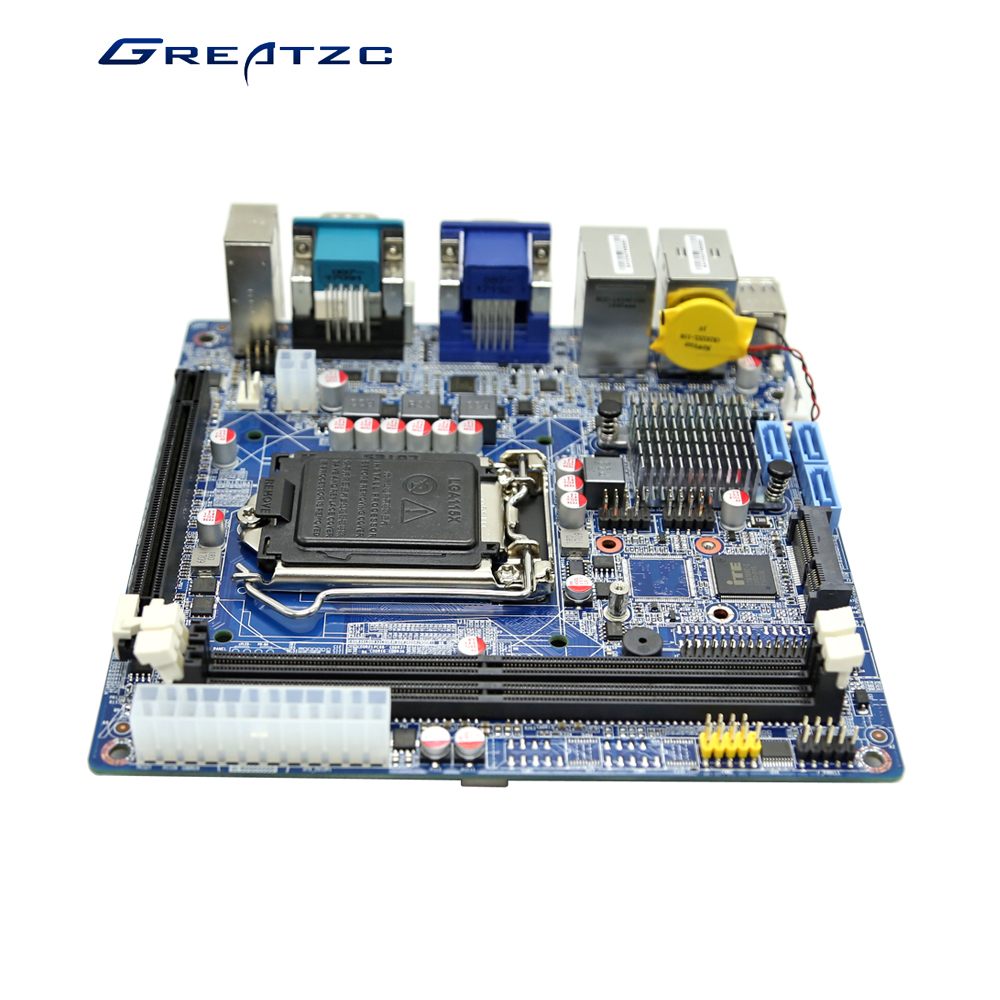

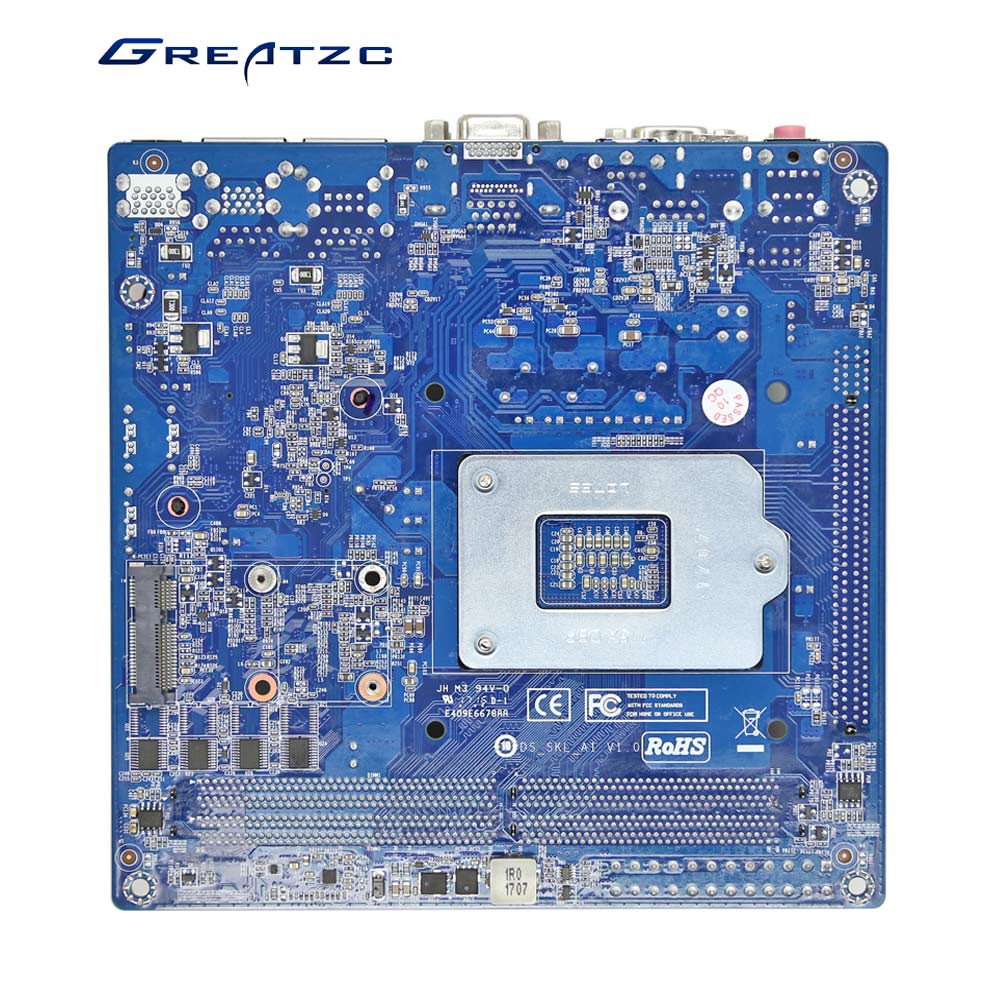

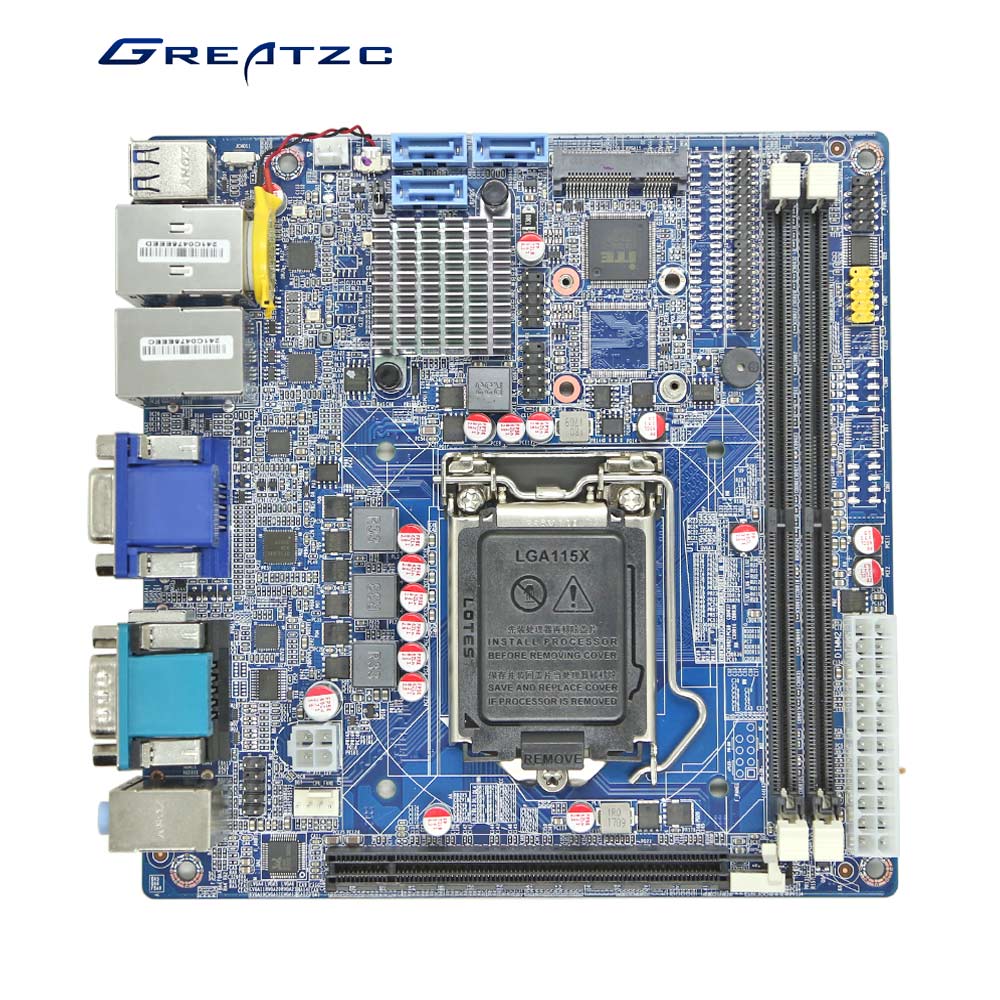

ZC-DT-H110D6C Mini ITX Mainboard LGA1151
- Description
Support 6th LGA1151 Core i7/i5/i3/Celeron/Pentium Processor
With 1*HDMI,2*VGA,2*RJ45 LAN,4*USB 3.0+6*USB 2.0,6*COM Ports
1*MINI SATA,1*MINI PCI-E
Main Features:
1. Intel H110 Chipset,LGA1151 Core i7/i5/i3/Celeron/Pentium
2. With 1*HDMI+2*VGA,Support Double Display
3. Processor integrated Intel HD Graphics,Support 4K
5. With 2*UDIMM DDR4 Slots,Support Max 32GB
6. With 3*SATA,1*MINI SATA,Enough Storage
7. With 1*Mini PCI-E Supports WIFI/4G/3G etc.
8. 4*USB 3.0+6*USB 2.0,Enough USB Ports
9. With 6*COM Ports,More Application
10. MINI ITX 17*17,Suitable For POS Machine,All In One Machine,ATM
PC Station,MINI PC,Advertising Machine etc.

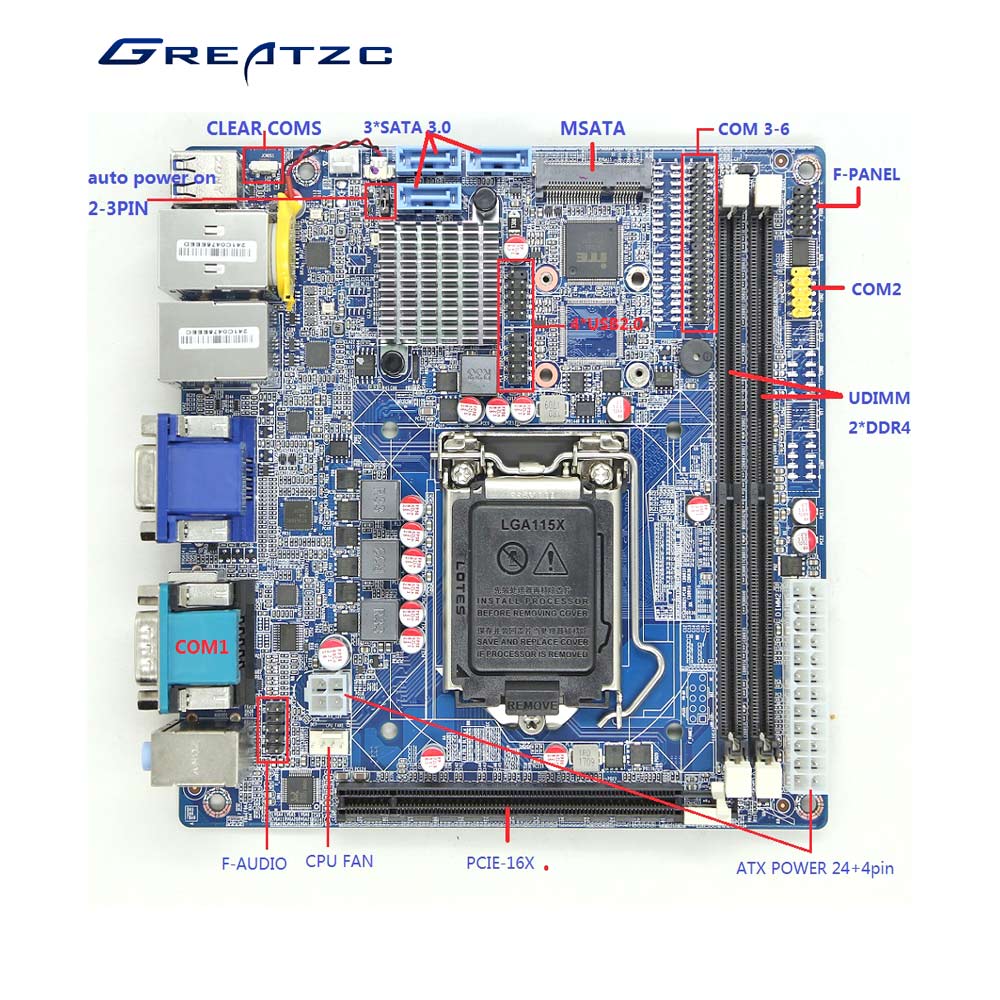

ZC-DT-H110D6C Motherboard Specification
|
Model Name |
ZC-DT-H110D6C |
|
Processor |
Intel LGA1151 Socket Support LGA1151 Core i7/i5/i3/Celeron/Pentium |
|
Chipset |
Intel H110 |
|
RAM |
2*UDIMM DDR4,up to 32GB |
|
Graphics Card |
No Processor Integrated Graphics Card |
|
Storage |
3*SATA 3.0,1*MINI SATA |
|
Expansion Slot |
1*MINI PCI-E 1*MINI SATA 1*PCIE x16 |
|
Network Card |
2*Realtek RTL8111F Gigabit LAN Card |
|
Audio Card |
ALC 662 |
|
Rear Panel I/O |
4*USB 3.0 2*USB 2.0
1*HDMI 1.4b 1*SPK 1*MIC 1*RS232 1*PS2 2*RJ45 LAN Ports |
|
Internal I/O |
F-PANEL 1*SYSFAN 1*CPUFAN F-USB1(Support 2 USB2.0) F-USB2(Support 2 USB2.0) COM2-6(5*RS232) ATX 24+4 PINS MINI PCIE PCIE 16X MINI SATA |
|
Power |
ATX 24+4 PINS |
|
Size |
Mini ITX (17cm*17cm) |
