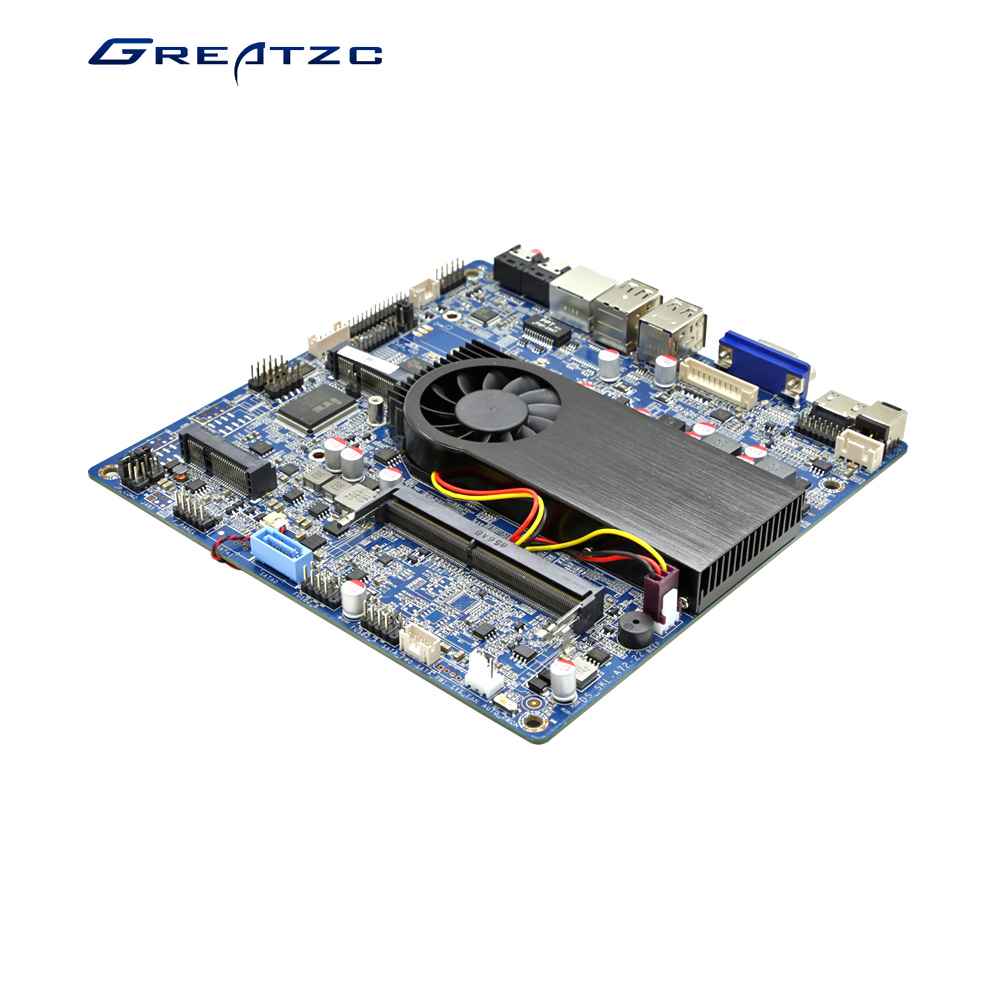

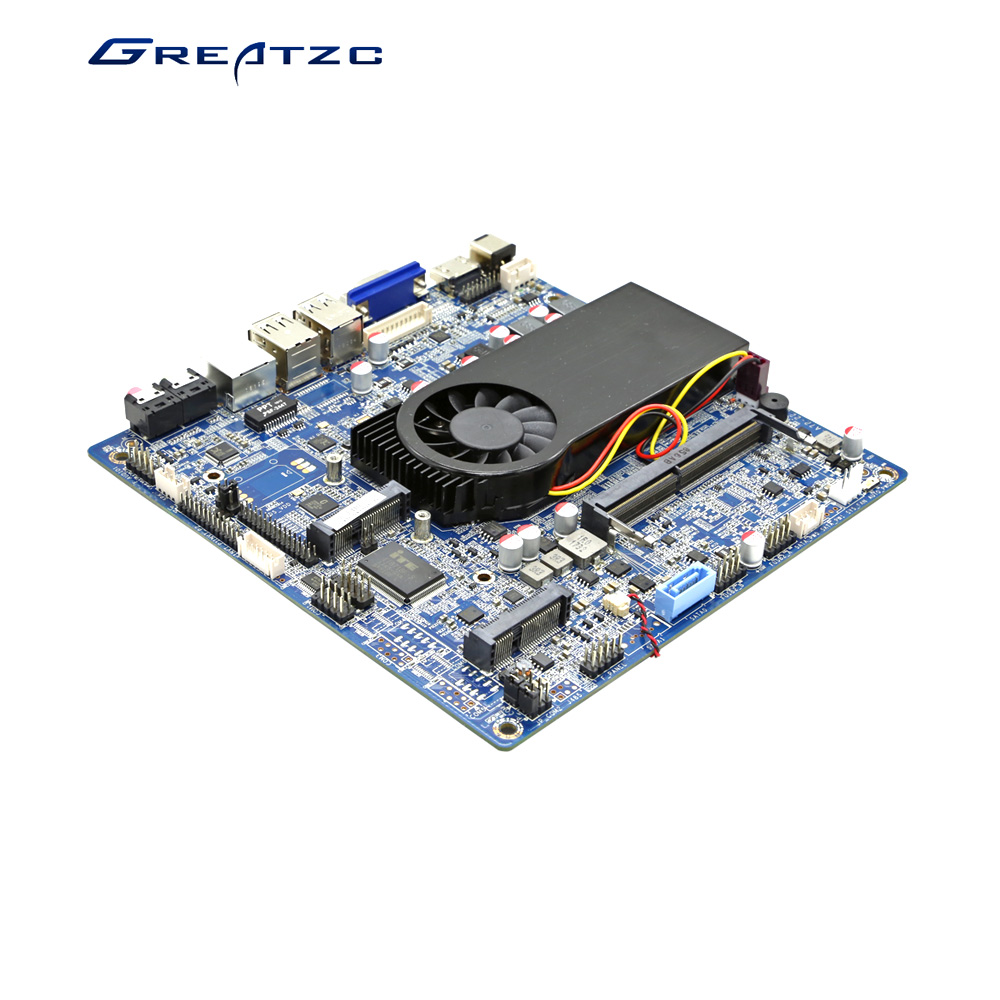

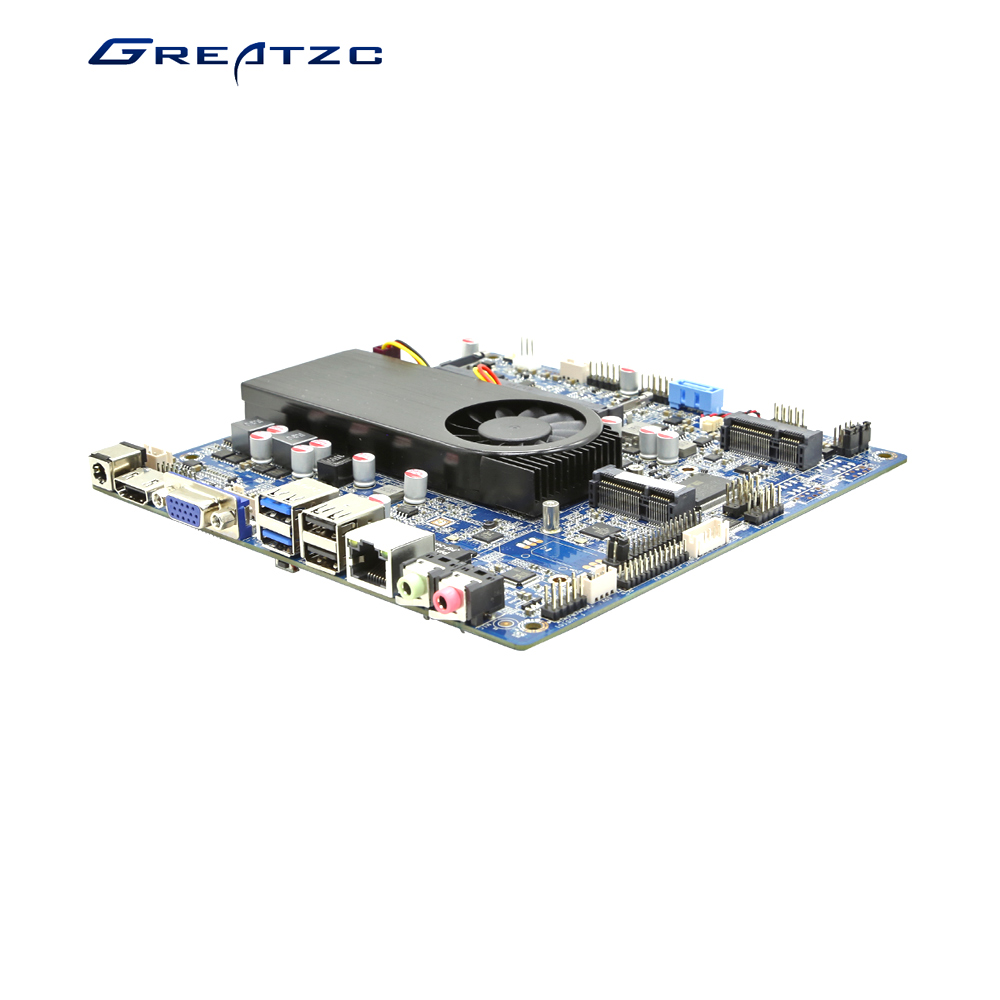

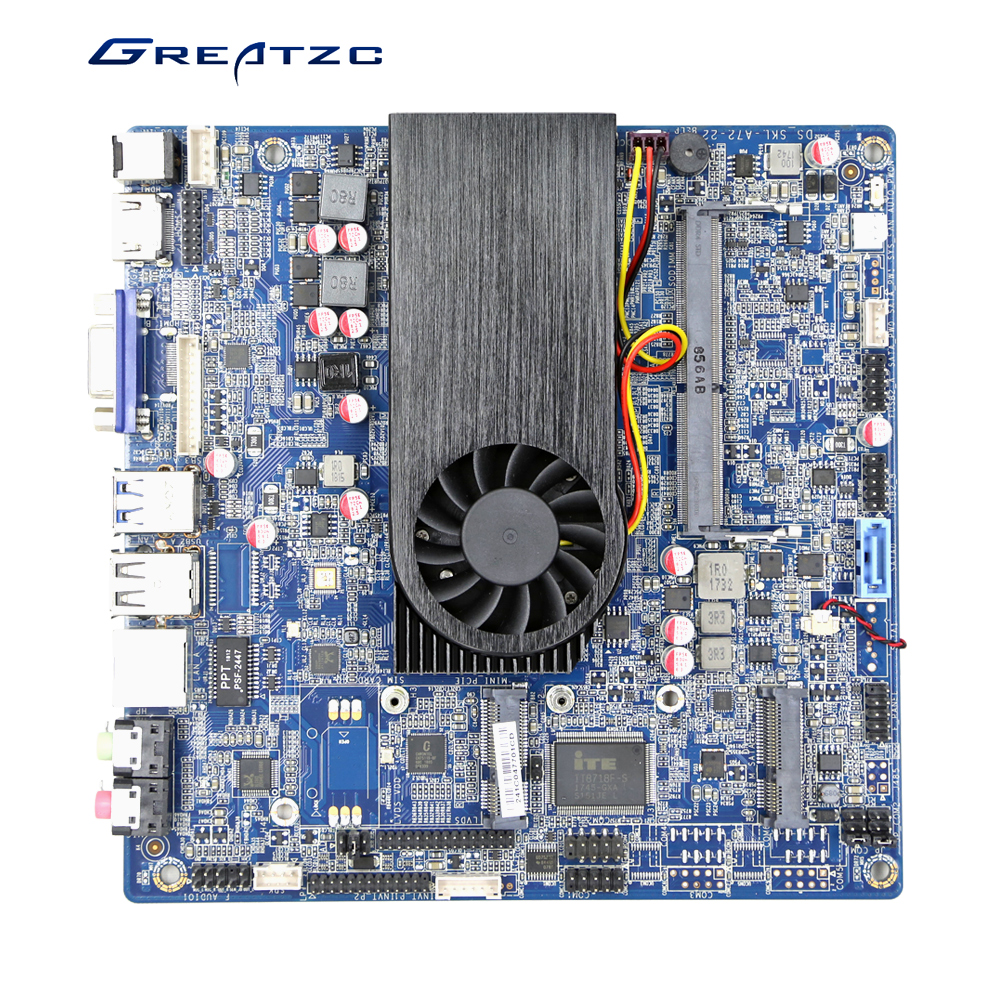

ZC-T6100SL-V Industrial Motherboard LVDS Mini ITX Motherboard For 4K Intel HD520
- Description
ZC-T6100SL-V Mini ITX Motherboard With Intel Skylake core i3-6100U CPU,
Dual Core 2.3GHz,INTEL HD520,Support 4K.With 1*HDMI,1*VGA,1*LVDS,
1*RJ-45 LAN,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V,
Support Total 8*USB
Main Features:
1. Onboard Processor Intel Skylake Core i3-6100U CPU,TDP 15W
2. INTEL HD520 Graphics,Support 4K
3. With MINI SATA,MINI PCIE,Support SSD,WIFI
4. With 1*HDMI,1*VGA,1*LVDS,Support Double Display
5. DC 12V-19V Power Supply, Can be Used to More Cases
6. MINI ITX Motherboard (17*17),Suitable for Majority Cases
ZC-T6100SL-V Motherboard Specification
|
CPU |
INTEL 6th Skylake Core i3-6100U Dual Core 4 Thread 2.3GHz 3MB SmartCache TDP only 15W |
|
RAM |
1*SO-DIMM DDR4, MAX 16GB |
|
Graphics Card |
INTEL HD520 Support 4K |
|
SATA |
1*SATA Slot |
|
Audio card |
Realtek ALC662 |
|
Network Card |
1*Realtek 8111F 1000Mbp/s Network Card |
|
Display |
1*HDMI 1*VGA 1*LVDS |
|
LVDS |
1*Double Channel LVDS |
|
Expansion Slot |
1*MINI SATA 1*MINI PCI-E |
|
Rear Panel I/O |
2*USB 3.0 2*USB 2.0 1*RJ-45 1*HDMI 1*VGA 1*DC Jack 1*Speaker 1*MIC IN |
|
Internal I/O |
1*F-USB(Support 2*USB 2.0 Ports) 1*F-USB(Support 2*USB 2.0 Ports) 1*JHDMI(16PINS) 1*JVGA(15PINS)
1*F-AUDIO(9PINS) 1*SATA 3.0 Slots 1*SYS-FAN1 PWR(3PINS) 1*CPU FAN PWR(3PINS) 1*30PINS LVDS 1*LVDS Backlight(6PINS) 1*LPT 1*SPK(4PINS) 1*DC ATX(4PINS) 1*MINI SATA 1*MINI PCI-E |
|
Power Supply |
12V-19V DC-In 4PIN DC-ATX |
|
Size |
MINI ITX(17*17) |
