ZC-G33-Q250M2 PCIE X16 Industrial PC I3 I5 I7 CPU
- Description
ZC-G33-Q250M3 Industrial PC LGA1151 Socket Supports 9th/8th/7th/6th Gen Core i7/i5/i3/Celeron/Pentium CPU,1*HDMI+1*VGA,2*RJ45,4*USB 2.0,4*USB 3.0,1*Audio Out,1*MIC,1*PS2,2*RS232 Default,4*RS232/2*RS485 Optional
Main Features:
1.) Industrial Grade Quality,Very stable
2.) Intel LGA 1151 Socket Q250 Chipset
3.) 2*SO-DIMM DDR4 Slots,Support Max 32GB
4.) 1*M.2+1*mSATA,2*SATA 2.5’’ or 1*SATA 3.5’’
5.) Rich USB Ports,4*USB 2.0,4*USB 3.0
6.) Serial 2*RS232 Default,4*RS232/2*RS485 Optional

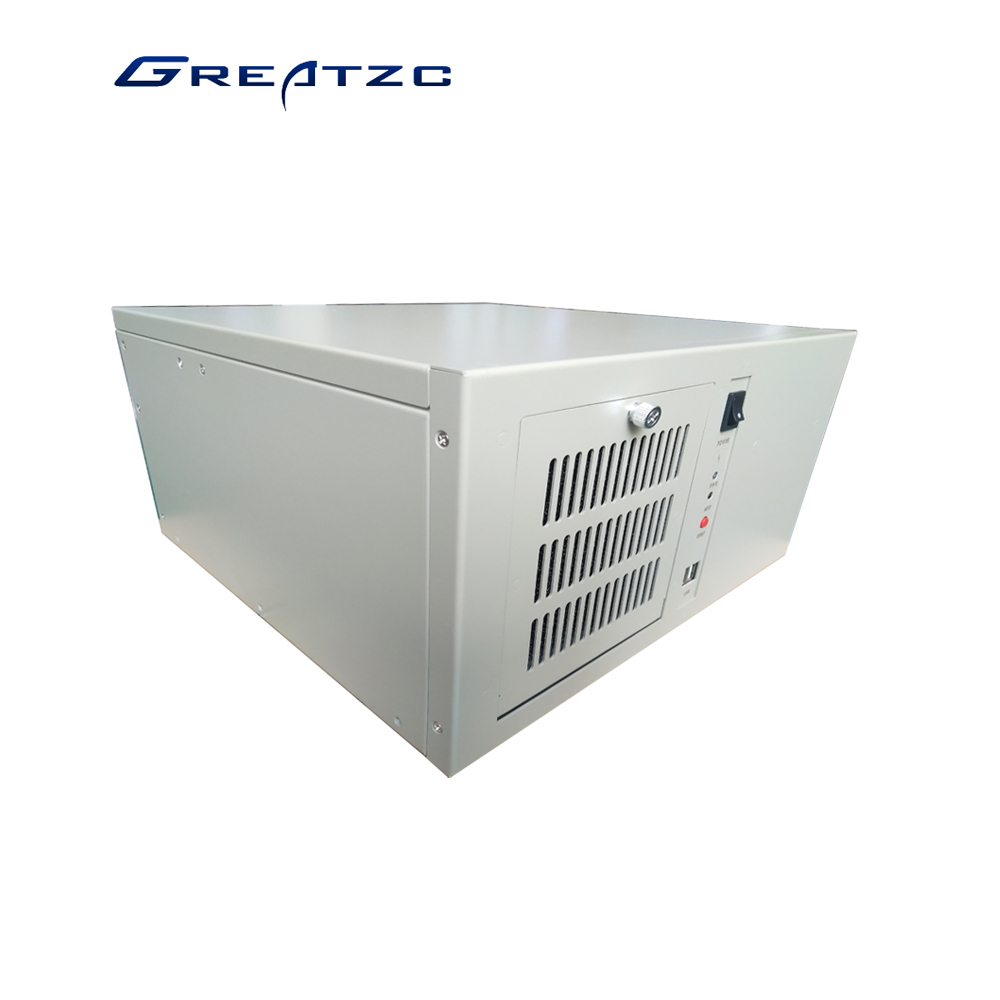

ZC-G33-Q250M3 Industrial PC
|
Processor |
Intel LGA1151 Socket Supports 9th/8th/7th/6th Gen i7/i5/i3/Celeron/Pentium |
|
Chipset |
Q250 |
|
RAM |
2*DDR4 DIMM,Support 2133/1866/2400MHz,Max 32GB |
|
Storage |
2*SATA 2.5’’ or 1*SATA 3.5’’ 1*mSATA Slot 1*M.2 Slot |
|
Network Card |
2*Gigabit Network Card, Support Wake-on-LAN/PXE |
|
I/O Ports |
1*VGA 1*HDMI 4*USB 3.0 4*USB 2.0 2*RJ45 1*PS2 1*Audio Out 1*MIC 2*RS232 Default 4*RS232 or 2*RS485 Optional 1*On/Off Button 1*Power LED 1*HDD LED |
|
Expansion Slot |
1*PCI-E 16X 1*PCIE X4 2*PCI |
|
Discrete Graphics Card |
Optional |
|
Power Supply |
ATX Power |
|
OS Support |
Windows 10/8.1,Linux |
|
Operating Temp |
-10℃～60℃ |
|
Storage Temp |
-30℃～80℃ |
|
Operating Humidity |
5%-95% Relative humidity,non-condensing |
|
Size |
330*330*180mm |
