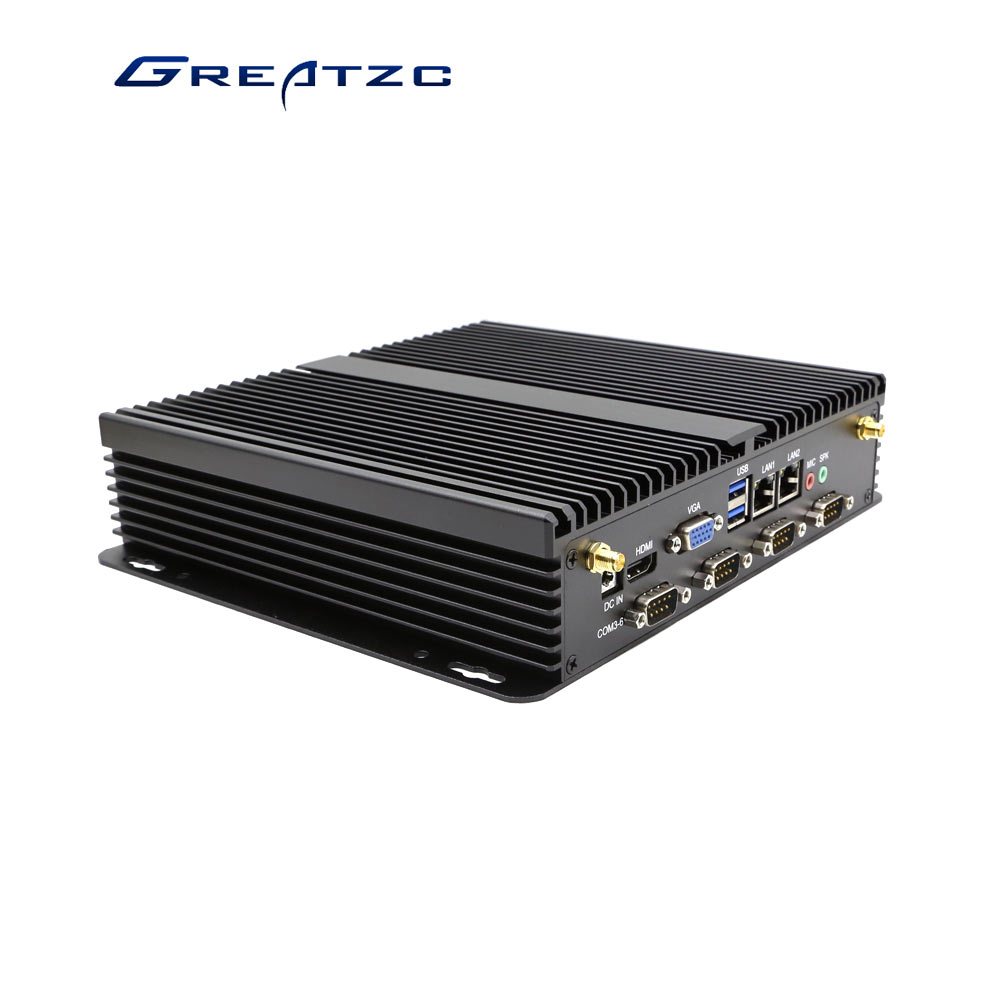

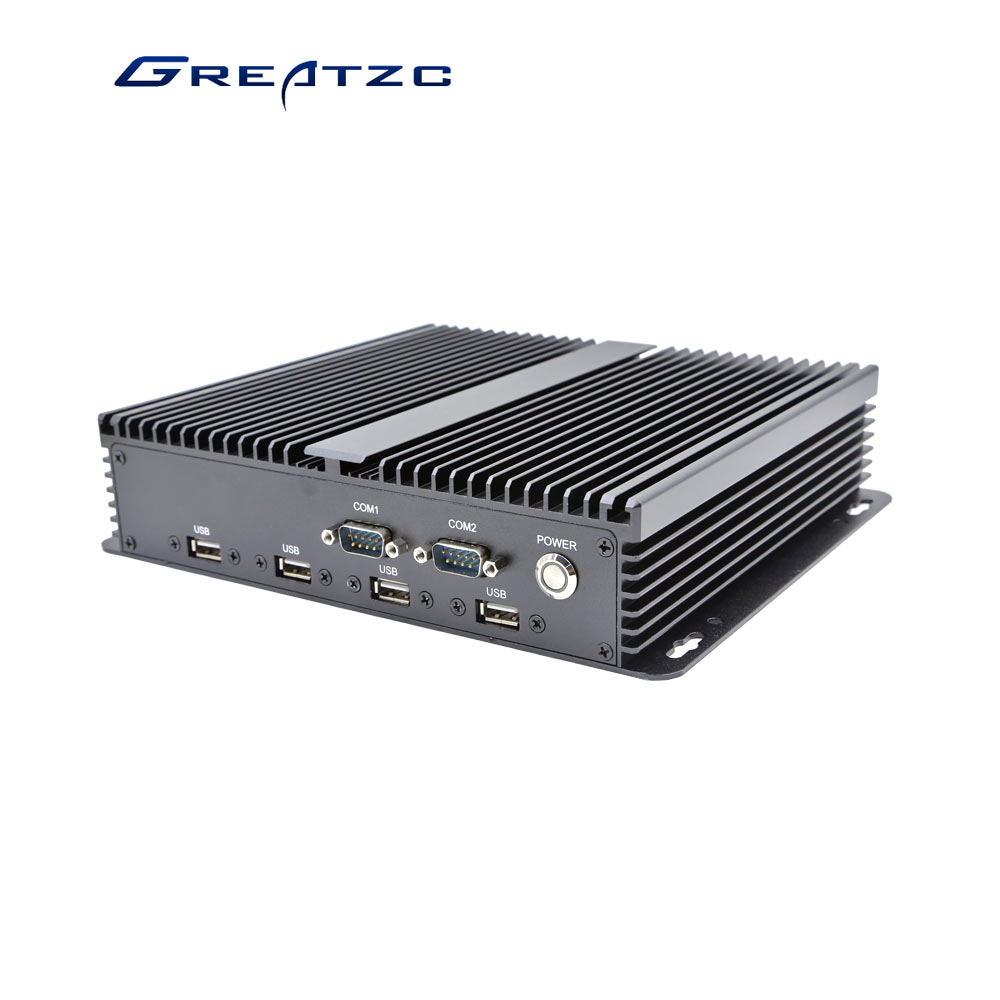

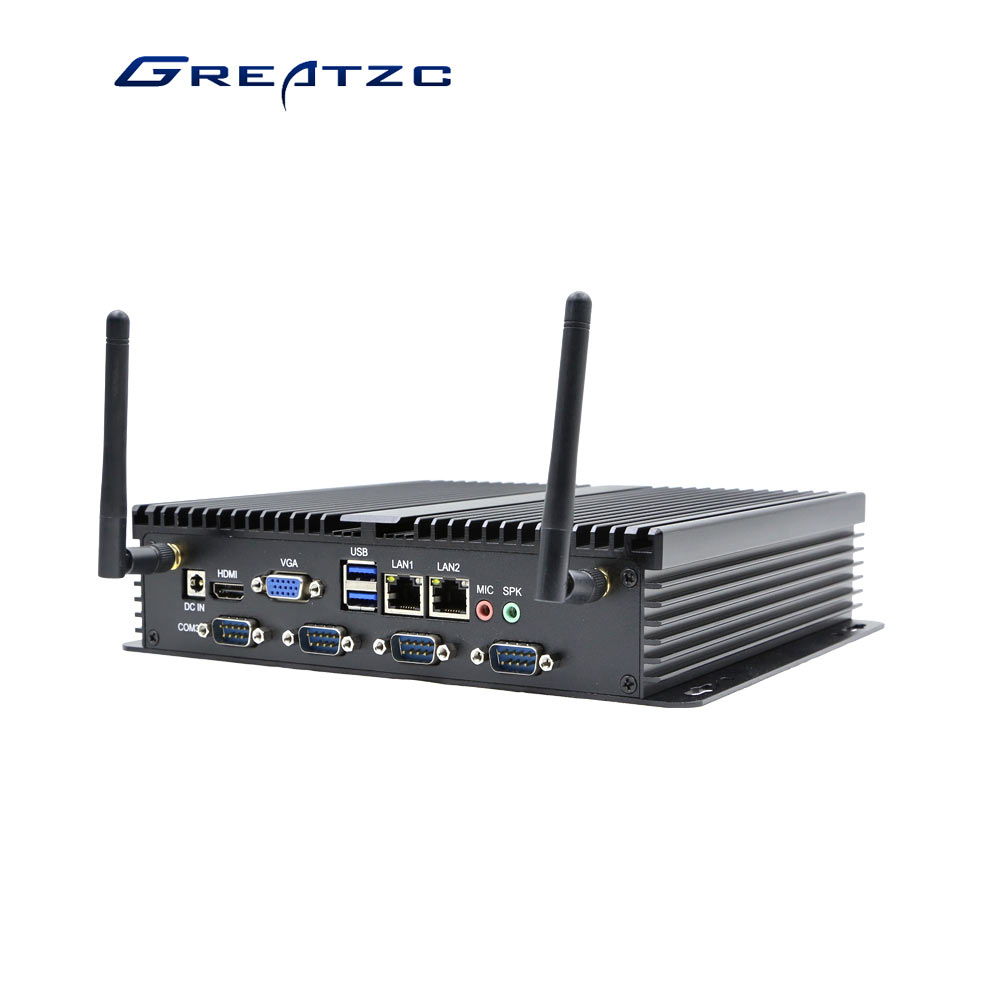

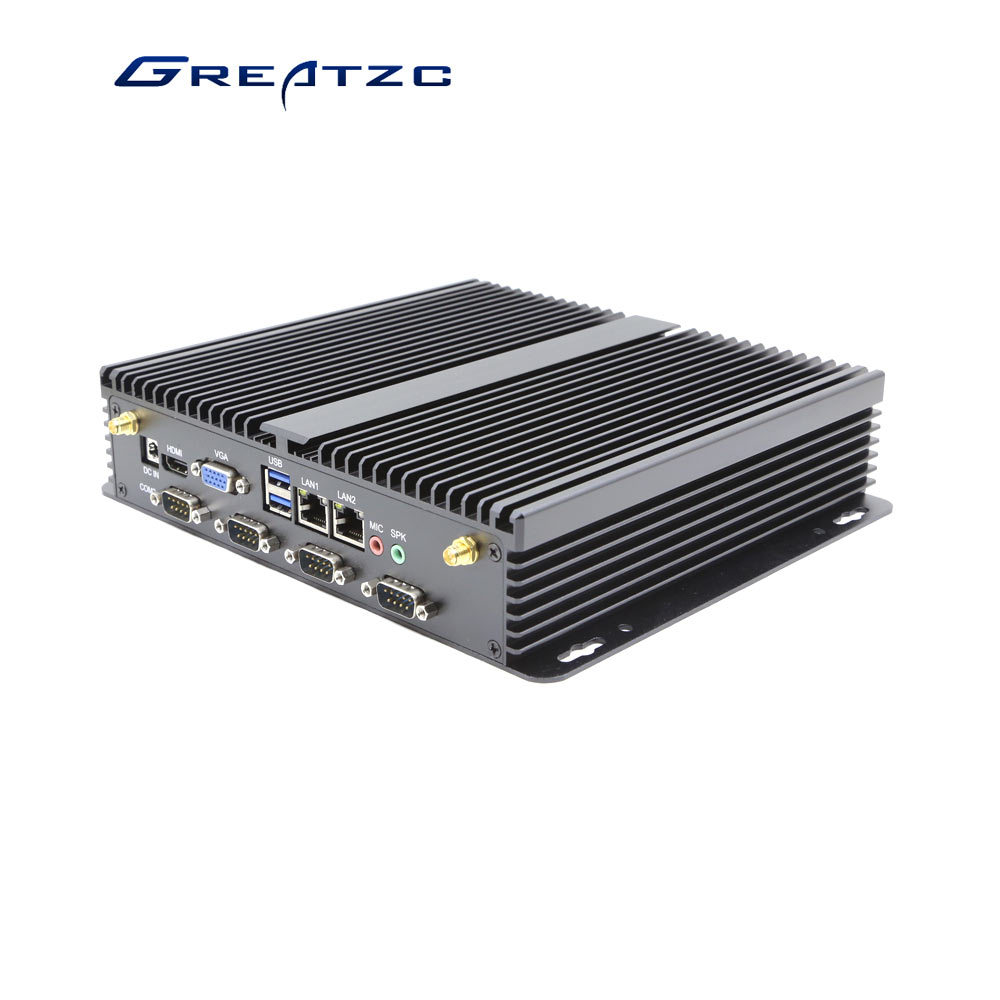

ZC-G52-ITX10U Fanless Industrial PC 10th Gen i5-10210u CPU 6 COM Ports
- Description
ZC-G52-ITX10U Fanless Industrial Computer Onboard Intel 10th Gen i3-10210U CPU,4 Cores 1.6 GHz,
Turbo Boost 4.2GHz,Intel UHD Graphics Card,With 4*USB 2.0,2*USB 3.0,5*RS232 Ports,1*RS232/422/485,
1*VGA Port,1*HDMI,2*Lan Port,1*MIC,1*SPK,1*DC 12V Port
Main Features
1)Onboard CPU Intel 10th Gen i5-10210u CPU,4 Core 1.6GHz,Turbo Boost 4.2GHz
2)Intel UHD Graphics Card,Support 4K Display
3)With 1*VGA Ports,1*HDMI,Support Double Display
4)Rich USB Ports,With 4*USB 2.0,2*USB 3.0
5.)Rich COM Ports,5*RS232 COM Ports,1*RS232/422/485
6.)2*LAN Ports,Support RTL,PXE Boot,Wake on LAN
7.)Full aluminium alloy shell,dustproof,durable,resist compression
8.)Fanless Design,Industrial Design,Best Quality
9.)Onboard MINI SATA,MINI PCIE,Rich Ports
|
CPU Intel 10th Gen Comet Lake Serial |
I3-10110U |
I5-10210U |
I7-10510U |
|
2 Cores 2.1GHz Turbo to 4.1GHZ |
4 Cores 1.6GHz Turbo to 4.2GHZ |
4 Cores 1.8GHz Turbo to 4.9GHZ |
|
|
RAM |
2*DDR4 SO-DIMM,Up to 32GB |
||
|
Storage |
1*SATA 2.5" Slot(Customize) |
||
|
1*M.2 Slot,Support M.2 2260/2280 NVME PCIE x4 SSD |
|||
|
Graphics Card |
Intel UHD Graphics,Support 4K |
||
|
Network Card |
2*Intel I211,Gigabit |
||
|
I/O Ports |

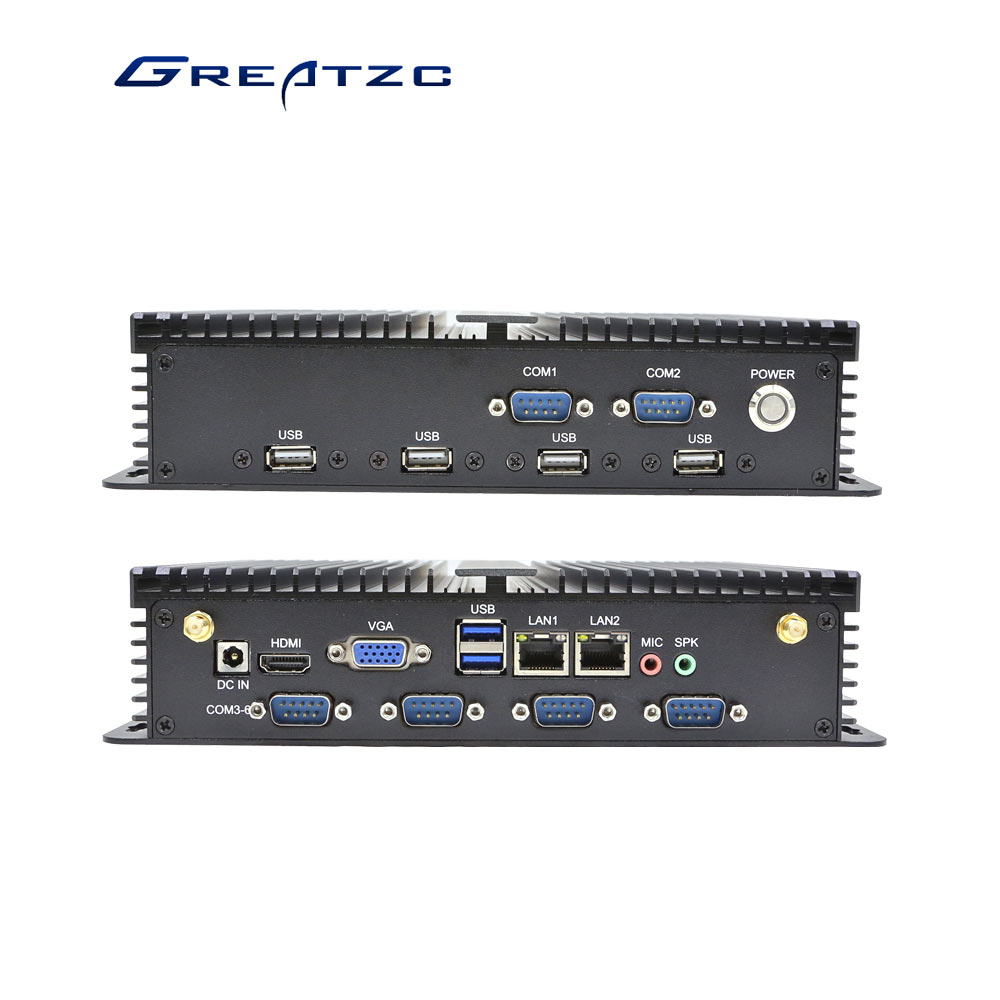

1*VGA 1*HDMI 4*USB 2.0 2*USB 3.0 1*SPK ,1*MIC 2*RJ45 Lan 5*RS232 COM Ports 1*RS232/422/485 1*12V DC Jack 1*Power Button |
||
|
Expand |
1*Mini PCI-E for WIFI/3G/4G 1*Sim Slot |
||
|
Size |
52*215*236mm |
||
|
Weight |
1.85KG |
||
|
Power Adapter |
DC 12V/5A |
||
|
Working Temperature |
-10℃~+60℃ |
||
|
Storage Temperature |
-20℃~+70℃ |
||
|
Relative Humidity |
5%-95% Relative humidity,no condensation |
||
