ZC-T42-J6412SL Mini Computer Onboard J6412 CPU
- Description
ZC-T42-J6412SL Mini PC Onboard Intel Elkhart Lake J6412 CPU,2 Display HDMI+VGA,1*USB Type C+1*USB 3.0+2*USB 2.0
2*RS232/485 Optional
Main Features:
1.) Compact Small,Size only 190*190*42.5mm
2.) Onboard Intel Elkhart Lake J6412 4 Cores 2.0GHz
3.) Rich Memory 2*SO-DIMM DDR4 Slot,Up to 32GB
4.) Intel UHD Graphics,Support 4K,HDMI+VGA Display
5.) 1*M.2 for WIFI/BL,1*M.2 for 4G/5G With SIM Slot
6.) Excellent Heat Exchange:With Many Holes On The Case
7.) VESA Mount Optional,Easy to Put and Move,Saving Space
ZC-T42-J6412SL Mini PC Specification
|
CPU |
Intel Elkhart Lake J6412,4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W |
|
Chipset |
Soc |
|
Memory |
2*SO-DIMM DDR4 Slot,Max 32GB |
|
Storage |
1*M.2 2280(Support both SATA/NVME) |
|
Graphics |
Intel UHD Graphics,Support 4K |
|
Network |
1*RTL8111H,Gigabit |
|
WIFI |
Optional |
|
Extend |
1*M.2 for WIFI/BL,1*M.2 for 4G/5G With SIM Slot |
|

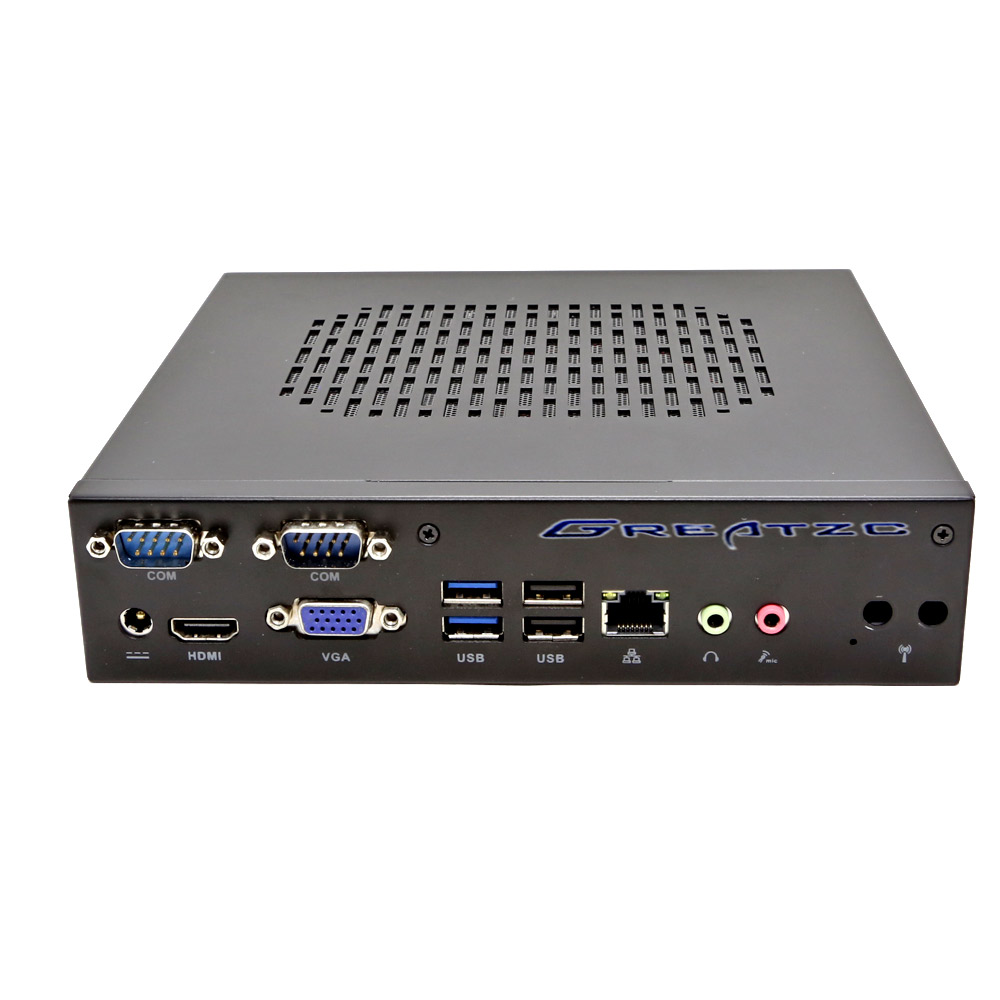

Rear Ports |
1*RJ-45 1*HDMI 1*VGA 1*USB Type C 1*USB 3.0 2*USB 2.0 1*Line Out 1*MIC IN 1*DC12V Jack |
|
From Ports |
1*Power Button 2*USB 3.0 2*USB 2.0 |
|
Size |
190*190*42.5mm |
|
Power Supply |
12V |
|
Working Temp |
-20℃ to +60℃ |
|
Storage Temp |
-20℃ to +70℃ |
|
Relative Humidity |
5%-95% Relative humidity,no condensation |
