ZC-M2-J6412SL J6412 Mini PC Onboard J6412 CPU HDMI VGA Display
- Description
ZC-M2-J6412SL Mini PC Onboard Intel Elkhart Lake J6412 CPU,2 Display HDMI+VGA,1*USB Type C+1*USB 3.0+2*USB 2.0

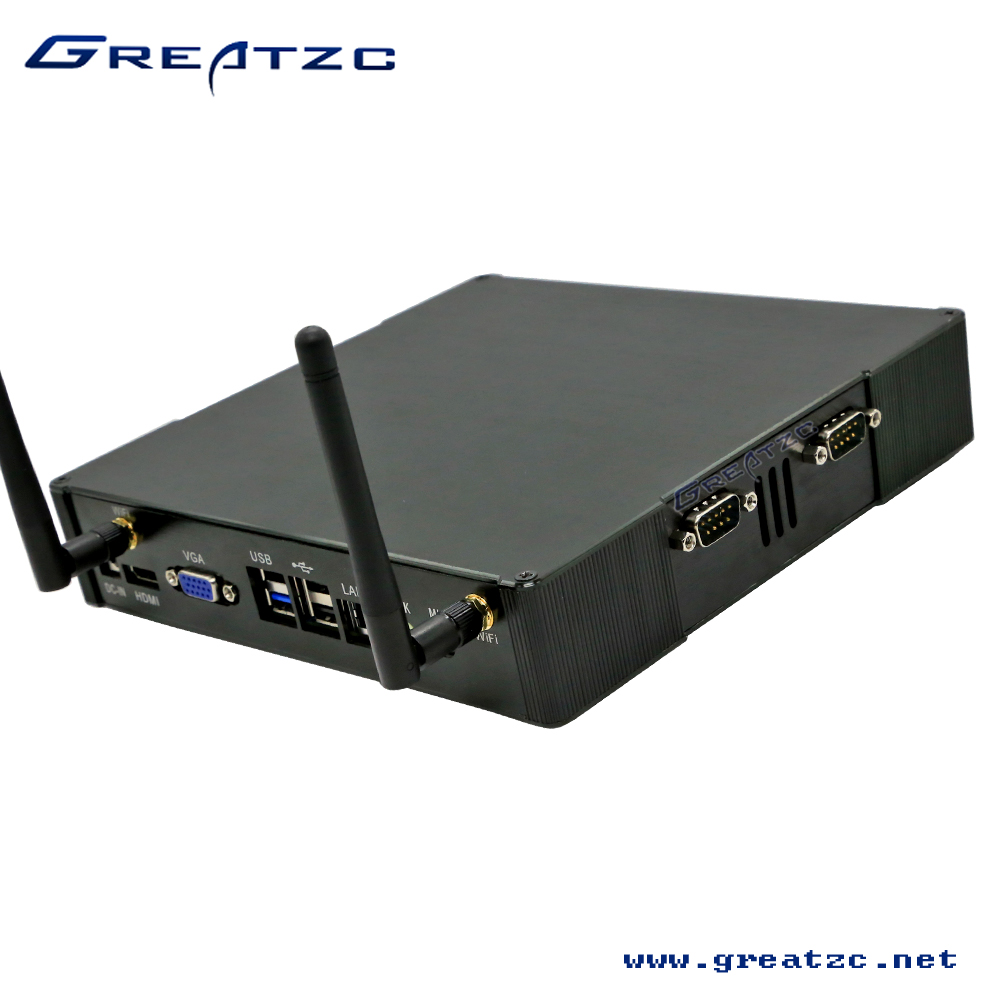

2*RS232/485 Optional
Main Features:

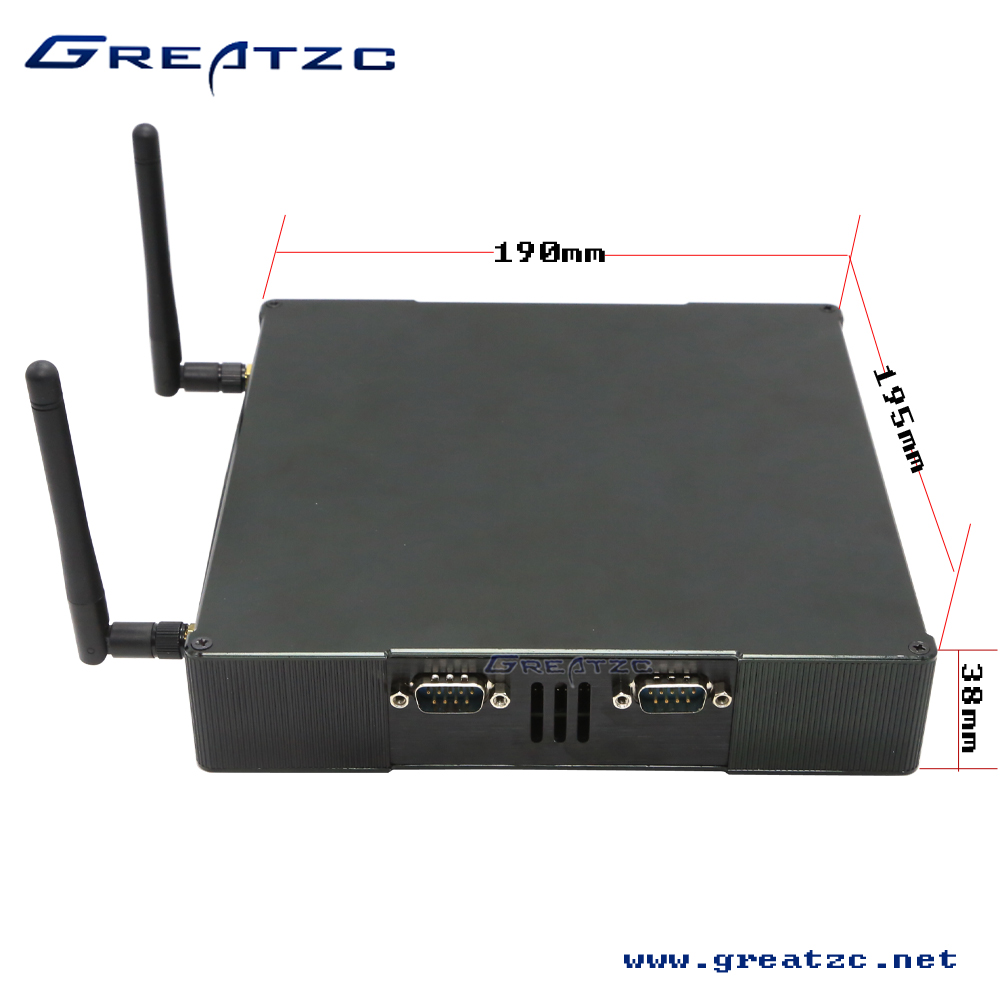

1.) Compact Small,Size only 195*190*38mm
2.) Onboard Intel Elkhart Lake J6412 4 Cores 2.0GHz
3.) Rich Memory 2*SO-DIMM DDR4 Slot,Up to 32GB
4.) Intel UHD Graphics,Support 4K,HDMI+VGA Display
5.) 1*M.2 for WIFI/BL,1*M.2 for 4G/5G With SIM Slot
6.) Excellent Heat Exchange:With Many Holes On The Case
7.) VESA Mount Optional,Easy to Put and Move,Saving Space
ZC-M2-J6412SL Mini PC Specification
CPU
Intel Elkhart Lake J6412,4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W
Chipset
Soc
Memory
2*SO-DIMM DDR4 Slot,Max 32GB
Storage
1*M.2 2280(Support both SATA/NVME)
Graphics
Intel UHD Graphics,Support 4K
Network
1*RTL8111H,Gigabit
WIFI
Optional
Extend
1*M.2 for WIFI/BL,1*M.2 for 4G/5G With SIM Slot

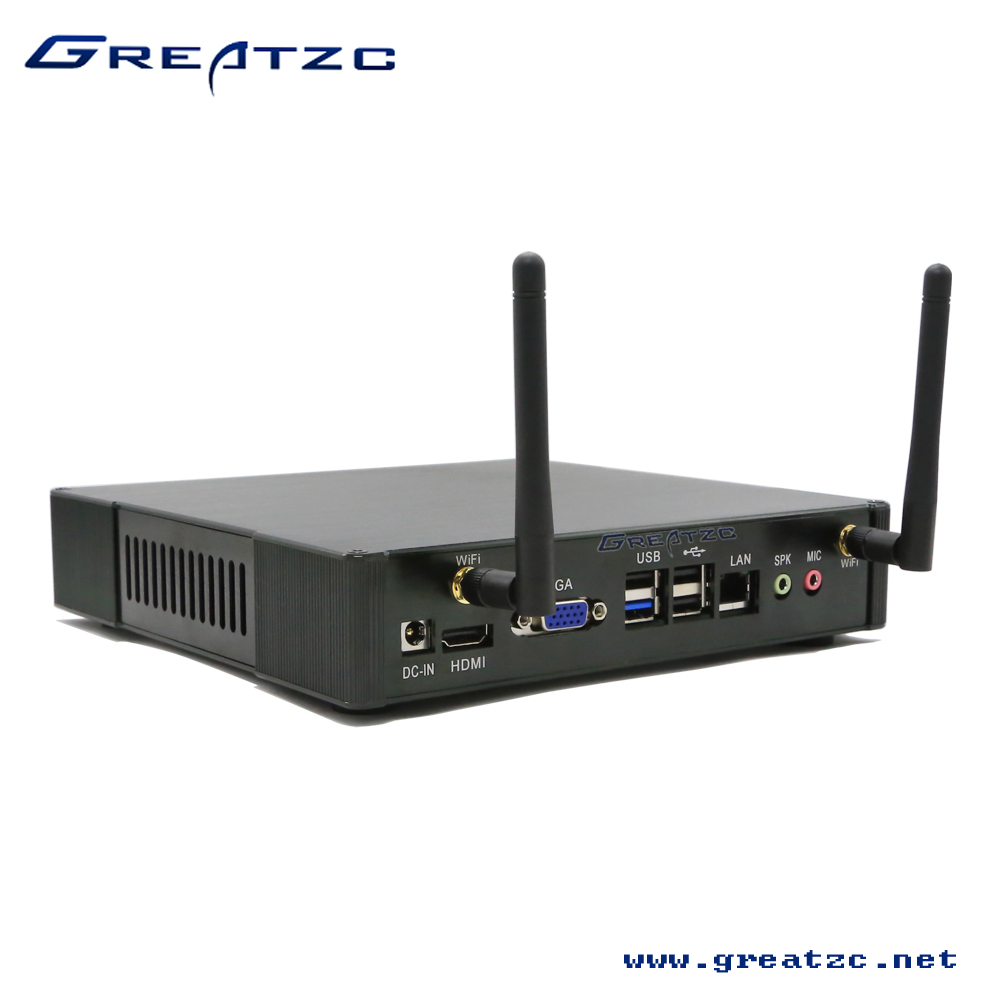

Rear Ports
1*RJ-45
1*HDMI
1*VGA
1*USB Type C
1*USB 3.0
2*USB 2.0
1*Line Out
1*MIC IN
1*DC12V Jack
From Ports
1*Power Button
2*USB 3.0
2*USB 2.0
Size
195*190*38mm
Power Supply
12V
Working Temp
-20℃ to +60℃
Storage Temp
-20℃ to +70℃
Relative Humidity
5%-95% Relative humidity,no condensation
