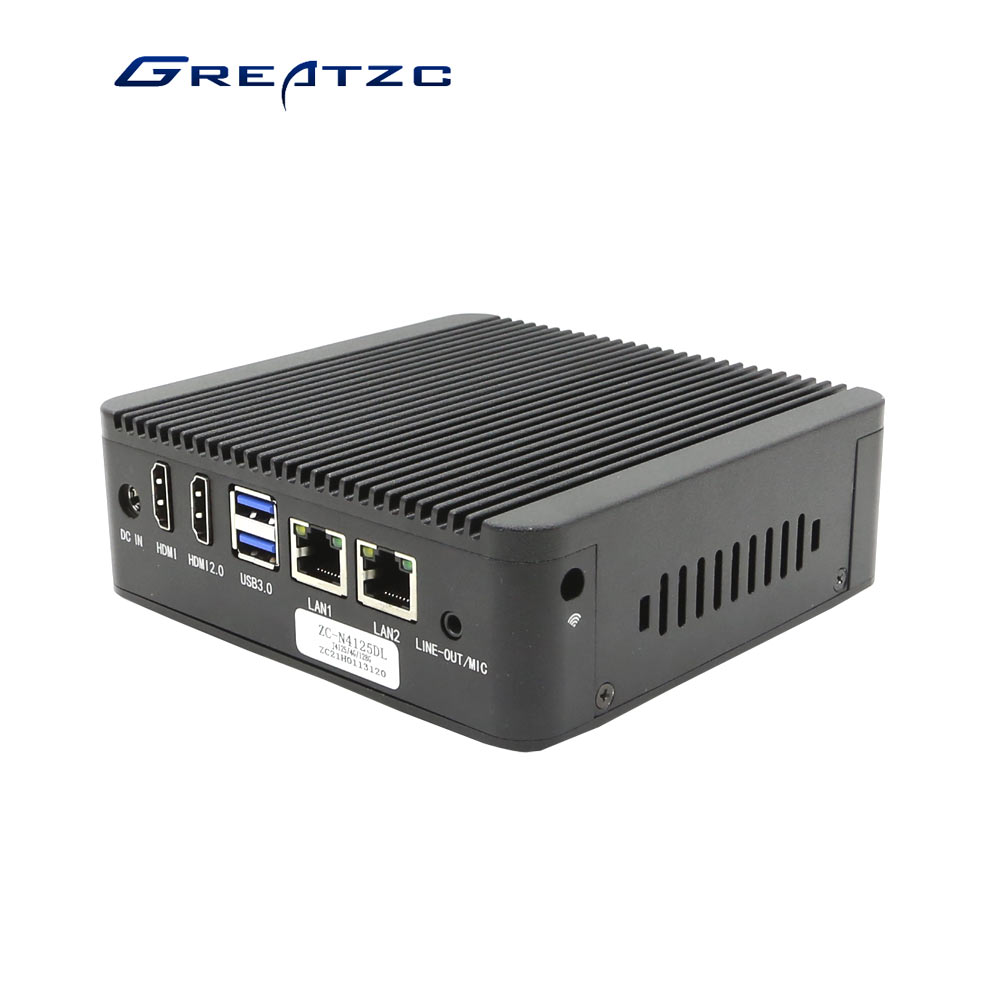

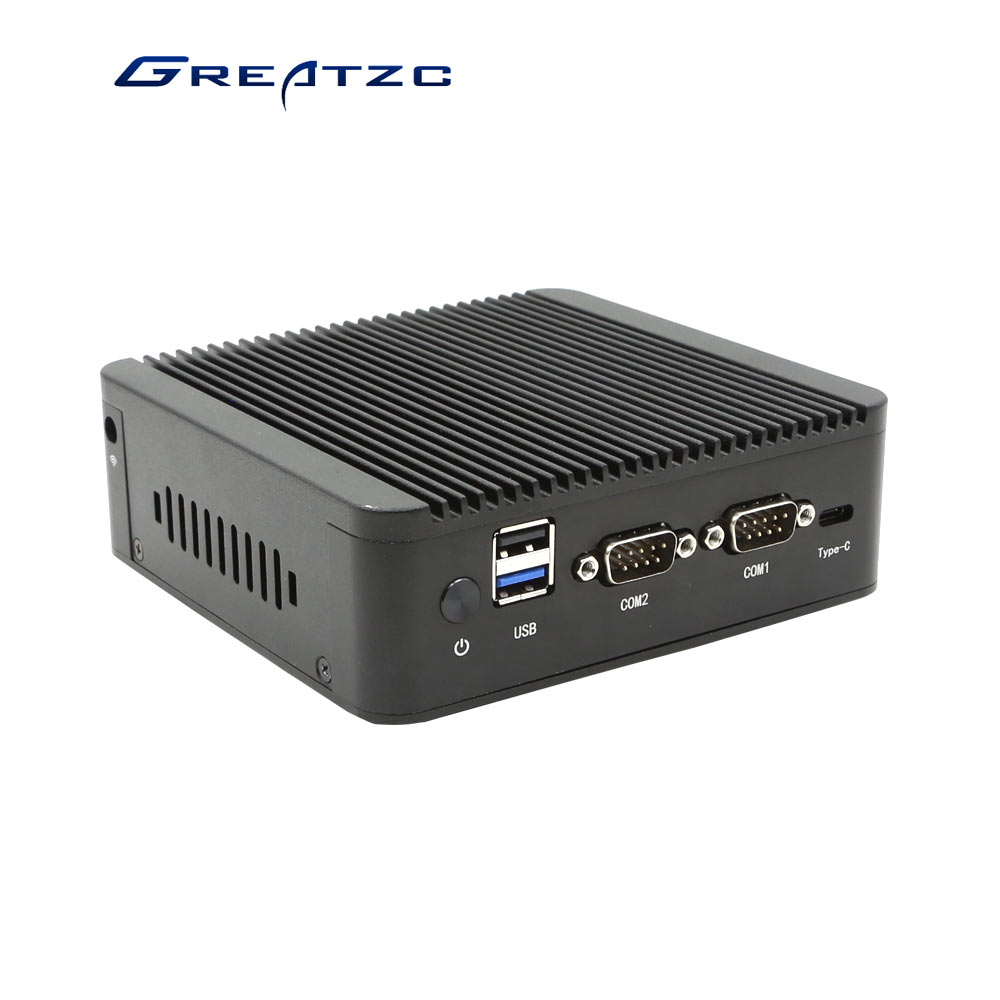

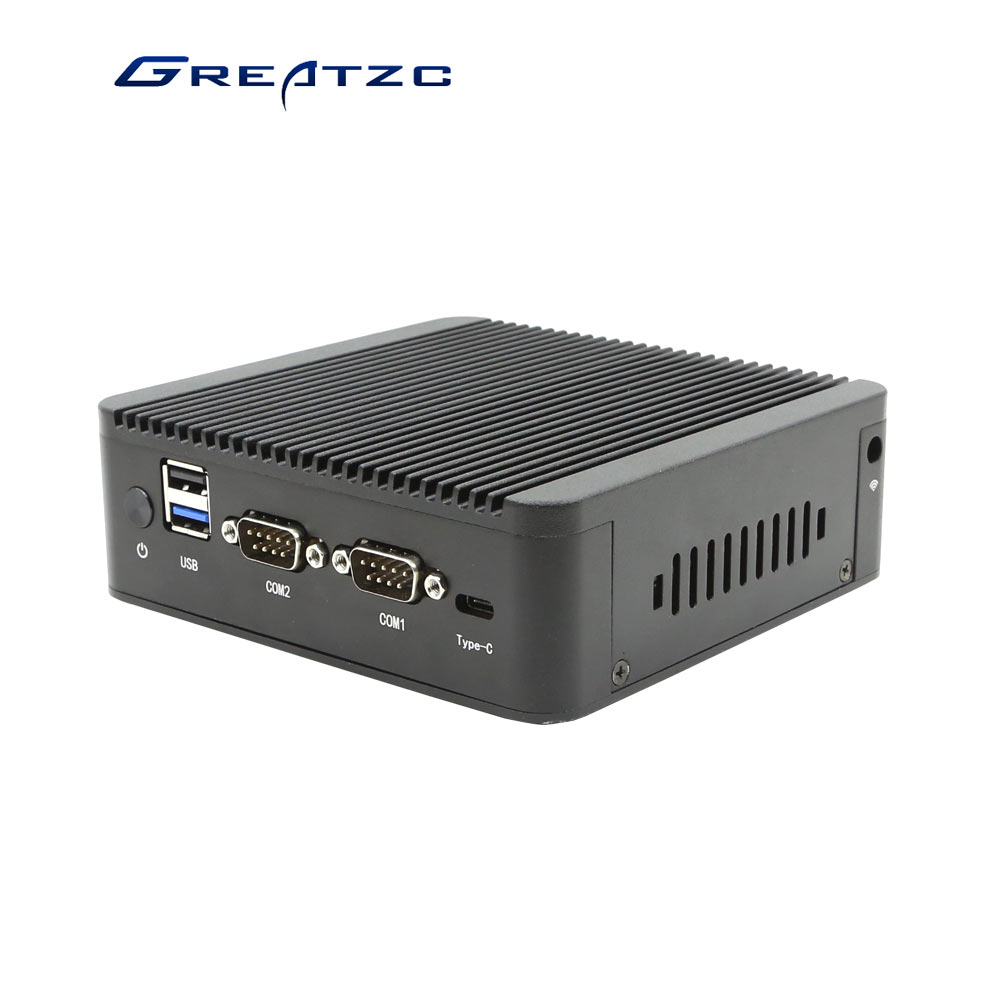

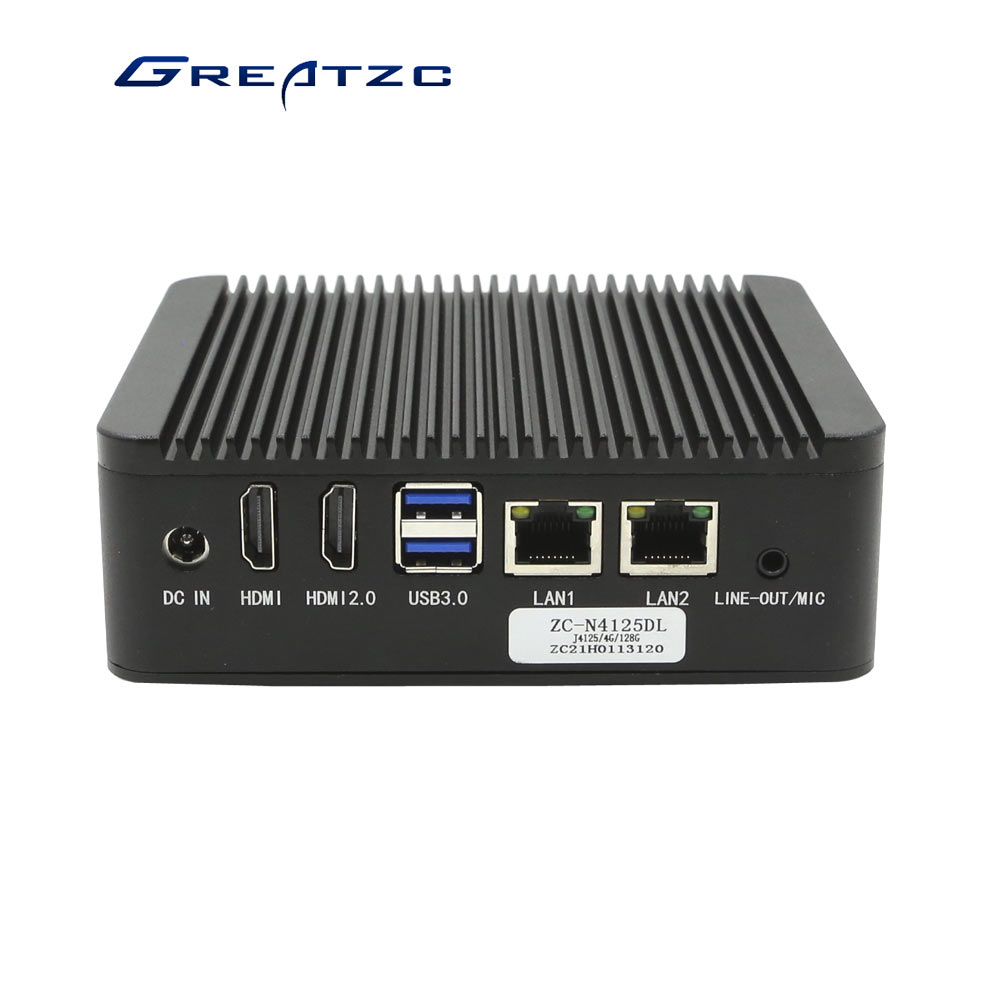

Dual Ethernet Fanless Mini PC Onboard J4125 CPU

ZC-N4125DL Fanless Mini PC Onboard CPU Intel Gemini Lake Refresh J4125 4 Cores 2.0GHz Burst to 2.7GHz

2*Intel I211 Gigabit Ethernet,1*HDMI 1.4+1*HDMI 2.0,2*COM RS232,3*USB 3.0,1*USB 2.0,1*USB Type C

Features:

1. Onboard CPU Intel Gemini Lake J4125 4 Cores 2.0GHz Burst to 2.7GHz

2. With 2*Intel I221 Gigabit Network Card

3. Rich Storage 1*SATA 2.5''Slot+1*M.2 SATA/NVME SSD Slot

4. Support Doubel Display 1*HDMI2.0+1*HDMI1.4

5. Rich USB,3*USB 3.0+1*USB 2.0+1*USB Type C

6. With 2*COM RS232 Ports,1*Line Out/MIC

7. Fanless Passive Cooling,Aluminium Alloy Case

8. Industrial Grade,Low Power Low Power Consumption

9. Small Size Only 132x125x46mm

Chassis	Material	Aluminium Alloy
	Color	Bright Black
	Size	132x125x46mm
	Weight	0.6KG
Motherboard	CPU	Intel Gemini Lake Refresh J4125 4 Cores 2.0GHz Burst to 2.7GHz. 4MB Cache,TDP 10W
	Chipset	SOC
	Graphics	Intel UHD Graphics 600
	Display	1*HDMI 2.0 Max 4096x2160@60Hz
	Display	1*HDMI 1.4 Max 4096x2160@30Hz
	Network Card	2*Intel I211 Gigabit
	Memory	1*SO-DIMM DDR4 Max 32GB
	Storage	1*2.5’’ SATA Slot
		1*M.2 2280 SATA/NVME SSD Slot

I/O	Front	1*Power Button
		1*USB 2.0
		1*USB3.0
		1*USB Type C
		2*COM RS232
	Rear	1*HDMI 2.0
		1*HDMI 1.4
		2*USB 3.0
		2*LAN
		1*DC_IN
		1*Line Out/Mic
Software Support	OS	Support Windows 7/8.1/10,Linux,CentOS
	BIOS	AMI BIOS 64M
	Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Cooling System	Cooling Mode	Fanless Passive Cooling
Power Supply	Input	DC 12V (Φ2.5)
Environment	Working Temp	-10~60℃
	Storage Temp	-20~70℃
	Working Humidity	0% ~ 95% Relative humidity, non-condensing
