Intel 10th Gen Comet Lake U series CPU I3 I5 I7 NUC PC

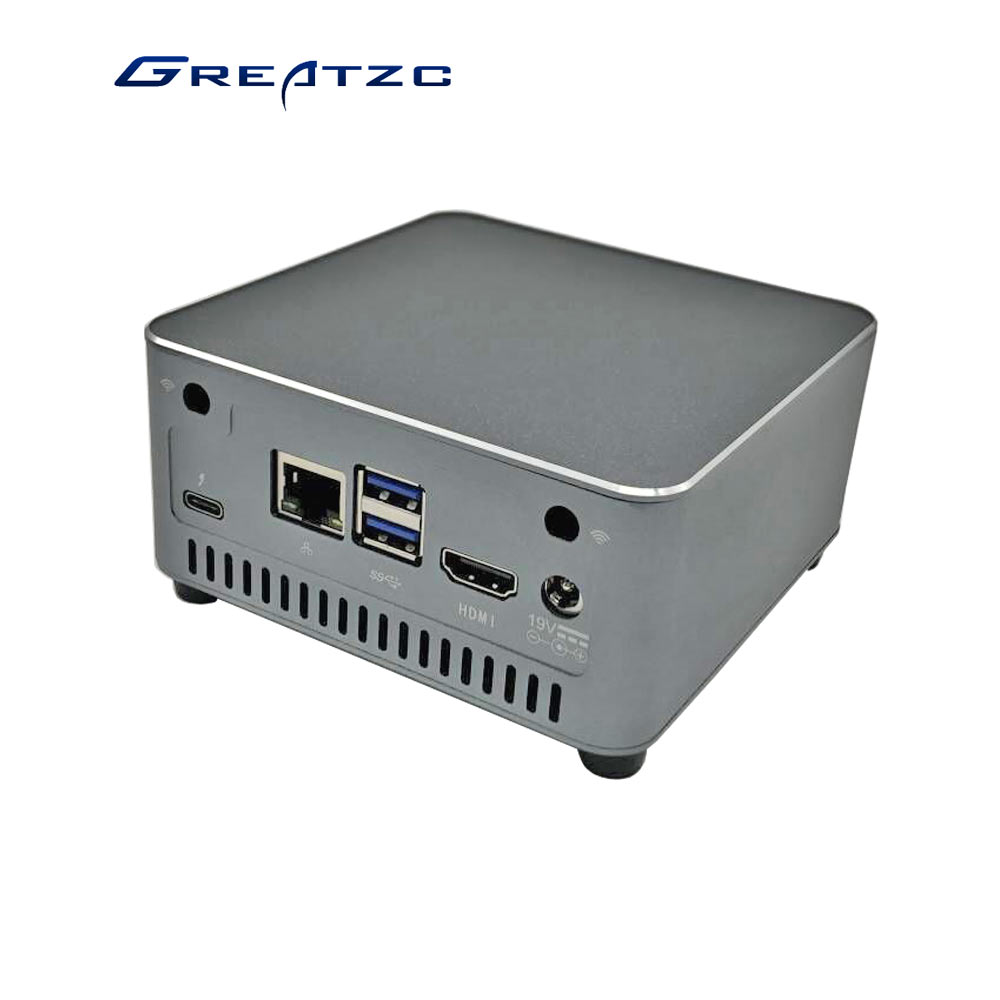

ZC-NUC10 NUC PC Onboard Intel 10th Gen Comet Lake U series CPU I3 I5 I7 with 3*USB 3.1+1*USB Type C,HDMI Display

Thunderbolt3 Port

Features:

1. Supports 10th Gen Comet Lake U series CPU I3 I5 I7

2. Intel i225V 2.5G wired network card

2. Dual-channel DDR4/SO-DIMM supports up to 64GB

4. Storage 1*2.5’’ Slot+1*M.2-M(SATA/NVME)

5. HDMI 2.0, Thunderbolt3 (VGA/HDMI/DP)

6. With 1*M.2-E(PCIEI)WIFI Slot

7. 12V~19V wide voltage power supply

ZC-NUC10 NUC PC Onboard Intel 10th Gen Comet Lake U series CPU I3 I5 I7

Chassis	Material	Aluminum alloy
	Color	Silver/black
	Size	11211255mm
	Weight	0.6 Kg
Motherboard	CPU	10th Generation Intel Comet Lake U Serial CPU I3-10110u: 2.10 GHz~4.10 GHz I5-10210u: 1.60 GHz~4.20 GHz i7-10510u: 1.80 GHz~4.90 GHz
	Chipset	Soc
	Display	Intel UHD Graphics
	Network Card	Intel i225V 2.5G
	Memory	2*DDR4 SO-DIMM,Up to 64GB
	Storage	12.5’’ Slot,1M.2 M Key (SATA/NVME)
	Extend	1*M.2-E Key(PCIEI)WIFI Slot
I/O Ports	Front	1*Power Button
		1*IR
		1*Earphone(MIC+LINE-OUT)
		1*USB3.1
		1*Type-C
	Rear	1*Thunderbolt3
		1*LAN
		2*USB3.1
		1*HDMI
		1*DC_IN
Software Support	System	Supports windows 7/windows 10,Linux ubantu 16.04,CentOS 7.0
Software Support	BIOS	AMI 128M BIOS
Cooling	Cooling	Active cooling with FAN
Power	Input	12V~19V
Environment	Working Temp	-10~60℃
	Storage Temp	-20~70℃
	Working Humidity	0% ~ 95% Relative humidity, non-condensing
