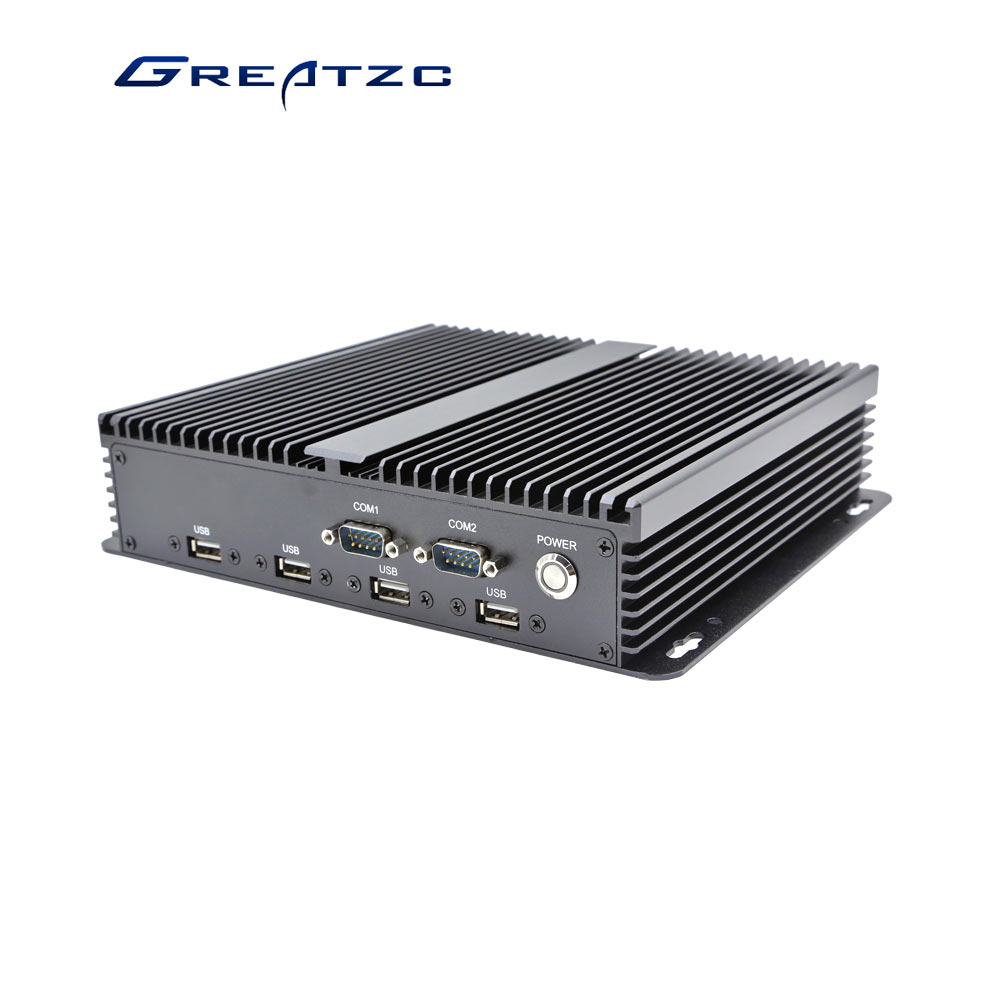

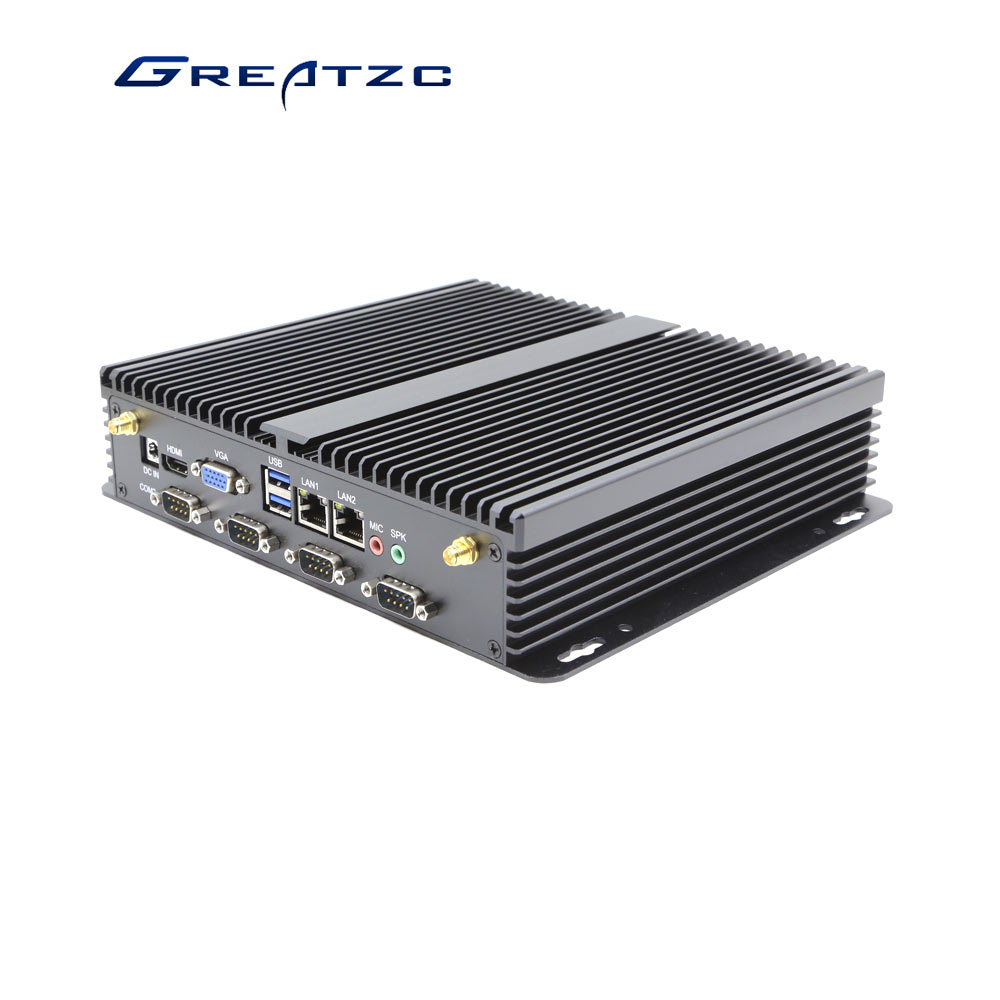

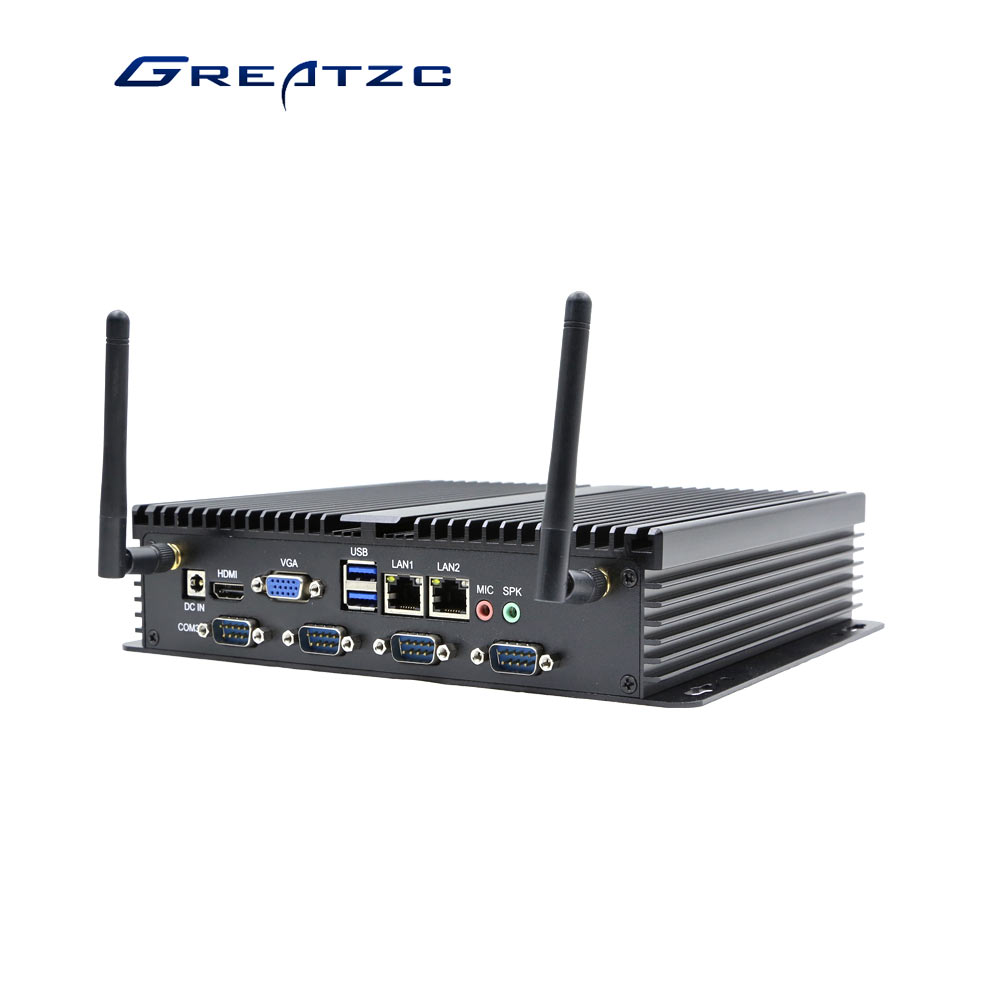

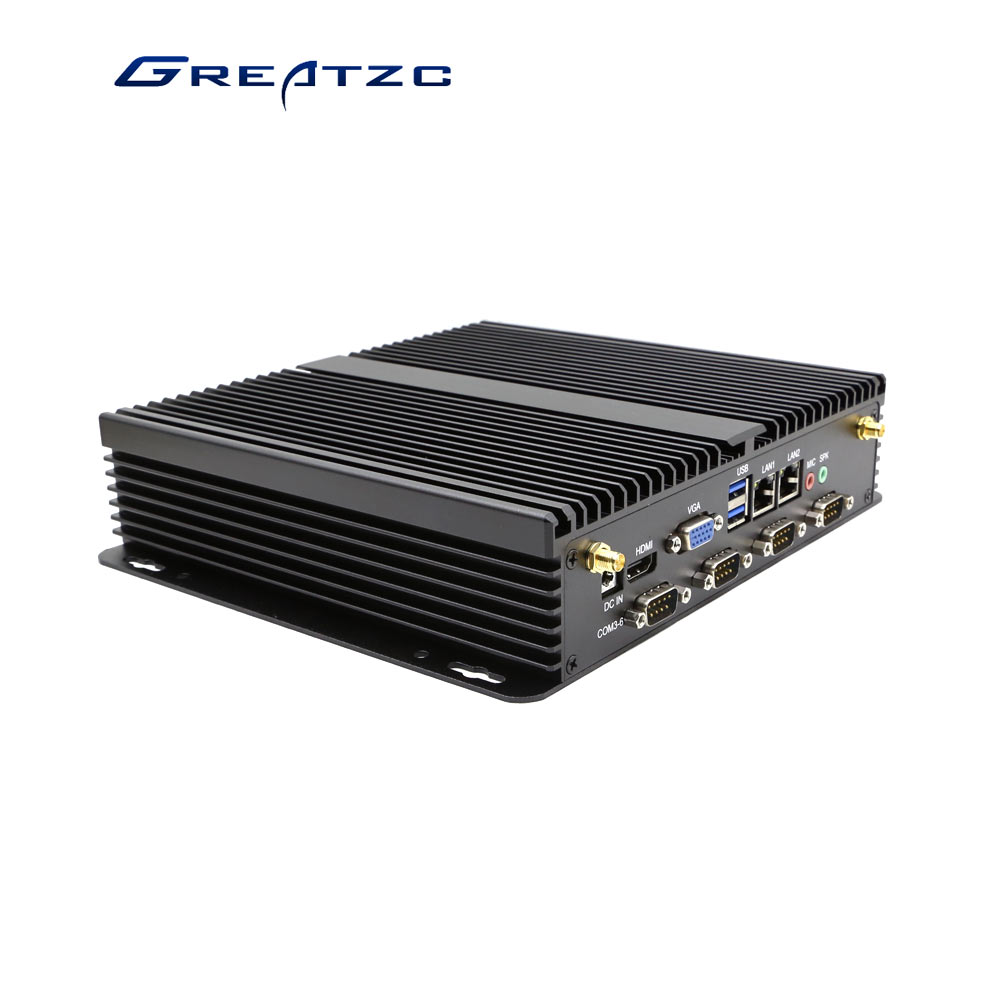

Onboard 4th 5th Gen i3 i5 i7 CPU Low Power Fanless Industrial PC
- Description
5*RS232 Ports,1*RS232/422/485,1*VGA Port,1*HDMI,2*Lan Port,1*MIC,1*SPK,1*DC 12V Port
Main Features
1.)Onboard 4th/5th Gen i3 i5 i7 CPU,Low Power
2.)Onboard Intel HD Graphics Card
3.)With 1*VGA Ports,1*HDMI,Support Double Display
4.)Rich USB Ports,With 4*USB 2.0,2*USB 3.0
5.)Rich COM Ports,5*RS232 COM Ports,1*RS232/422/485
6.)2*LAN Ports,Support RTL,PXE Boot,Wake on LAN
7.)Full aluminium alloy shell,dustproof,durable,resist compression
8.)Fanless Design,Industrial Design,Best Quality
9.)Onboard MINI SATA,MINI PCIE,Rich Ports
ZC-G52-ITX45U Fanless Industrial PC
|
CPU |
I3 |
I3-4030U: 2 Cores 1.9GHz |
|
I3-5005U: 2 Cores 2.0GHz |
||
|
I5 |
I5-4300U: 2 Cores 1.9GHz,Max Turbo 2.9GHz |
|
|
I5-5300U: 2 Cores 2.3GHz,Max Turbo 2.9GHz |
||
|
I5-5257U: 2 Cores 2.7GHz,Max Turbo 3.1GHz |
||
|
4th/5th Gen Others I3 I5 I7 CPU also are optional |
||
|
RAM |
1*DDR3 SO-DIMM |
|
|
Storage |
1*SATA Slot |
|
|
1*MINI SATA |
||
|
Graphics |
Intel Graphics |
|
|
Network |
2*Realtek 8111H Gigabit,Support Wake On LAN/PXE |
|
|
I/O Ports |

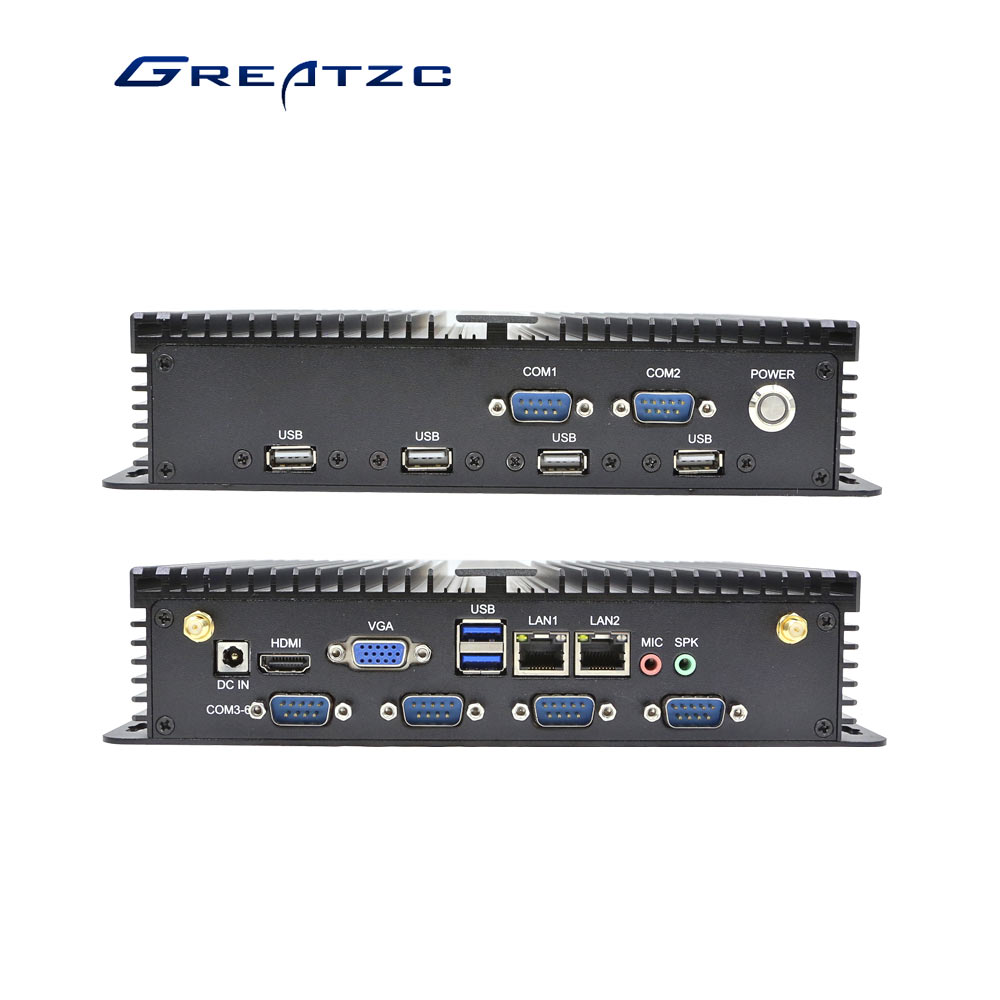

1*VGA 1*HDMI 4*USB 2.0 2*USB 3.0 1*SPK ,1*MIC 2*RJ45 Lan 5*RS232 COM Ports 1*RS232/422/485 1*12V DC Jack 1*Power Button 2*Antenna Holes |
|
|
Size |
52*215*236CM |
|
|
Weight |
1.85KG |
|
|
Power Adapter |
DC 12V/5A |
|
|
Working Temperature |
-10℃~+60℃ |
|
|
Storage Temperature |
-20℃~+70℃ |
|
|
Relative Humidity |
5%-95% Relative humidity,no condensation |
|
