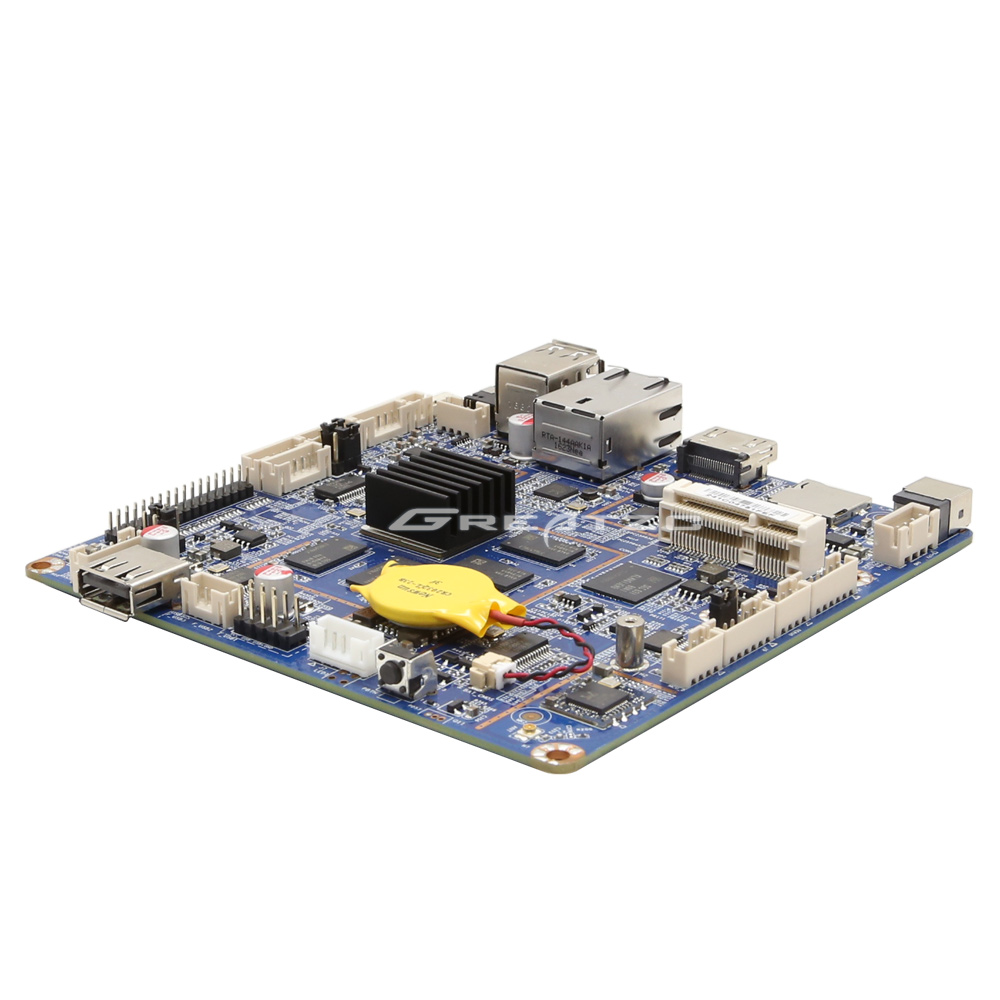

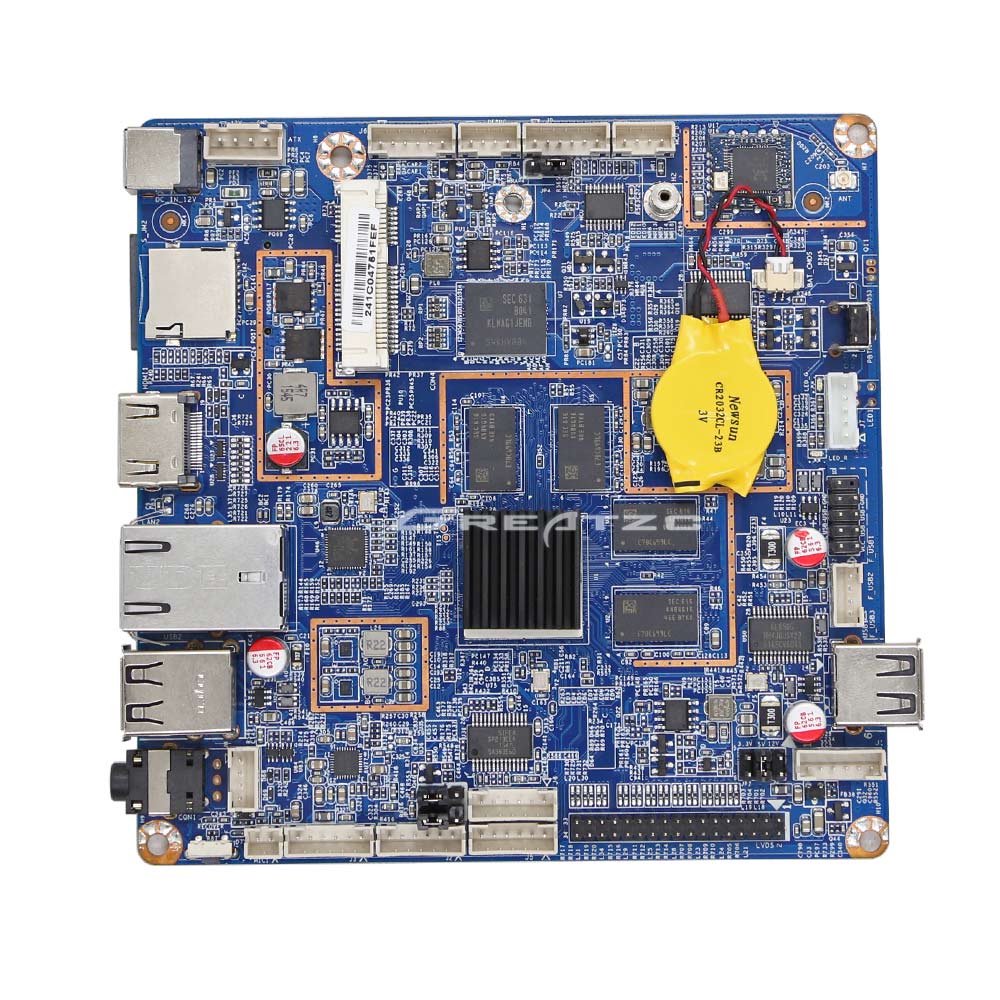

ZC-RK3288 Android Mainboard with Android 5.1
- Description
ZC-RK3288 ARM Android Motherboard, With ARM Cortex-A17 Quad-core RK3288 CPU,
Quad Core 1.80GHz, ARM Mali-T764,Android 5.1 Operation System, Onboard DDR3 2GB
Memory,16GB NAND FLASH Storage,HDMI + LVDS Display Output
Main Features:
1. Size only 12*12CM, Saving space, easy installation, easy maintenance,widely application.
2. With low power consumption, small heat, no fan cooling, quiet and dustproof.
3. Onboard Double Channel 8/24Bit LVDS, Support 1920x1080.
4. Onboard Gigabit LAN and WIFI&Bluetooth Module;Mini PCI-E For 3G/4G.
5. Support IR Control and Digital Input Control, built-in RTC clock,Timed Power ON/OFF.
6. With HDMI + LVDS Ports,Support Double Display.
7. Built-in amplifier pin, can connect 3W/5 W, 8 ohm loudspeaker.
8. Onboard TF Card Slot, Support Max 32 GB Extension Storage.
9. Onboard GPIO,I2C,COM,MINI PCI-E, SIM Slot,IR Pins, rich interface.
10.Widely Use in Advertising Display,Public transportation like BUS/Metro,Elevator media,
All In One PC,Smart TV,School,Bank,Hospital,Industry etc.
ZC-RK3288 Nano-ITX Motherboard
|
CPU |
RockChip RK3288 ARM ® Cortex™-A17 Quad-core 1.80GHz |
|
RAM |
Onboard 2GB DDR3 Memory |
|
Graphics Card |
Mali-T764,OpenGL ES1.1/2.0/3. Open VG1.1,OpenCL,Directx11 |
|
Storage |
Onboard 16GB eMMC (8GB/32GB can customize) TF Card Slot support Max 32 GB |
|
Audio card |
Realtek ALC662 |
|
Network Card |
Onboard Gigabit Network Card Onboard WIFI &Bluetooth |
|
OS |
Android 5.1 |
|
Expansion Slot |
1*MINI PCI-E 1*MINI SATA 1*SIM Card Slot |
|
Display |
1*HDMI 1*LVDS(Double Changel 8/24 Bit,1920 x1080) |
|
External I/O
|
3*USB 2.0(1*OTG) 1*DC IN 1*HDMI 1*RJ-45 Lan 1*TF Card Slot 1*Speaker 1*Power Button |
|
Internal I/O |
1*30Pin LVDS port 1*6Pin LVDS Power port 1*2Pin MIC-In port 1*4Pin Speaker port 1*6Pin COM port (RS232) 1*6pin COM port(TTL) 3*USB2.0 1*Mini-PCIE 1*6pin IR Port 1*1x4 Pin ATX 12V 1*6Pin F-Panel 2*6 Pin I2C Port 1*6Pin MCU Burn Slot |
|
Power Supply |
DC 12V |
|
Size |
Nano-ITX 12cmx12cm. |
|
RTC |
3.3V RTC Wake Up |
|
Firmware |
Power,Burning,Recover |
|
OS |
Android 5.1 |
