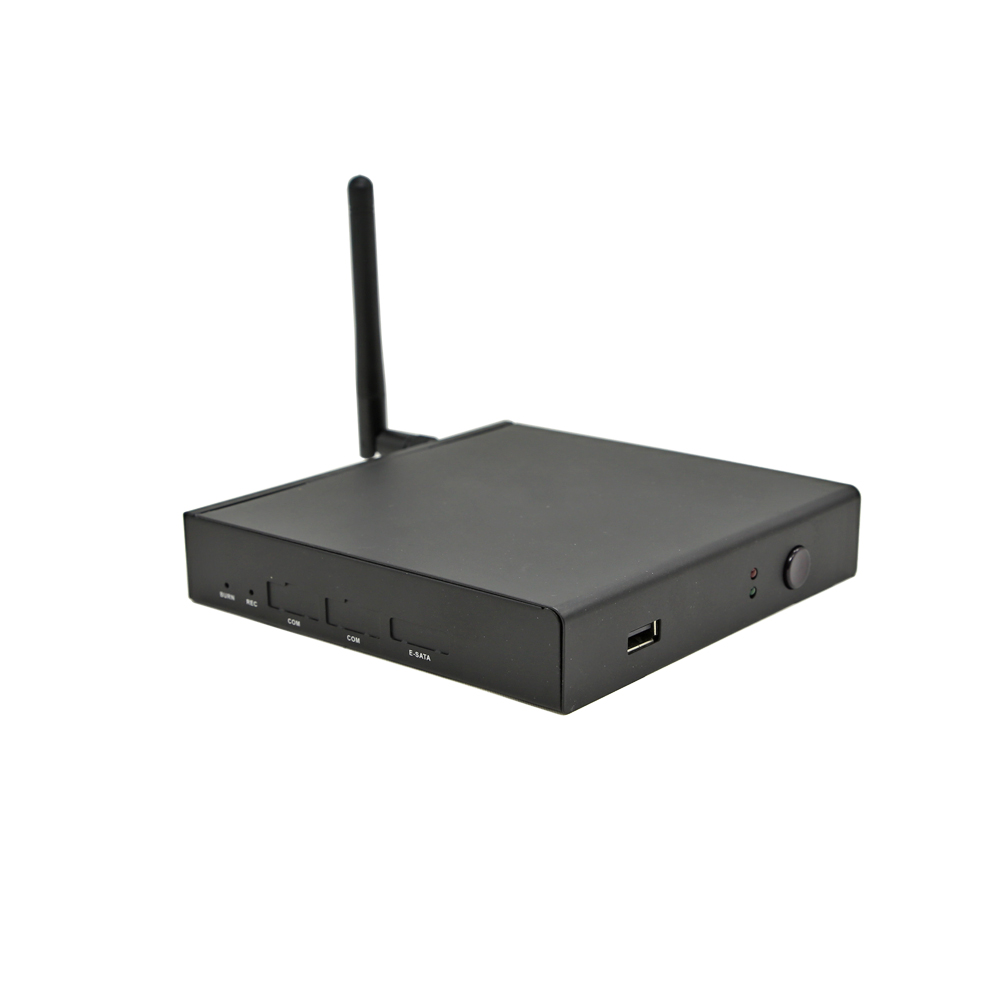

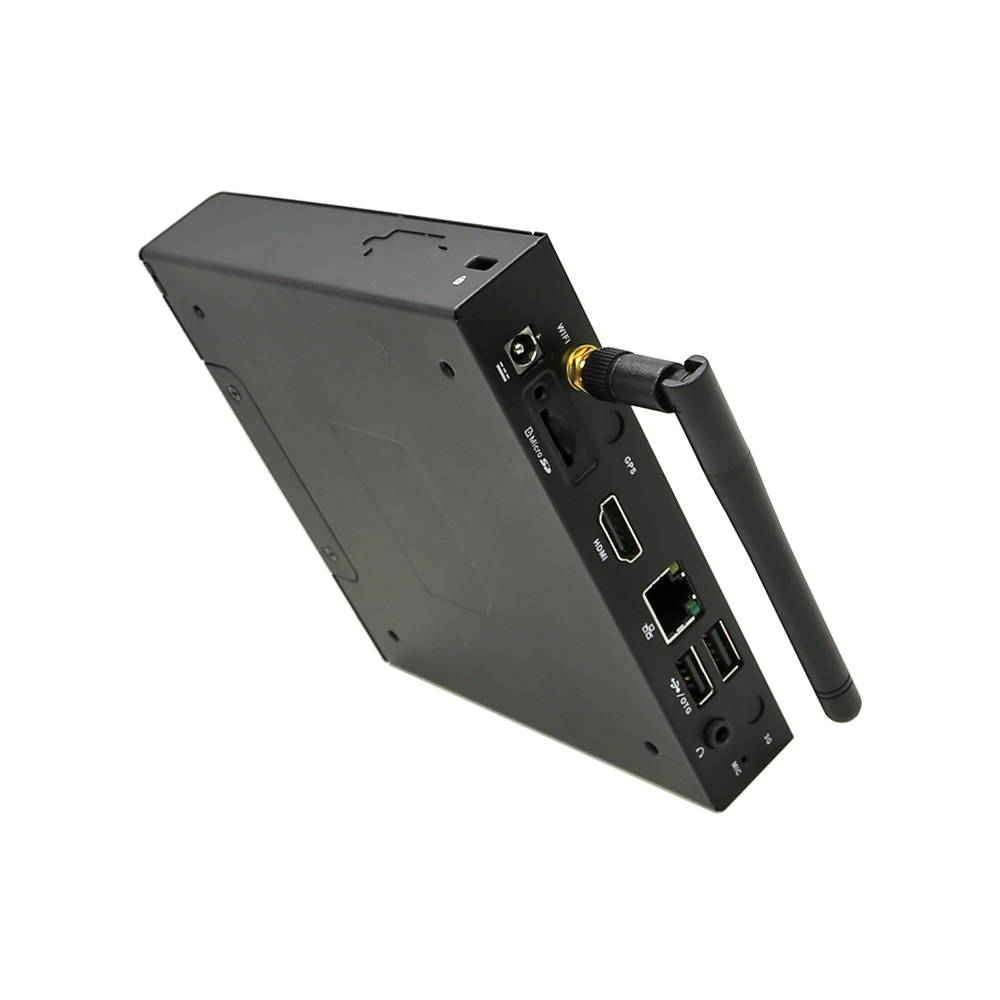

ZC-P3288 Android Mini PC 2GB RAM,16GB eMCC
- Description
ZC-P3288 Android Mini PC With ARM Cortex-A17 Quad-core RK3288 CPU, Quad Core 1.80GHz,
ARM Mali-T764,Android 5.1 Operation System,Onboard DDR3 2GB Memory,16GB eMMC Storage
Main Features:
1. Size only 130*130*25m.Saving space, easy installation, easy maintenance,widely application.
2. With low power consumption, small heat, no fan cooling, quiet and dustproof.
3. Onboard Gigabit LAN,WIFI;Mini PCI-E supports 3G/4G Module Optional.
4. Support IR Control and Digital Input Control, built-in RTC clock,Timed Power ON/OFF.
5. Onboard TF Card Slot, Support Max 32 GB Extension Storage.
6.Widely Use in Advertising Display,Public transportation like BUS/Metro,Elevator media,
All In One PC,Smart TV,School,Bank,Hospital,Industry etc.
ZC-P3288 Android Mini PC
|
CPU |
RockChip RK3288 ARM ® Cortex™-A17 Quad-core 1.80GHz |
|
RAM |
Onboard 2GB DDR3 Memory |
|
Graphics Card |
Mali-T764,OpenGL ES1.1/2.0/3. Open VG1.1,OpenCL,Directx11 |
|
Storage |
Onboard 16GB eMMC (32GB can be customized) TF Card Slot support Max 32 GB |
|
Audio card |
Realtek ALC662 |
|
Network Card |
Onboard Gigabit Network Card Onboard WIFI |
|
OS |
Android 5.1 |
|
Expansion Slot |
1*MINI PCI-E(3G/4G Module Optional) 1*SIM Card Slot |
|
Display |
1*HDMI |
|
I/O Ports
|
2*USB 2.0 1*OTG 1*DC IN 1*HDMI 1*RJ-45 Lan 1*TF Card Slot 1*Speaker 1*Power Button 2*Antenna Slots |
|
Power Supply |
DC 12V,5A |
|
Size |
130*130*25mm |
|
RTC |
3.3V RTC Wake Up |
|
Firmware |
Power,Burning,Recover |
|
OS |
Android 5.1 |
