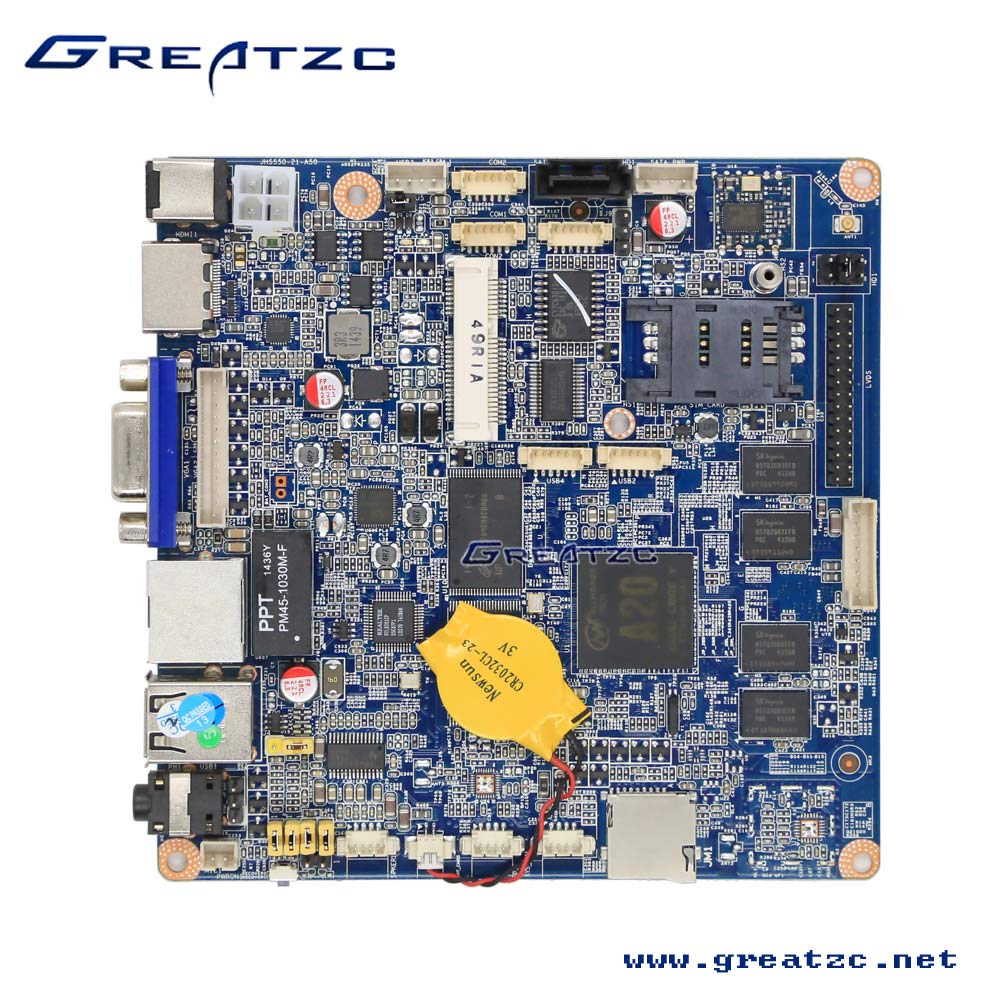

ZC-A20N Industrial Grade Android Motherboard

ZC-A20N Motherboard,Very Small only 120*120mm,Onboard CPU A20

1GB RAM,8GB Flash.With 1*RJ45,WIFI,VGA and HDMI.

Main Features:

1.Onboard CPU A20,1GB RAM,8GB Flash.

2.Onboard Network Card,Onboard WIFI.

3.With VGA and HDMI Ports.

4.Fanless Design,Size is only 120*120mm.

5.Very Suitable For Embedded Advertising

ZC-A20N Motherboard Specification

CPU	A20 CPU
OS	Android 4.2 Default
Graphics Card	CPU Integrated
RAM	1GB Default.
Flash	8GB Default
Network Card	Onboard 1*100M Network Card
WIFI	Onboard WIFI
AUDIO Card	ALC662 Chip
RTC	With RTC Default
Expansion Slot	1Mini PCI-E,Support USB+PCIE Signal 1SIM Card Slot
Rear Panel I/O	1DC12V 1HDMI 1VGA 1RJ45 2USB 1Audio Out
Internal I/O	MIC-IN SPKER 2*SYS_FAN SD Card Slot LVDS 30PINS LVDS Backlight SATA Slot SATA PWR Micro SD COM1 COM2 ATX 4PINS USB2 USB3 USB4
FAN	No,Fanless
Power Supply	DC-12V
Size	120mm*120mm
