ZC-G6412-4L Firewall PC Onboard J6412 CPU 4 Intel i225/i226 2.5G Network Card-4LAN/ 6LAN/ 8LAN-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

ZC-G6412-4L Firewall PC Onboard J6412 CPU 4 Intel i225/i226 2.5G Network Card

ZC-G6412-4L Fanless Mini PC Onboard CPU Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz,4*Intel i225 2.5G Network Card,

1*HDMI+1*DP,2*COM,4*USB 3.0,2*USB 2.0,1*Audio Out,1*DC12V Jack,2*Antenna Holes

Features:

1.) Onboard CPU Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz

2.) With 4*Intel i225/i226 2.5G Network Card,Support Wake-on-LAN/PXE

3.) 1* M.2 Key-M 2280/2242 NVME/SATA SSD Slot

4.) Support Doubel Display 1*HDMI+1*DP

5.) Rich USB,4*USB 3.0 Ports+2*USB 2.0 Ports

6.) With 2*COM,Support 2*RS232/485

7.) Fanless Passive Cooling,Aluminium Alloy Case

8.) Industrial Grade,Low Power Low Power Consumption

9.) Small Size Only 136x127x40mm

ZC-G6412DL Fanless Mini PC With 2LAN

Chassis	Material	Aluminium Alloy
	Color	Bright Black
	Size	136x127x40mm
	Weight	0.6KG
Motherboard	CPU	Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W
	Chipset	SOC
	Graphics	Intel UHD Graphics for 10th Gen Intel Processors
	Display	1*HDMI, Max 4096x2160
	Display	1VGA, Max 19201080
	Network Card	4*Intel i225/i226 2.5G Network Card,Support Wake-on-LAN/PXE
	Memory	2*SO-DIMM DDR4,Max 32GB
	Storage	1* M.2 Key-M 2280/2242 NVME/SATA SSD Slot

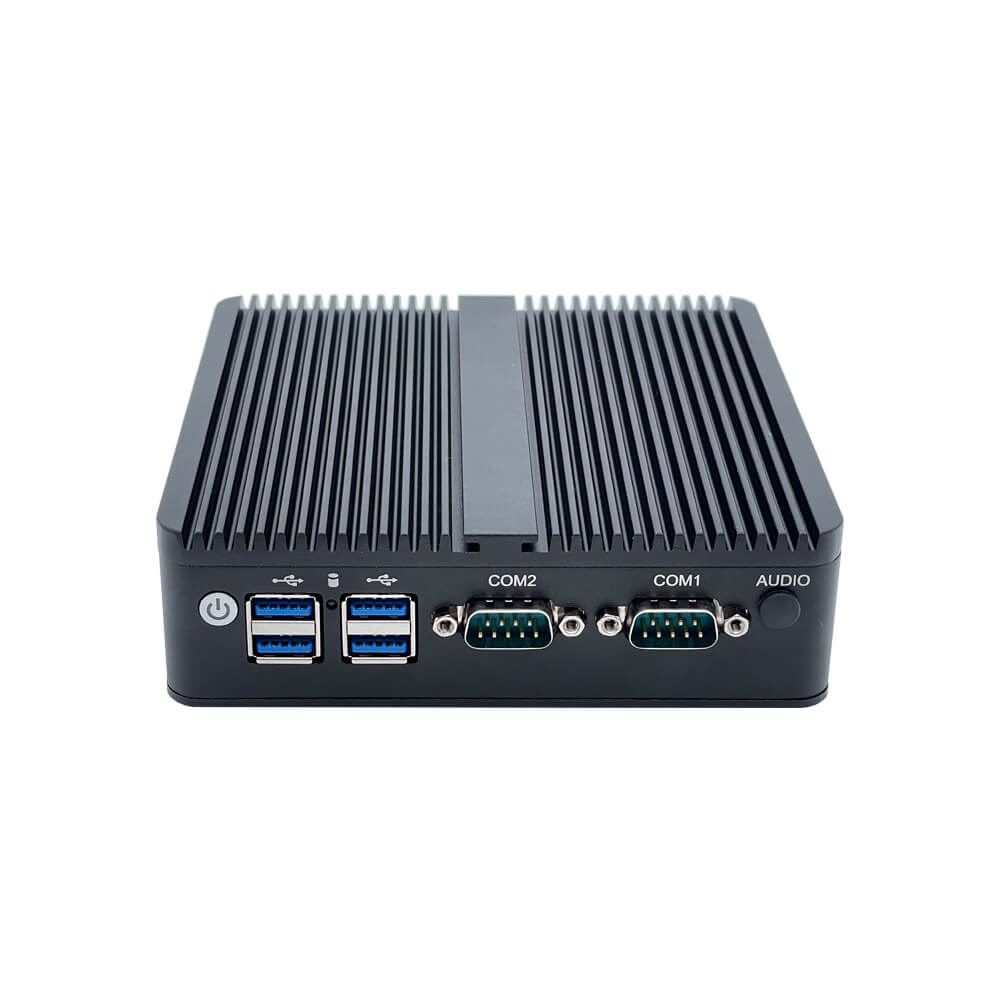

I/O	Front	1*Power Button
		4*USB3.0
		2*COM
		1*Audio Out

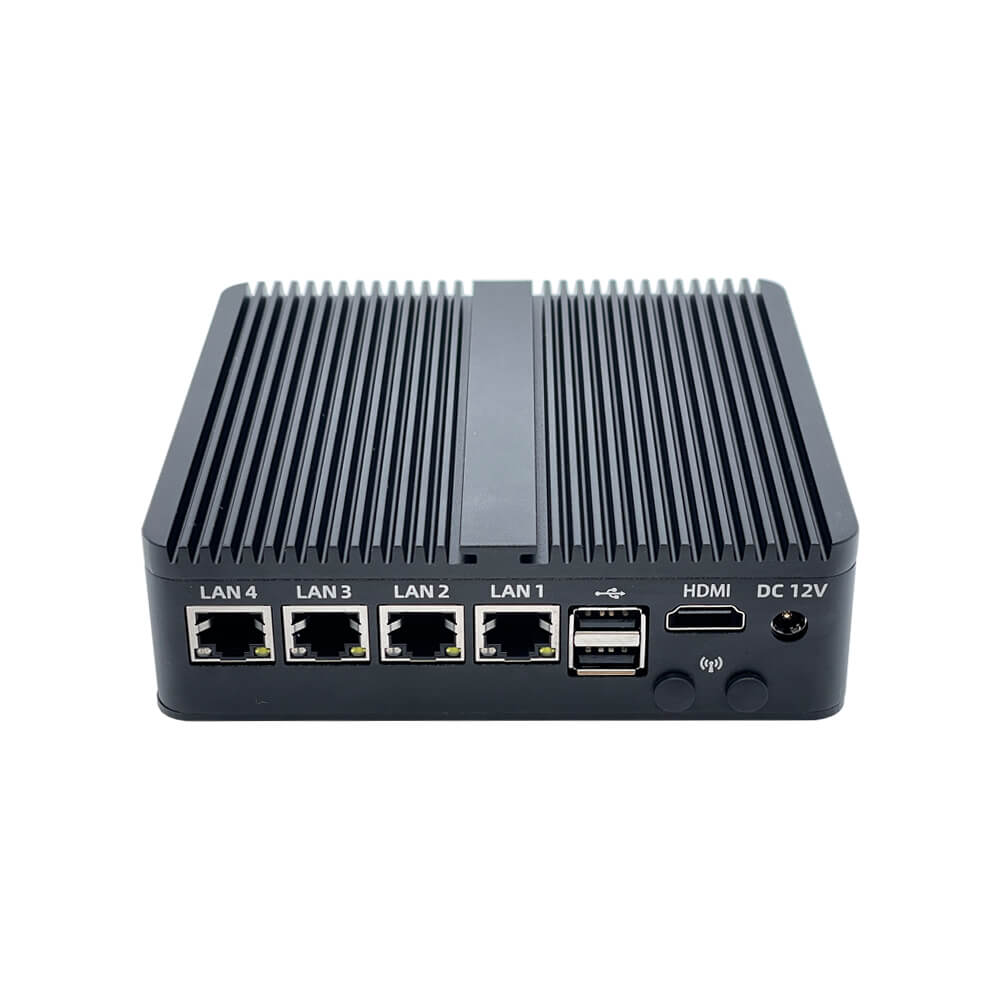

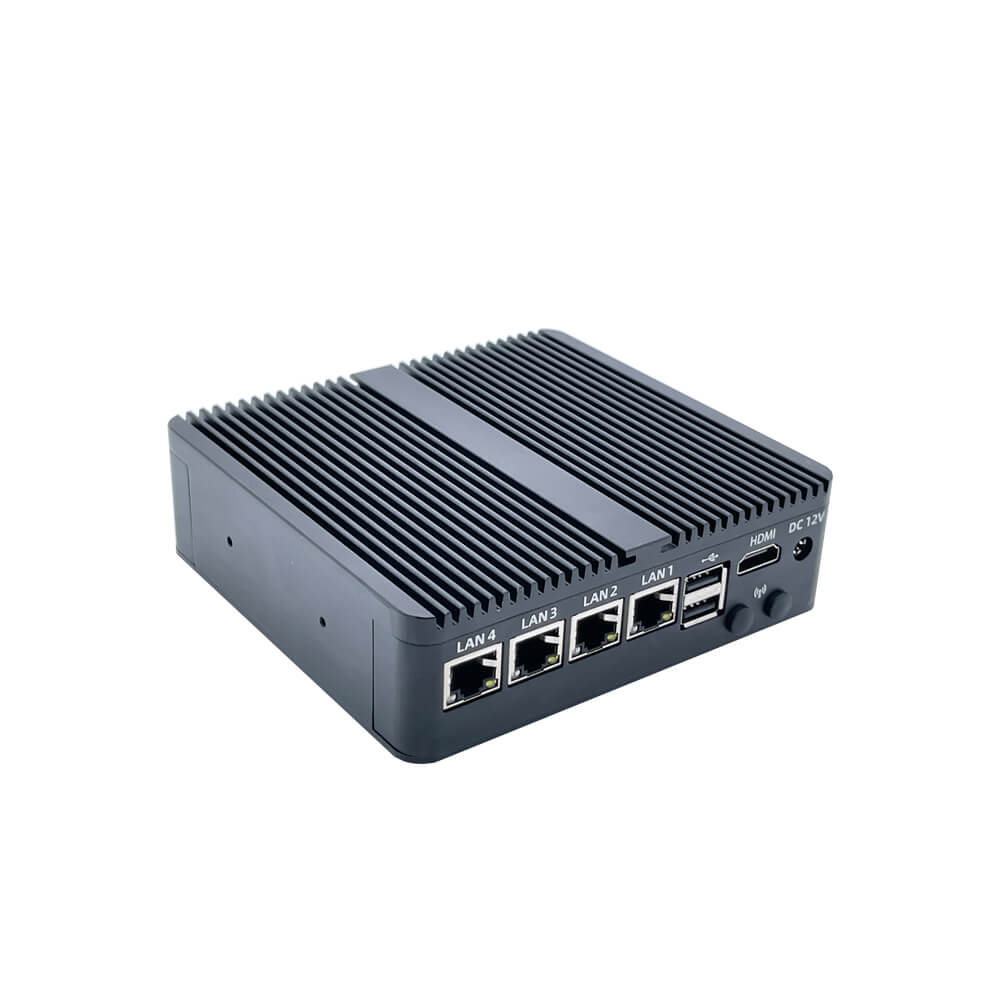

	Rear	1*HDMI
		1*DP
		2*USB 2.0
		4*RJ45
		1*DC_IN
Extension	1mPCIE,1SIM Slot	WIFI/4G Module Optional
Software Support	OS	Support Windows10/11/Linux
	BIOS	128Mb Flash ROM
	Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Cooling System	Cooling Mode	Fanless Passive Cooling
Power Supply	Input	DC 12V(5.5*2.5)
Environment	Working Temp	-10~60℃
	Storage Temp	-20~70℃
	Working Humidity	0% ~ 95% Relative humidity, non-condensing
