ZC-N6412-L4C2 4 LAN NUC Firewall Motherboard J6412 CPU

Description

ZC-N6412-L4C2 NUC Firewall Motherboard 12x12cm Size Integrated Intel Celeron J6412 4 Cores 2.0GHz CPU,4*Network Card,2*RS232,VGA+HDMI Display DC12V Power Supply,Fanless Design

Main Features:

1.) Integrated Intel Celeron J6412 4 Cores 2.0GHz CPU

2.) With 2* SODIMM slot, Up to 16GB

3.) 4* Intel i225 2.5G Gigabit Network Card

4.) Storage 1* SATA+1*M.2 Key-M

5.) With 2*RS232,RS485 Optional

6.) Fanless Design,Zero noise

ZC-N6214-L4C2 NUC Motherboard 4 LAN J6412 CPU Specification

Model

ZC-N6214-L4C2

CPU

Intel Celeron J6412,4 Cores 2.0GHz, TDP 10W
Compatible with all Intel Elkhart Lake CPUs

RAM

2* SODIMM DDR4 3200MHz DDR4,up to 16GB

Display

Intel UHD Graphics

1*DP,1* HDMI

Network

4* Intel i225 2.5G Network Card,Support PXW,Wake on LAN

Storage

1* 7pin SATA3.0 6Gbps

1* M.2 Key-M 2280/2242 PCIE/SATA SSD

Expansion

1* Mini-PCIe for 4G/WIFI

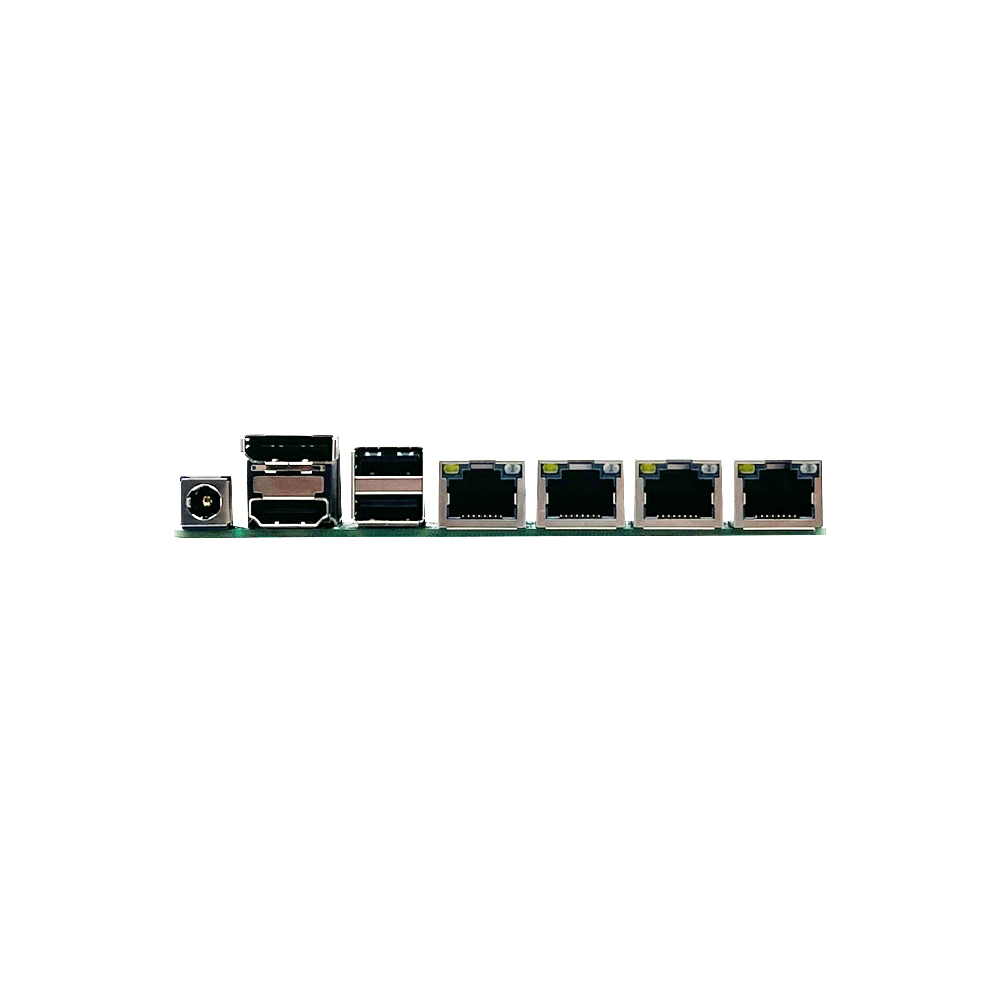

Rear I/O

4* LAN RJ45

2* USB2.0

1* HDMI+1*DP

1* 12V DC

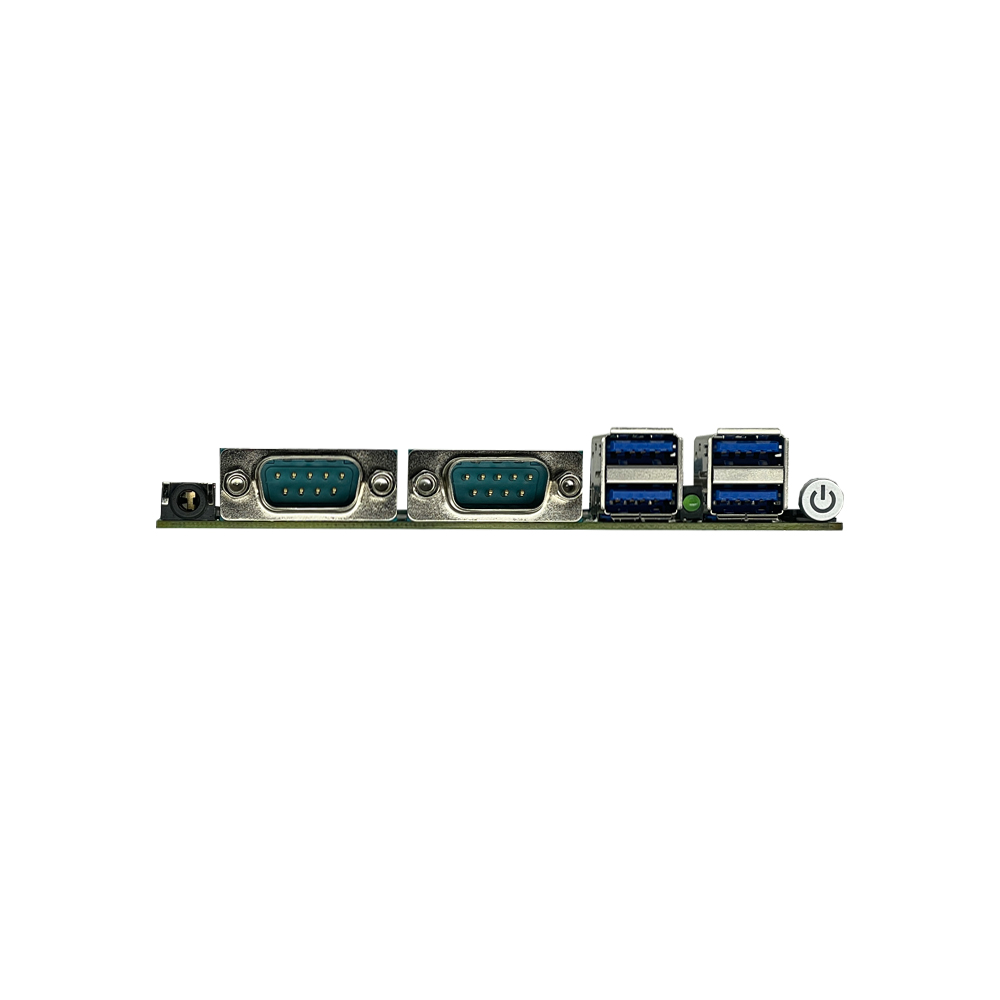

Front I/O

2* USB 3.1

2*USB 3.0

1* HDD Light

1* Power Button

1*USB Type C (Optional)

2* COM (RS232 Default,Can change to be RS485 by jumper)

Insize I/O

1*TPM2.0 (2*6Pins)

2* USB 2.0 (2*5Pin)

1* SATA Power Pin

1* 4pin DC Power

1* Front panel switch button and indicator light 2*5Pin

FAN

Fanless cooling design, reserved 1*4pin CPU fan interface

GPIO

Support 4 input and output GPIO

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

OS

Windows 10/11/Linux

Power Supply

DC 12V

Working Temp

-10℃ to 60℃

Storage Temp

-20℃～70℃

Working Humidity

5%-95% relative humidity, no condensation

Size

120mm x 120mm
