ZC-G13-6412L4 Fanless Firewall Mini PC J6412 CPU 4 Intel I226 2.5G Ethernet
- Description
ZC-G13-6412L4 Fanless Industrial PC Onboard Intel Elkhart Lake J6412 CPU 4 Cores 2.0GHz Burst to 2.6GHz Intel UHD
Graphics With 4*Intel I255 2.5Gigabit,2*USB 2.0,4*USB 3.0,2*RS232/485,1*DP+1*HDMI,2*LAN Ports
Main Features:
1.) Onboard Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz.
2.) Intel Intel UHD Graphics Card,Support 4K
3.) With 1*DP+1*HDMI,Support Double Display
4.) Rich USB Ports,4*USB 3.0+2*USB 2.0 Ports
5.) Support 2*RS232/485 COM Ports
6.) Onboard4*Intel I255 2.5Gigabit,Suppot PXE/Wake on LAN
7.) Full aluminium alloy shell,dustproof,durable,resist compression
8.) mPCIE for WIFI/3G/4G module,1*SIM Slot
ZC-G13-6412L4 Industrial PC Specification
|
CPU |
Intel Elkhart Lake J6412,4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W |
|
Memory |
2*DDR4 SO-DIMM |
|
Storage |
1*M.2 Key-M 2280 NVME/SATA SSD |
|
1*2.5’’ Slot |
|
|
Graphics Card |
Intel UHD Graphics,Support 4K |
|
Network Card |
4*Intel I255 2.5Gigabit |
|
Support Wake On LAN,PXE |
|
|
Front Ports |
4*USB 3.0 1*Audio In/Out 2*RS232/485 1*Power Button 2*Antenna Holes |
|
Rear Ports |
1*DP 1*HDMI 4*RJ45 2*USB 2.0 1*DC12V Jack |
|
Expand |
1*mPCIE for WIFI/3G/4G module 1*Sim Slot |
|
Size |

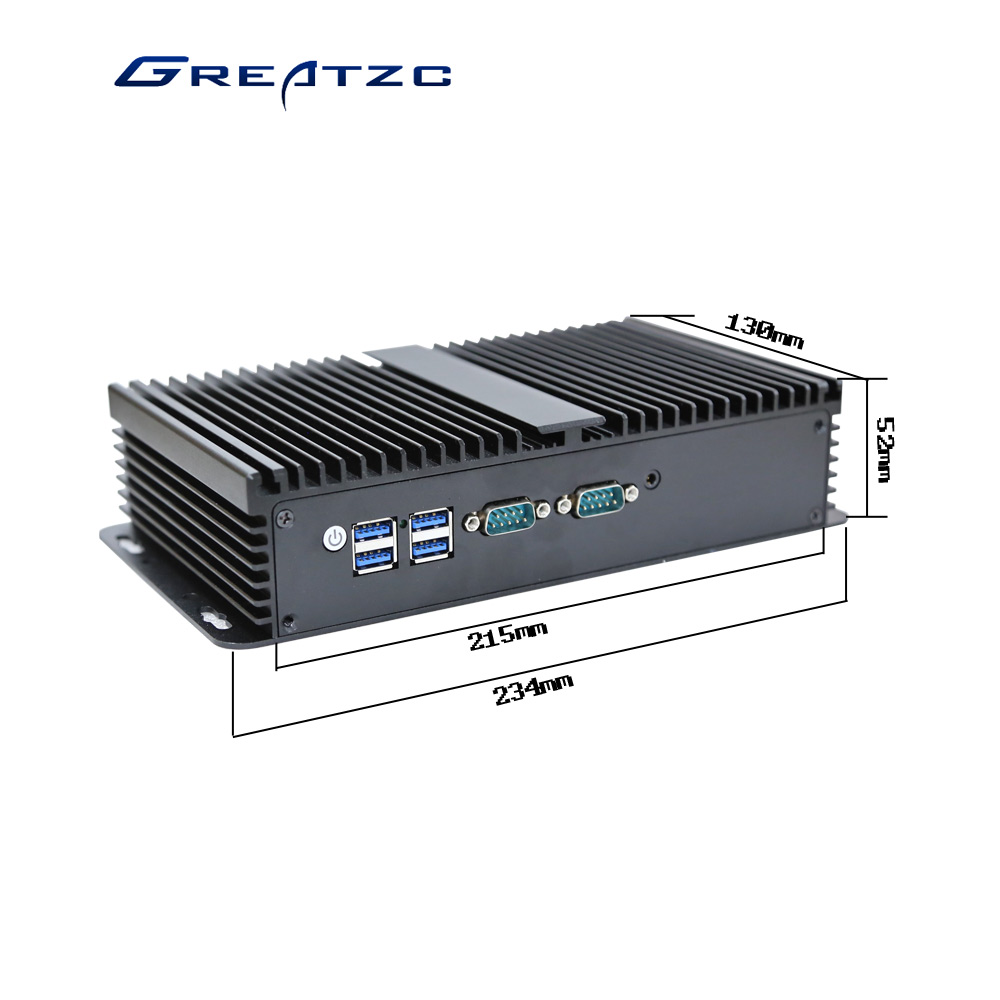

215*130*52mm |
|
Weight |
1.27KG |
|
Power Supply |
DC12V |
|
9-36V Can be customized |
|
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
OS |
Windows10/11/Linux |
|
Working Temperature |
-10℃~+60℃ |
|
Storage Temperature |
-20℃~+70℃ |
|
Relative Humidity |
5%-95% Relative humidity,no condensation |
