ZC-U36H816L Firewall Appliance With 6 Gigabit Network Card
- Description

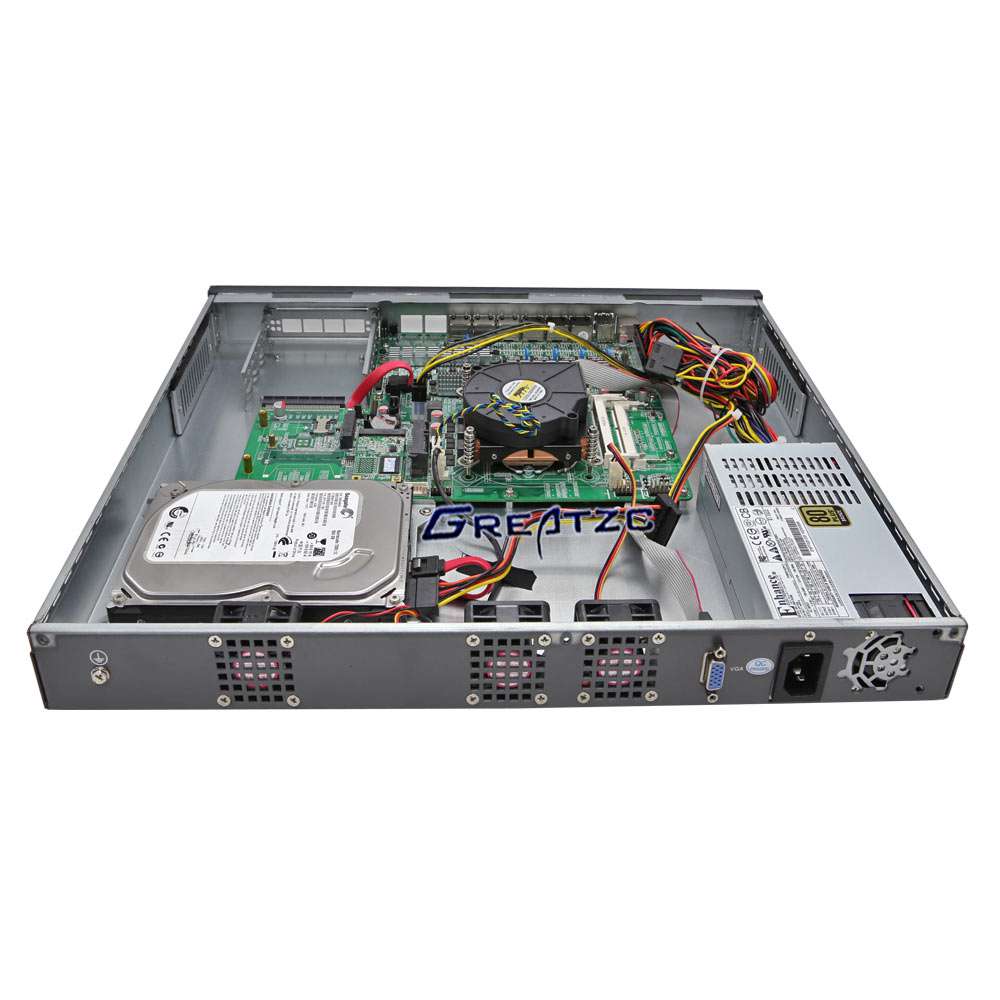

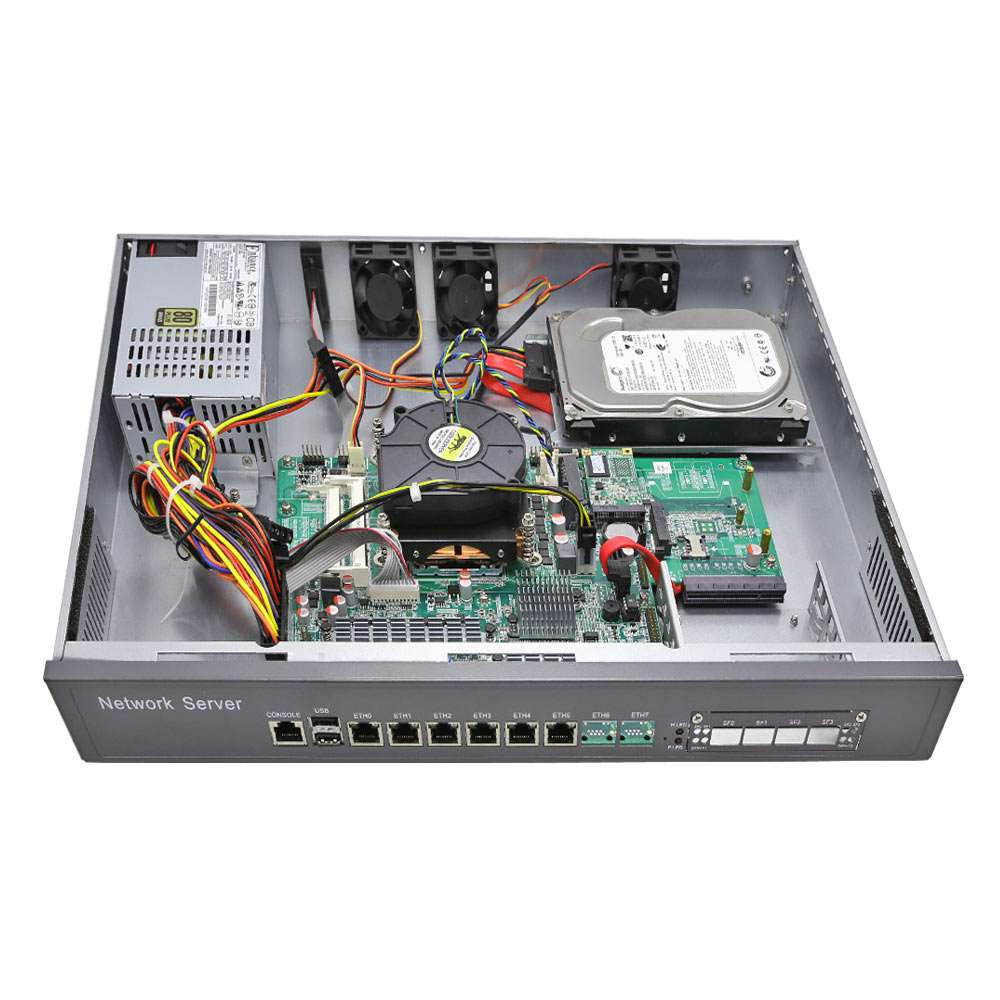

ZC-U36H816L Network Security Server Firewall PC 1U Rack-Mounted Case
With 6*WG82583V Card,2*USB,1*VGA,2*SO DIMM DDR3,
Support LGA1150 CPU Haswell 4th Core I7/I5/I3,Pentium,Celeron
Main Features:
1.INTEL H81 Chipset,LGA 1150 Socket,Haswell 4th Core I7/I5/I3,Pentium,Celeron.
2.Integrated 6*WG82583V Gigabit Card,Very Stable and Reliable,WIFI Optional.
3.Standard 1U Case,Size is 482*360*44.5mm,Adaptive to Kinds of Cabinet.
4.With Internal Mini PCI-E and SIM Slots,3G/4G/WIFI Optional.
5.With PCI-E 8X,and 4*SF Slots on Case,Optical Fiber Optional.
6.For Storage,Support SATA 2.5 and SATA 3.5,Also mSATA SSD.
7.With 250W ATX Power Supply 80Plus,Support 100-240V.
8.Support GPIO Programmable Controlling.
ZC-U36H816L Specification
|
CPU |
INTEL LGA 1150 Socket Support Haswell 4th Core I7/I5/I3,Pentium,Celeron |
|
Chipset |
Intel H81 |
|
RAM |
2*SO-DIMM DDR3 1600/1333/1066 Support Max 16GB |
|
Graphics Card |
CPU Integrated |
|
Storage |
2*SATA Slot 1*mSATA Slot 1*Onboard 2.5inch HDD Slot |
|
Network Card |
6*WG82583VGigabit Card |
|
Expansion Slot |
1*MINI PCI-E(Full Size,Support WIFI/3G/4G) 1*MINI SATA(Full Size,Support SSD) 1*PCIE X8(Support Optical Fiber Module) 1*SIM Slot |
|
Outside I/O |
6*RJ-45 LAN Ports 2*USB 2.0 1*Power Slot 1*Console Port( RJ45 Type) 1*PWR LED,1*HDD LED 1*VGA 1*AC Power Port 4*SF Ports(Need Buy Additional Optical Fiber Module) |
|
Power Supply |
ATX Power Supply 250W(100-240V) |
|
Size |
482*360*44.5mm |
