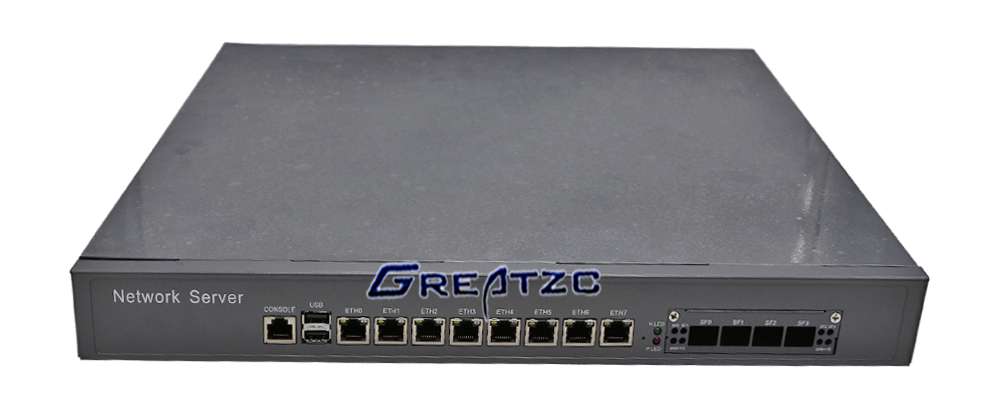

ZC-U36H878L 1U Rack Mounted Network Security Hardware With 8 Nic

ZC-U36H878L Network Security Server Firewall PC 1U Rack-Mounted Case

With 8*Intel I219 Gigabit Card,2*USB,1*VGA,2*SO DIMM DDR3,

Support LGA1150 CPU Haswell 4th Core I7/I5/I3,Pentium,Celeron.

Main Features:

1.INTEL H87 Chipset,LGA 1150 Socket,Haswell 4th Core I7/I5/I3,Pentium,Celeron.

2.Integrated 6*Intel I219 Gigabit Card,Very Stable and Reliable,WIFI Optional.

3.Standard 1U Case,Size is 482*360*44.5mm,Adaptive to Kinds of Cabinet.

4.With Internal Mini PCI-E and SIM Slots,3G/4G/WIFI Optional.

5.With PCI-E 8X,and 4*SF Slots on Case,Optical Fiber Optional.

6.For Storage,Support SATA 2.5 and SATA 3.5,Also mSATA SSD.

7.With 250W ATX Power Supply 80Plus,Support 100-240V.

8.Support GPIO Programmable Controlling.

ZC-U36H878L Specification

CPU	INTEL LGA 1150 Socket Support Haswell 4th Core I7/I5/I3,Pentium,Celeron
Chipset	Intel H87
RAM	2*SO-DIMM DDR3 1600/1333/1066 Support Max 16GB
Graphics Card	CPU Integrated
Storage	2SATA Slot 1mSATA Slot 1*Onboard 2.5inch HDD Slot
Network Card	8*INTEL I219 Gigabit Card Support 2xGroups Bypass
Expansion Slot	1MINI PCI-E(Full Size,Support WIFI/3G/4G) 1MINI SATA(Full Size,Support SSD) 1PCIE X8(Support Optical Fiber Module) 1SIM Slot
Outside I/O	8RJ-45 LAN Ports 2USB 2.0 1Power Slot 1Console Port( RJ45 Type) 1PWR LED,1HDD LED 1VGA 1AC Power Port 4*SF Ports(Need Buy Additional Optical Fiber Module.)
Power Supply	ATX Power Supply 250W(100-240V)
Size	48236044.5mm
