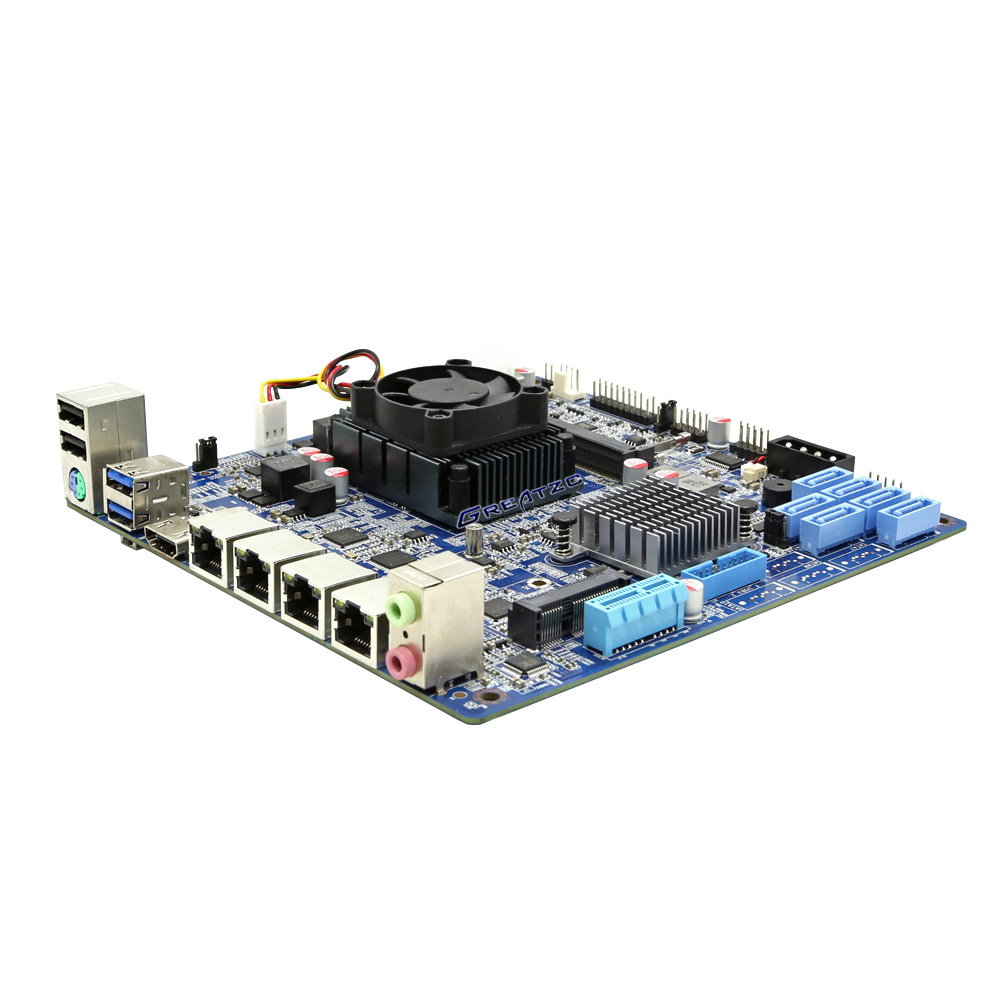

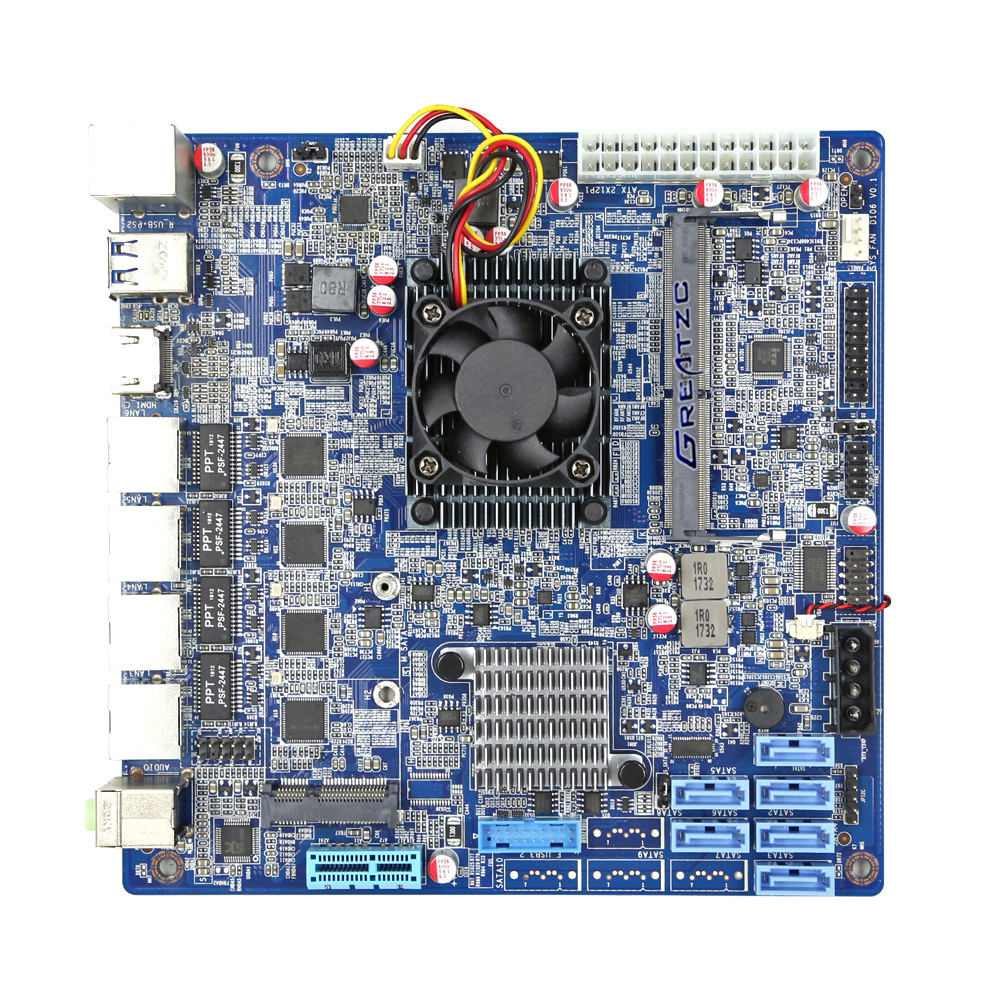

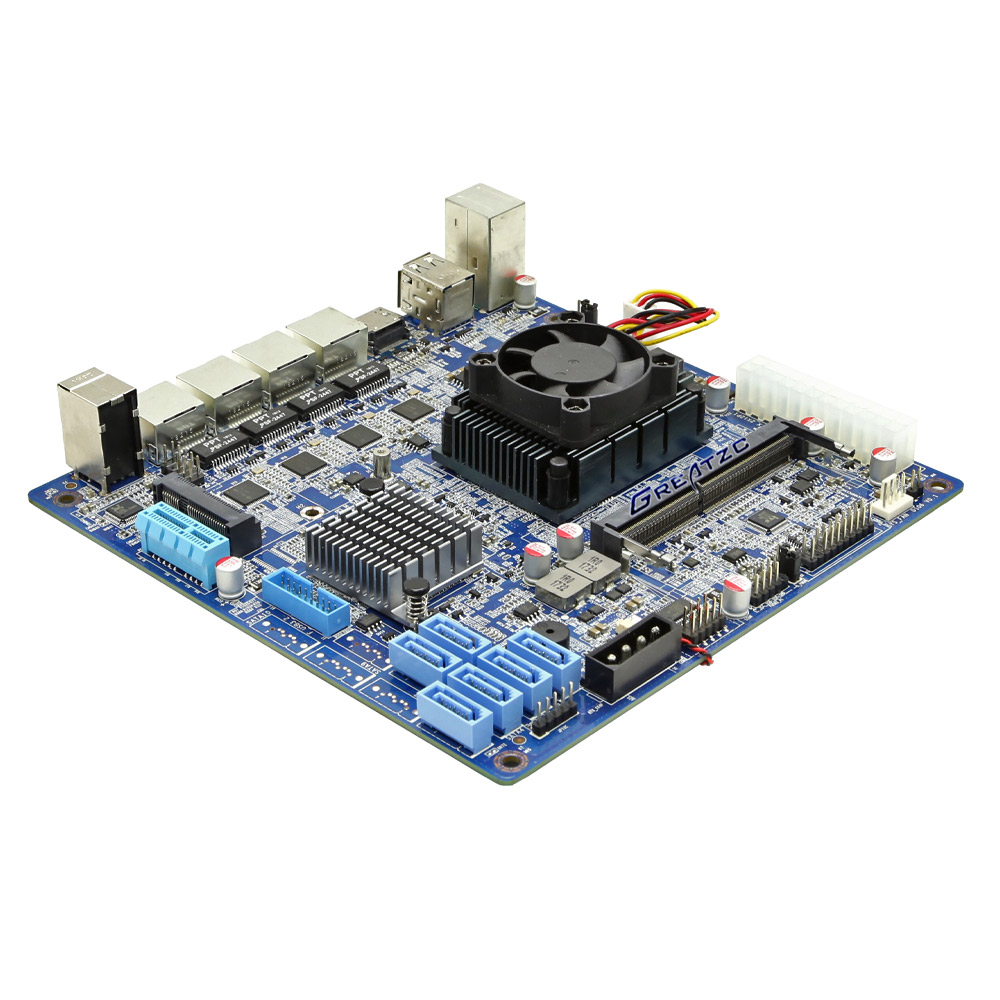

ZC-3855NAS-4L Mini ITX Motherboard With 6*SATA 3.0,4*Intel I211 Ethernet,

Intel Skylake Celeron 3855U CPU,Dual Core 1.6GHz,INTEL HD510,Support 4K.

With 1*HDMI,4*RJ-45 LAN,1*COM,1*I2C,1*PCIE X1,1*MSATA

Main Features:

1.) With 6*SATA 3.0,support software RAID.(10*SATA 3.0 Optional)

2.) With 4*Intel I211 Gigabit Network

3.) Mini Itx Form Facory,17x17cm,Height is 36mm

4.) Onboard 6th Gen Skylake 3855u,Can customize 6th/7th U serial Core i3/i5/i7 CPU

5.) Onboad I2C,Support external device expansion

6.) Onboard PCIE X1 expansion interface for multiple conversion cards and expansion devices

7.) Support watchdog,Timing switch,Auto Power On,suitable for unattended equipment

8.) Support PXE,Wake On LAN

9.) Support Windows 8.1/10,Linux,Free NAS

10.) With sufficient material, good stability and strong anti-interference, ensure long-term stable operation of the product.

ZC-3855NAS-4L Mini Itx Motherboard Specification

CPU	INTEL 6th Skylake Celeron 3855U Dual Core 2 Thread 1.6GHz 2MB SmartCache TDP only 15W (Can customize 6th/7th U serial Core i3/i5/i7 CPU)
Chipset	CPU Integrated
Graphics	INTEL HD510 Support 4K
Memory	1*SO-DIMM DDR4, MAX 16GB
Network Card	4*Intel I211,Gigabit
Audio Card	Realtek ALC662
USB	Rear Ports:2USB 3.0,2USB 2.0 Header: 2USB 3.0,2USB 2.0
PCIe	1×PCIe 1X
SATA	6pcs SATA3.0 (10pcs SATA3.0 Optional)
Display	HDMI1.4B,Max 4096x2304@24Hz
Rear I/O	PS2
	2*USB2.0
	2*USB3.0
	1*HDMI
	2*RJ45
	1Speaker,1Mic
	1*Clear CMOS
Internal I/O	6*SATA 3.0 (10pcs SATA3.0 Optional)
	2*10pin Front Panel Header
	1*I²C
	DOM/HDD Power(1x4pin)
	Over Heat LED Pins(1*2pin)
	1* 9Pins USB 2.0 Header(Supoort 2*USB 2.0)
	1* 19Pins USB 3.0 Header(Supoort 2*USB 3.0)
	1*AUTO Power On Header
	Chassis Anti-theft Pin(1*2pin)
	1*MSATA (switch with jumper between MSATA and SATA1,either-or)
	1*COM Header
	1*Front Audio
	1*System Fan Header(3Pins)
	1*CPU Fan Header(3Pins)
Power Supply	24pin ATX
Form Factor	Mini-ITX,17x17cm(Height 36mm)
