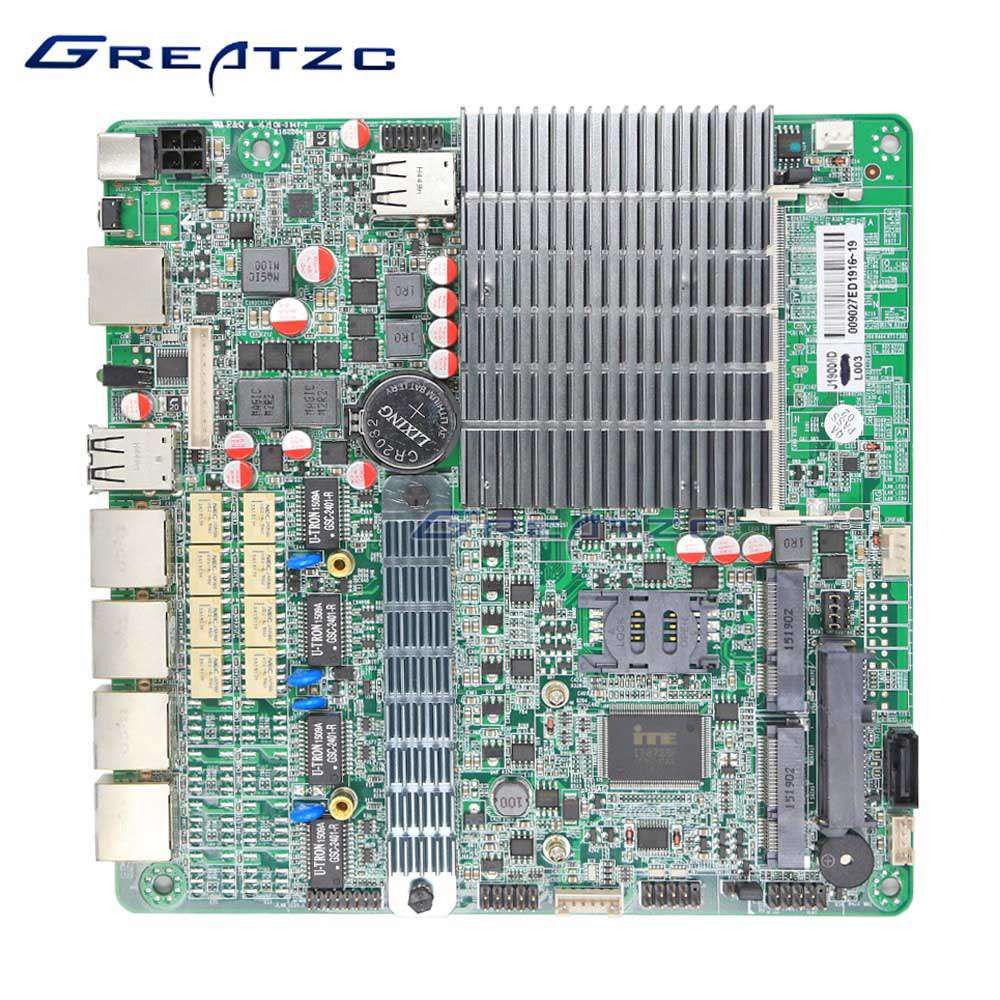

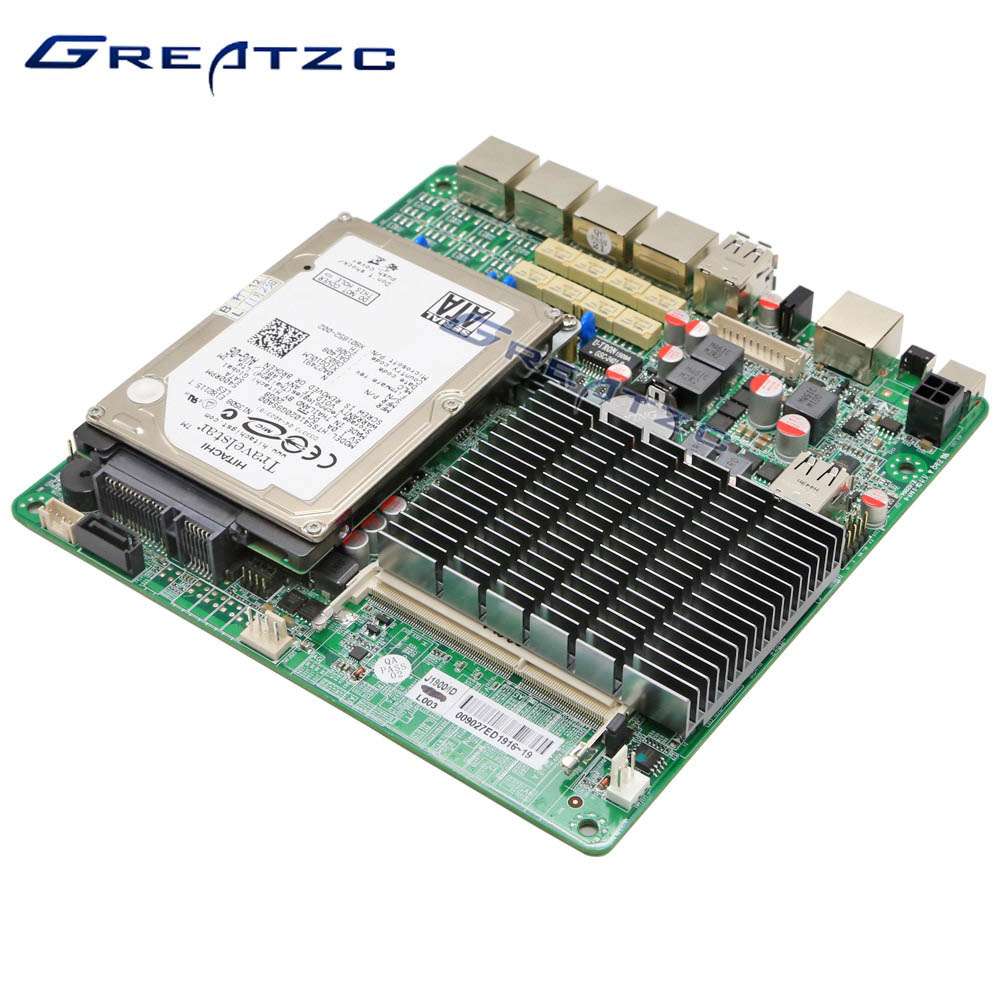

ZC-BT184L Firewall Motherboard 4 Lan Mini Itx
- Description
ZC-BT184L MINI ITX 4 LAN Motherboard Onboard CPU J1800,With 4*Intel 82583V
Gigabit Network Card,1*MINI SATA,1*Mini PCI-E,1*SIM Slot
Main Features:
1.Onboard INTEL Bay Trail-D Celeron J1800,TDP only 10W
2.Dual Core 2 Threads 2.41GHz,Turbo to 2.58GHz
3.Support 1*SO-DIMM DDR3L 1333MHz
4.With 1*Mini PCI-E,1*SIM Slot,Support WIFI or 3G module
5.With 1*MINI SATA,Suppot SSD;1xSATA 2.5inch Port
6.DC 12V-19V Power Supply,Wide Range Input
7.With 4*LAN Ports,4*USB Ports
8.Fanless Design,No Noise
ZC-BT184L Motherboard Specification
|
CPU |
INTEL Bay Trai Celeron J1800 Dual Core 2 Threads 2.41GHz Turbo to 2.58GHz 1MB L2 Cache TDP only 10W |
|
RAM |
1*SO-DIMM DDR3L 1333MHz |
|
Graphics Card |
Intel HD,Support 1080P |
|
Onboard SATA |
2*SATA Slots |
|
Expansion Slot |
1*MINI SATA 1*Mini PCI-E 1*SIM Card Slot |
|
Network Card |
4*Intel 82583V Gigabit Card |
|
Rear Panel I/O |
1*Power Button 1*DC Port Power&SATA Lights 2*USB 2.0 1*Console Port( RJ45 Type) 4*RJ-45 LAN Ports |
|
Internal I/O |
1*KB2 1*GPIO 1*COM2 1*JPW 1*JVGA JLAN-LED1 USB3 Port USB4 Port 1*SATA 2.5inch Port 1*SATA1 1*SATA Power 1*CPU FAN 1*SYS FAN 1*F_PANEL 1*MINI PCI-E 1*MINI SATA 1*SIM Card Slot 1*DDR3 Slot 1*ATX12V(4PINS) |
|
Power Supply |
12V-19V DC |
|
Size |
Mini ITX Form Factor(17cm*17cm) |
