ZC-OPSH610M OPC PC With MXM Discrete Graphics
- Description
ZC-OPSH610M OPS PC Supports Intel 12/13th Gen Intel I3/I5/I7 CPU,Supports MXM Discrete Graphics
1*OPS JAE,1*HDMI+1*DP,6*USB 3.0+1*Type C
Main Features:
1.) Intel LGA 1700 Socket,12/13th Intel Core i3/i5/i7 CPU

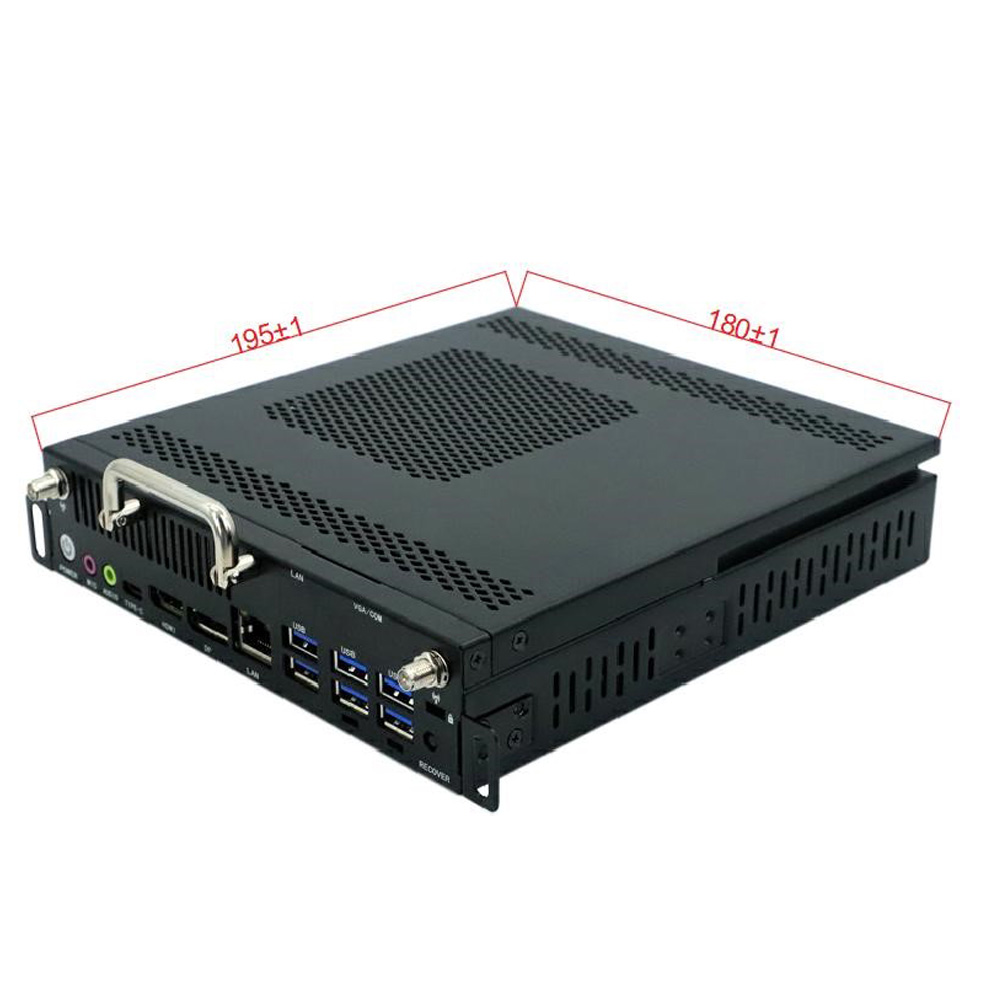

2.) Standard Size 180*195*42mm/30mm
3.) MXM Slot,Supports MXM Discrete Graphics
4.) OPS JAE+HDMI+DP Display 4096x2304@60Hz
5.) Good Quality:All Solid Cap,With Stable and Reliable Performance
ZC-OPSH610M Specification
|
Model |
ZC-OPSH610M |
|
CPU |
LGA1700,Support 12/13th Gen Intel I3/I5/I7 CPU |
|
Chip |
Intel H610 |
|
RAM |
2*SO-DIMMM DDR4,Max 64GB |
|
Power |
12V~19V |
|
Display |
1*HDMI 3840x2160@60hz |
|
1*DP 3840x2160@60hz |
|
|
1*OPS JAE 3840x2160@60hz |
|
|
Graphics |
1*MXM Slot Discrete Graphics Optional: NVIDIA MXM GTX1050TI 4G NVIDIA MXM GTX1060 6G NVIDIA MXM RTX3050M 8G NVIDIA MXM RTX3060M 6G Other Graphics Optional too |
|
Audio |
ACL 897 |
|
Network |
Realtek Gigabit |
|
Storage |
1*M.2 SATA/PCIE SSD |
|
Extension |
1xM.2 2230 for WIFI/BL |
|
Rear IO |
1xPower |
|
1xSpeaker |
|
|
1xMic |
|
|
1xHDMI |
|
|
1xDP |
|
|
1xRJ45 |
|
|
1xType C |
|
|
6xUSB3.0 |
|
|
1xDC JACK |
|
|
1xOPS JAE TX25 80pin |
|
|

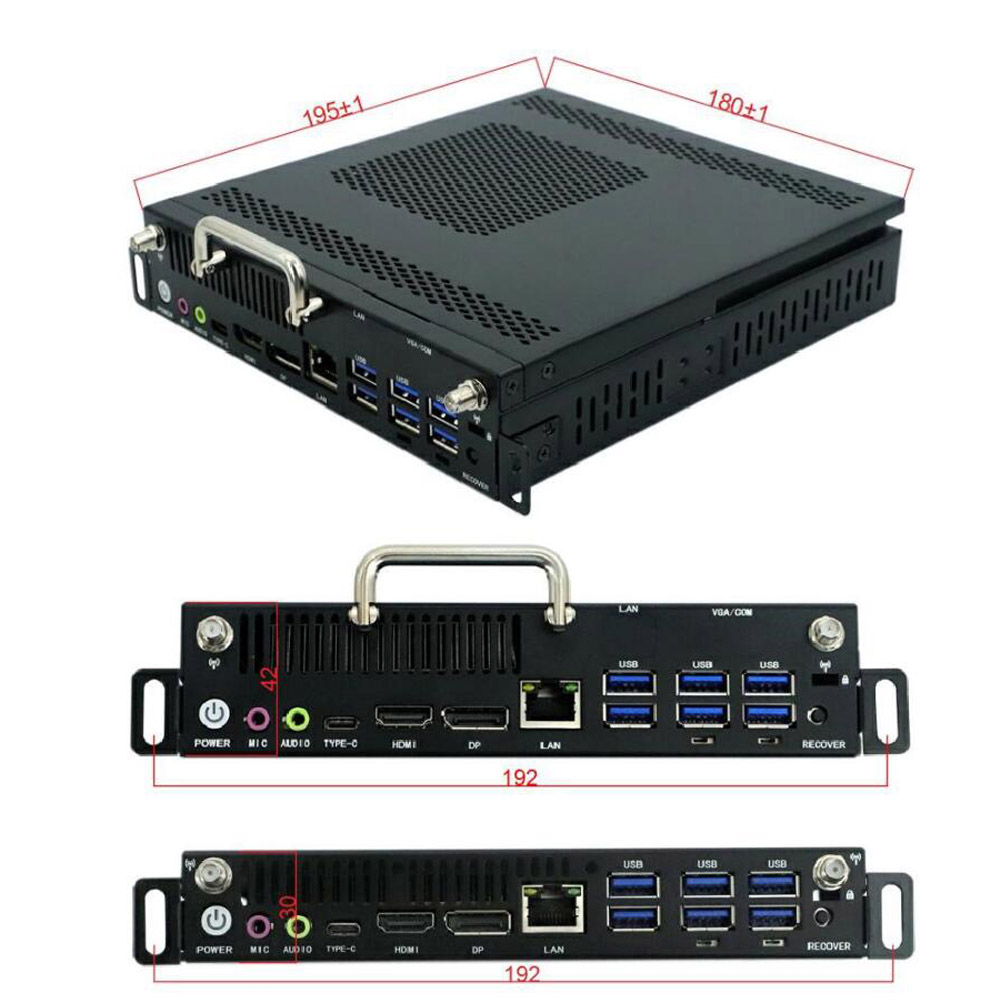

Size |
180*195*42mm |
|
180*195*30mm |
