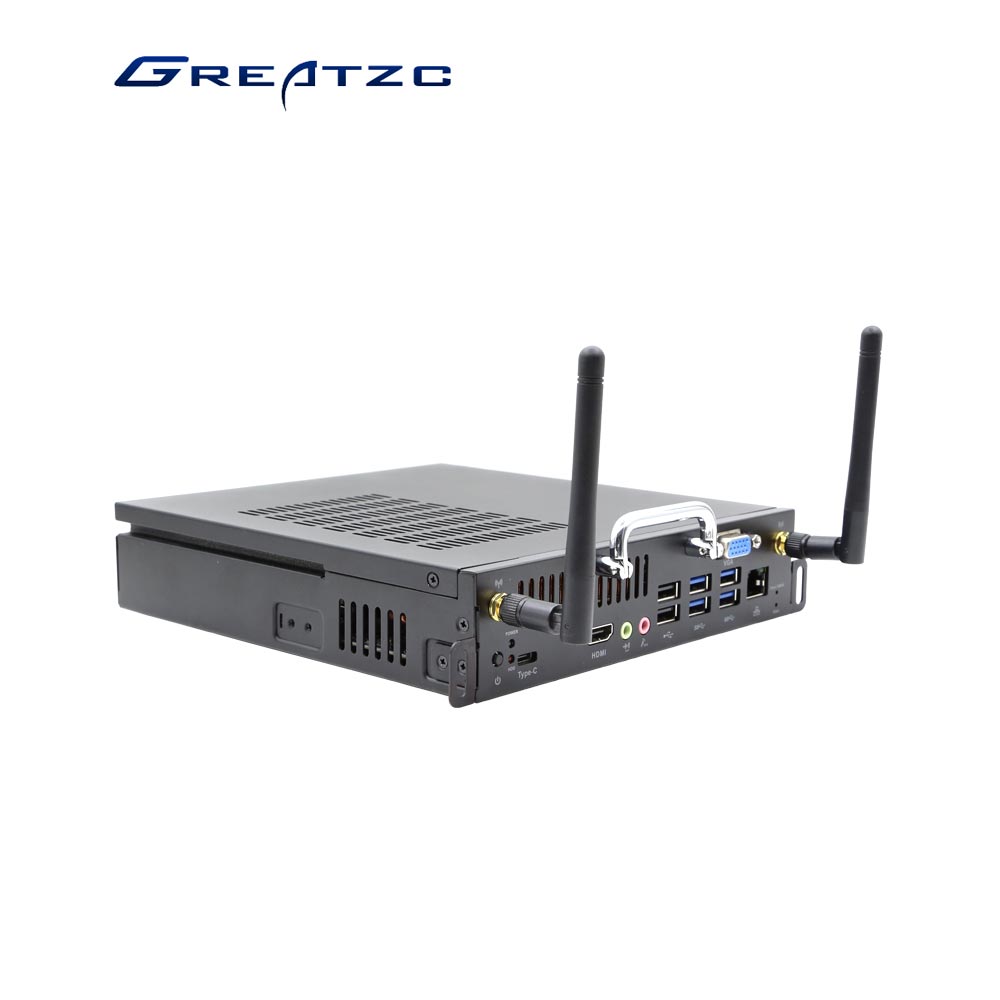

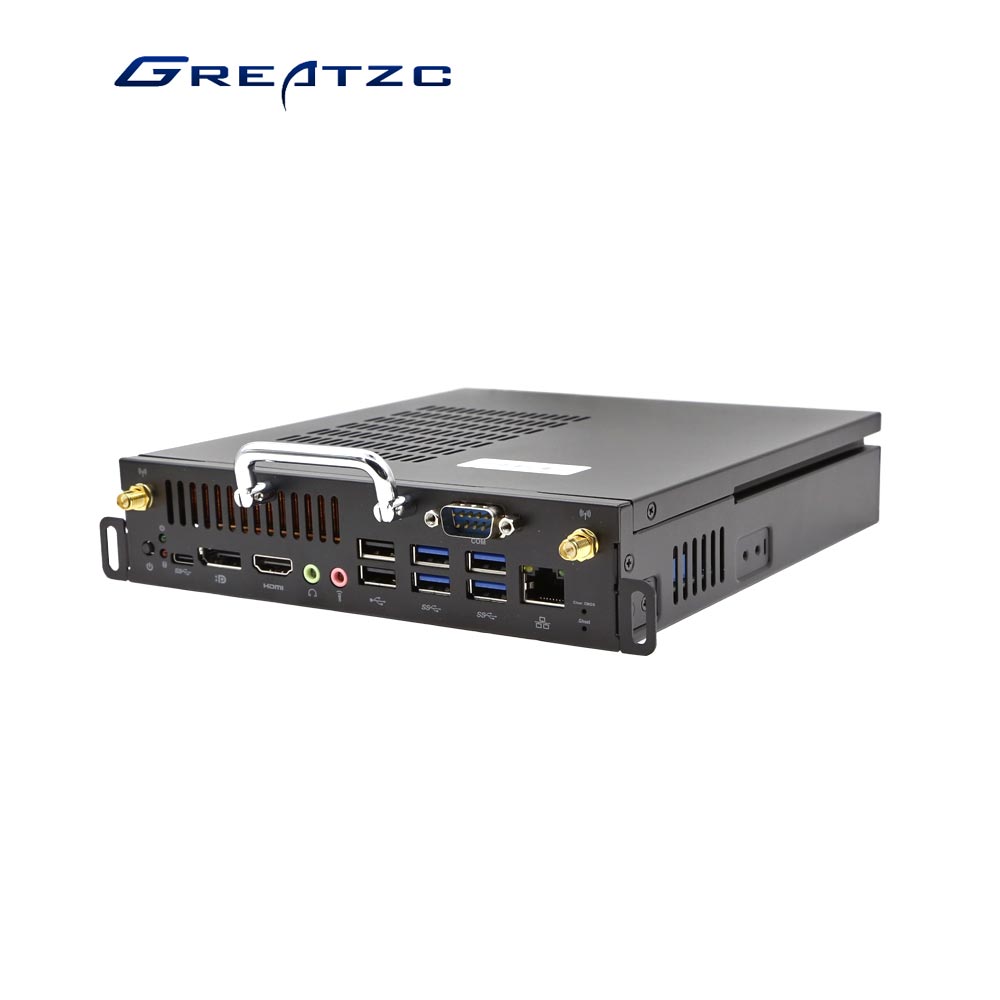

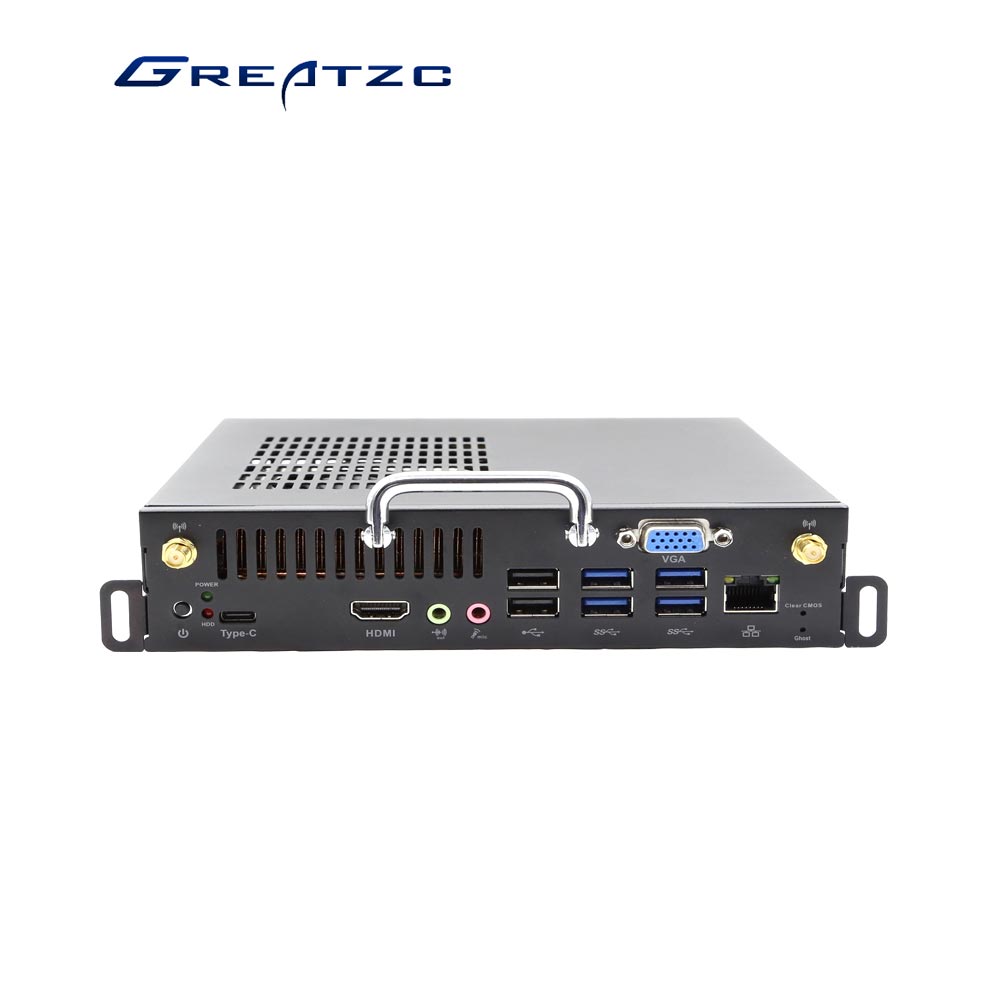

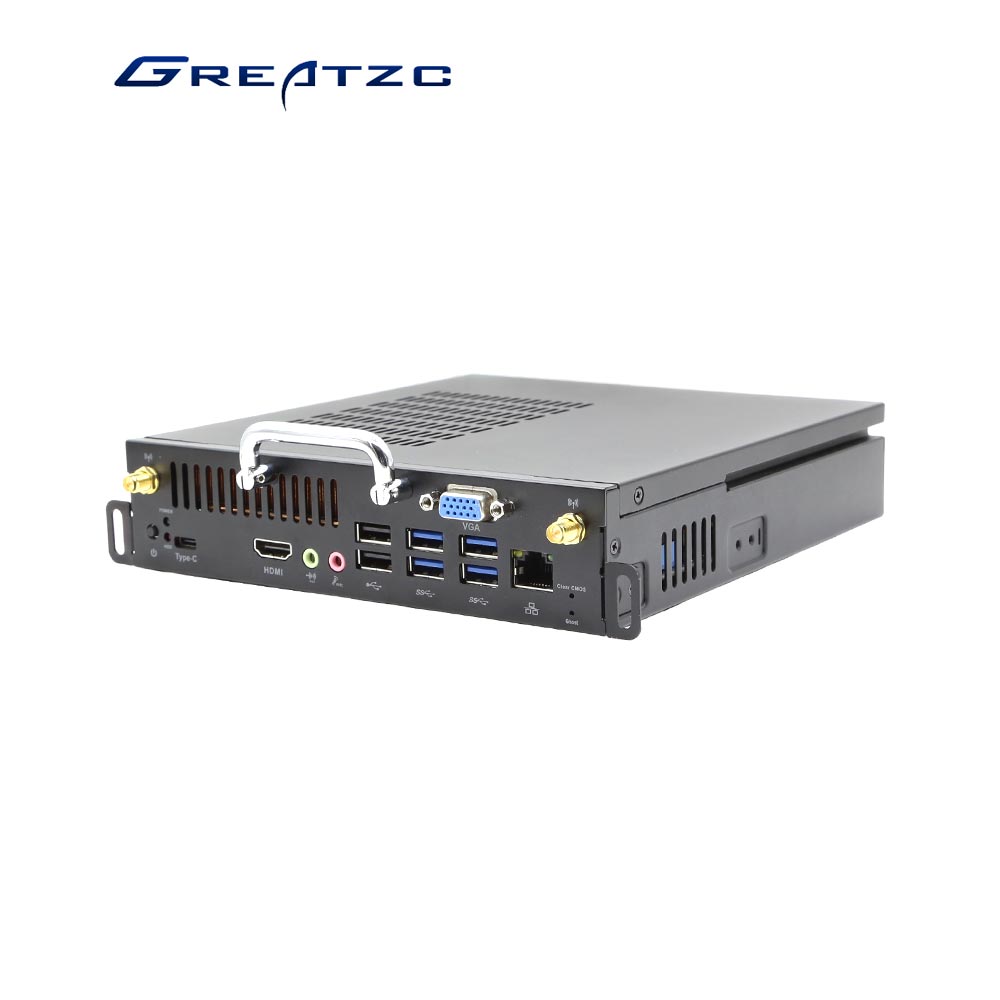

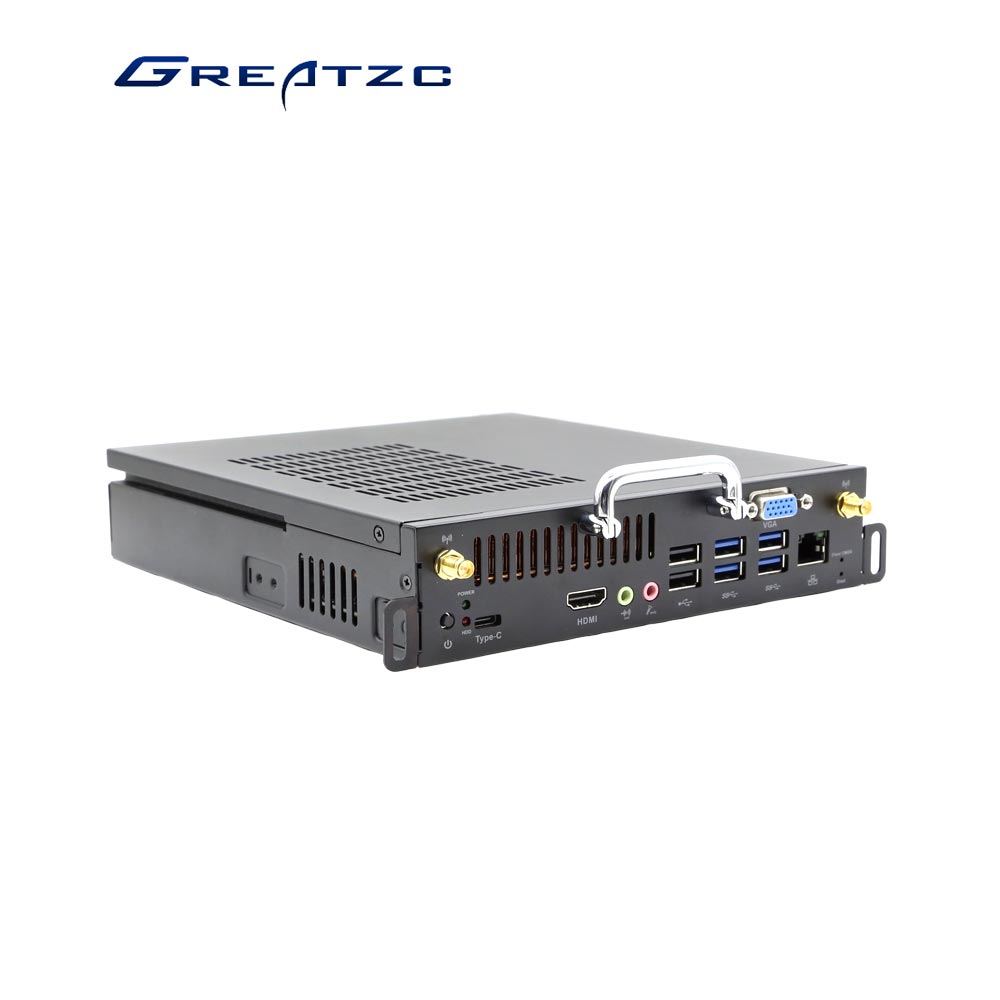

ZC-OPSH510 OPS PC H510 With 10th 11th Generation I3 I5 I7 CPU
- Description
ZC-OPSH510 OPS PC Supports 10th 11th Gen Intel Core i3/i5/i7 CPU,2*USB 3.0+4*USB2.0,1*Type C,1*RJ45,
1*OPS JAE Port,1*HDMI+1*DP,1*Power Button,2*Antennas,1*Power LED,1*HDD LED
Main Features:
1.) Intel LGA 1200 Socket,Supports 10th 11th Gen Intel Celeron/Pentium/Core i3/i5/i7
2.) Standard OPS Frame,the Size is 180*195*42mm
3.) Rich Storage,1*M.2 NVME and 1*SATA 2.5’’
4.) M.2 Slot for WIFI Module
5.) OPS JAE Support 4096x2304@60Hz
6.) Good Quality:All Solid Cap,With Stable and Reliable Performance
|
CPU |
Intel LGA 1200 Socket Support 10th 11th Intel Celeron/Pentium/Core i3/i5/i7 |
|
Chipset |
H510 |
|
RAM |
2*SO-DIMM DDR4,Max 64GB |
|
Storage |
1*SATA 2.5’’ 1*M.2 NVME/SATA |
|
Graphics Card |
CPU Integrated Intel UHD Graphics,Max Resolution 4096*2304@60Hz |
|
Display |
OPS JAE 80Pins: 4096*2304@60Hz HDMI 2.0 Signal HDMI 1.4: 4096*2304@30Hz DP1.2: 4096*2304@60Hz |
|
Network Card |
1*RTL8111E,Gigabit |
|
WIFI |
Optional |
|
I/O Ports |
1*DC Port 1*HDMI 1*DP 1*OPS JAE Port 2*USB 3.0 4*USB 2.0 1*USB Type C 1*RJ45 1*Power Button 1*Power LED 1*HDD LED 2*WIFI Antenna |
|
Size |
180*195*42mm |
