9th 8th Intel Celeron I3 I5 I7 CPU Mini Itx Board LGA1151 Socket LVDS HDMI VGA
- Description
9th 8th Intel Celeron I3 I5 I7 CPU Mini Itx Board LGA1151 Socket LVDS HDMI VGA 3 Display

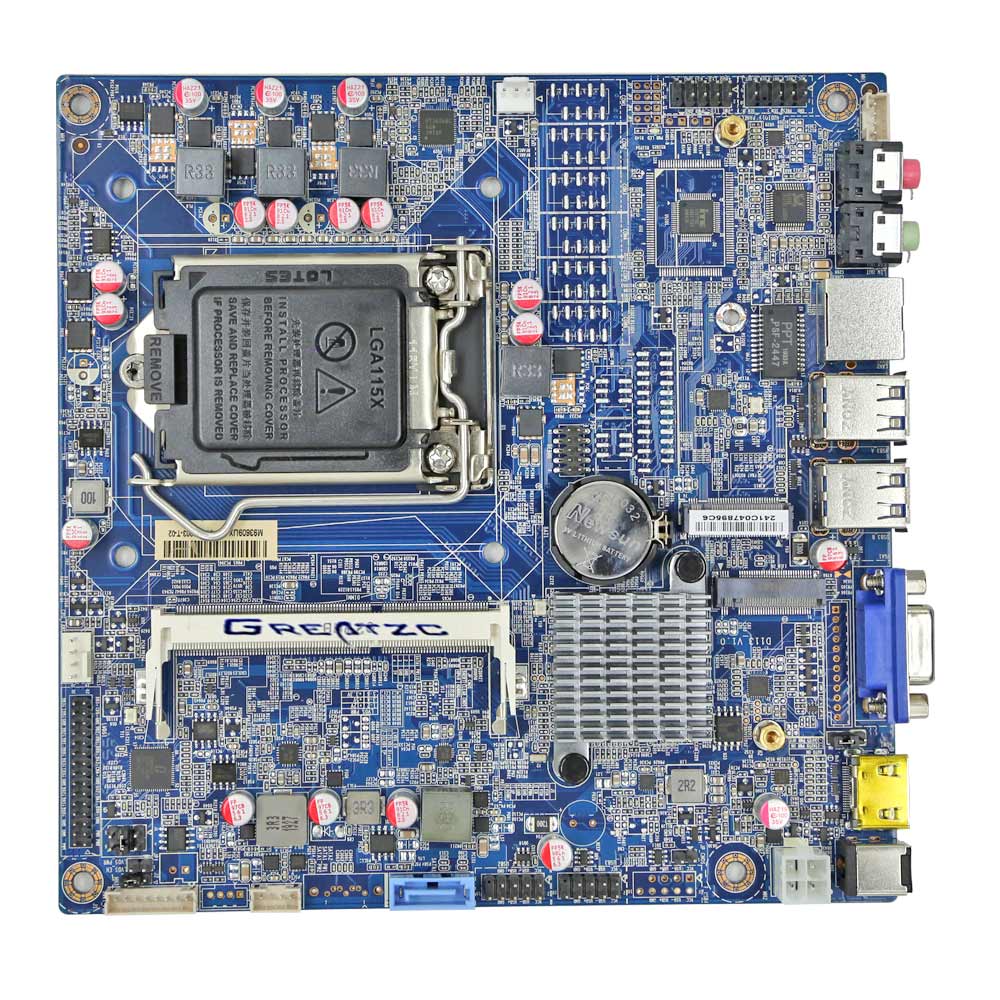

ZC-DN-H310SL-V Thin Mini Itx Motherboard LGA1151 Socket,Intel H310C Chipset
Support 9th/8th/7th/6th Generation Core i7/i5/i3/Celeron/Pentium Processor
With 1*HDMI,1*VGA,1*RJ45,4*USB 3.0,4*USB 2.0,1*LVDS
1*M.2 for SSD,1*M.2 For WIFI,12V-19V DC Power
Main Features:
1. Intel H31C Chipset,LGA1151 Socket
2. Support all 9th/8th/7th/6th Gen CPU
3. DC 12V-19V Power Supply,Can be Used to More Cases
4. Processor integrated Intel HD Graphics,Support 4K
5. Rich Storage,1*SATA 3.0,1*M.2 2280 for SSD
7. With 1*M.2 2230 for WIFI/Bluetooth
8. Rich USB Ports,4*USB 3.0,4*USB 2.0
9. Mini Itx Form Factor,17cm*17cm
10. 6*RS232(2*RS485) can customize
ZC-DN-H310SL-V Mini-Itx Motherboard Specification
|
Processor |
Intel LGA1151 Socket Support 9th/8th/7th/6th Generation Core i7/i5/i3/Celeron/Pentium |
|
Chipset |
Intel H310C |
|
RAM |
1*SO-DIMM DDR3 Up to 8GB |
|
Graphics Card |
N/A Processor Integrated Graphics Card |
|
Display |
1*HDMI 1*VGA 1*LVDS |
|
LVDS |
1*Double Channel LVDS |
|
Storage |
1*SATA 3.0 1*M.2 2280 for SSD |
|
Expansion Slot |
1*M.2 2230,Supports WIFI/3G/4G Module |
|
Network Card |
1*Gigabit Network Card |
|
Rear Panel I/O |
4*USB 3.0
1*HDMI 1*SPK 1*MIC 1*RJ45 1*DC 12V-19V Port |
|
Internal I/O |
1*Fan(4Pins) 1*DC ATX(4PINS) 1*F-Panel(9Pins) 1*M.2 2230 Slot 1*SATA 3.0 1*SATA Power(4Pins) 1*Auto Power On(3Pins) 1*amplifier Speaker(4Pins) 1*AUDIO(9Pins) 1*30PINS LVDS 1*LVDS INVERTER(8PINS) 1*USB2(9pins,Supports 2*USB2.0) 1*USB3(9pins,Supports 2*USB2.0) 6*RS232(2*RS485) can customize |
|
Expansion |
1*M.2 2230 for WIFI/Bluetooth Module |
|
Power |
DC 12V-19V Port |
|
Size |
Mini ITX (17cm*17cm) |
