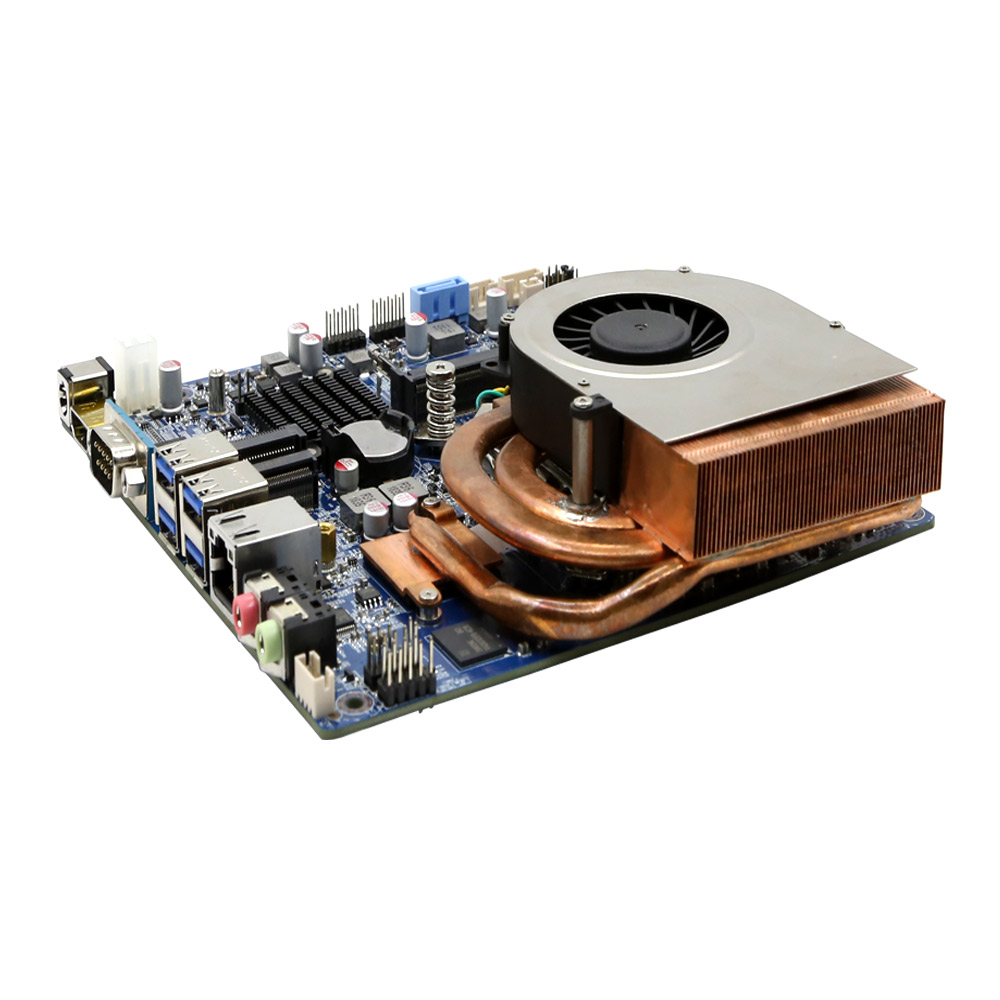

ZC-H310SL-1030 Mini Itx Motherboard With LGA1151 Socket,Intel H310 Chipset

Support 9th/8th/7th/6th/ Core i7/i5/i3/Celeron/Pentium Processor

With NVIDIA GT1030 Discrete Graphics Card,GPU Memory 2GB DDR5

With 1*HDMI,1*Ethernet,4*USB 3.0,4*USB 2.0,1*COM,

1*Mini SATA,1*M.2,1*AUDIO,12V-19V DC Power

Brief Introduction:

ZC-H310SL-1030 is a Thin Mini-ITX form factor industrial grade motherboard with an onboard

GT1030 discrete graphics card. With Intel H310C chipset, support Intel 9th, 8th, 7th, 6th

generation multi-platform desktop CPU, equipped with NVIDIA GT1030 discrete graphics

chip, support 4K ultra HD.The motherboard uses DC12-19V wide power supply, onboard

HDMI2.0,LVDS,RS-232 Serial Port,mSATA,M.2 and other interfaces, widely used in

commercial display, digital signage,high-end multimedia machine,3D presentation,

VR\AR virtual reality, drawing, face recognition, big data, medical equipment,

teaching equipment, special computers and other occasions.

Main Features:

1. Intel H310c Chipset,LGA1151 Socket,Supports 9th,8th,7th,6th Gen i7/i5/i3/Celeron

2. With NVIDIA GT1030 Discrete Graphics Card,GPU Memory 2GB DDR5

3. DC 12V-19V Wide Voltage Power Supply,High stability and wide compatibility

4. Onboard LVDS,supports LVDS Panel directly

5. With M.2 2230 Slot,support WIFI/Bluetooth

6. With 1*SATA 3.0,1*MINI SATA,Rich Storage

7. With 4*USB+4*USB 2.0,Rich USB Ports

8. Mini Itx Form Factor,17cm*17cm

ZC-H310SL-1030 Mini-Itx Motherboard With Nvidia GT1030 Specification

Model Name	ZC-H310SL-1030
Processor	Intel LGA1151 Socket Supports Intel 9th/8th/7th/6th/ Generation Core i7/i5/i3/Celeron/Pentium
Chipset	Intel H310C
RAM	1*SO-DIMM DDR4,up to 16GB
Graphics Card	Nvidia GT1030,GPU Memory DDR5 2GB
Storage	1*SATA 3.0 1*Mini SATA
Expansion Slot	1*M.2 2230,Supports WIFI Module
Network Card	1*RTL8111H,Gigabit
Audio Card	ALC 662
Rear Panel I/O	4*USB 3.0 1*HDMI 1*RS232 1*DC Port 1*RJ45 Ports 1*MIC 1*Speaker
Internal I/O	1*LGA1151 Socket 1*LVDS(30 Pins) 1*LVDS Power(6 Pins) 1*LVDS Inverter(8 Pins) 1*USB(9pins,Supports 2*USB2.0) 1*USB(9pins,Supports 2*USB2.0) 1*SATA 3.0 1*SATA Power 1*CPU FAN Header(4 Pins) 1*System Fan Header(4 Pins) 1*mSATA Slot 1*M.2 2230 Slot 1*AUDIO(9Pins) 1*Auto Power(3Pins) 1*F-Panel(9Pins) 1*DC Power(4 Pins)
Power	DC 12~19V
Size	Mini ITX (17cm*17cm)
