ZC-H45-R3050 Mini Gaming PC Nvdia RTX3050 Graphics 12th Gen i5 i7 i9 CPU
- Description
ZC-H45-R3050 Mini PC With Nvidia RTX3050 Graphics GDDR6 4GB video memory,Intel 12th Gen Alder Lake-H 45W series CPU I3 I5 I7 I9
optional,1*LAN,2*HDMI 2.0,1*Type C,4*USB 3.0+2*USB 2.0
Main Features:
1.) Onboard Nvidia RTX3050 Discrete Graphics chip, GDDR6 4GB video memory
2.) Intel 12th Gen Alder Lake-H 45W series CPU, I3, I5, I7, I9 optional
3.) Dual channel SO-DIMM DDR4 2400/2666/3200MHz,up to 64GB
4.) Support 2*M.2 NVME high-speed SSD
5.) 2*HDMI 2.0 Ports,1*Type C
6.) High-performance heat pipe radiator, good heat dissipation effect
7.) Support wake-up on LAN, watchdog, GPIO, PXE diskless boot
|
CPU |
I5-12500H (12 Cores,3.3GHz Turbo to be 4.5GHz) |
|
I7-12700H (14 Cores,3.5GHz Turbo to be 4.7GHz) |
|
|
I9-12900H (14 Cores,3.8GHz Turbo to be 5GHz) |
|
|
RAM |
2*SO-DIMM DDR4 2400/2666/3200,up to 64GB |
|
Storage |
2*M.2 2280 NVME |
|
Graphics Card |
Nvidia RTX3050 Discrete Graphics chip, GDDR6 4GB video memory |
|
Network Card |
1* Intel i226-V 2.5G |
|
Support Wake On LAN,PXE |
|
|
I/O Ports |

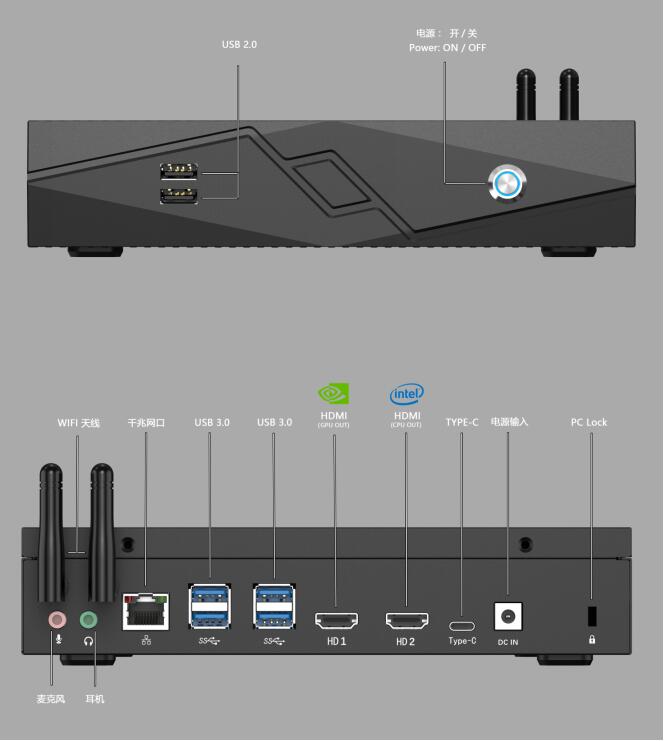

2*HDMI 2*USB 2.0 4*USB 3.0 1*Audio Out 1*MIC In 1*RJ45 1*Type C 1*DC Jack 1*Power Button 2*Antenna Holes |
|
Power Supply |
DC19V/7.89A |
|
Size |
227*215*45mm |
|
OS |
Windows 10/11 / Linux |
|
Working Temp |
-10℃ to 60℃ |
|
Storage Temp |
-20℃～70℃ |
|
Relative Humidity Humidity |
5%-95% relative humidity, no condensation |
