ZC-G6412DL-V2 J6412 CPU Mini PC With 2 LAN Ports 2 RS232 RS485-Industrial Mini Computer-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

ZC-G6412DL-V2 J6412 CPU Mini PC With 2 LAN Ports 2 RS232 RS485

ZC-G6412DL-V2 Fanless Industrial Mini PC Onboard CPU Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz

2*Realtek RTL8111H Network,1*HDMI+1*VGA,2*COM,4*USB 3.0,2*USB 2.0,1*Line Our/Mic,1*DC12V Jack,2*Antenna Holes

Features:

1.) Onboard CPU Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz

2.) With 2*Realtek RTL8111H,Support Wake-on-LAN/PXE

3.) 1* M.2 Key-M 2280/2242 NVME/SATA SSD Slot

4.) Support Doubel Display 1*HDMI+1*VGA

5.) Rich USB,4*USB 3.0 Ports+2*USB 2.0 Ports

6.) With 2*COM,Support 2*RS232/485

7.) Fanless Passive Cooling,Aluminium Alloy Case

8.) Industrial Grade,Low Power Low Power Consumption

9.) Small Size Only 157x130x52mm

Chassis	Material	Aluminium Alloy
	Color	Silver Gray
	Size	157x130x52mm
	Weight	0.7KG
Motherboard	CPU	Intel Elkhart Lake J6412 4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W
	Chipset	SOC
	Graphics	Intel UHD Graphics for 10th Gen Intel Processors
	Display	1*HDMI
	Display	1*VGA
	Network Card	2*Realtek RTL8111H,Support Wake-on-LAN/PXE
	Memory	1*SO-DIMM DDR4,Max 32GB
	Storage	1* M.2 Key-M 2280/2242 NVME/SATA SSD Slot 128GB/256GB/512GB/1TB Optional

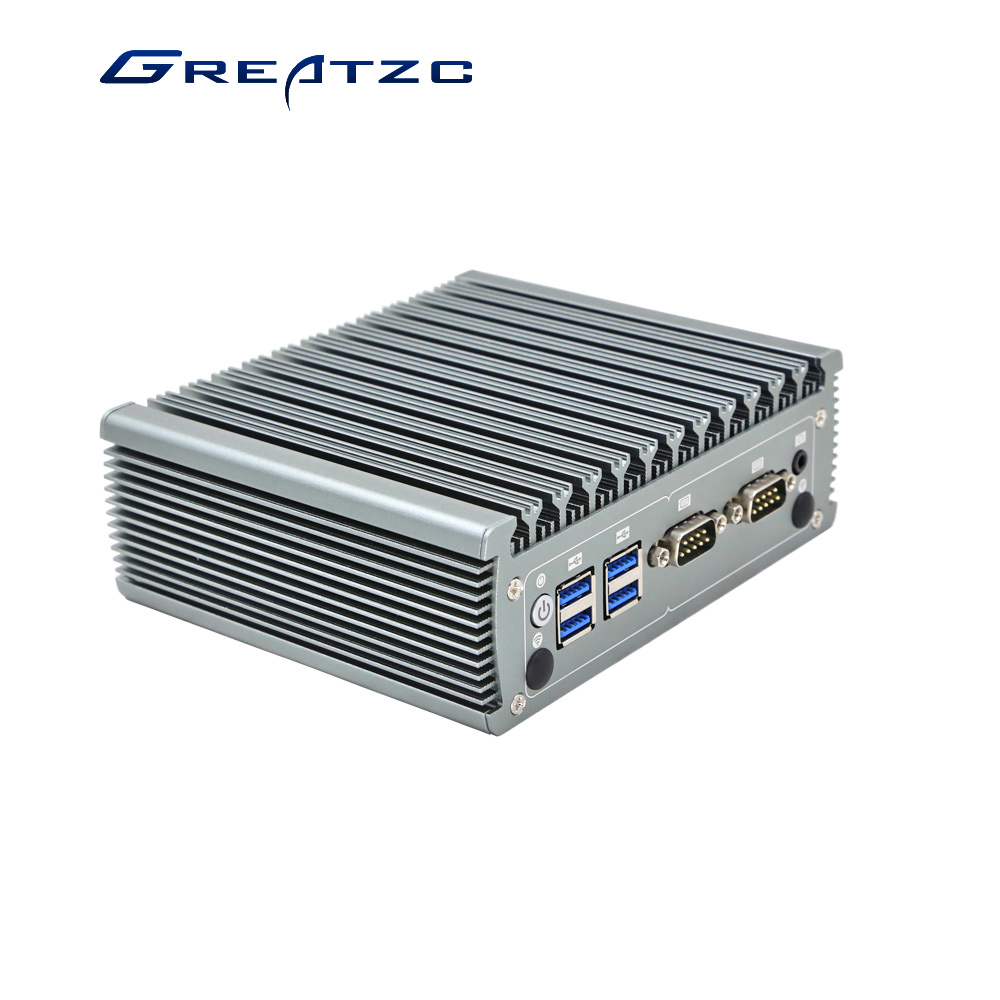

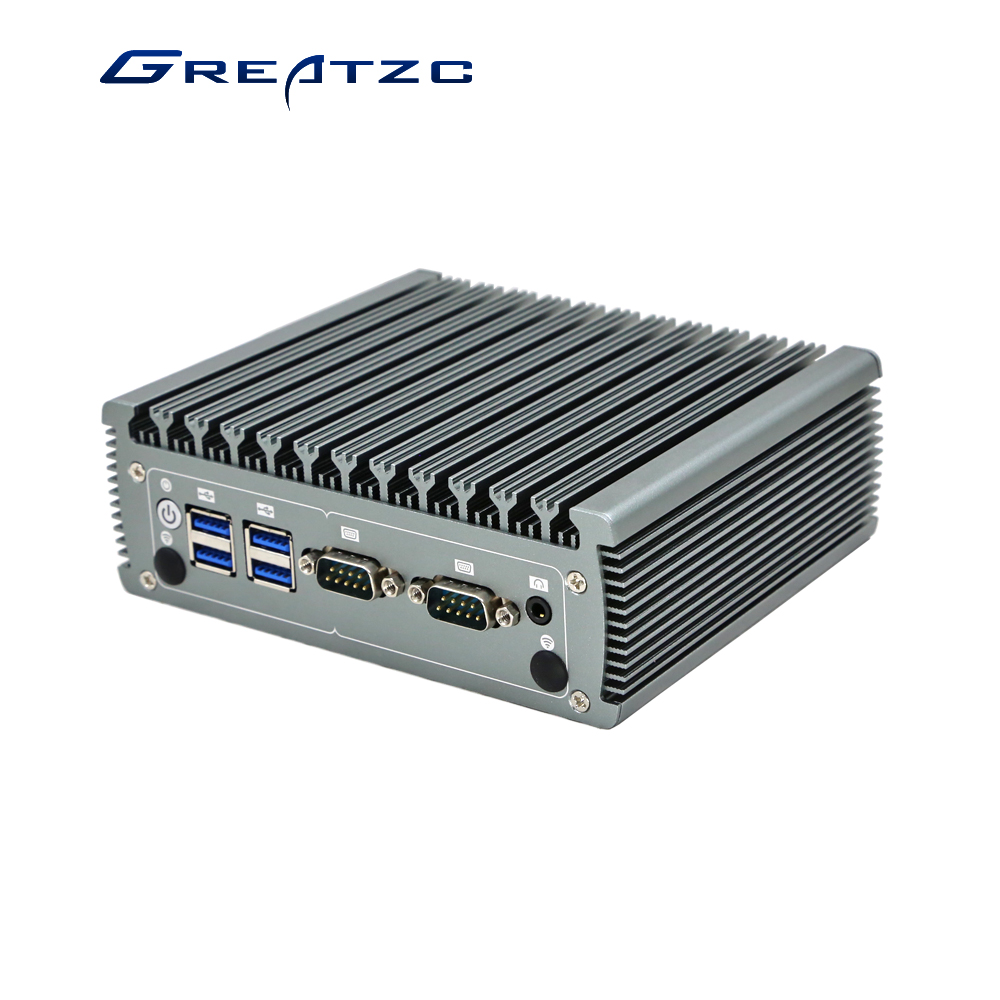

I/O	Front	1*Power Button
		4*USB3.0
		2*COM
		1*Line Out/Mic

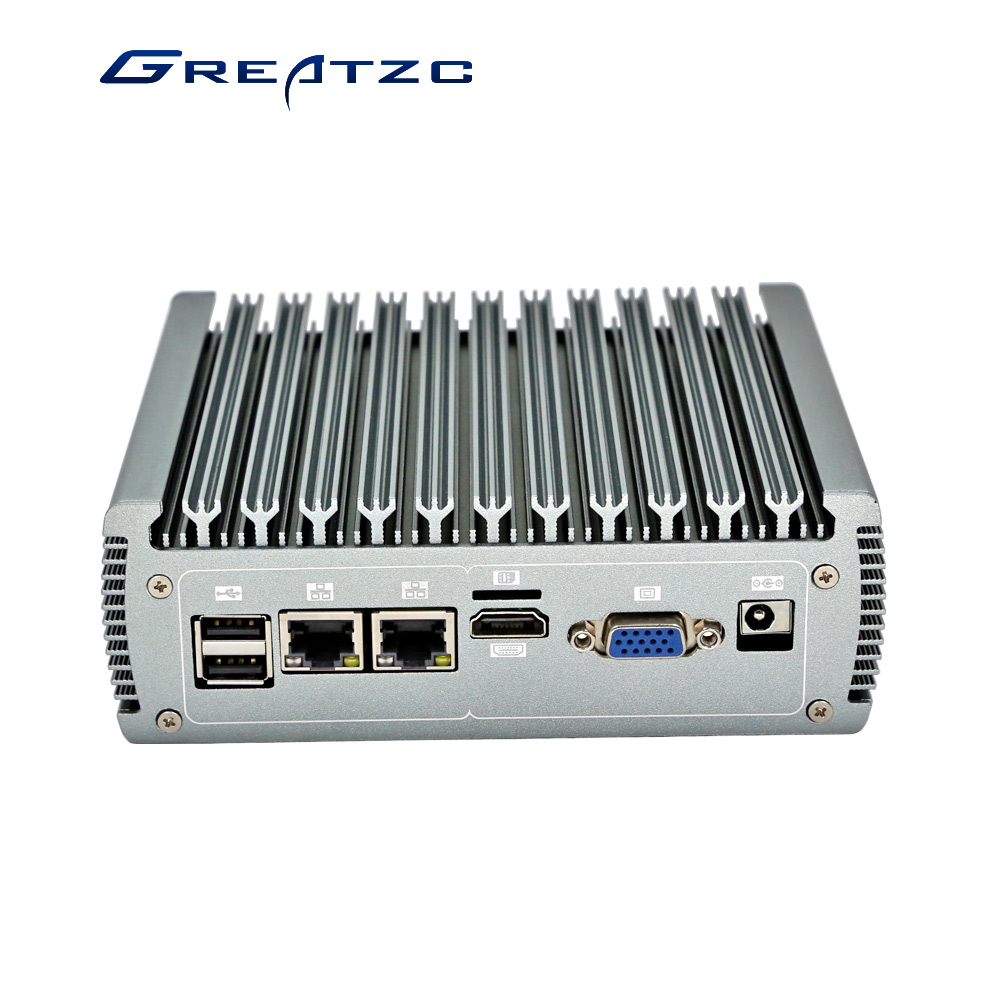

	Rear	1*HDMI
		1*VGA
		2*USB 2.0
		2*RJ45
		1*DC_IN
Extension	1mPCIE,1SIM Slot	WIFI/4G Module Optional
Software Support	OS	Support Windows10/11/Linux
	BIOS	128Mb Flash ROM
	Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Cooling System	Cooling Mode	Fanless Passive Cooling
Power Supply	Input	DC 12V(5.5*2.5)
Environment	Working Temp	-10~60℃
	Storage Temp	-20~70℃
	Working Humidity	0% ~ 95% Relative humidity, non-condensing
