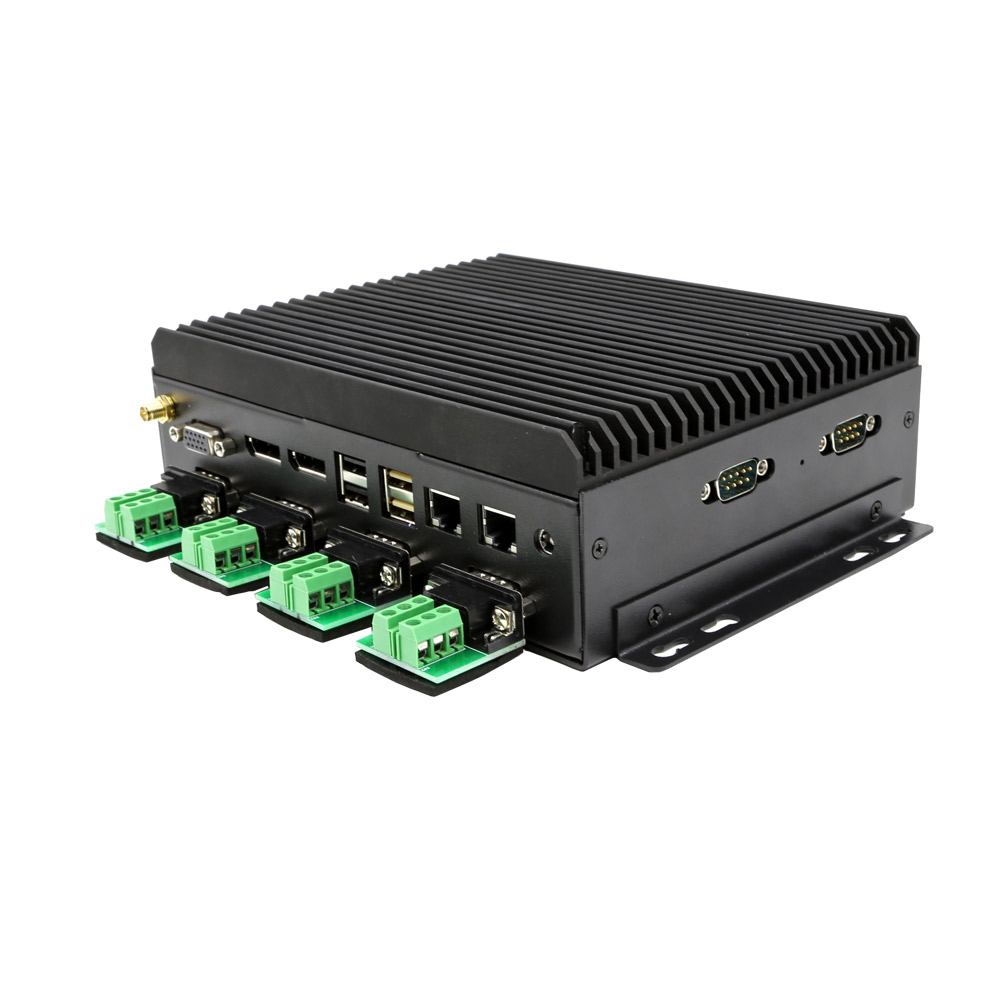

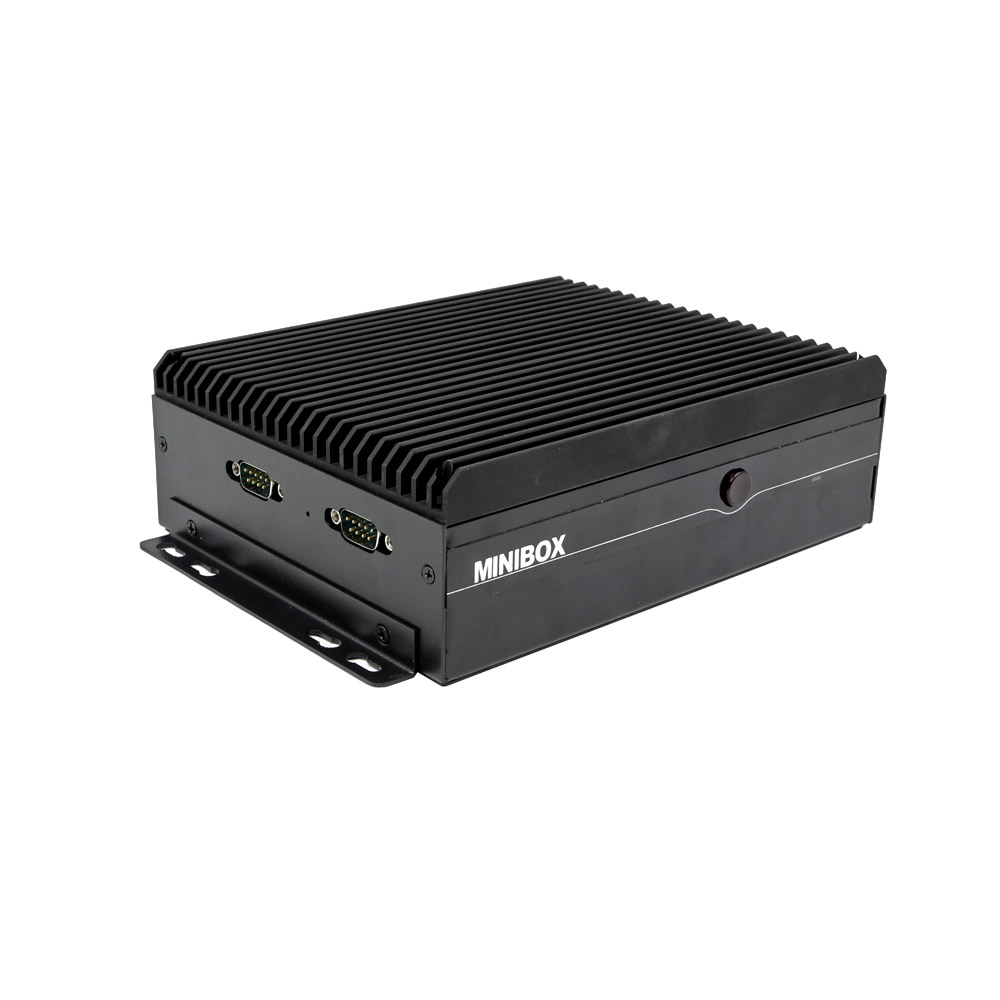

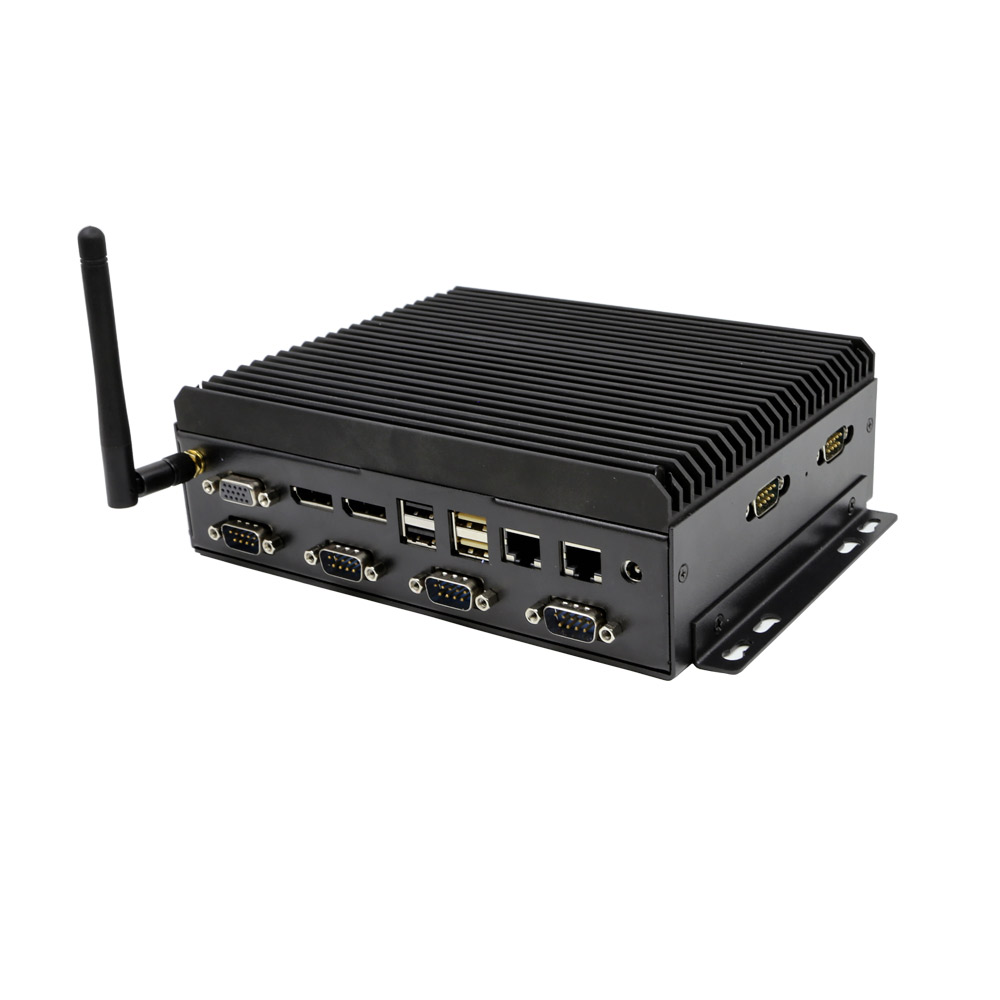

ZC-G6200DL-6C With 2 RJ45 Fanless i5 6200u Industrial Desktop Computer 6 RS232 R
- Description
ZC-G6200DL-6C Fanless Industrial Mini PC With Intel 6th I5-6200U Dual Core 4 Thread
2.3GHz,Turbo Boost 2.8GHz,Intel HD 520 GPU,Support 4K.Support 3 Display 2*DP Ports,
1*VGA,4*USB3.0,2*USB 2.0,1*SPK,1*MIC,2*RJ45,WIFI Optional,6*RS232,
4*RS422/485+2*RS232 Optional
Main Features:
1. Intel Skylake i5-6200u Processor,TDP only 15W
2. With Intel HD520 Graphics Card,Support 4K
3. Support 3 Display,2*DP Port and 1*VGA Port
4. With 2*Gigabit Ethernet,WIFI Optional
5. Plenty of USB Ports,4 USB 3.0,2 USB 2.0
6. Fanless Design,Industrial Grade Quality,Stable and Powerful Performance
7. With 6*RS232 are as default,4*RS422/485+2*RS232 can customize
8. DC 12V-19V input is as default;8V-32V can customize
ZC-G6200DL-6C Fanless Mini Computer Specification
|
CPU |
INTEL Skylake I5-6200U Dual Core 4 Thread 2.3GHz Turbo Boost 2.8GHz 3MB L3 Cache TDP only 15W |
|
Memory |
2*SO-DIMM DDR4 2133/2400 Up to 32GB |
|
Hard Drive |
1*Msata SSD 16GB,32GB,64GB,128GB,256GB 1*2.5inch HDD,500GB,1TB,2TB. |
|
Graphics Card |
Intel HD Graphics 520 Support 4K |
|
Network Card |
1* Realtek RTL8111F,Gigabit 1*Intel I219,Gigabit WIFI Optional |
|
I/O Ports |
2*RJ-45 2*DP 1*VGA 4*USB 3.0 2*USB 2.0 1*SPK Out 1*MIC IN 6*RS232 4*RS422/485+2*RS232 can customize 1*DC12V-19V JACK 1*Power Button |
|
Size |
190*150*68mm |
|
Weight |
N.W:1.65kg |
|
Power Adapter |
12V/5A |
|
OS Support |
Windows 8.1/10,Linux |
|
Kit Contents |
Main Product,Power Adapter |
