ZC-G3855DL-6C With 6 RS232 4 RS485 422 Optional Fanless Industrial Computer 2 La
- Description

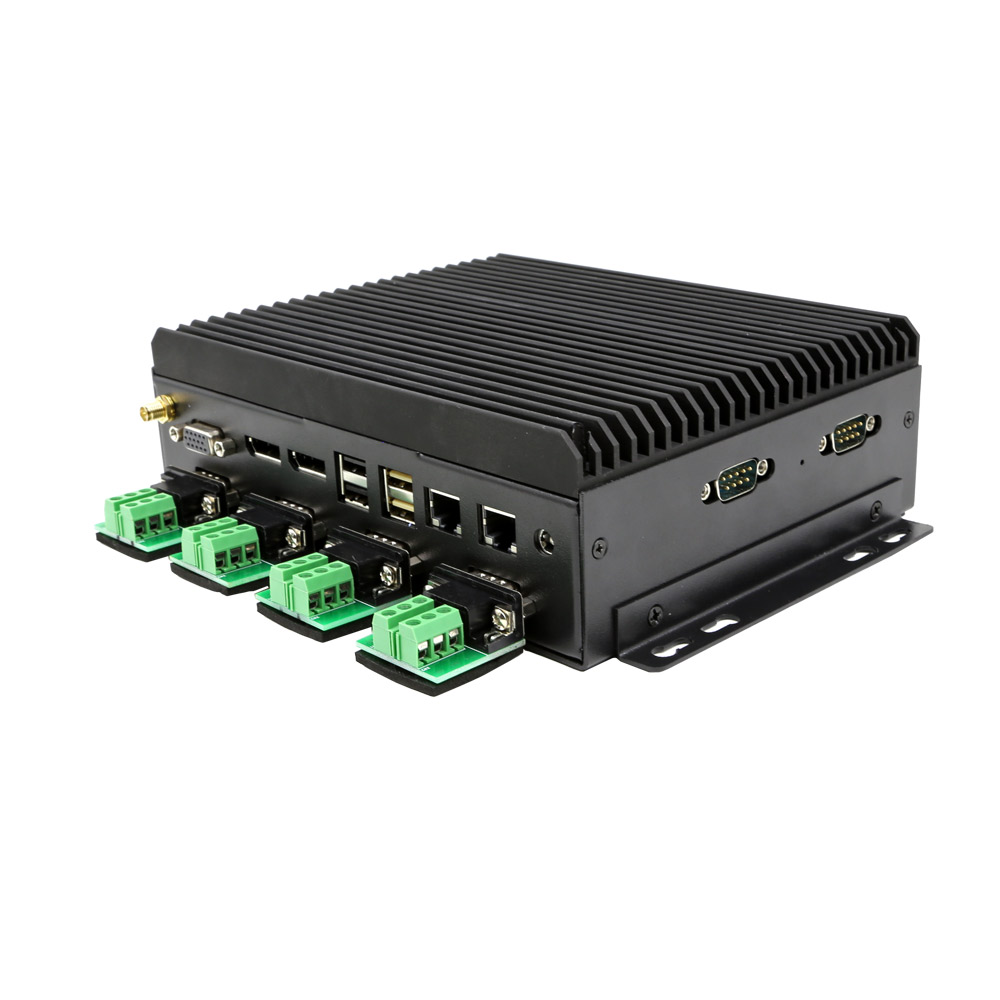

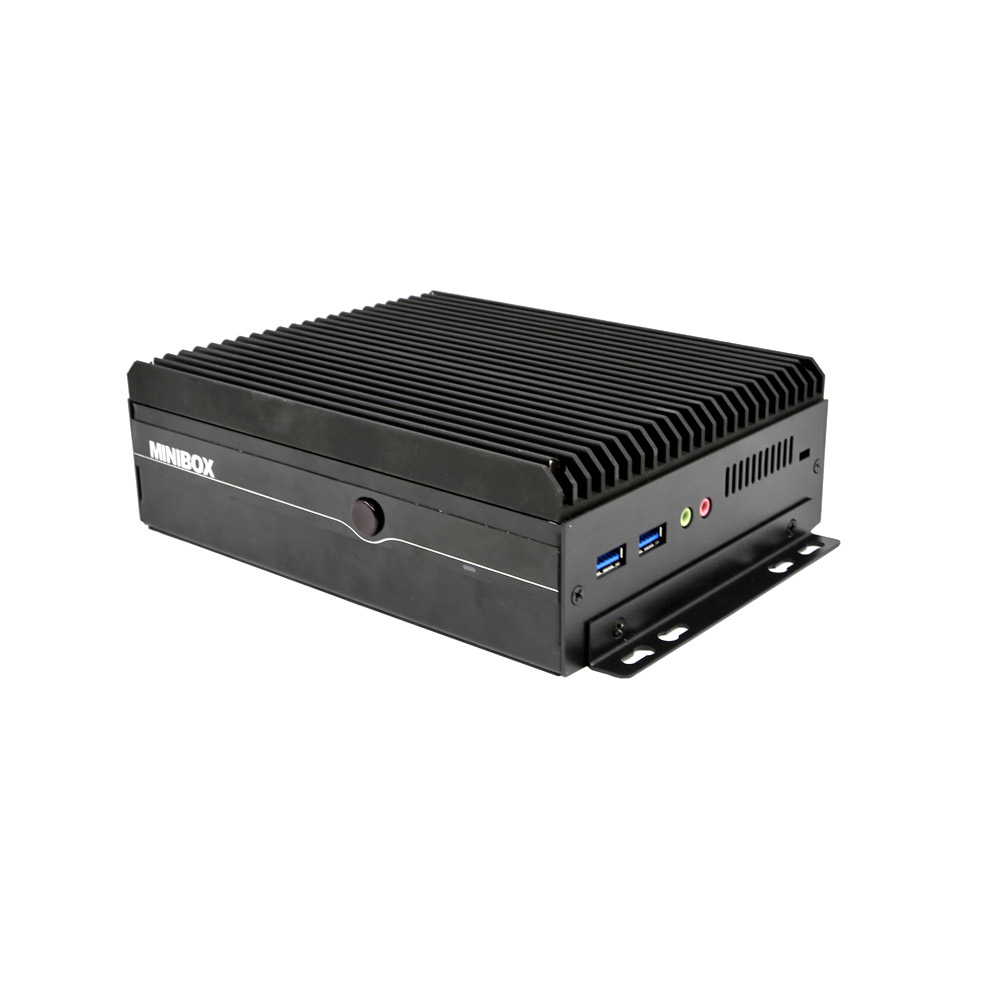

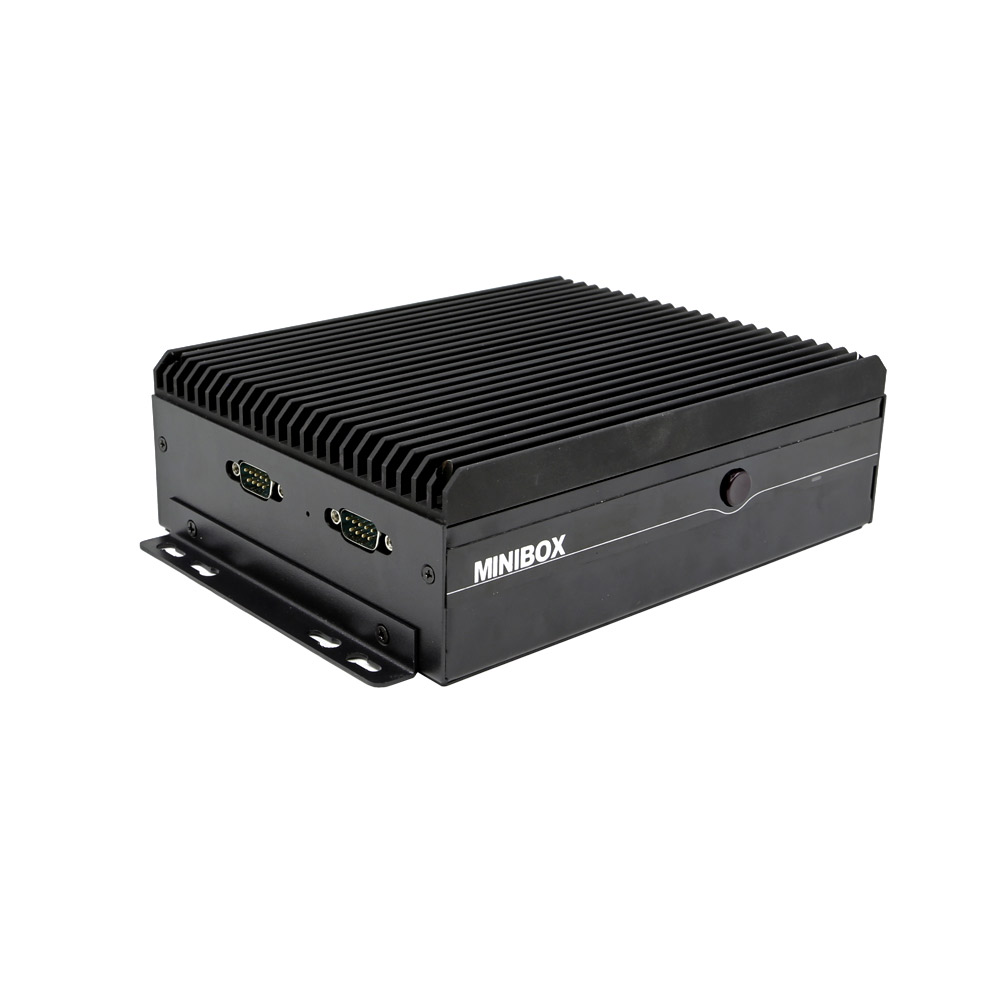

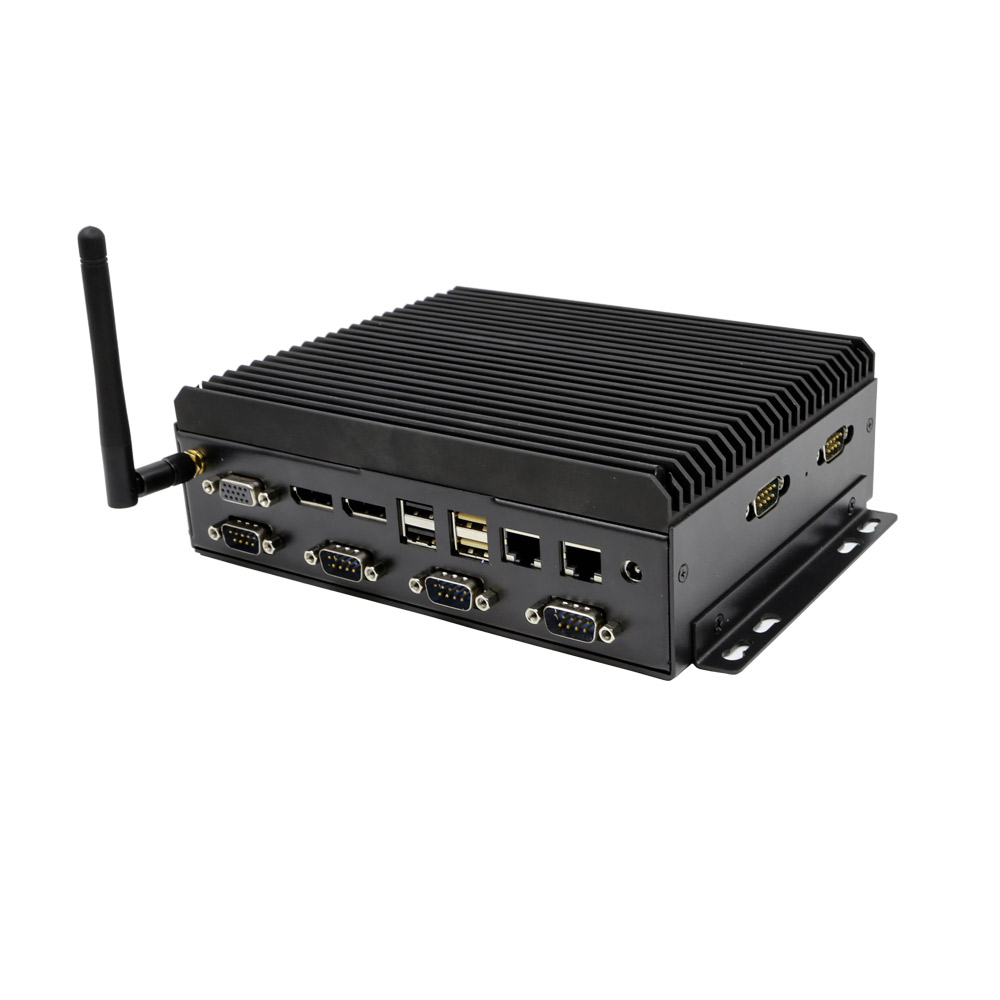

ZC-G3855DL-6C Fanless Industrial Mini Computer With Intel Skalake 3855U CPU,Dual Core
1.6GHz,Intel HD510 Graphics Card,Support 4K,Support 3 Display 2*DP Ports,1*VGA
4*USB3.0,2*USB 2.0,1*SPK,1*MIC,2*RS232,2*RJ45,WIFI Optional,
6*RS232,4*RS422/485+2*RS232 Optional
Main Features:
1. Intel Skylake 3855U Processor,TDP only 15W
2. With Intel HD510 Graphics Card,Support 4K
3. Support 3 Display,2*DP Port and 1*VGA Port
4. With 2*Gigabit Ethernet,WIFI Optional
5. Plenty of USB Ports,4 USB 3.0,2 USB 2.0
6. Fanless Design,Industrial Grade Quality,Stable and Powerful Performance
7. With 6*RS232 are as default,4*RS422/485+2*RS232 can customize
8. DC 12V-19V input is as default;8V-32V can customize
ZC-G3855DL-6C Fanless Mini Computer Specification
|
CPU |
6th Generation Intel Skylake 3855U Dual Core 2 Threads 1.6GHz 2 MB SmartCache TDP only 15W,14nm |
|
Memory |
2*SO-DIMM DDR4 2133/2400 Up to 32GB |
|
Hard Drive |
1*Msata SSD 16GB,32GB,64GB,128GB,256GB 1*2.5inch HDD,500GB,1TB,2TB. |
|
Graphics Card |
Intel HD Graphics 510 Support 4K Playing |
|
Network Card |
1* Realtek RTL8111F,Gigabit 1*Intel I219,Gigabit WIFI Optional |
|
I/O Ports |
2*RJ-45 2*DP 1*VGA 4*USB 3.0 2*USB 2.0 1*SPK Out 1*MIC IN 6*RS232 4*RS422/485+2*RS232 can customize 1*DC12V-19V JACK 1*Power Button |
|
Size |
190*150*68mm |
|
Weight |
N.W:1.65KG |
|
Power Adapter |
12V/5A |
|
OS Support |
Windows 8.1/10,Linux |
|
Kit Contents |
Main Product,Power Adapter |
