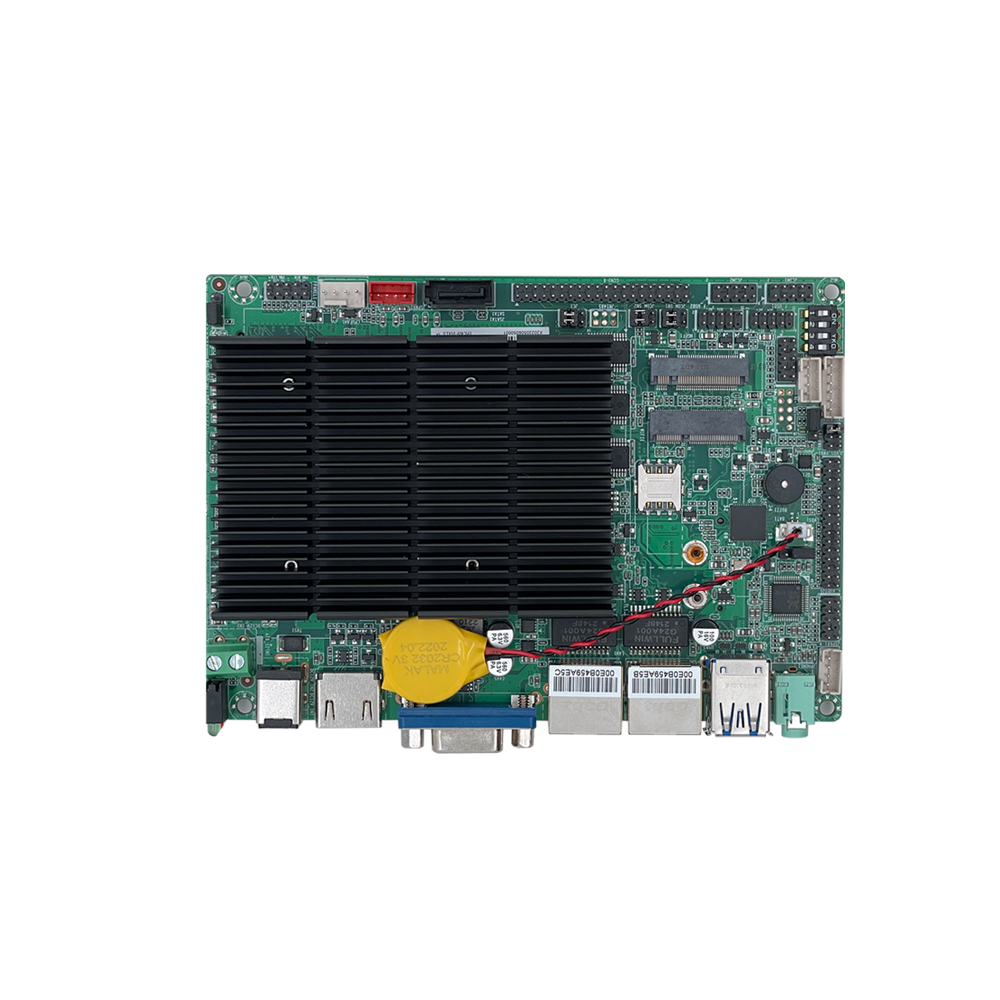

Model

ZC35-J4125DL

Processor

Intel Gemini Lake J4125

4 Cores 2.0GHz Burst to 2.7GHz

4MB Cache,TDP 10W

Memory

1*SO-DIMM4,Max 8GB

Display

Intel Intel UHD Graphics 600

1* VGA,1*HDMI1.4, 1*LVDS

Support VGA, HDMI, LVDS synchronous/asynchronous dual display

Network Card

2* Realtek RTL8111H Gigabit,Support Wake On LAN/PXE

Storage

1* SATA3.0

1* M.2 2280 for SSD

Extension

1* Mini PCIE slot

1* M.2 2230 for WIFI

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier 3W

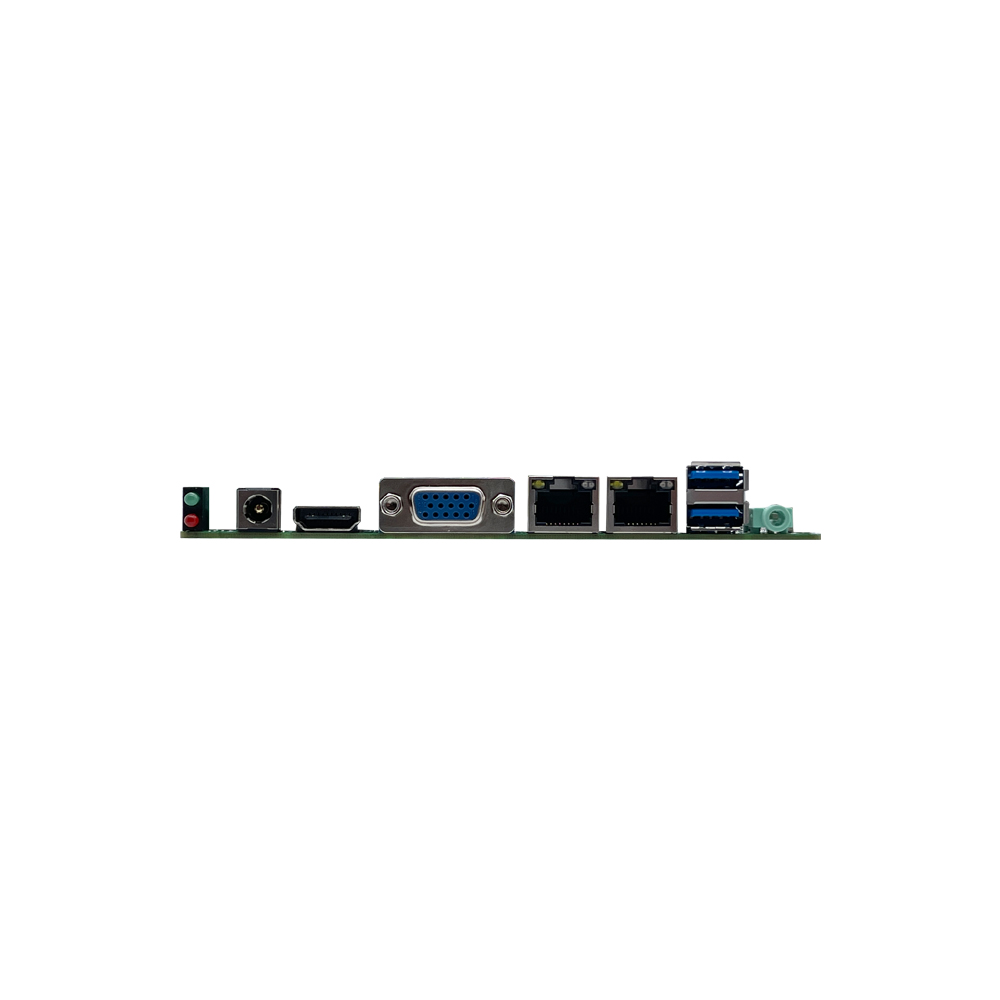

Rear I/O

1* HDMI

1* VGA

2* USB3.0

2* RJ-45

1* Line out(Green)

1* Hard Disk/Power Indicator LED

1* 12V DC

Internal I/O

1* LVDS 2*15pin,Support Dual Channel 24bit

1* Screen backlight power 1*6pin

1* LVDS Power 2*3pin

4* USB 2.0 2*5Pin

1* Front Audio 2*5pin

1* Speaker Amplifier 1*4pin

1* SIM Card Slot 2*3Pin

6* COM (COM2/COM3 Support RS485)

1* SATA Slot

1* SATA power header 1*4pin

1* FAN header 1*4pin

1* GPIO 2*5pin

1* AT/ATX Header 1*3pin

1* Front panel switch button and indicator light header 2*5Pin

1* ATX 12V 1*2pin

Fan

Fanless heat dissipation design, 1* fan header 4pins reserved

Cooling System

Fanless Passive Cooling

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power Supply

DC 12V ±5%

Operating Temp

-10℃ to +60℃

Storage Temp

-20℃ to +70℃

Operating Humidity

5% ~ 95% relative humidity, non-condensing

Size

146mm x 102mm
