ZC35-EN2807DL 3.5'' Dual LAN Fanless Motherboard With 6 COM Ports

ZC35-EN2807DL 3.5inch Mini Fanless Industrial Motherboard, With VGA, HDMI, LVDS,

Support 6 COM, 2*Gigabit Network Card, With Intel Bay Trail N2807 CPU,

TDP only 4.3W. Can be used in Industrial, monitoring, medical,instrument and apparatus.

All BAY Trail CPU can be customized.

Main Features:

1)Onboard Dual-core N2807 CPU, TDP only 4.3W, 1.58GHz-2.16GHz

2)3.5 inch, Size only 146*104mm, Height only 20mm

3)Fanless design, no noise,Suitable for a unattended workplace for a long time.

4)Abundant Display ports,VGA /VGA pin,HDMI, 24bit LVDS,Support dual screen display output

5)CPU and memory part adopts switching power supply design, strong anti-jamming, more stable.

6)Rich interfaces,2*Gigabit network card, 6*COM, 6*USB 2.0, LPT,GPIO etc.

7)Onboard 1*Mini SATA,1*Mini PCI-E,1*SIM slot,Support SSD,WIFI,3G/4G

8)DC 12V power supply, Suitable for car, camera, etc

9)Support watchdog support Hardware Reset

10)Support Diskless Booting,Wake On LAN,Resume By Alarm.

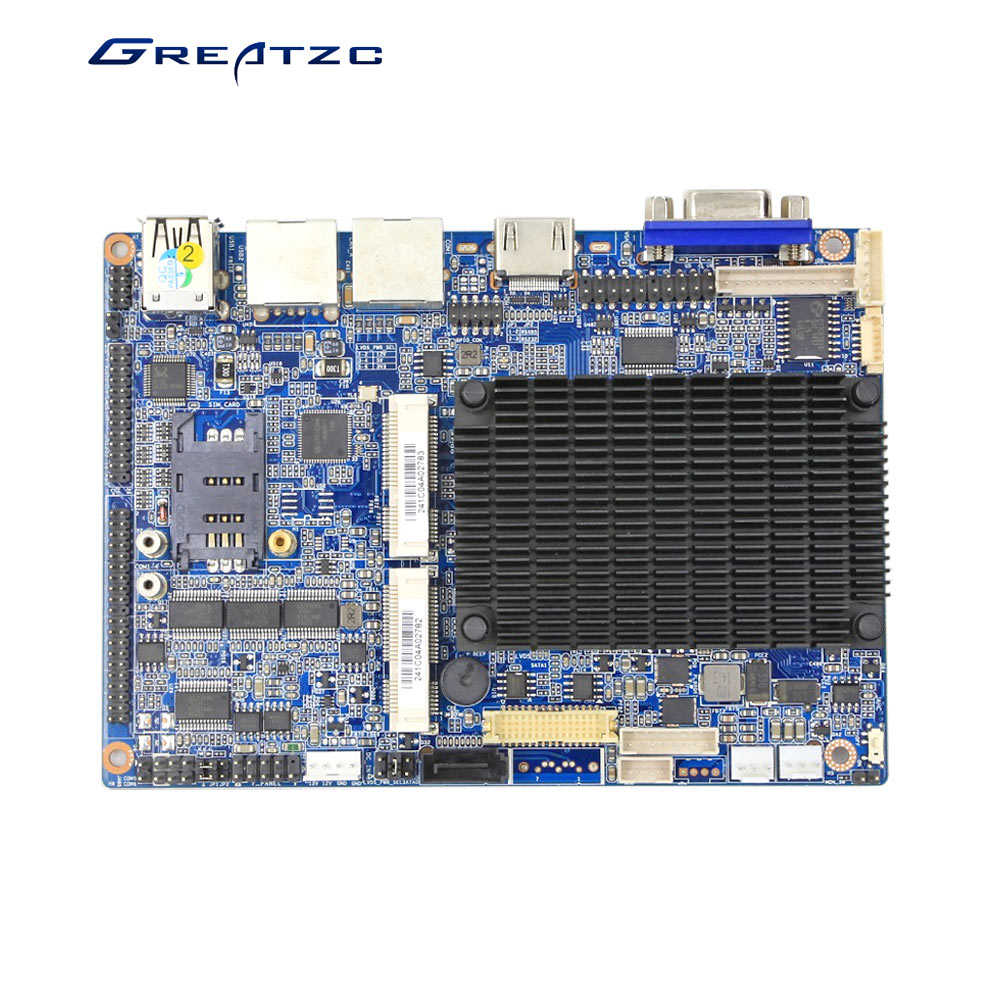

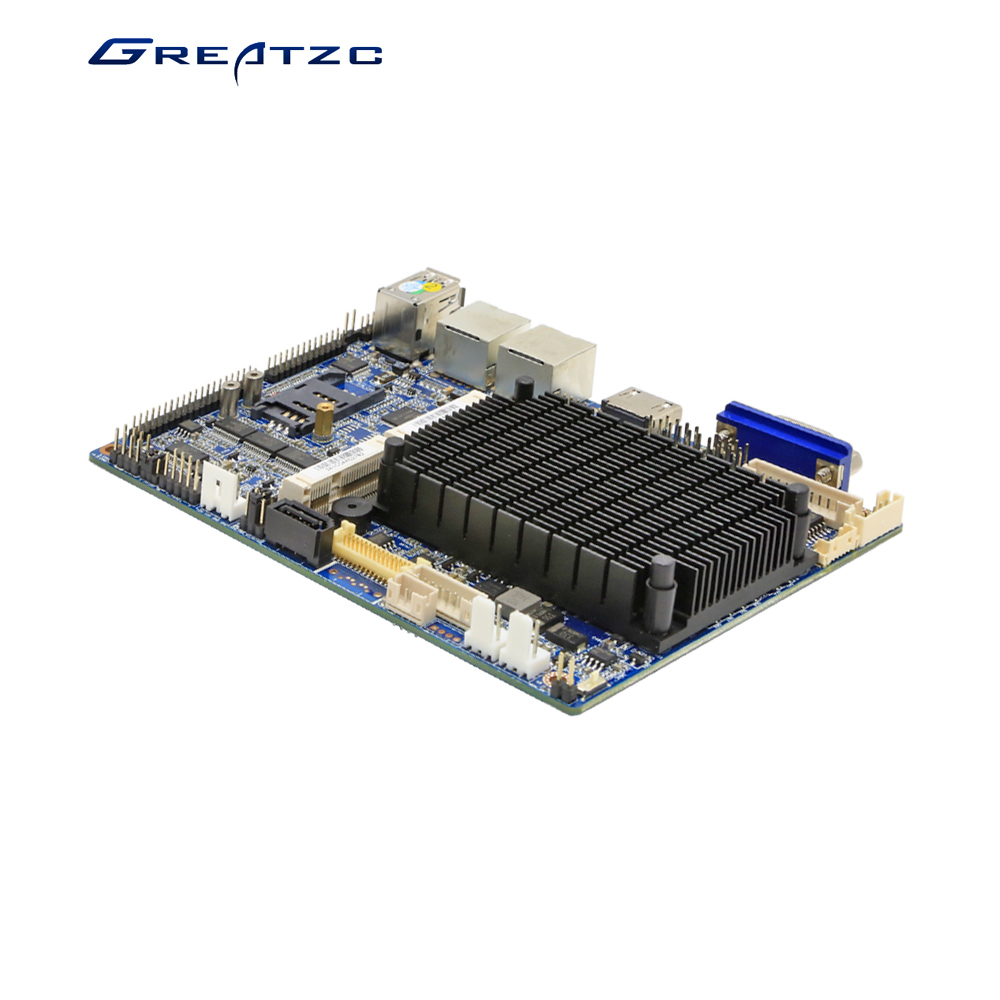

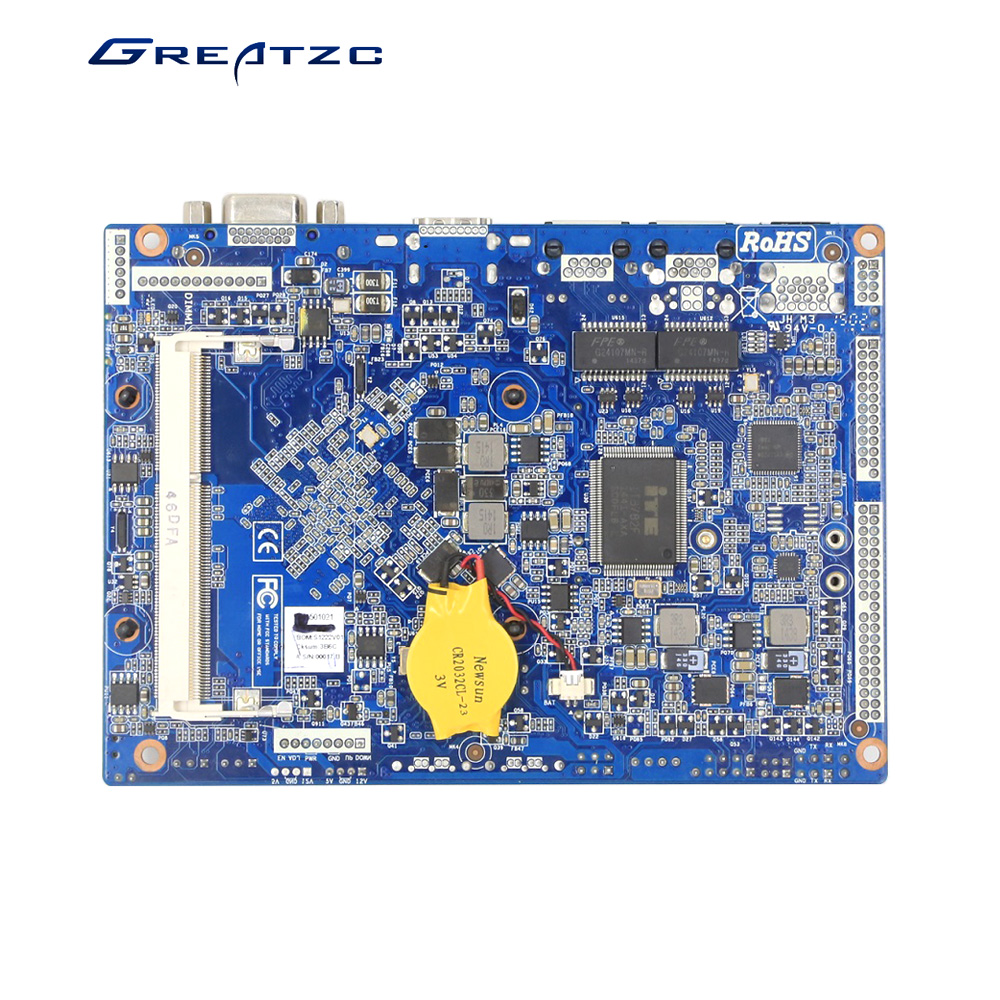

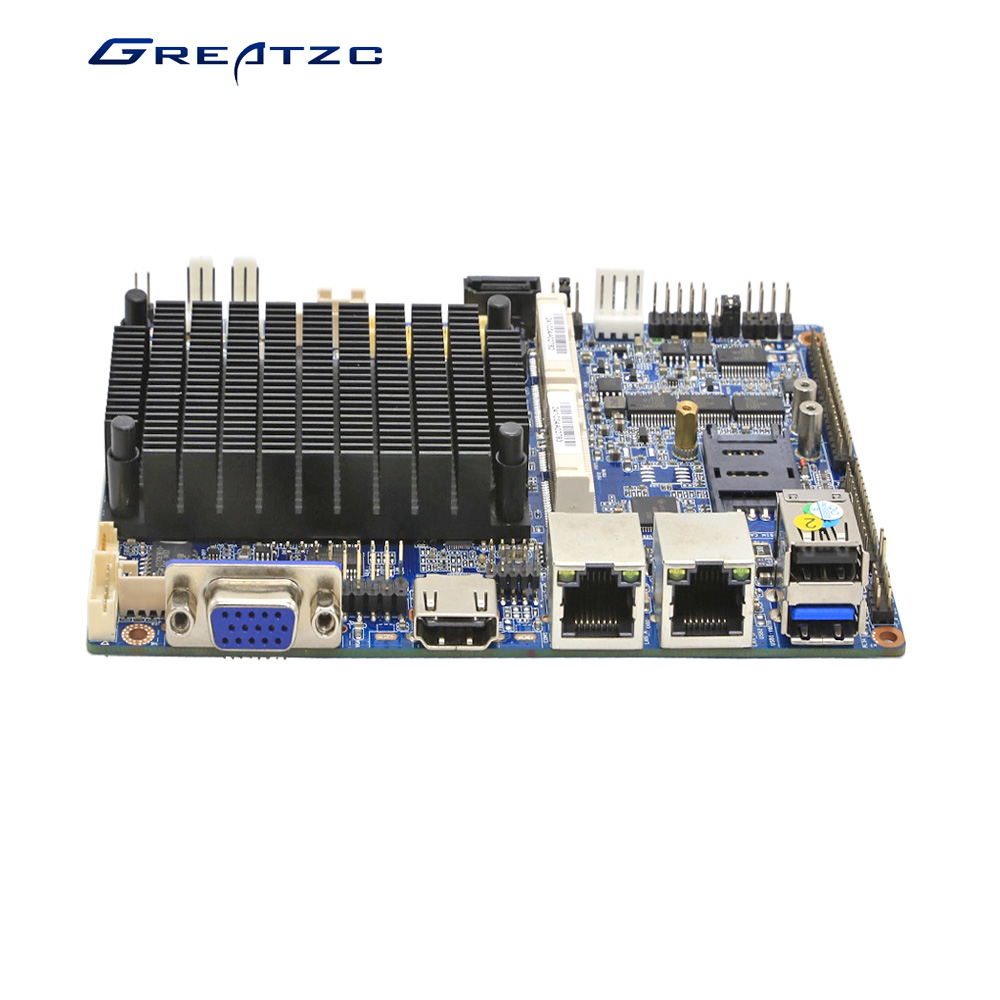

ZC35-EN2807DL 3.5 inch Fanless Motherboard

CPU	Intel Bay Trail N2807 (1M Cache, dual-core 1.58 GHz, Turbo to 2.16G) 22nm, TDP only 4.3W
RAM	1*SO-DIMM DDR3L 1600MHz Memory,Max 4 GB
Chipset	CPU integrated
Graphics Card	INTEL HD, Support 1080 HD playing.
Storage	1SATA Slot,1MSATA SSD
Audio card	Realtek ALC662
Network Card	2*Gigabit Network Card
Expansion Slot	1MINI PCI-E Support WIFI or 3G /4G module 1MINI SATA Support SSD
Rear Panel I/O	1VGA 1HDMI 2RJ-45 2USB
Internal I/O	DC 12V 4PIN 112pin built-in VGA 1KB/MS pin 2Fan pin 1SIM Slot 1SATA-PW supply LVDS-CL Backlight power supply 24bit LVDS(30PIN) F-Pannel pin 1SATA COM1-4, 4RS232 COM 6 support RS485 or TTL COM5 support TTL 2F-USB pin, support 4USB 2.0 1GPIO pin 1LPT pin 1F-AUDIO 1AUTO PW ON 1Mini PCI-E 1*Mini SATA Full-size,support SSD
Display Function	Support VGA,HDMI,LVDS Support 1080P Playing
Watchdog	Support Hardware Reset
Power Supply	12V DC-In
Size	3.5inch 14610420mm
