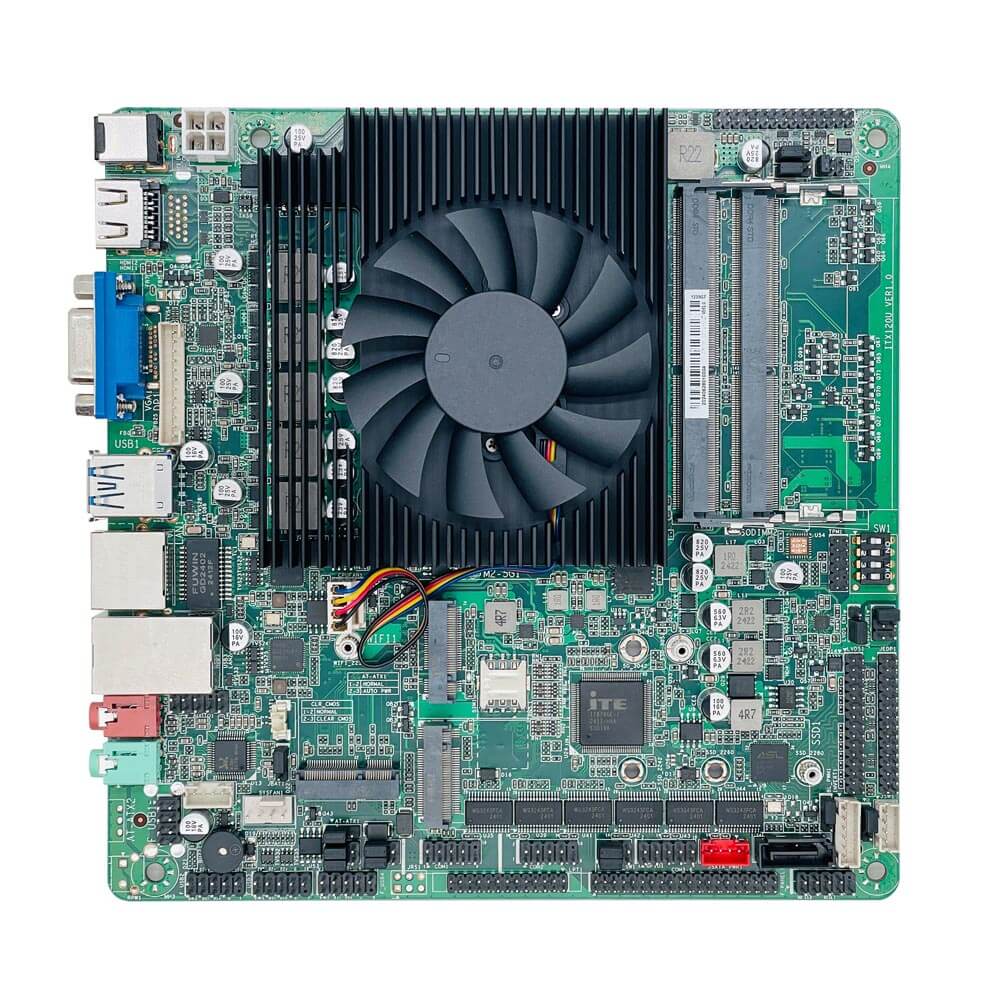

ZC-ITX120U Thin Mini Itx Motherboard 12th 13th Gen i3 i5 i7

  • ZC-ITX120U Thin Mini Itx Motherboard 12th 13th Gen i3 i5 i7
  • Description

ZC-ITX120U Thin Mini Itx Motherboard Onboard Intel 12th Gen Series Processor ,2*LAN Ports,6*COM,VGA+HDMI+LVDS Display

DC Power Supply


Main Features:

1.) Integrated Intel 12th Gen Series Processor

2.) With 2* SO-DIMM 4 Slot, Up to 96GB

3.) 2* Intel I226 2.5G Network Card

4.) Storage 1* SATA+1*M.2 Key-M

5.) With 6*RS232,RS485 Optional

6.) VGA+HDMI+LVDS Display


CPU

Intel 12th Gen Alder Lake-U/P/H i3/i5/i7

Intel 13th Gen Raptor Lake-U/P/H i3/i5/i7

RAM

2* SODIMM DDR4 3200MHz DDR4,up to 96GB

Display

Intel® Iris® Xe Graphics eligible

1*VGA(1*DP Optional)

1*HDMI(2*HDMI Optional)

1*LVDS

1*EDP2

Network

2*Intel I226 2.5G Network,Support PXW,Wake on LAN

Storage

1* 7pin SATA3.0 6Gbps

1* M.2 Key-M 2280/2242 PCIE4.0 X4/SATA SSD

Audio



Onboard ALC897

Support MIC/Line-out, power amplifier-2 ohm 5W dual channel

Expansion

1*M.2 Key B 3042

1*M.2 Key E

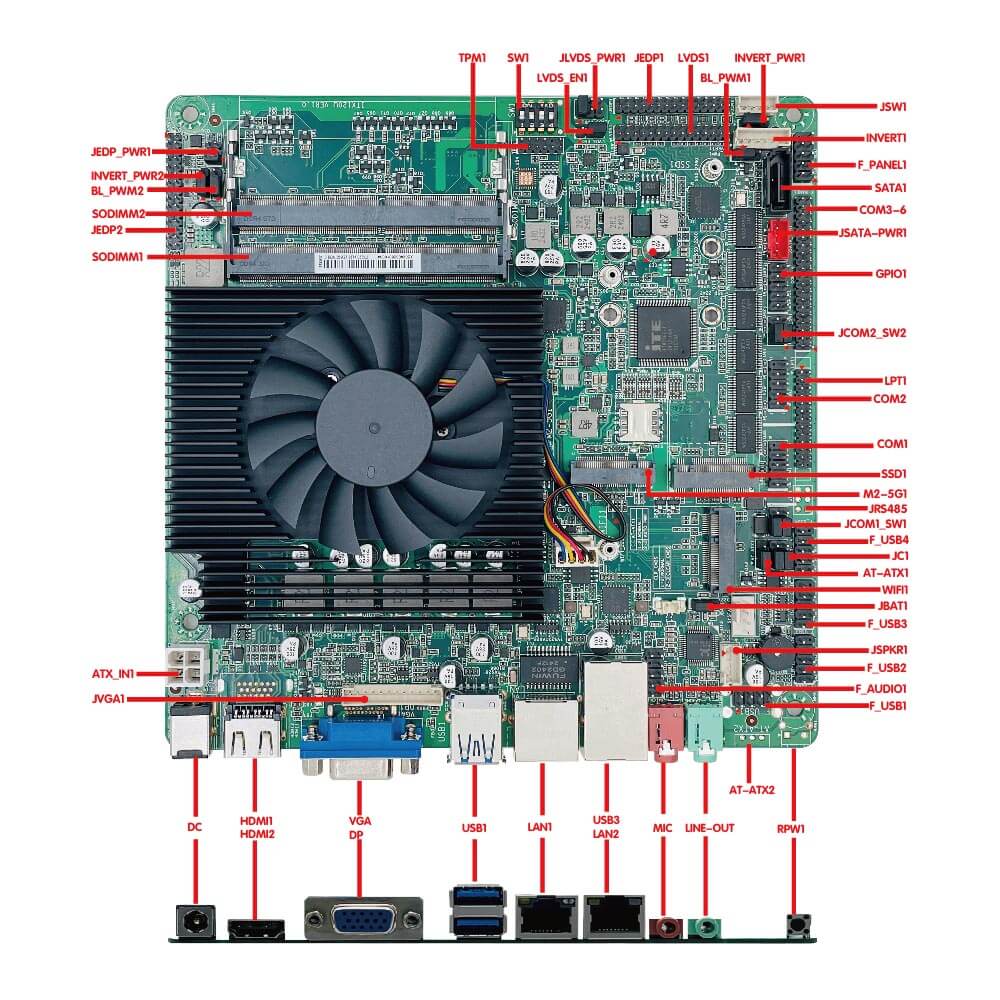

Rear I/O

2* LAN RJ45

2* USB3.0

1* HDMI 2.1(2*HDMI Optional)

1*VGA

1*Lini Out,1*Mic In

1* 12V-19V DC Port

Front I/O

4* USB 3.1

1* HDD Light

1* Power Button

1*Line Out,1*Mic In

2* COM (RS232 Default,COM1/2 can change to be RS485 by jumper)

Inside I/O

1*EDP2 (2*15Pins)

1*LVDS (2*15Pins)

1*INVERTER(1*6Pins)

6*COM(6*RS232 Default,COM1 can be RS485/422,COM2 Can be RS485)

1*ATX Power(2*2Pins)

4* USB 2.0 (2*5Pins,can expand 6*USB 2.0)

1* SATA Power Pin

1* 4pin SATA Power

1* Front panel switch button and indicator light  2*5Pin

1*Amplifier 1*4Pins 2W5Ω(Customize)

FAN

1*CPU FAN(1*4Pins),1*System Fan(1*4pin)

GPIO

Support 4 input and output GPIO

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

OS

Windows 10/11/Linux

Power Supply

DC 12V/19V

Working Temp

-10℃ to 60℃

Storage Temp

-20℃～70℃

Working Humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm

Modole#

CPU

Core

Speed

DDR

HDMI

VGA

LVDS

EDP

LAN

USB

LPT

COM/485

POWER

1

ZC-ITX120U-L26-1235U

I5-1235U

2P/8E

1.3-4.4Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V

2

ZC-ITX120U-L26-1265U

I7-1265U

2P/8E

1.8-4.8Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V

3

ZC-ITX120U-L26-1240P

I5-1240P

4P/8E

1.7-4.4Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V

4

ZC-ITX120U-L26-12450H

I5-12450H

4P/4E

2.0-4.4Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V

5

ZC-ITX120U-L26-1340P

I5-1340P

4P/8E

1.9-4.6Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V

6

ZC-ITX120U-L26-1335U

I5-1335U

2P/8E

1.3-4.6Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V

6

ZC-ITX120U-L26-1215U

I3-1215U

2P/4E

3.3-4.4Ghz

DDR4*2

1

1

1

1

2

8

1

6/2

12V/19V
