CPU

Intel Core i3-4030U Dual Core 1.9GHz

Intel Core i3-5005U Dual Core 2.0GHz

Intel Core i5-4300U Dual Core 1.9GHz

Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U Optional

RAM

2* SO-DIMM 1600/1333MHz DDR3L/1.35V,Max 16GB

Display

Intel Graphics

1* VGA 1*12Pin,1*HDMI,1*LVDS,1*EDP

Support VGA/HDMI/LVDS/EDPSynchronous/asynchronous display

LAN

2* Realtek RTL8111H,Support Wake On LAN/PXE

Storage

1* SATA3.0

1* mSATA3.0

Audio

ALC897 7.1 SUpport MIC/Line-out, power amplifier (2 ohm 5W dual channel)

Expand

1* Mini-PCIe(Half size,support WIFI/BL)

1* Mini-PCIe(Full size,support WIFI/4G)

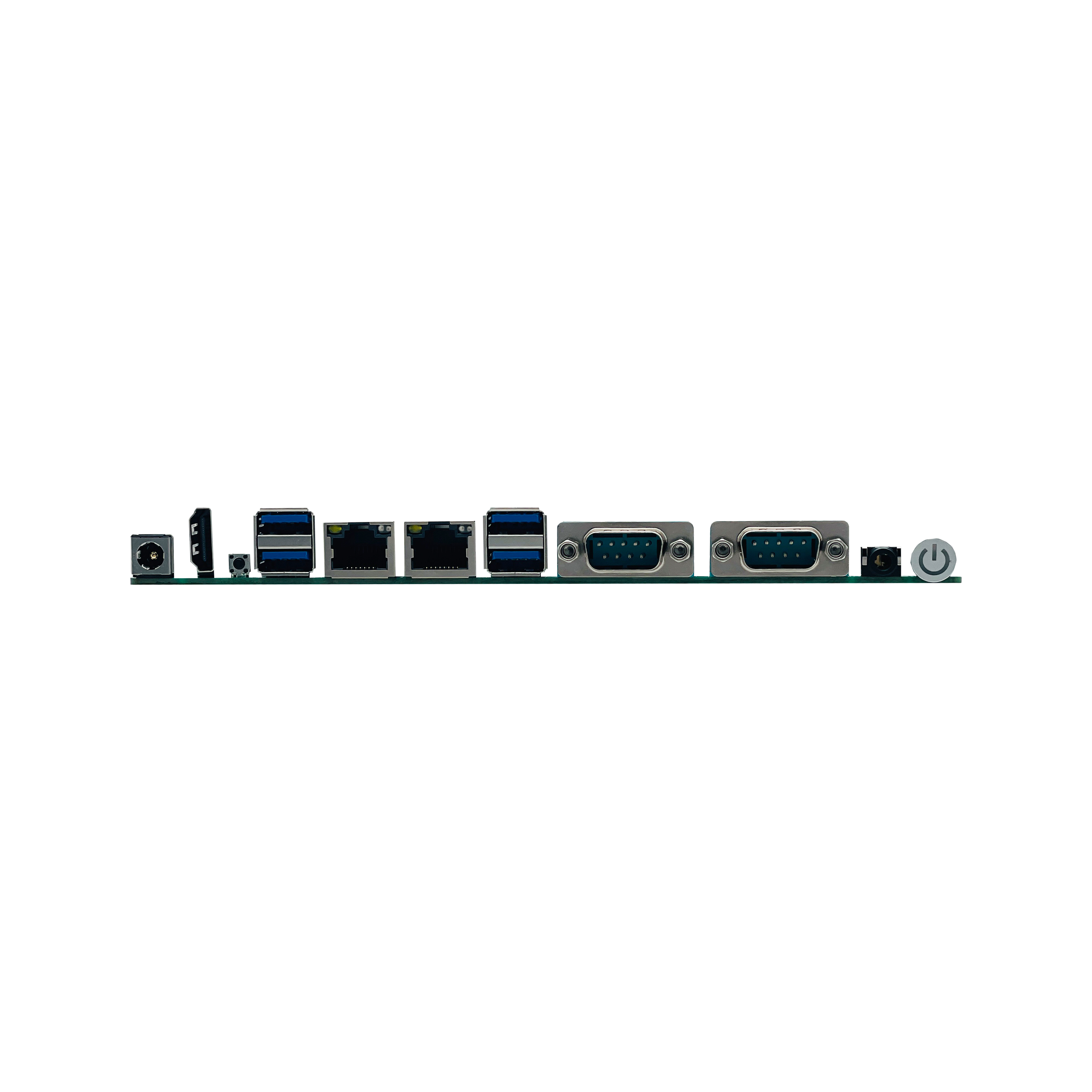

RearI/O

1* HDMI

1*COMS

1*Power Button and LED

4* USB3.0

2* RJ-45

1* 3.5mm,Support Line out, MIC

2 *DB9 RS232(Can setup 2*RS485 by jumper;The 9th Pin can be jumpered to support live charging）

1* 12V DC

Inside I/O

1* EDP 2*15Pin

1* JVGA 1*12Pin

1* LVDS 2*15pin,Support dual channel 24bit

1* Screen backlight power supply interface 1*6pin

4* USB2.0 2*5Pin

1* USB2.0 1*4Pin

1*power amplifier 1*4pin

4* RS232 2*20Pin(COM3~4 Can Support RS485)

1* SATA Power

1* 2*2pin ATX

1*Frount Panel Power On/off,LED2*5Pin

Fan

1*4pin CPU Fan,1*4pin System Fan

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (level 256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power

DC12V

Operating Temp

60℃～-20℃

Storage Temp

-30℃～70℃

Operating Humidity

5%-95% Relative humidity,non-condensing

Size

190mm x 150mm
