ZC-RTX3050 Motherboard Onboard RTX3050 RTX3050TI 12th Gen i5 i7 i9 CPU

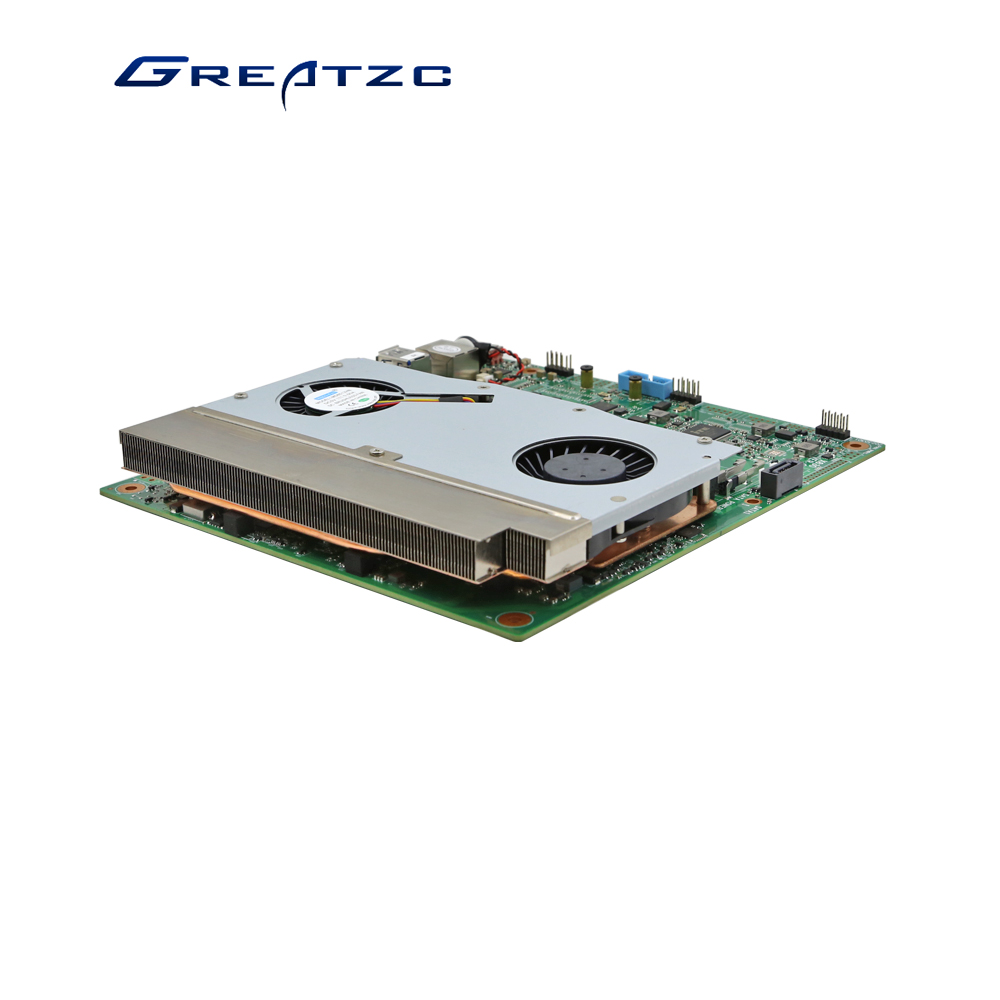

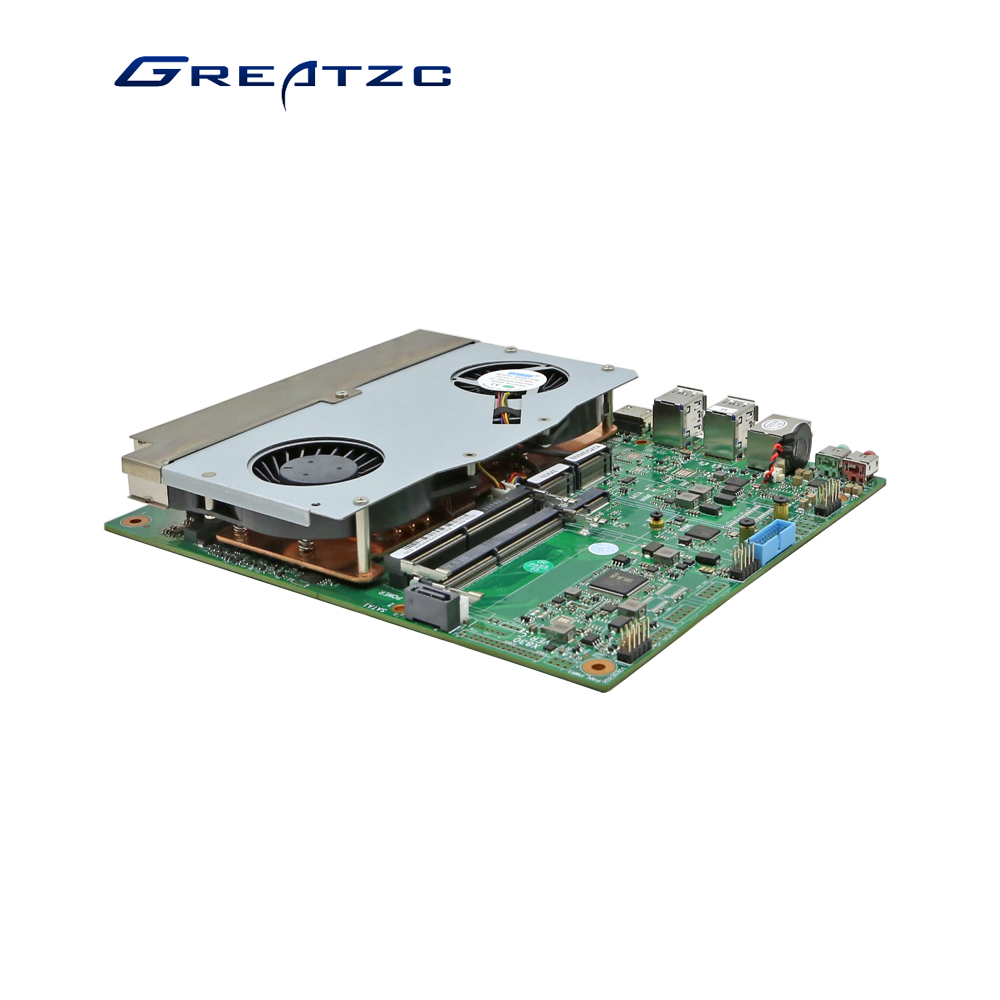

ZC-RTX3050 Industrial Grade Motherboard Onboard Nvidia RTX3050/RTX3050TI Discrete Graphics chip, GDDR6 4GB video memory

Intel 12th Gen Alder Lake-H 45W series CPU I3 I5 I7 I9 optional,1 or 2*LAN,2*HDMI 2.0+1*LVDS/EDP,1*Type C,1*HDMI Header,

Support 4 Display

Main Features:

1.) Onboard Nvidia RTX3050/RTX3050TI Discrete Graphics chip, GDDR6 4GB video memory

2.) Intel 12th Gen Alder Lake-H 45W series CPU, I3, I5, I7, I9 optional

3.) Dual channel SO-DIMM DDR4 2400/2666/3200MHz,up to 64GB

4.) Support 2*M.2 NVME high-speed SSD,1*SATA 3.0

5.) 2*HDMI 2.0 Ports,1*LVDS/EDP,1*Type C,1*HDMI Header,Support 4 Display

6.) With 1 or 2*Intel i226-V 2.5G Network Card

7.) High-performance heat pipe radiator, good heat dissipation effect

8.) Support wake-up on LAN, watchdog, GPIO, PXE diskless boot

ZC-RTX3050 Datesheet

CPU	I5-12500H (12 Cores,3.3GHz Turbo to be 4.5GHz)
	I7-12700H (14 Cores,3.5GHz Turbo to be 4.7GHz)
	I9-12900H (14 Cores,3.8GHz Turbo to be 5GHz)
Graphics	Intel® Iris® Xe Graphics eligible(Integrated on CPU)
Graphics	Nvidia RTX3050/RTX3050TI VRAM GDDR6 4G Discrete Graphics Card
Memory	2*SO-DIMM DDR4 2400/2666/3200,up to 64GB
Storage	2*M.2 2280 NVME
Storage	1*SATA 3.0
Network Card	1 or 2 * Intel i226-V 2.5G
Expand	1×M.2 2230
Audio	Onboard HD audio chip ALC1200
BIOS	AMI EFI BIOS Support GPIO,Watchdog,PXW
Display	2*HDMI2.0, Support 4K@60Hz
Display	1×Type-C(DP+USB)

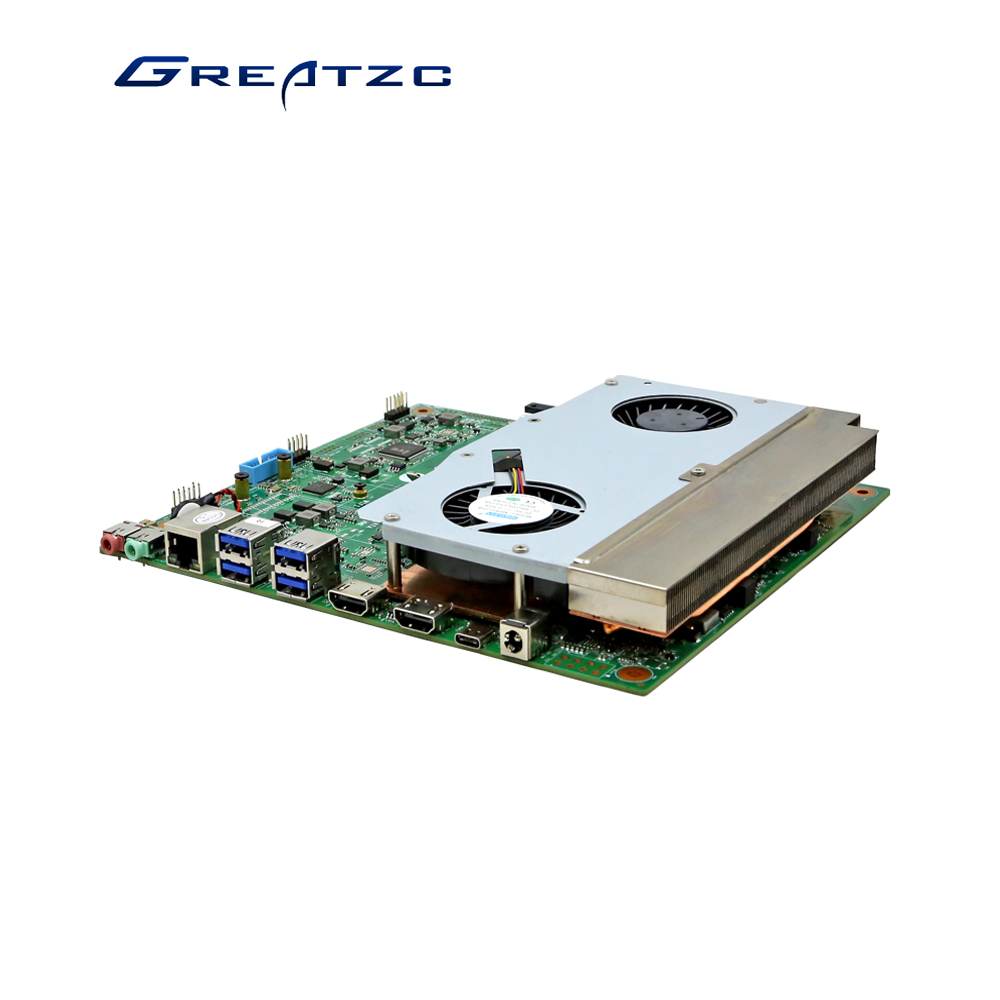

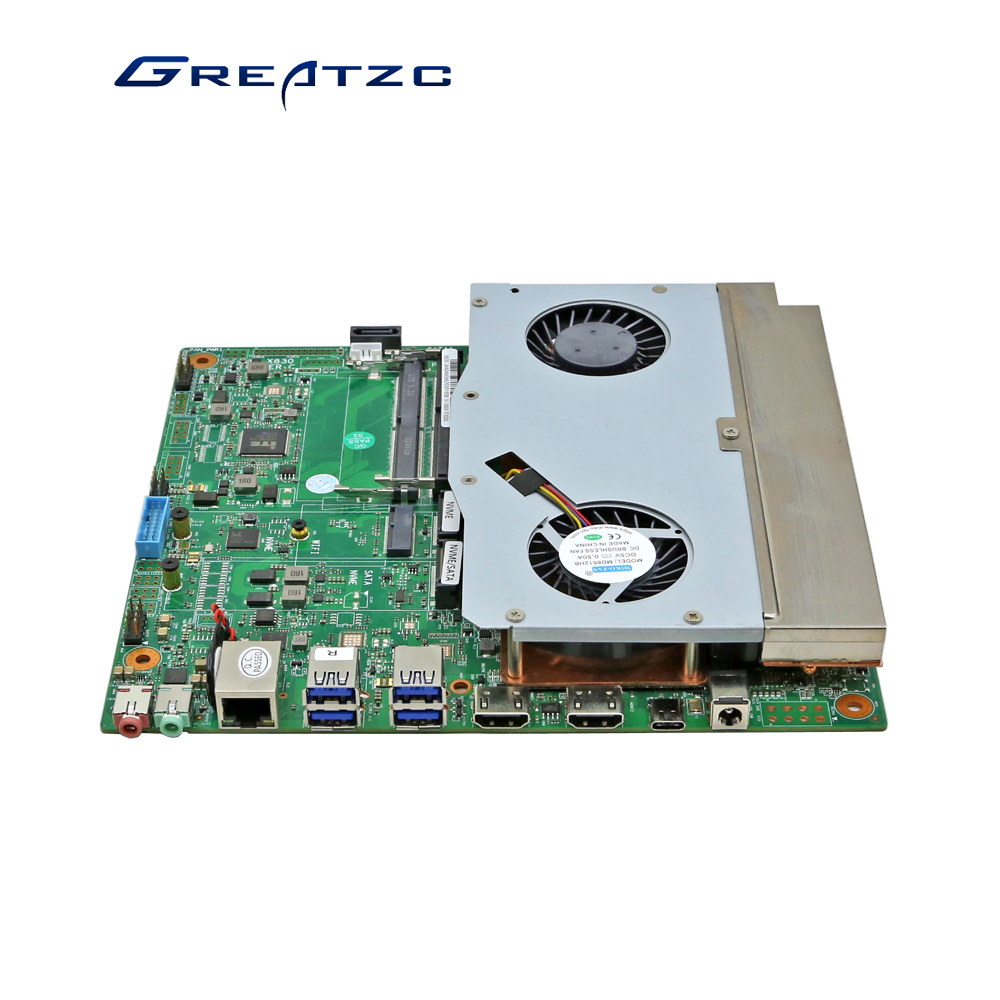

Rear I/O	1* DC IN(5.52.5mm) 1 TYPE-C 2* HDMI2.0 2* USB3.0 1RJ45 1 RJ45(Optional) 1SPK 1MIC
Inside I/O	1×EDP I-PEX 30 Pin(reserved) 1×HDMI2.0 I-PEX 30 Pin 1×30Pin LVDS (30Pin 2.0mm） 1×6Pin Inverte 1×SATA3.0 1×SATA Power(4PIN) 2×RS232(RS485/RS422 Optional) 1×F_Audio 1×Speaker 28Ω1W 2USB2.0 2*USB3.0
Power Supply	DC19V
Size	210mm(L) X 190mm(W),Height 28mm
OS	Windows 10/11 / Linux
Working Temp	-10℃ to 60℃
Storage Temp	-20℃～70℃
Working Humidity	5%-95% relative humidity, no condensation
Ordering Info	ZC-RTX3050-12500 Onboard I5-12500H CPU
	ZC-RTX3050-12700 Onboard I7-12700H CPU
	ZC-RTX3050-12900 Onboard I9-12900H CPU
