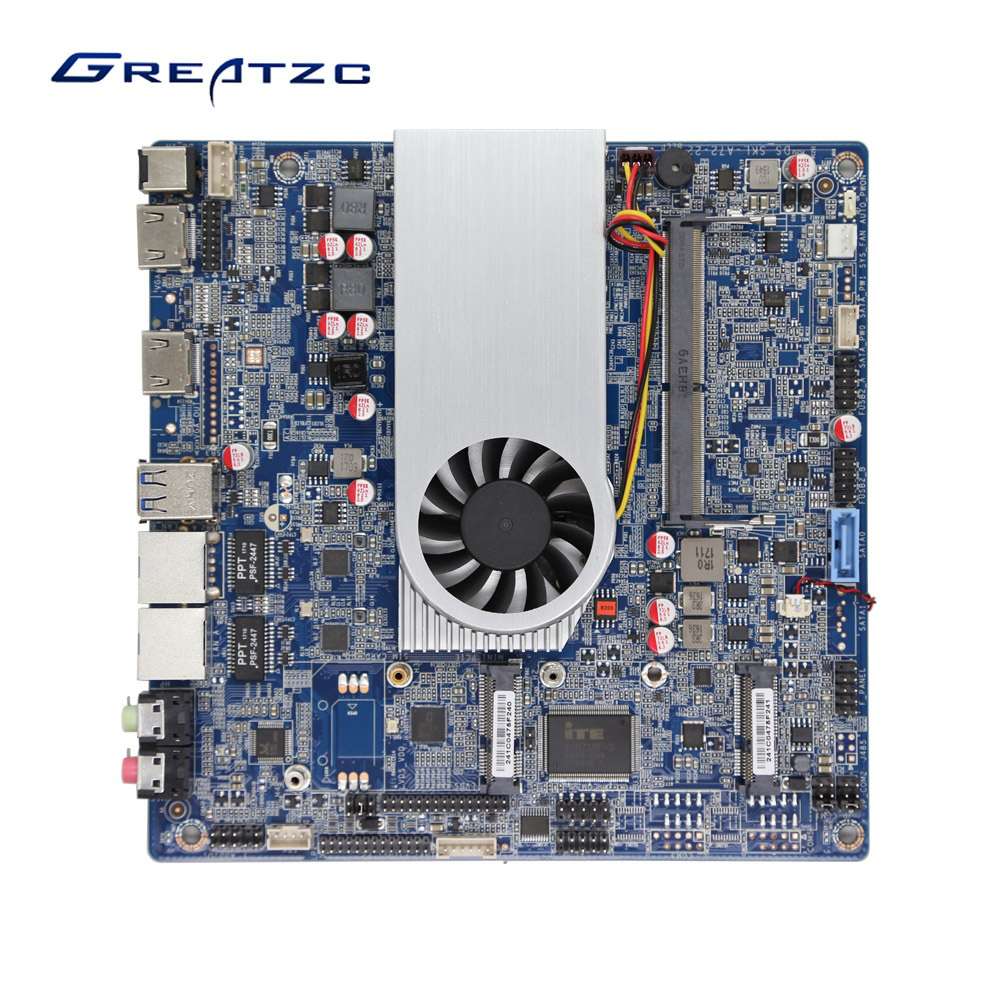

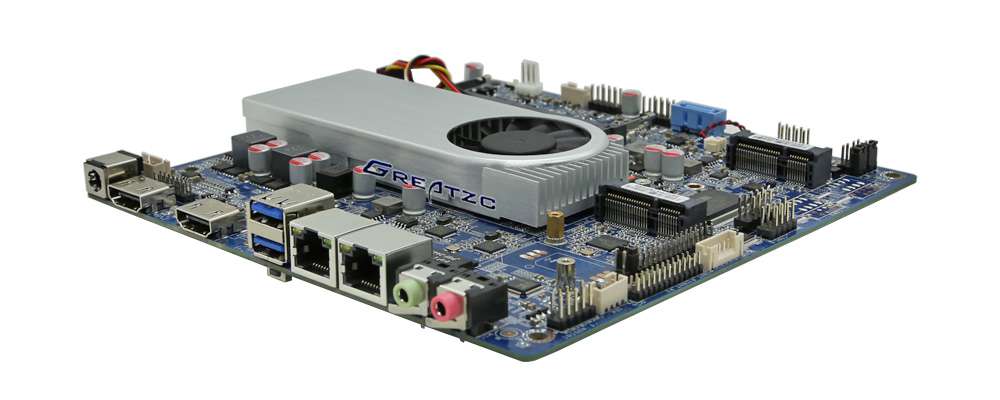

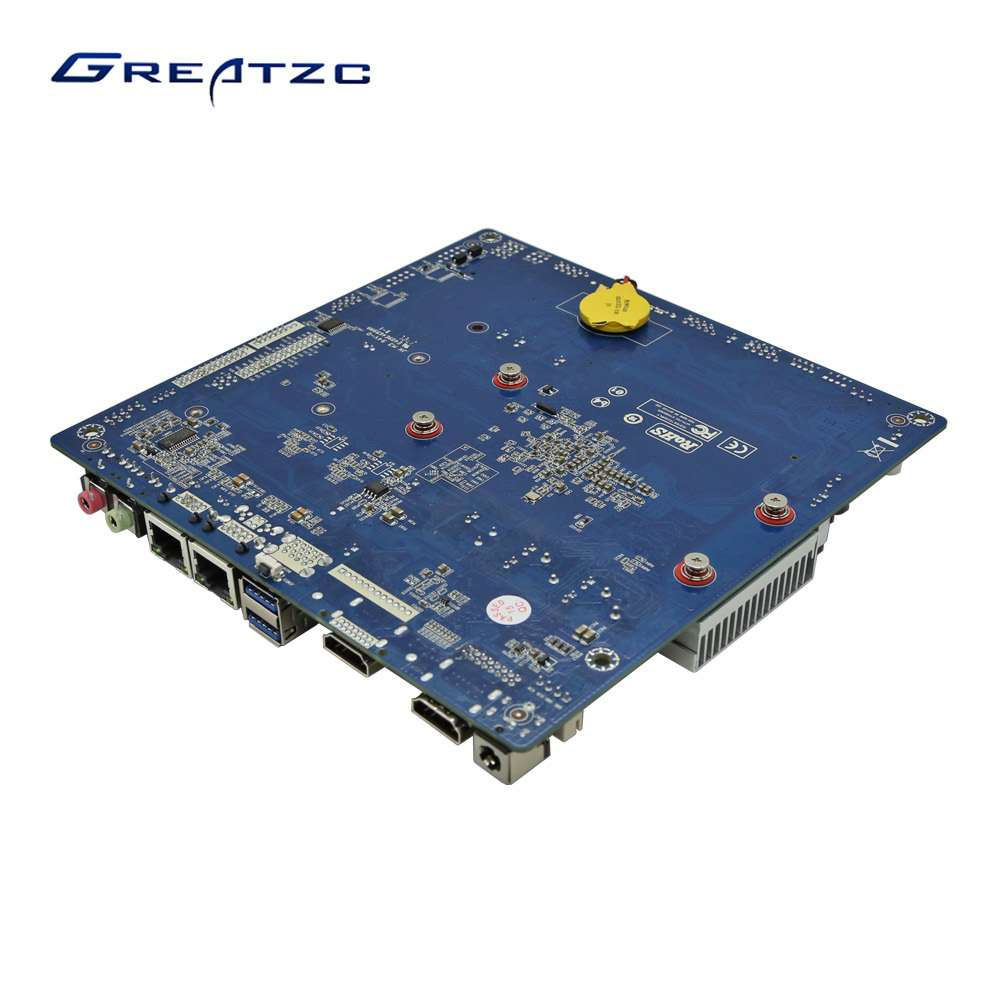

ZC-T6200DL Dual LAN Mini ITX Motherboard Support 4K With CPU Core I5 6200U
- Description
ZC-T6200DL Mini ITX Motherboard With Intel 6th Skylake i5--6200U CPU,
Dual Core 2.3GHz,Turbo Boost 2.8GHz,INTEL HD520,With 2*HDMI,LVDS,
2*RJ-45 LAN, 1*SATA Slot, 1*MINI PCIE ,1*MINI SATA,DC 12V-19V,
Support Total 6*USB,Support 4K.
Main Features:
1.Onboard Processor 6th Skylake i5-6200U Dual Core 2.3GHz,TDP 15W
2.INTEL HD520, Graphics Max Dynamic Frequency 1 GHz,Support 4K
3.With MINI SATA,MINI PCIE,Support SSD,WIFI
4.With 2*HDMI,LVDS,Support Double Display
5.DC 12V-19V Power Supply, Can be Used to More Cases
6.MINI ITX Motherboard (17*17),Suitable for Majority Cases
ZC-T6200DL Motherboard Specification
|
CPU |
INTEL 6th Skylake I5-6200U Dual Core 4 Thread 2.3GHz Turbo Boost 2.8GHz 3MB L3 Cache TDP only 15W |
|
RAM |
1*SO-DIMM DDR4, MAX 16GB |
|
Graphics Card |
INTEL HD520,Support 4K Playing Graphics Max Dynamic Frequency 1 GHz |
|
SATA |
1*SATA Slot |
|
Audio card |
Realtek ALC662 |
|
Network Card |
2*Realtek 8111F 1000Mbp/s Network Card |
|
Display |
2*HDMI 1*LVDS |
|
LVDS |
1*Double Channel 8Bit/24Bit LVDS |
|
Expansion Slot |
1*MINI SATA 1*MINI PCI-E |
|
Rear Panel I/O |
2*USB 3.0 2*RJ-45 2*HDMI 1*DC Jack 1*Speaker 1*MIC IN |
|
Internal I/O |
1*F-USB(Support 2*USB 2.0 Ports) 1*F-USB(Support 2*USB 2.0 Ports)
1*F-AUDIO(9PINS) 1*SATA 3.0 Slots 1*SYS-FAN1 PWR(3PINS) 1*CPU FAN PWR(3PINS) 1*30PINS LVDS 1*LVDS Backlight(6PINS) 1*LPT 1*DC ATX(4PINS) 1*MINI SATA 1*MINI PCI-E |
|
Power Supply |
12V-19V DC-In 4PIN DC-ATX |
|
Size |
MINI ITX(17*17) |
