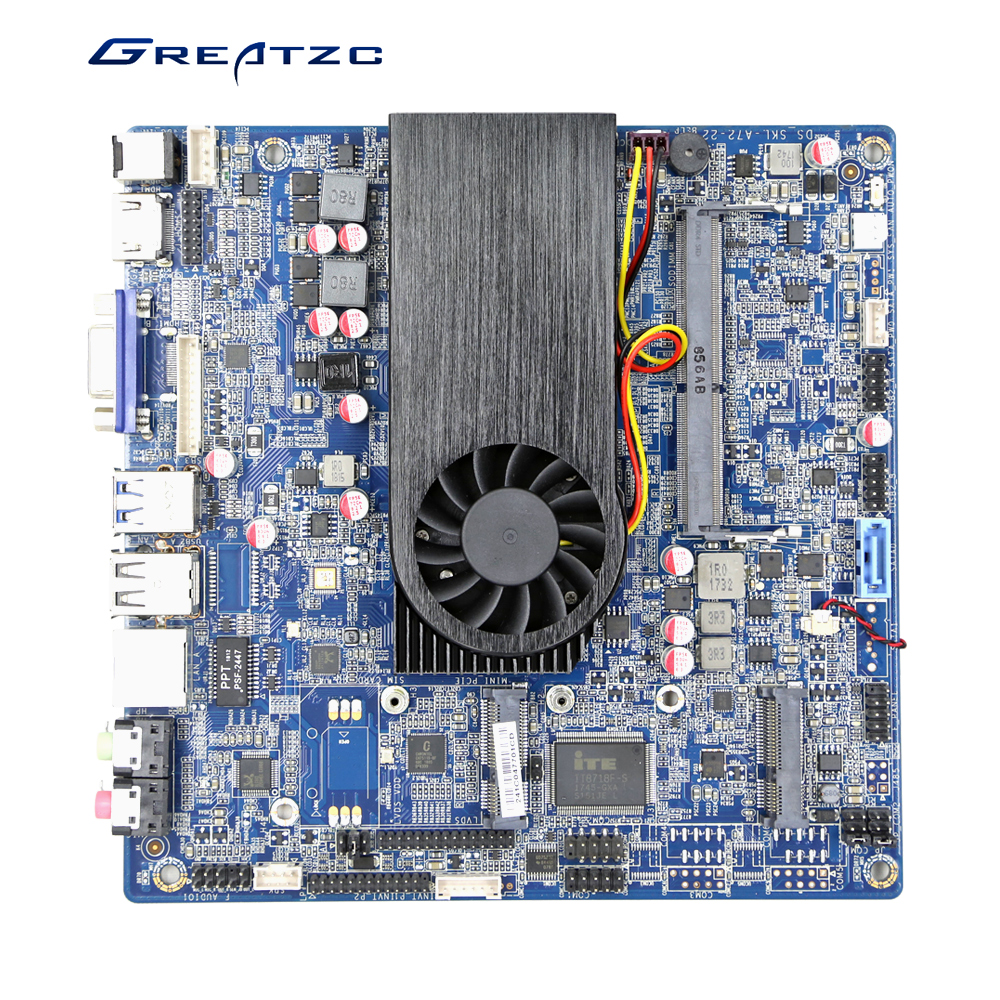

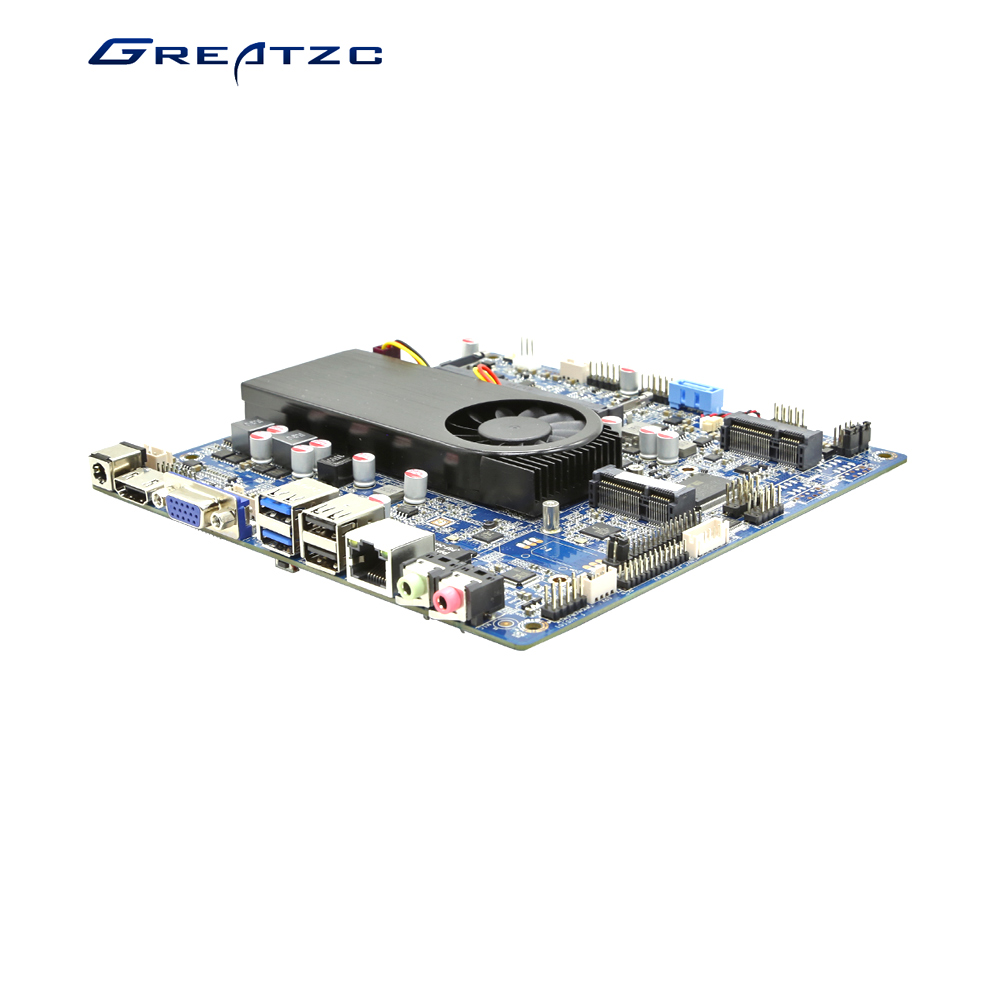

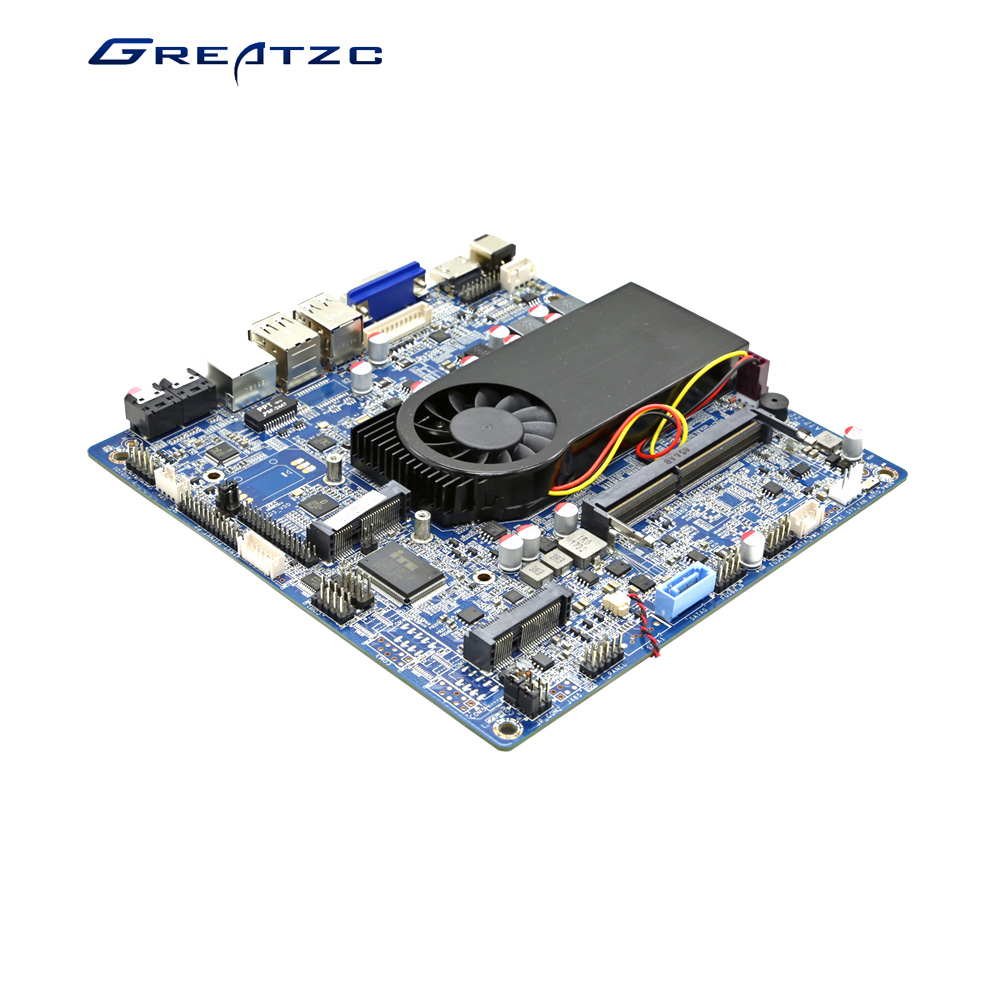

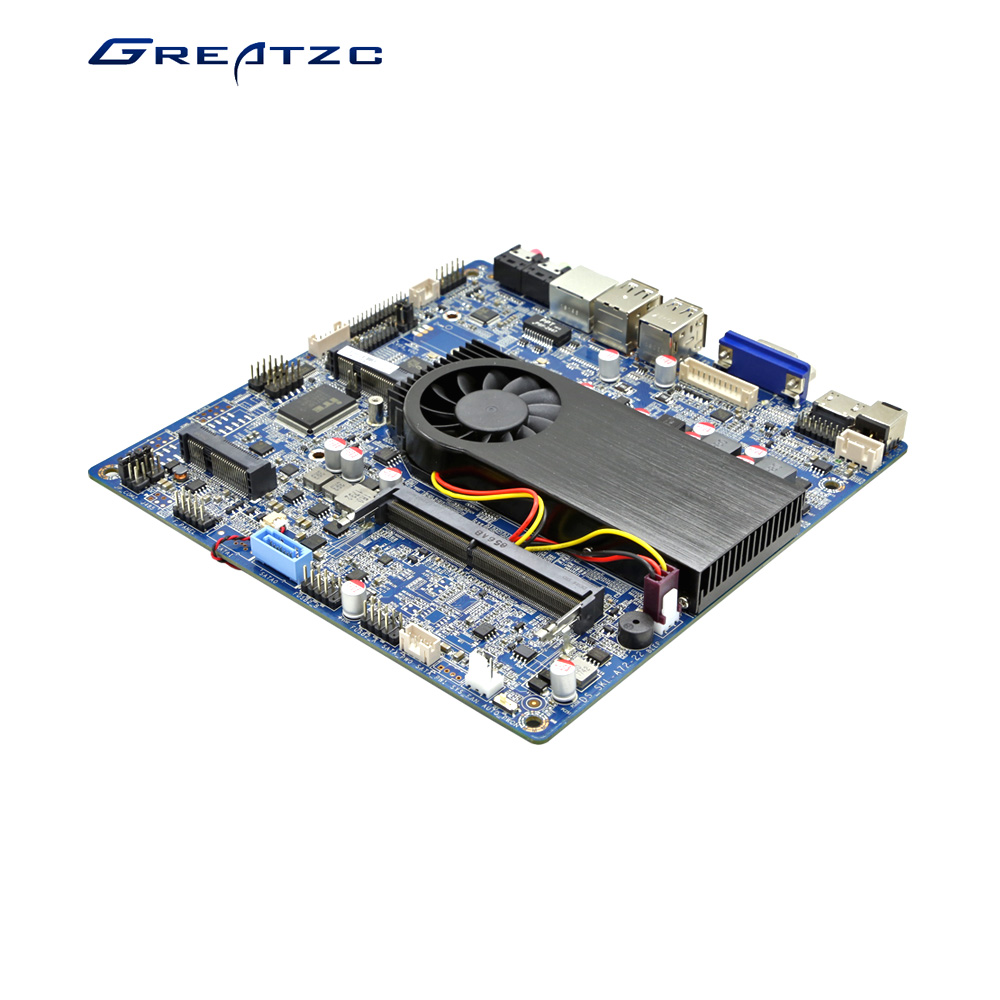

ZC-T3855SL-V DC12V Industrial Mini ITX Motherboard With 3855U CPU,2 COM Ports
- Description
ZC-T3855SL-V Mini ITX Motherboard With Intel Skylake Celeron 3855U CPU,
Dual Core 1.6GHz,INTEL HD510,Support 4K.With 1*HDMI,1*VGA,LVDS,
1*RJ-45 LAN,1*SATA Slot,1*MINI PCIE ,1*MINI SATA,DC 12V-19V,
Support Total 8*USB
Main Features:
1. Onboard Processor Intel Skylake Celeron 3855U CPU,TDP 15W
2. INTEL HD510 Graphics,Support 4K
3. With MINI SATA,MINI PCIE,Support SSD,WIFI
4. With 1*HDMI,1*VGA,LVDS,Support Double Display
5. DC 12V-19V Power Supply, Can be Used to More Cases
6. MINI ITX Motherboard (17*17),Suitable for Majority Cases
ZC-T3855SL-V Motherboard Specification
|
CPU |
INTEL 6th Skylake Celeron 3855U Dual Core 2 Thread 1.6GHz 2MB SmartCache TDP only 15W |
|
RAM |
1*SO-DIMM DDR4, MAX 16GB |
|
Graphics Card |
INTEL HD510 Support 4K |
|
SATA |
1*SATA Slot |
|
Audio card |
Realtek ALC662 |
|
Network Card |
1*Realtek 8111F 1000Mbp/s Network Card |
|
Display |
1*HDMI 1*VGA 1*LVDS |
|
LVDS |
1*Double Channel 8Bit/24Bit LVDS |
|
Expansion Slot |
1*MINI SATA 1*MINI PCI-E |
|
Rear Panel I/O |
2*USB 3.0 2*USB 2.0 1*RJ-45 1*HDMI 1*VGA 1*DC Jack 1*Speaker 1*MIC IN |
|
Internal I/O |
1*F-USB(Support 2*USB 2.0 Ports) 1*F-USB(Support 2*USB 2.0 Ports)
1*F-AUDIO(9PINS) 1*SATA 3.0 Slots 1*SYS-FAN1 PWR(3PINS) 1*CPU FAN PWR(3PINS) 1*30PINS LVDS 1*LVDS Backlight(6PINS) 1*DC ATX(4PINS) 1*MINI SATA 1*MINI PCI-E |
|
Power Supply |
12V-19V DC-In 4PIN DC-ATX |
|
Size |
MINI ITX(17*17) |
