ZC-DN-H110SL-V Mini ITX Motherboard With Socket LGA1151-Mini Itx LGA1151-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

ZC-DN-H110SL-V Mini ITX Motherboard With Socket LGA1151

ZC-DN-H110SL-V MINI ITX Motherboard Intel LGA1151 Socket,Intel H110 Chipset

Support 6th,7th LGA1151 Core i7/i5/i3/Celeron/Pentium Processor

With 1*HDMI,1*VGA,1*LVDS,1*RJ45 LAN,4*USB 3.0+4*USB 2.0,4*COM Ports

1*MINI SATA,1*MINI PCI-E,12V/19V DC Power

Main Features:

1. Intel H110 Chipset,LGA1151 Core i7/i5/i3/Celeron/Pentium

2. With 1*HDMI+1*VGA+1*LVDS,Support Double Display

3. DC 12V/19V Power Supply,Can be Used to More Cases

4. Processor integrated Intel HD Graphics,Support 4K

5. With 1*SO-DIMM DDR4 Slot,Support Max 16GB

6. With 2*SATA,1*MINI SATA,Full Storage

7. With 1*Mini PCI-E Support WIFI/4G/3G etc.

8. 4*USB 3.0+4*USB 2.0,Enough USB Ports

9. With 4 COM Ports,More Application

10. MINI ITX 17*17,Suitable For POS Machine,All In One Machine,ATM

PC Station,MINI PC,Advertising Machine etc.

ZC-DN-H110SL-V Motherboard Specification

Model Name	ZC-DN-H110SL-V
Processor	Intel LGA1151 Socket Support LGA1151 Core i7/i5/i3/Celeron/Pentium TDP Must be ≤65W
Chipset	Intel H110
RAM	1*SO-DIMM DDR4
Graphics Card	No Processor Integrated Graphics Card
Storage	2SATA,1MINI SATA
Expansion Slot	1MINI PCI-E 1MINI SATA
Network Card	1*Realtek RTL8111F Gigabit LAN Card
Rear Panel I/O	4USB 3.0 1HDMI 1VGA 1SPK 1MIC 1DC 12V Port 1*RJ45 LAN Ports

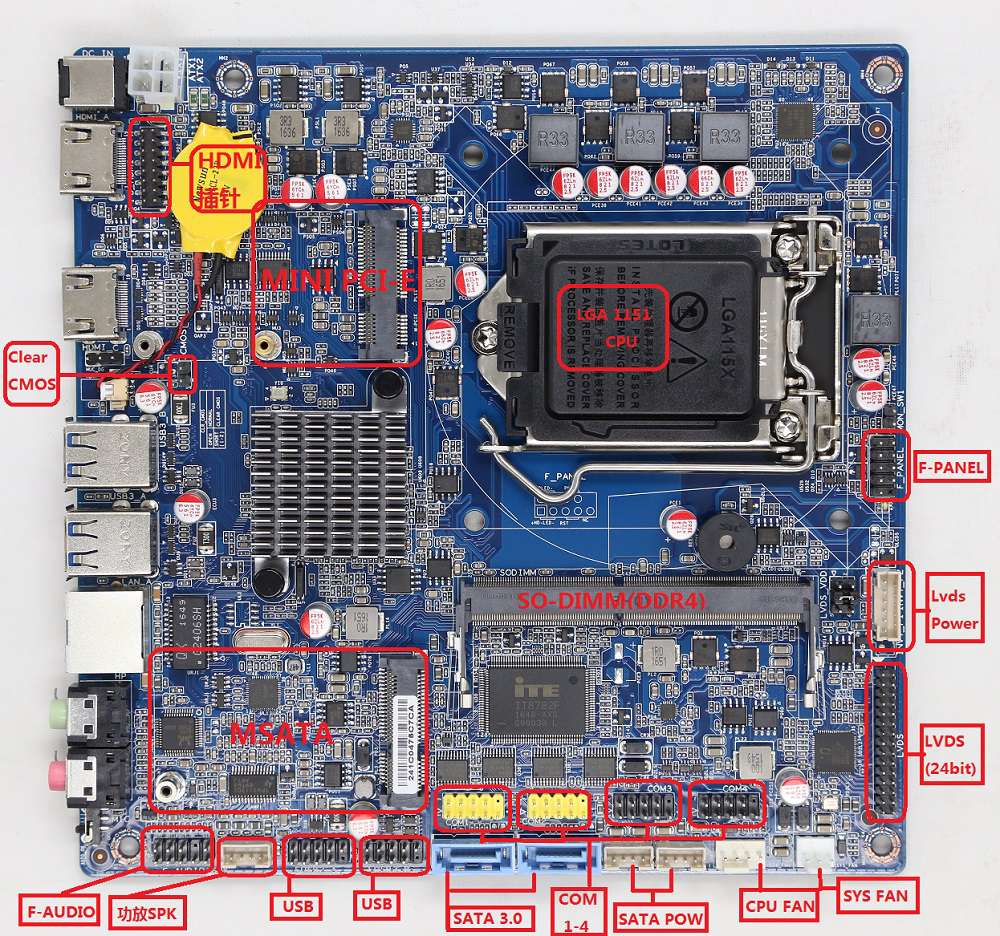

Internal I/O	F-PANEL SYSFAN CPUFAN F-USB1(Support 2 USB2.0 Ports) F-USB2(Support 2 USB2.0 Ports) F-AUDIO Speaker JHDMI CLR-CMOS MINI PCIE MINI SATA SATA1 SATA2 SATA1-PW SATA2-PW COM1-4 LVDS(30 PIN) INVERTER DC-IN 4PIN ATX
Power	DC 12V/19V;4PINS ATX
Size	Mini ITX (17cm*17cm)
