ZC-G300-NUC12D Fanless Industrial Computer Onboard 12th/13th Gen i3 i5 i7 CPU,2*
- Description

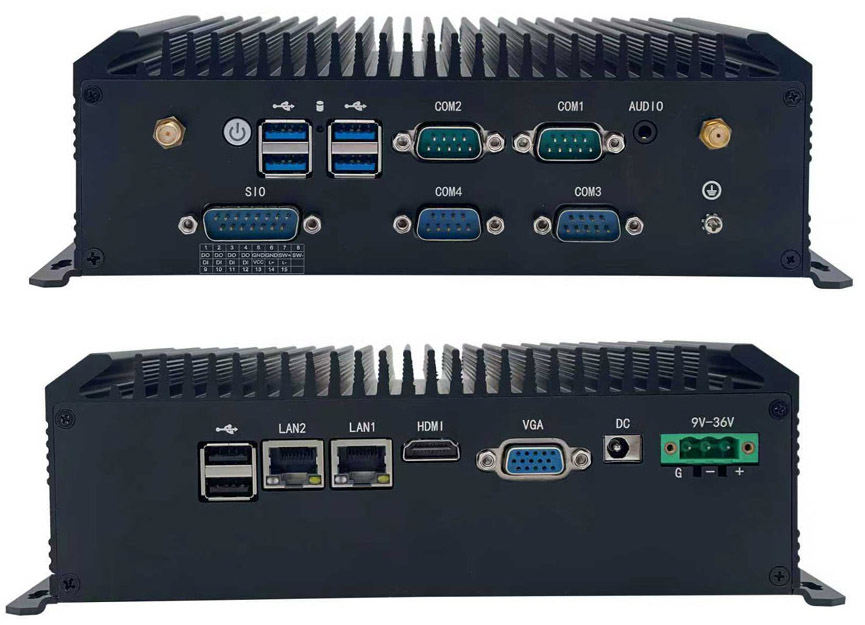

ZC-G300-NUC12D Fanless Industrial Computer Onboard 12th/13th Gen i3 i5 i7 CPU,2*LAN,HDMI+VGA,4*USB 3.0+2*USB 2.0,2*RS232
ZC-G300-NUC12D Motherboard
CPU
12th Gen Alder Lake-U/P/H i3/i5/i7
13th Gen Raptor Lake-U/P/H i3/i5/i7
RAM
1* SODIMM DDR4 3200MHz Max 32GB
Display
Intel UHD Graphics
1* VGA
1*HDMI 2.0
Network
2* Realtek RTL8111H Gigabit,Support Wake On LAN/PXE
Storage
1* M.2 Key-M 2280 PCIE X4
Audio
Expand
1* Mini-PCIe for WIFI/4G
Front I/O
1* HDMI
1* VGA
2* USB 2.0
2* RJ-45
1* 12-19V DC
1*PHOENIX 3 Pins 9-36V DC (Optional)
Rear I/O
1* 3.5mm Audio Line-OUT,MIC in
2* RS232,COM2 Support RS422 Optional
2*RS232/485
4* USB3.0
1* Power Button
1* HDD LED
1* COMS
1*SIO 30Pins
1*Power Button
TPM
1* TPM2.0 2*6Pin,Optional
Working Temp
-20℃～60℃
Storage Temp
-30℃～70℃
Working Humidity
5%-95% relative humidity, no condensation
Size
225.8 x 128.00 x 69.45mm
Ordering Info:
|
|
Model |
CPU |
Core |
Speed |
DDR |
HDMI |
VGA |
LAN |
USB |
COM/485 |
POWER |
|
1 |
ZC-G300-NUC12D-1215U |
I3-1215U |
2P/4E |
1.2-4.4Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
|
2 |
ZC-G300-NUC12D-1235U |
I5-1235U |
2P/8E |
1.3-4.4Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
|
3 |
ZC-G300-NUC12D-1265U |
I7-1265U |
2P/8E |
1.8-4.8Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
|
4 |
ZC-G300-NUC12D-1240P |
I5-1240P |
4P/8E |
1.7-4.4Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
|
5 |
ZC-G300-NUC12D-12450H |
I5-12450H |
4P/4E |
2.0-4.4Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
|
6 |
ZC-G300-NUC12D-1340P |
I5-1340P |
4P/8E |
1.9-4.6Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
|
7 |
ZC-G300-NUC12D-1335U |
I5-1335U |
2P/8E |
1.3-4.6Ghz |
DDR4*2 |
1 |
1 |
2 |
8 |
2/2 |
12-19V |
