Model

ZC-G770F-P4 V1.0

Chasiss

Material/structure

Aluminum alloy + sheet metal material fan cooling or fanless cooling

Color

Black

Dimensions (length, width and height)

229*208*67.7MM

Weight

3.4KG

Install

Desktop/embedded/DIN rail

Motherboard

CPU

Intel®LGA1700 12th/13th/14th Celeron/Pentium/Core/i3/i5/i7

Chip

Intel®H770

Display

Intel HD Graphics

RAM

2*SODIMM 2400MHz DDR4,Max 64GB

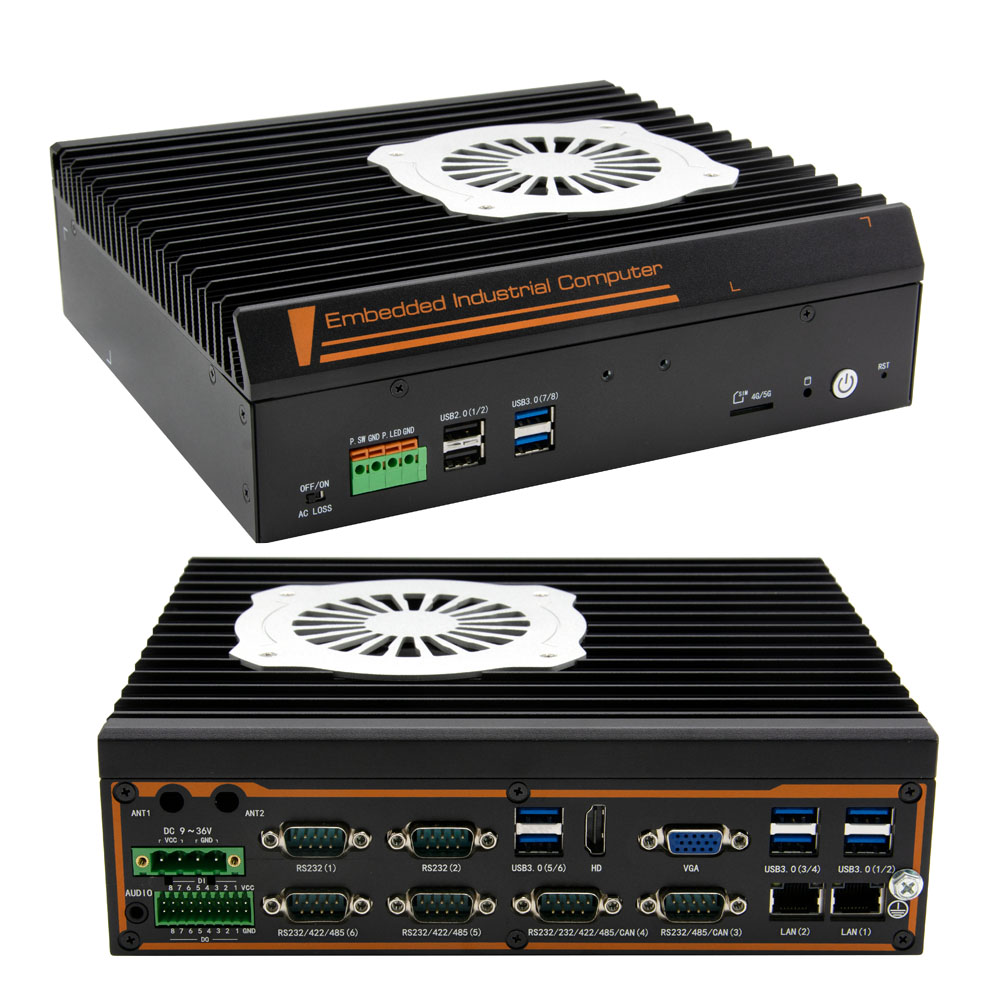

Front

On/Off

1*Power Button With LED,1*Restart，1*ACLOSS

LED

1*Hard Disk

USB

2*USB3.0，2*USB2.0

Phoenix terminal

1*4pin

SIM

1*SIM

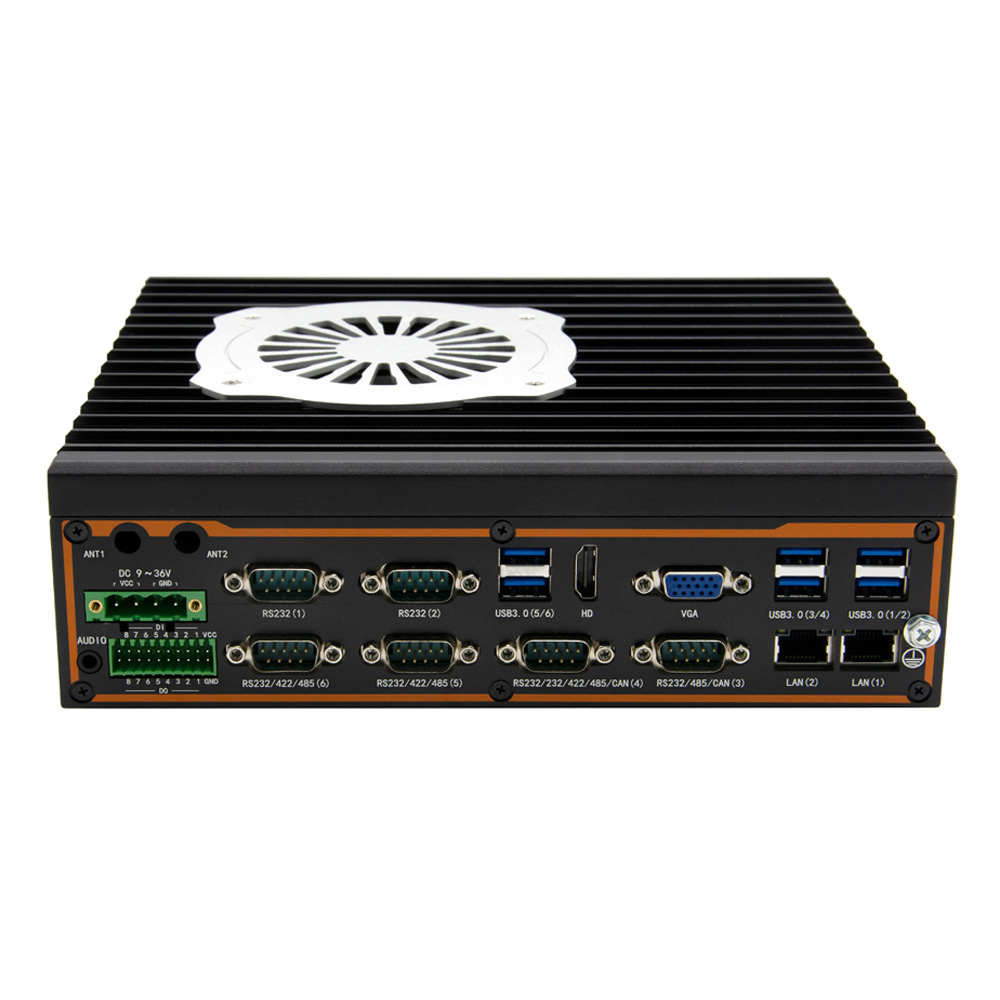

Rear

Button

1*Power Button With LED， 1*Restart

LED

1*Hard Disk LED

Display

1*VGA(1920*1200@60Hz)，1*HDMI1.4

USB

6*USB3.0

COM

2*RS232,4*RS232/422/485,COM3/4 Support CAN

COM3/4 Support CAN(Need to load CAN module)

LAN

2*Intel I210AT Gigabit

Phoenix terminal

2*8pin(7in7out GPIOisolated）

Audio

1*Audio，Line out and MIC in one

Power Connector

1*4pinPhoenix terminal,Support DC 9~36V

Storage

SATA

1*2.5 Hard Disk

MSATA

1*MSATA

M.2

1*M.2/SSD，Support Key-M，2280，NVME PCIEx4 SSD

Expand

MINIPCIE

1*MINIPCIE，Support WiFi/4G(Shares a SIM card slot with 5G, default M.2 5G)

M.2

1*M.2/WiFi，Support Key-E, 2230, WiFi module

1*M.2/5G,Support Key-B, 2242/52, 5G module (shares a SIM card slot with 4G, default M.2 5G)

OS

Microsoft

Windows 10/11

Linux

Linux

Power

Type

1*4pinPhoenix terminal

Voltage Input

DC 9-36V

Output

AC TO DC 90W Above

Environment

Operating Temp

-10℃～60℃

Storage Temp

-20℃～70℃

Relative humidity

5%-95%Relative humidity, non-condensing

Work shock

0.5g rms/5-500HZ/random/operating
