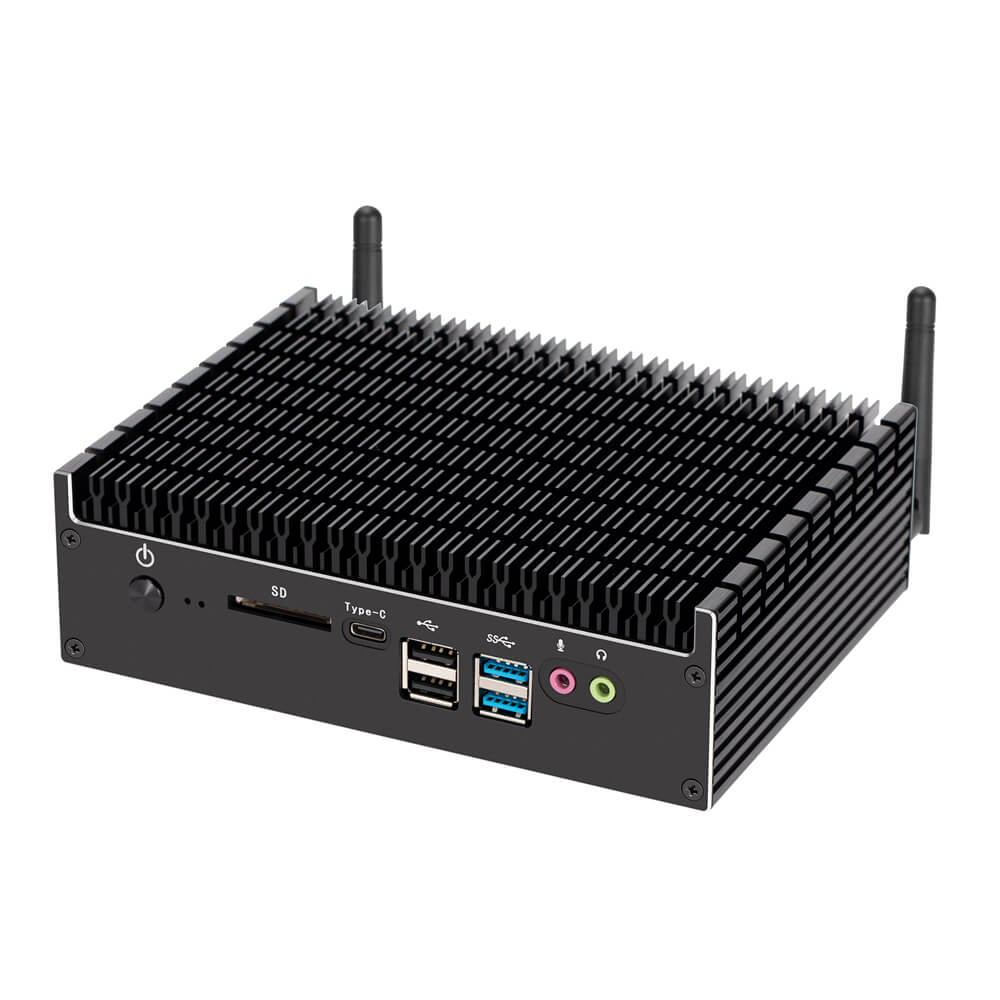

ZC-WG10 Mini Fanless PC Onboard Intel 10th Gen I3-10110u/I5-10210u/I7-10510u CPU
- Description
1*HDMI+1*DP Display,2*LAN Ports,1*RS232,1*Audio In,1*Audio Out
Main Features:
1.) Onboard Intel 10th Gen I3-10110u/I5-10210u/I7-10510u CPU
2.) Intel Intel UHD Graphics Card,Support 4K
3.) With 1*HDMI+1*DP Ports,Support Double Display
4.) Rich USB Ports,4*USB 3.0+2*USB 2.0 Ports
5.) With 1*M.2+1*SATA 2.5’’ Hard Disk Slot
6.) Onboard 2*Realtek RTL8111H Gigabit,Suppot PXE/Wake on LAN
7.) Full aluminium alloy shell,dustproof,durable,resist compression
8.) 1*M.2 2230 for WIFI/3G/4G module,1*SIM Slot
ZC-WG10 Industrial Fanless PC Specification
|
CPU |
Intel 10th Gen I3-10110u 2 Cores 2.1GHz to 4.1GHz |
|
Intel 10th Gen I5-10210u 4 Cores 1.6GHz to 4.2GHz |
|
|
Intel 10th Gen I7-10510u 4 Cores 1.8GHz to 4.9GHz |
|
|
Memory |
2*DDR4 SO-DIMM |
|
Storage |
1*M.2 Key-M 2280 NVME/SATA SSD |
|
1*2.5’’ Slot |
|
|
Graphics Card |
Intel UHD Graphics,Support 4K |
|
Network Card |
2*Realtek RTL8111H Gigabit |
|
Support Wake On LAN,PXE |
|
|

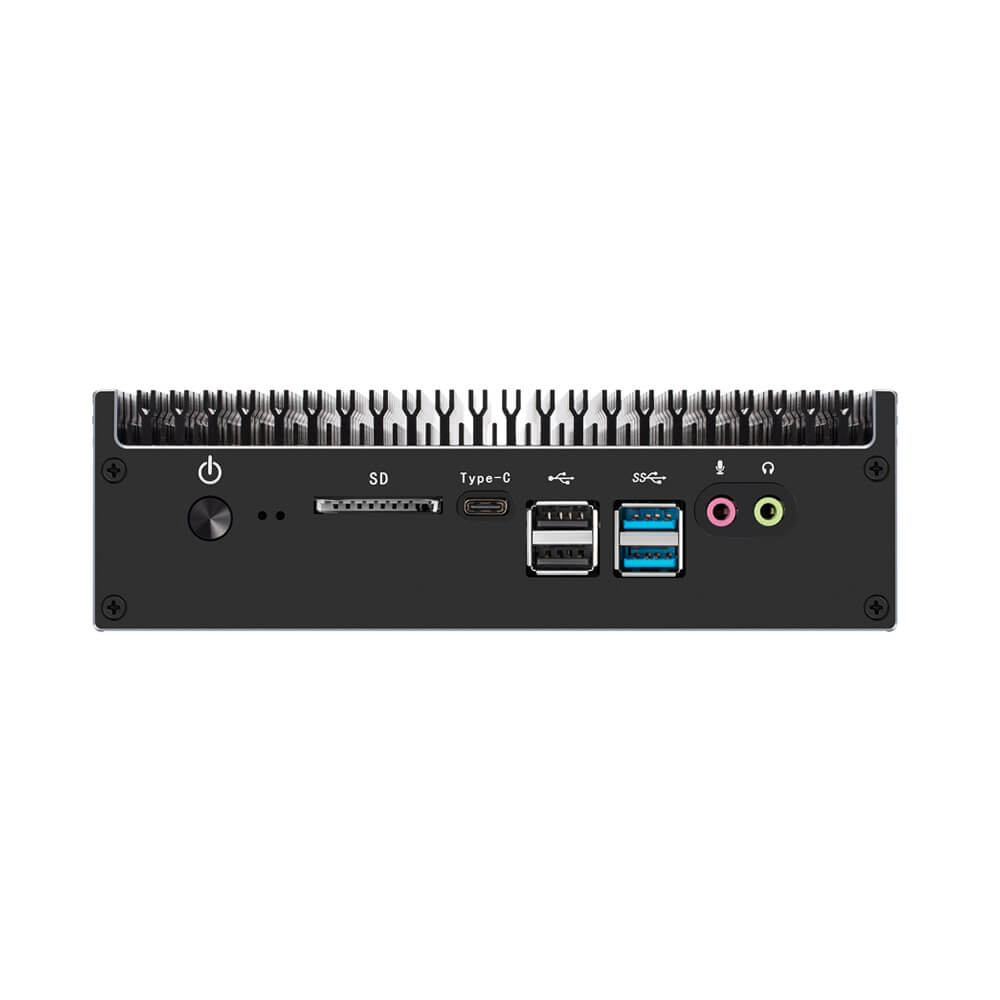

Front Ports |
2*USB 3.0 2*USB 2.0 1*USB Type C 1*SD Card Slot 1*Audio Out 1*Mic In 1*Power Button |
|

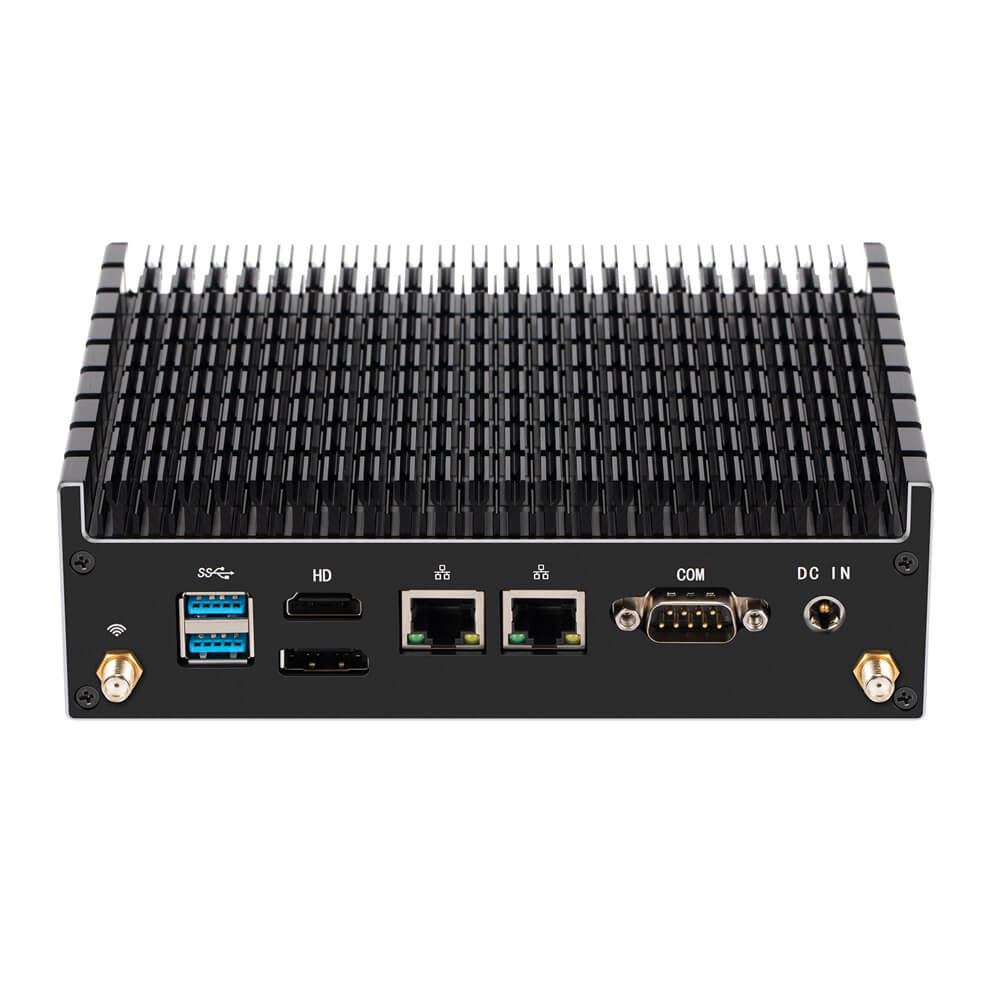

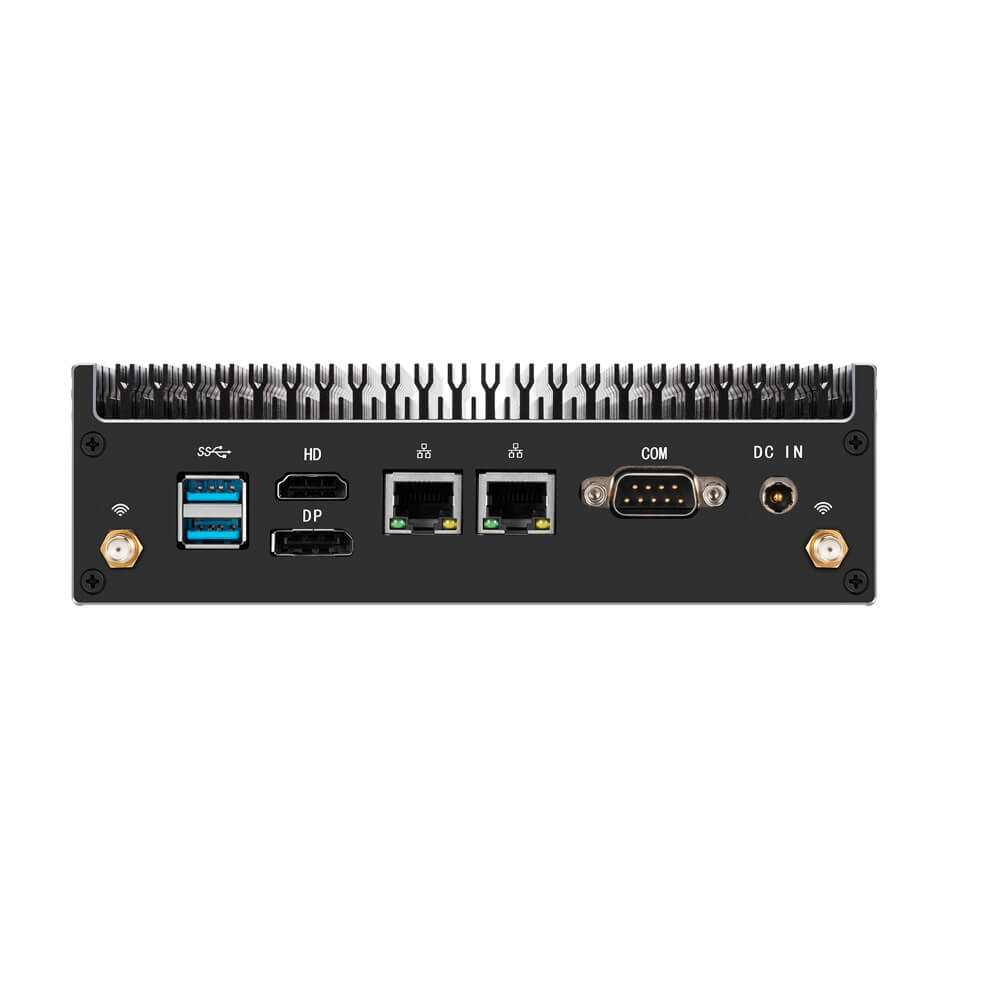

Rear Ports |
1*DP 1*HDMI 2*RJ45 2*USB 3.0 1*COM 1*DC Jack 2*Antenna Hole |
|
Expand |
1*M.2 2230 for WIFI/4G/5G 1*SIM Slot |
|
Size |
Product: 172*127*51mm Package: 310*180*80mm |
|
Weight |
N.W:1.1KG G.W:1.9KG |
|
Power Supply |
DC12V/19V |
|
Watchdog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
OS |
Windows10/11/Linux |
|
Working Temperature |
-10℃~+70℃ |
|
Storage Temperature |
-20℃~+80℃ |
|
Relative Humidity |
5%-95% Relative humidity,no condensation |
