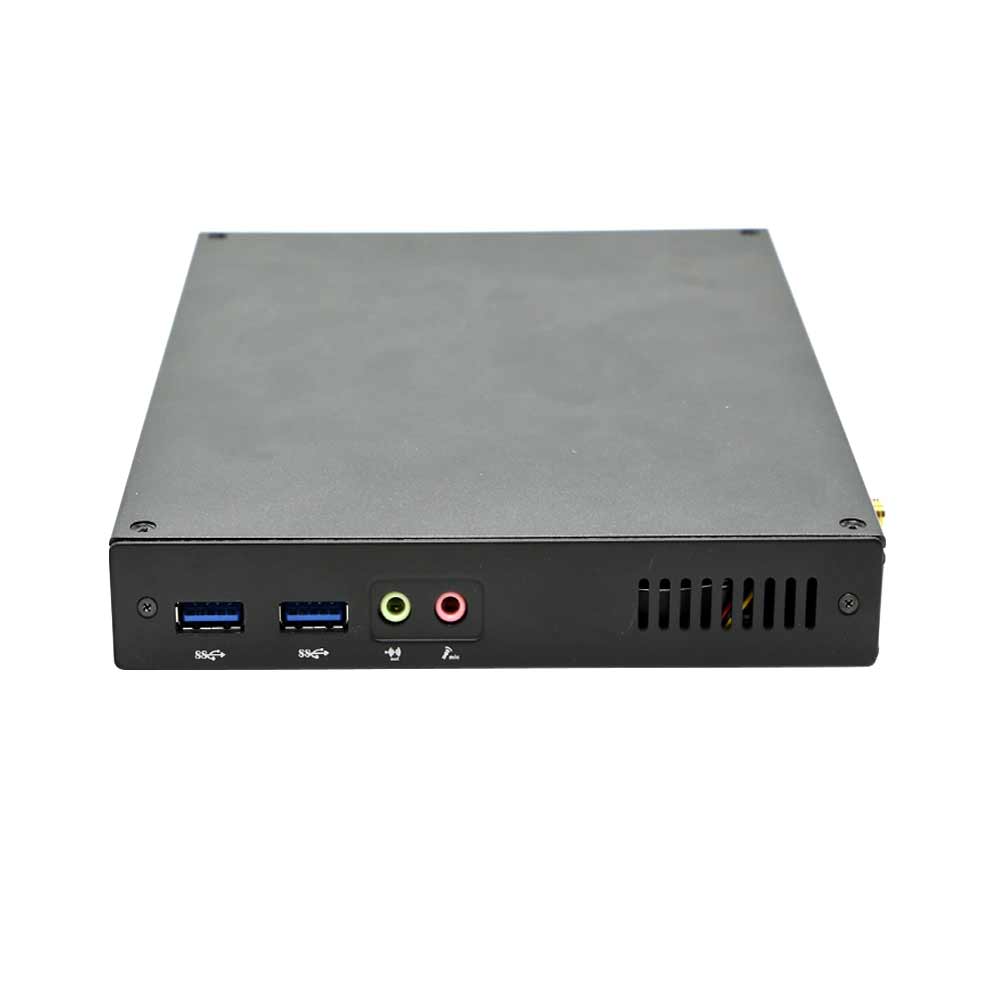

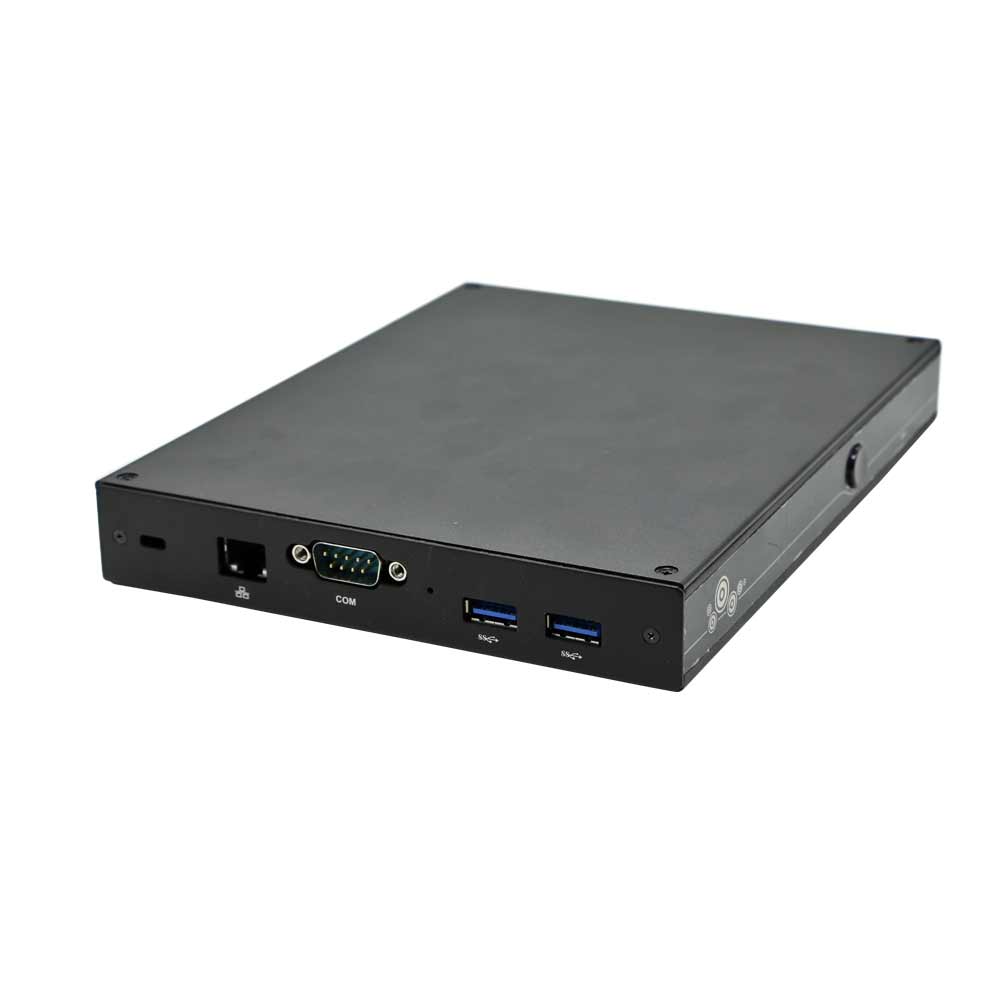

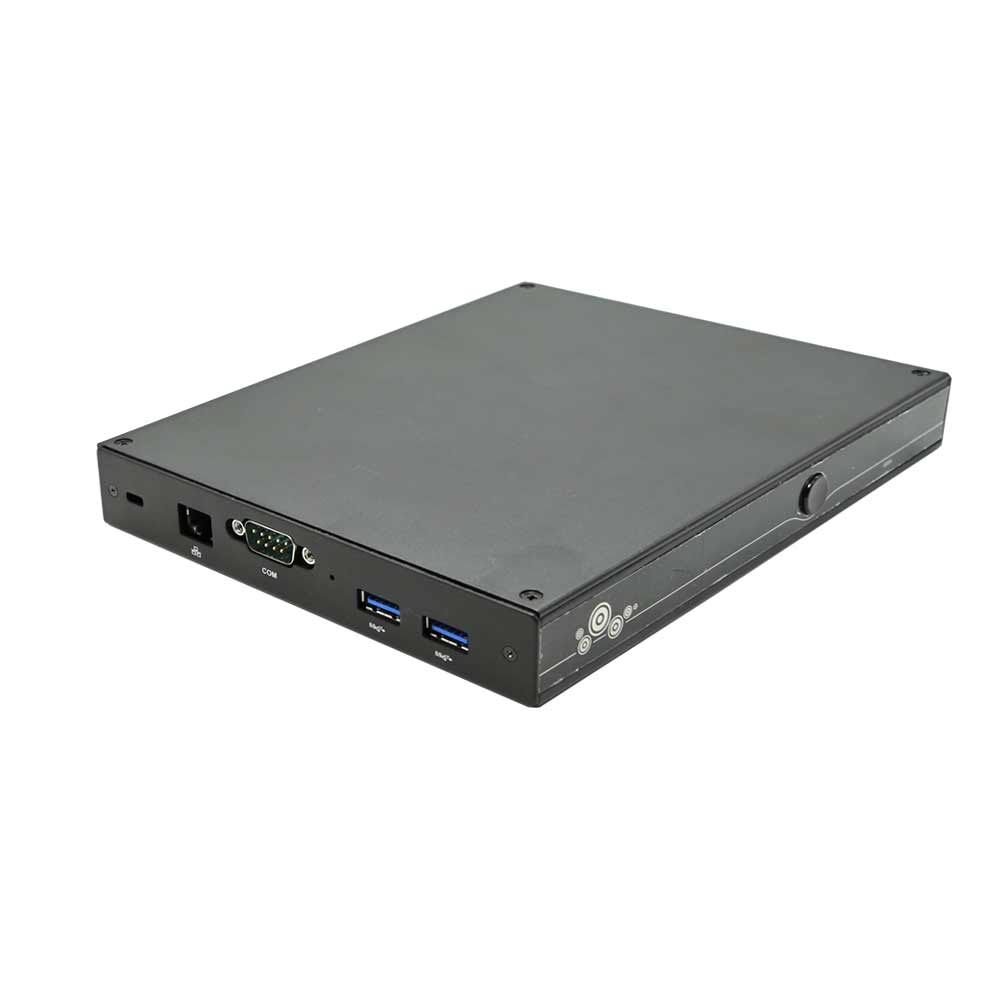

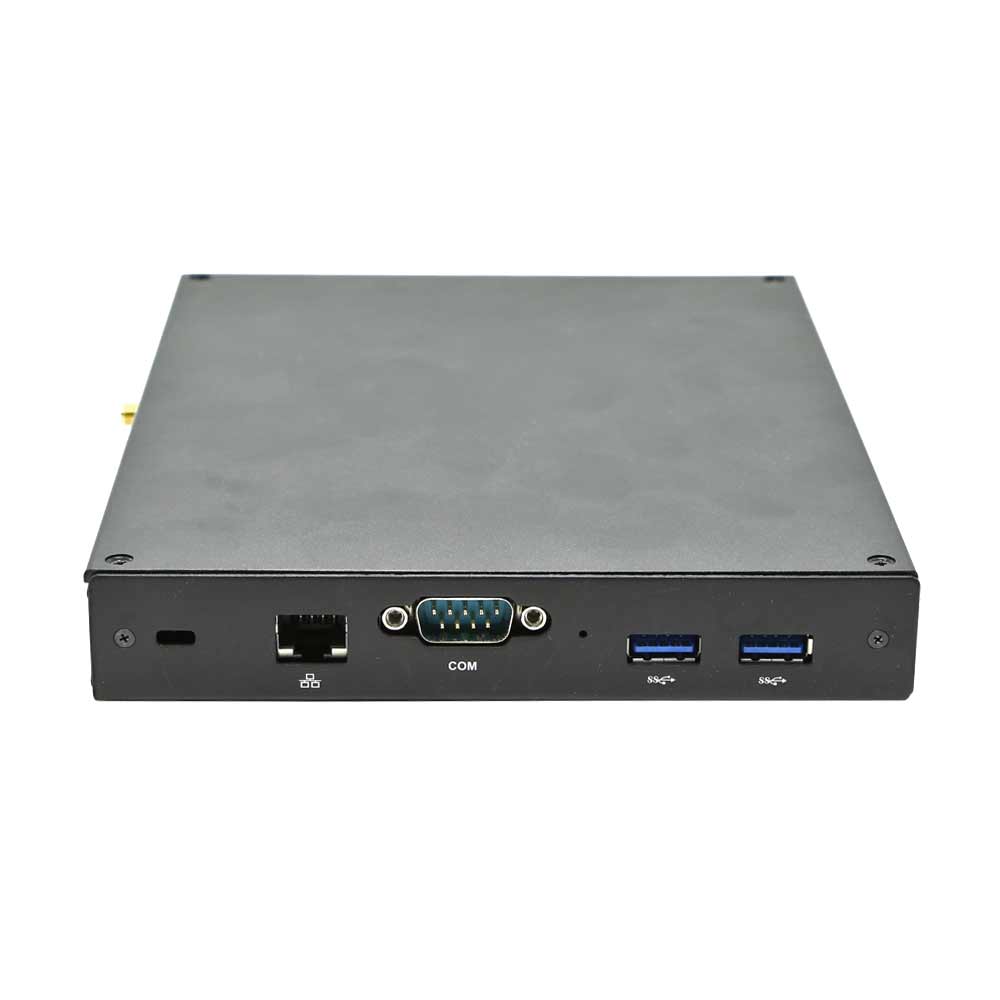

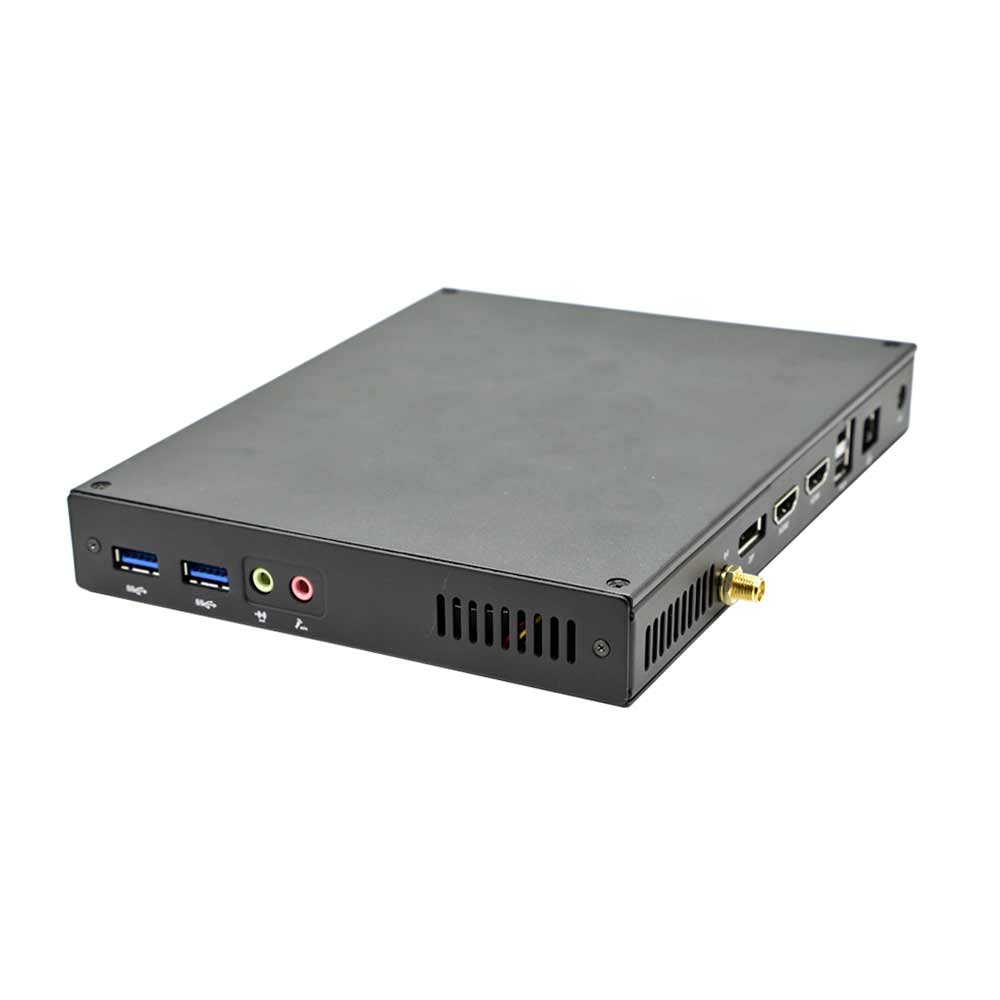

ZC-H8265 Mini PC 8th gen Core i5-8265u CPU Dual LAN Ports
- Description
ZC-H8265 Mini PC Onboard 8th Gen Whiskey Lake i5-8265u CPU,
4 Core 8 Thread 1.6GHz Max Turbo 3.9GHz,Intel UHD Graphics 620,Support 4K
3 Display Ports 1*DP1.2,1*HDMI 2.0,1*HDMI1.4,6*USB 3.1,2*RJ45,1*RS232
Main Features:
1. Intel 8th Gen Whiskey Lake i5-8265u
2. Intel UHD Graphics 620,Support 4K
3. With 2 Gigabit Ethernet,WIFI Optional
4. Plenty of Ports,6*USB 3.1,1*RS232 Ports
5. Support 3 Display,1*DP1.2,1*HDMI 2.0,1*HDMI1.4
6.Rich Storage,1*M.2 2280 NVMe SSD Slot,1*mSATA SSD Slot
7. Industrial Grade Quality,Stable and Powerful Performance
ZC-H8265 Mini PC Onboard I5-8265u CPU
|
CPU |
Intel 8th Gen Whiskey Lake U All Serial |
|
Whiskey Lake i5-8265u 4 Cores 8 Threads 1.6GHz Max Turbo 3.9GHz 6MB Intel Smart Cache TDP Only 15W |
|
|
Celeron 4205u,i3-8145u,i7-8565u Optional |
|
|
Memory |
2*SO-DIMM DDR4 2400 Up to 32GB |
|
Hard Disk |
1*mSATA for mSATA SSD 1*M.2 2280 for NVMe SSD |
|
Network Card |
1*Intel i219LM,Gigabit 1*Realtek8111H,Gigabit |
|
Graphics Card |
Intel UHD Graphics 620 Support 4K |
|
Display Ports |
1*DP 1.2,Max 4096x2304@60Hz |
|
1*HDMI 2.0,Max 4096x2304@60Hz |
|
|
1*HDMI 1.4,Max 4096x2304@24Hz(no sound) |
|
|
I/O Ports |

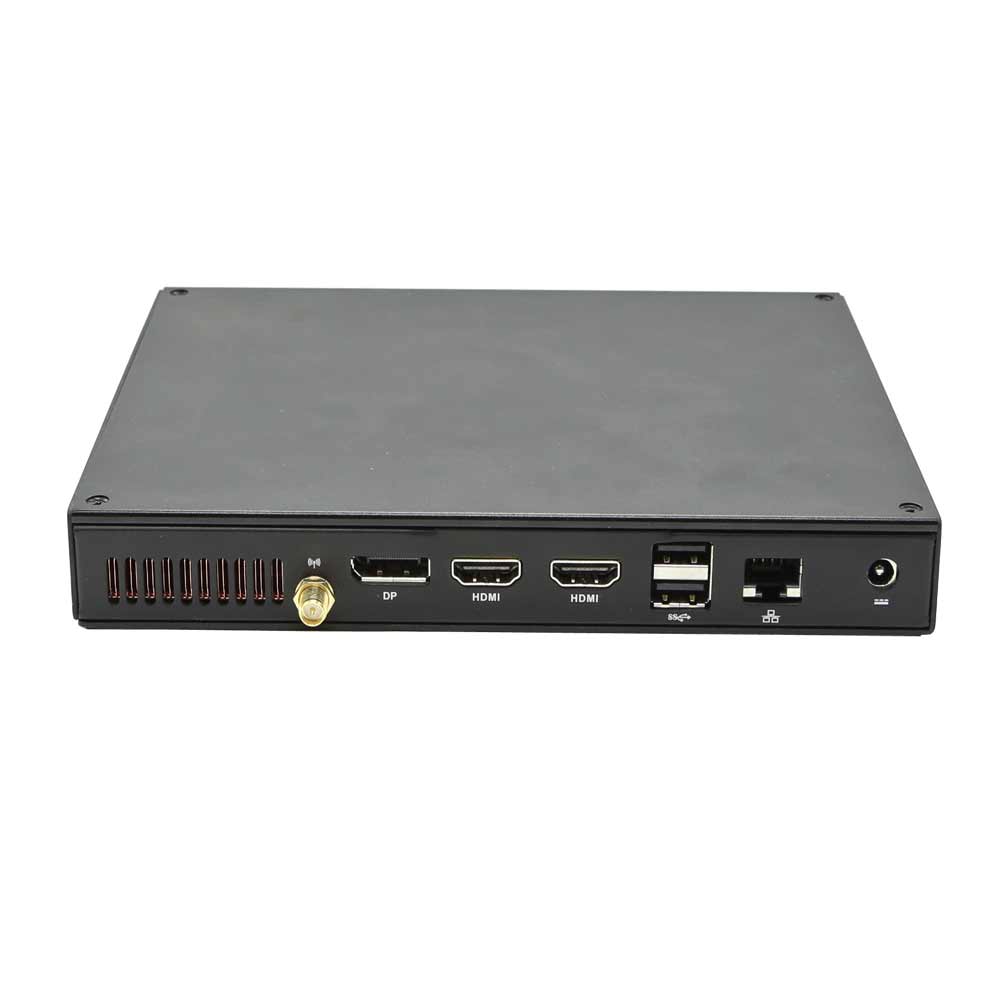

2*RJ-45 1*HDMI 2.0 1*HDMI 1.4 1*DP 1.2 6*USB 3.1 1*SPK 1*MIC IN 1*RS232 1*DC12V-19V JACK 1*Power Button 1*Antenna |
|
Expansion |
1*M.2 2230 for WIFI/Bluetooth Module |
|

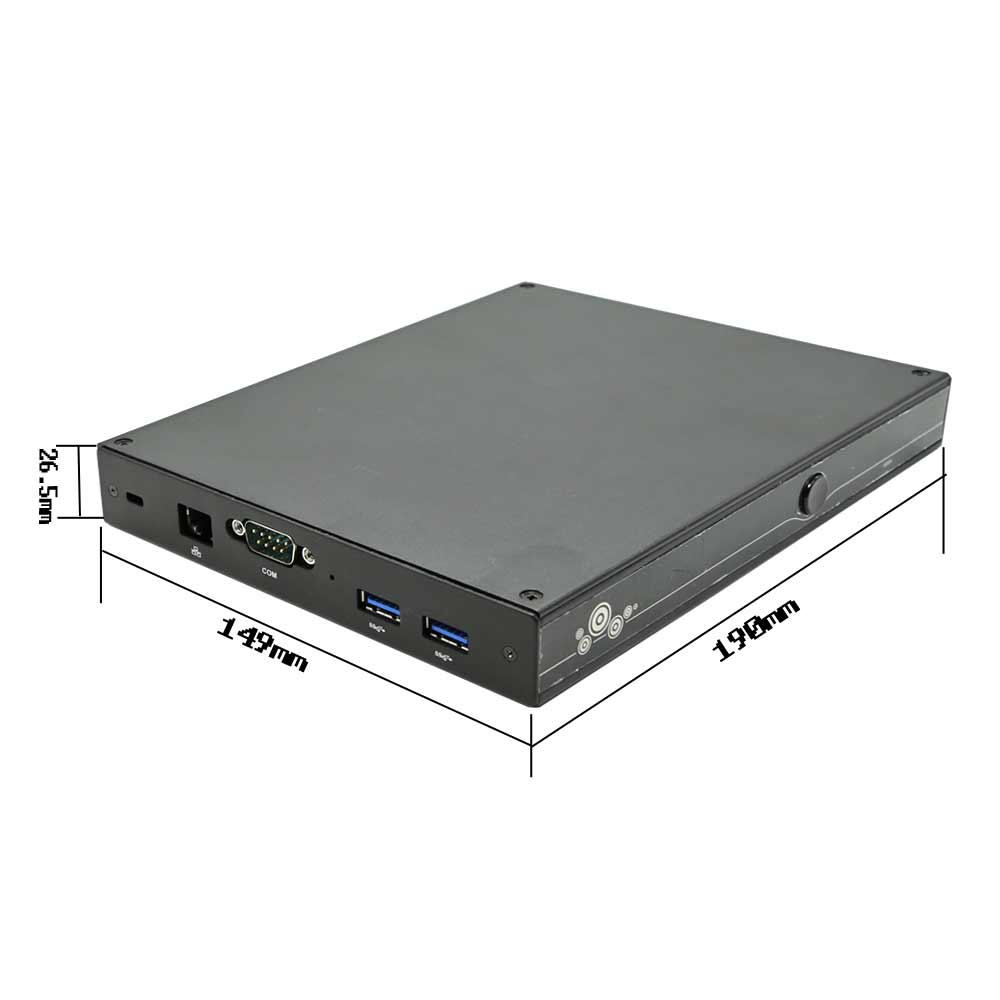

Size |
190*149*26.5mm |
|
Weight |
N.W:1.2kg |
|
Power Adapter |
19V/2.1A |
|
OS Support |
Windows 8.1/10,Linux |
|
Kit Contents |
Main Product,Power Adapter |
