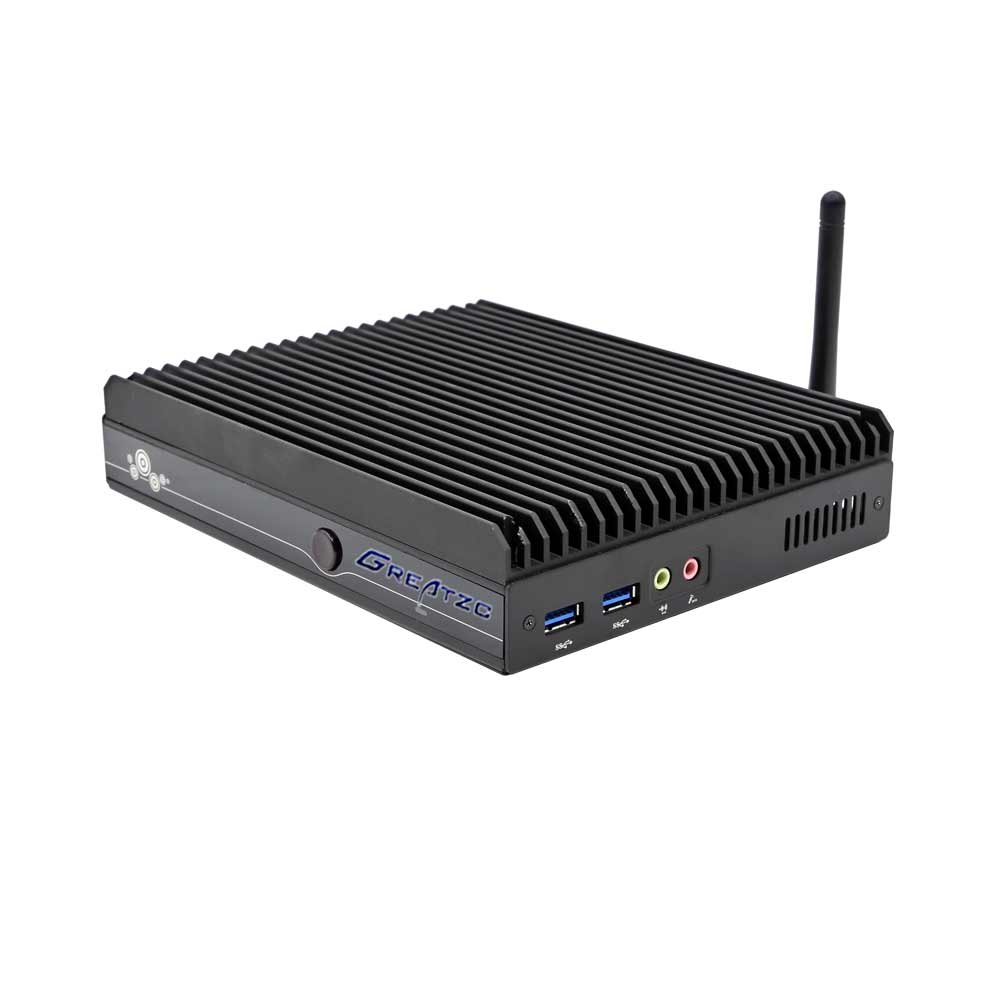

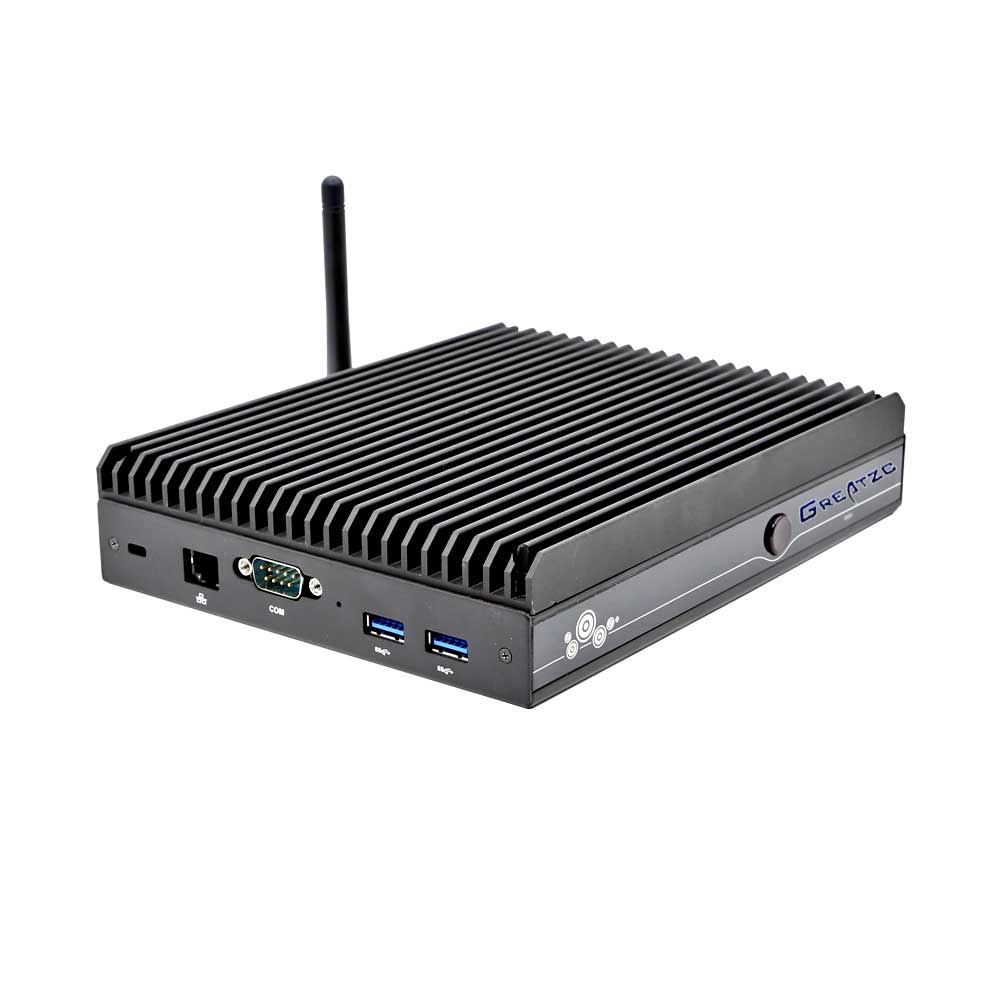

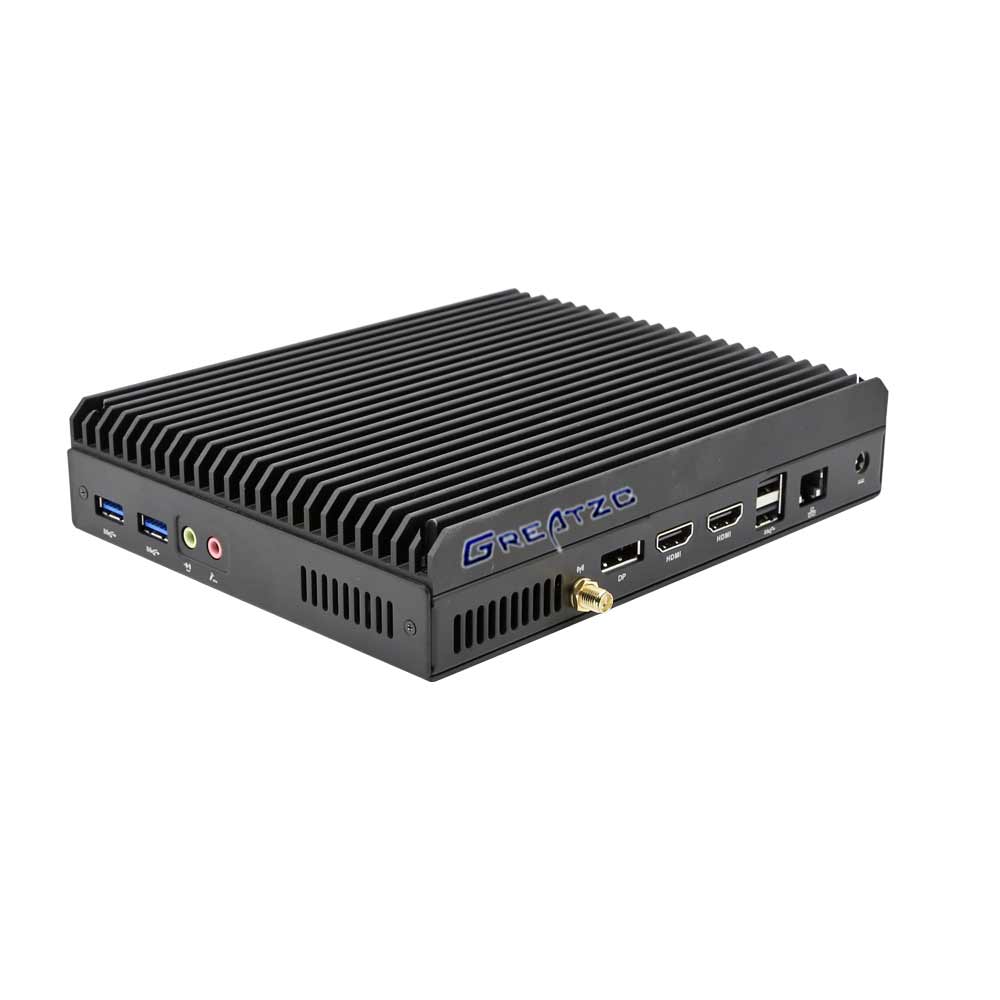

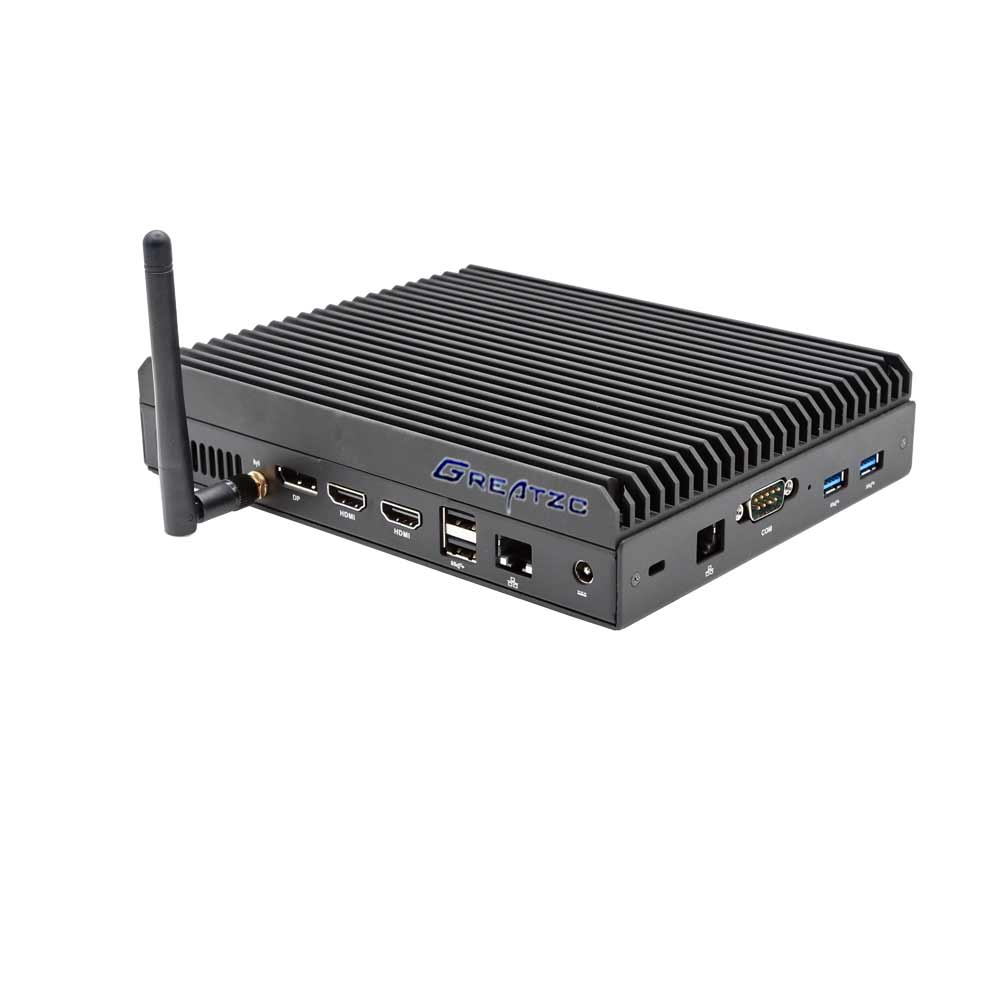

ZC-G8145 Newest 8th Gen I3-8145u High Quality 4K Fanless Industrial Mini PC
- Description
ZC-G8145 Newest 8th Gen I3-8145u High Quality 4K Fanless Industrial Mini PC
Main Features:
1. Intel 8th Gen Whiskey Lake i3-8145u
2. Intel UHD Graphics 620,Support 4K
3. With 2 Gigabit Ethernet,WIFI Optional
4. Plenty of Ports,6*USB 3.1,1*RS232 Ports
5. Support 3 Display,1*DP1.2,1*HDMI 2.0,1*HDMI1.4
6.Rich Storage,1*M.2 2280 NVMe SSD Slot,1*mSATA SSD Slot
7. Fanless Design,Industrial Grade Quality,Stable and Powerful Performance
ZC-G8145 Fanless Mini PC With I3-8145u
|
CPU |
Intel 8th Gen Whiskey Lake U All Serial |
|
Whiskey Lake i3-8145u Dual Cores 4 Threads 2.1GHz Max Turbo 3.9GHz 4MB Intel Smart Cache TDP Only 15W |
|
|
Celeron 4205u,i5-8265u,i7-8565u Optional |
|
|
Memory |
2*SO-DIMM DDR4 2400 Up to 32GB |
|
Hard Disk |
1*mSATA for mSATA SSD 1*M.2 2280 for NVMe SSD |
|
Graphics Card |
Intel UHD Graphics 620 Support 4K |
|
Display Ports |
1*DP 1.2,Max 4096x2304@60Hz |
|
1*HDMI 2.0,Max 4096x2304@60Hz |
|
|
1*HDMI 1.4,Max 4096x2304@24Hz(no sound) |
|
|
I/O Ports |
2*RJ-45 1*HDMI 2.0 1*HDMI 1.4 1*DP 1.2 6*USB 3.1 1*SPK 1*MIC IN 1*RS232 1*DC12V-19V JACK 1*Power Button 1*Antenna |
|
Expansion |
1*M.2 2230 for WIFI/Bluetooth Module |
|
Size |
190*149*40mm |
|
Weight |
N.W:1.2kg |
|
Power Adapter |
19V/2.1A |
|
OS Support |
Windows 8.1/10,Linux |
|
Kit Contents |
Main Product,Power Adapter |
