ZC-H190DL Quad Core J1900 Industrial Grade Fanless Mini PC With Dual LAN
- Description

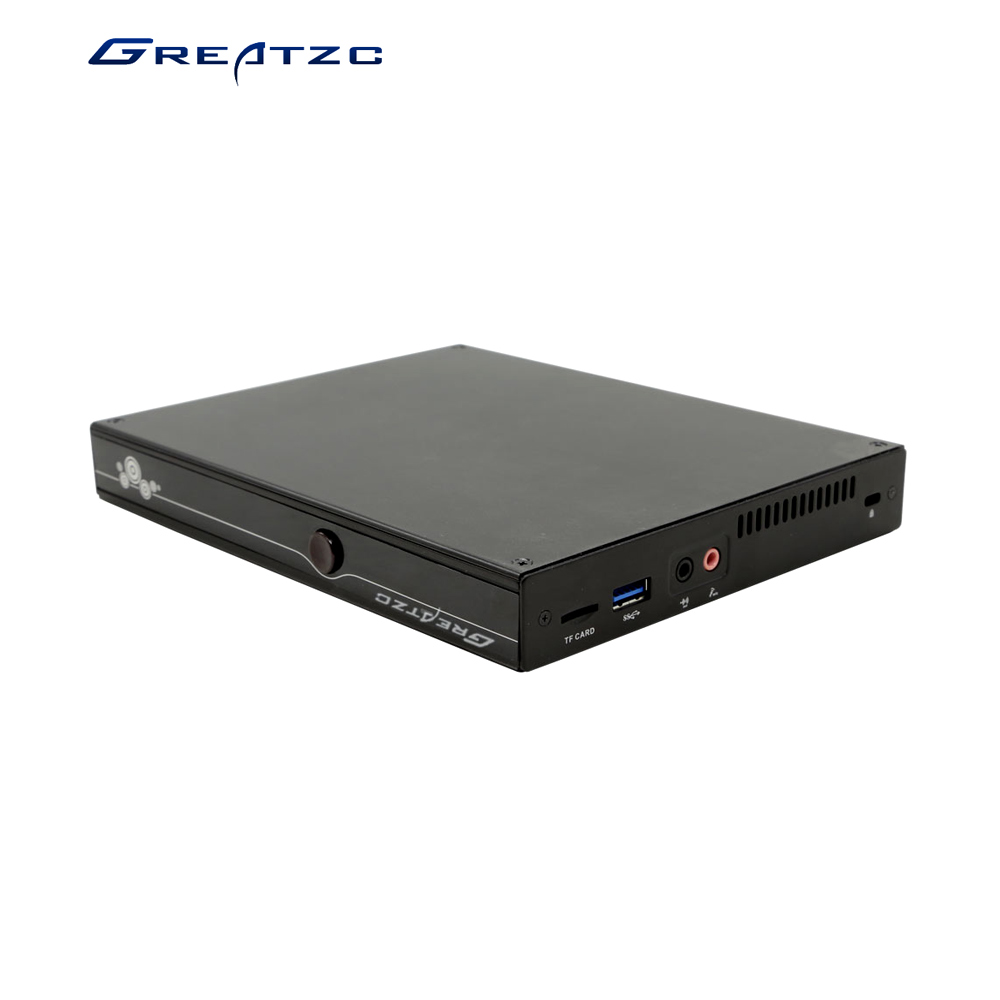

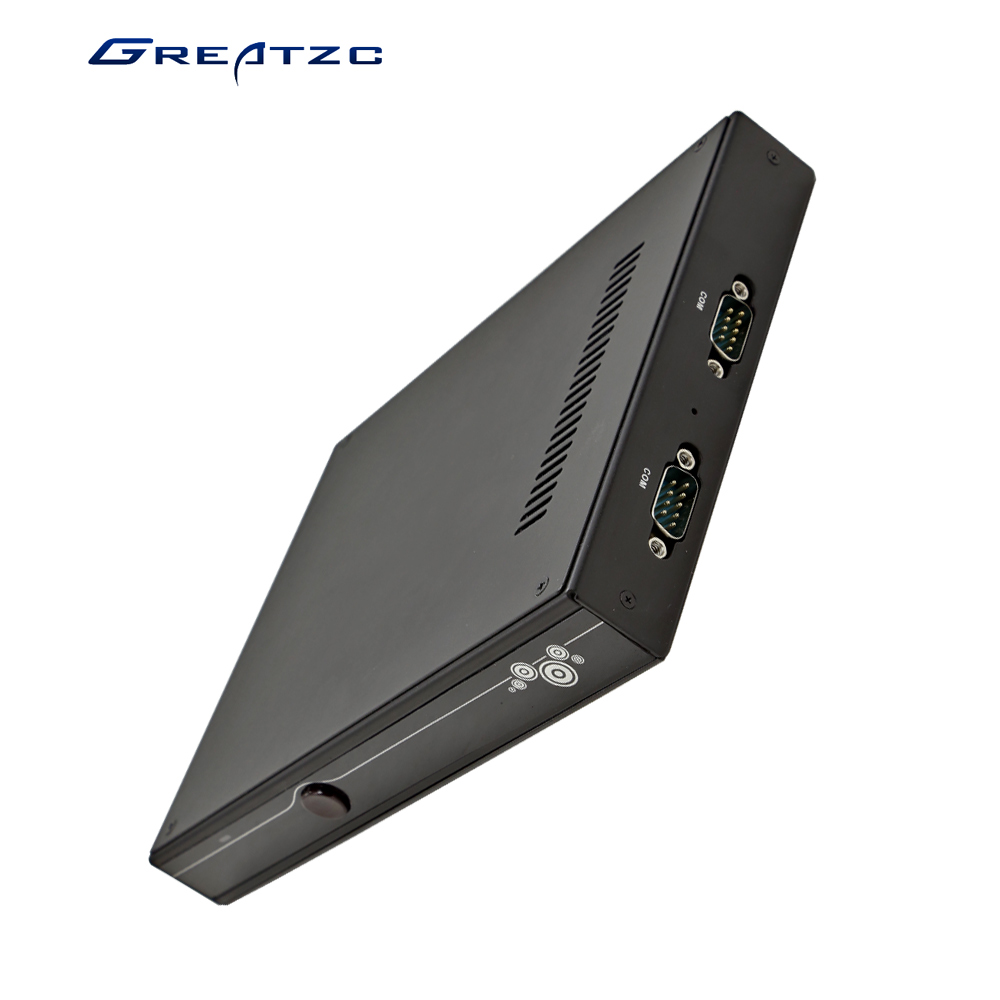

ZC-H190DL Quad Core J1900 Industrial Grade Fanless Mini PC With Dual LAN
ZC-H190DL Fanless Mini PC With INTEL J1900 CPU Quad Core 2 GHz,Turbo to 2.42GHz
Intel HD GPU,Support 1080P Playing.With VGA,HDMI,Support Double Display

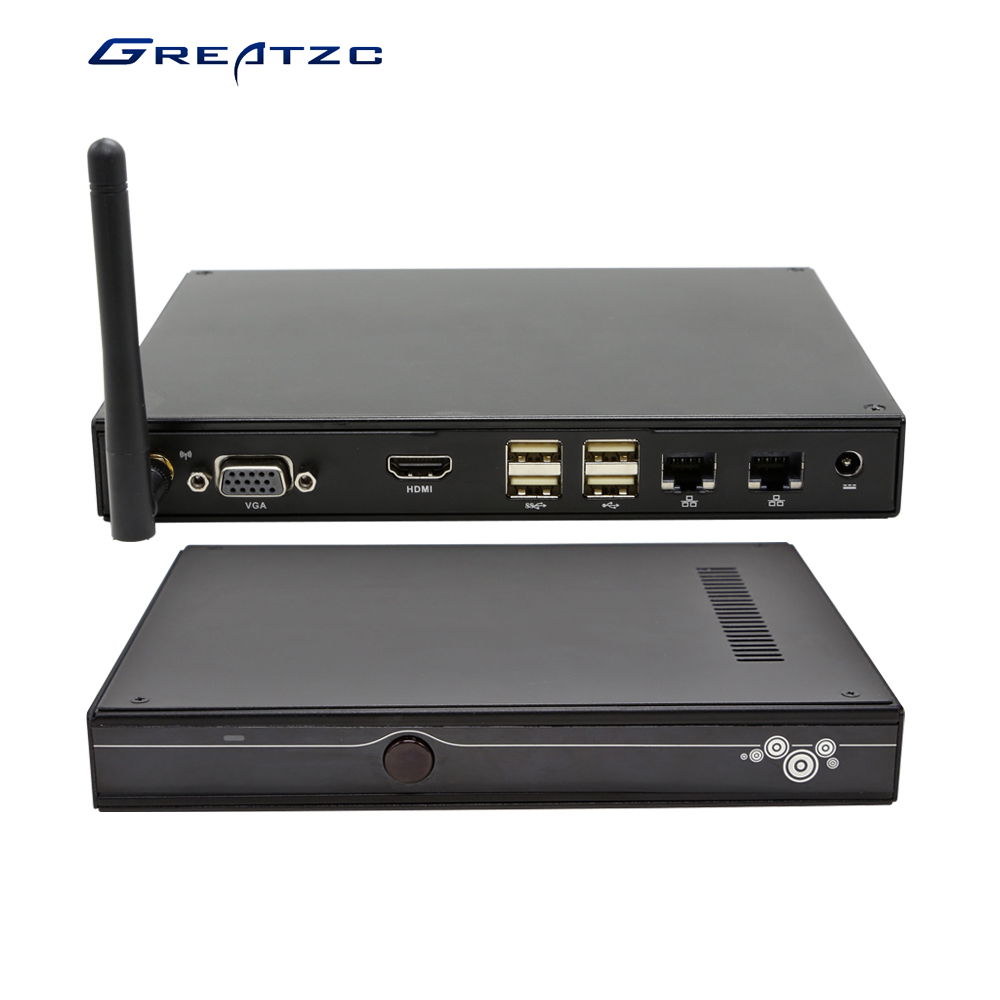

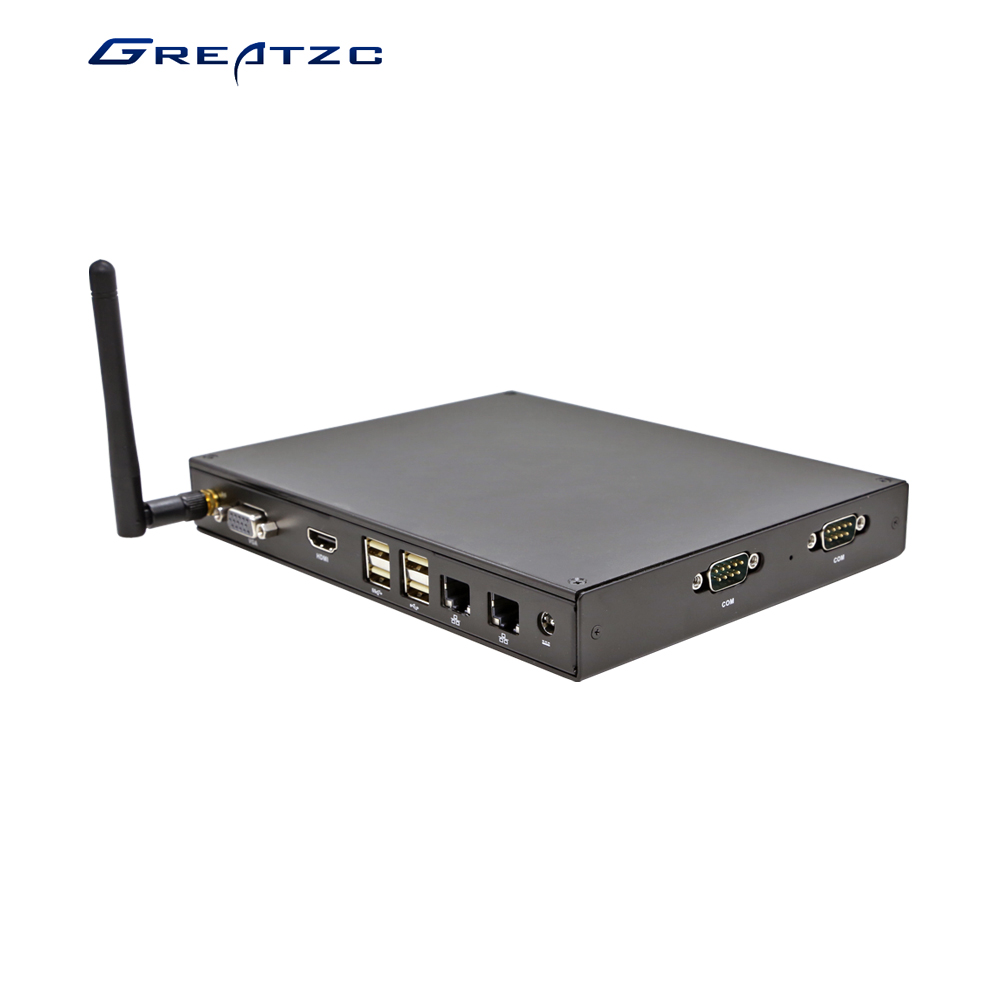

4*USB 2.0,1*USB 3.0,2*RS232 COM,2*RJ45,1*MIC,1*SPK.
Main Features:
1.Ultra-small:Size Only 19*15*2.6cm,Easy to Put and Move,Saving Space
2.Fast CPU:INTEL J1900 CPU,Quard Core 2GHz,Turbo to 2.42GHz
3.With Graphic Card:Intel HD,Support 1080P Playing
4.Double Display:With VGA and HDMI,Support Double Display
5.With 4*USB 2.0,1*USB 3.0,2*RS232 COM,2*RJ45,1*MIC,1*SPK.
6.Good Quality:Industrial Design,All Solid Cap,With Stable and Reliable Performance
ZC-H190DL Mini PC Specification(No Monitor)
|
CPU |
INTEL Bay Trail-D Celeron J1900 Quad-Core 4 Threads 2GHz,Turbo to 2.42GHz TDP only 10W |
|
RAM |
DDR3 SO-DIMM 1600MHz Memory,Max 8GB |
|
Hard Drive |
SATA 2.5 inch 500GB,1TB or SSD32GB,64GB,128GB,256GB |
|
Graphics Card |
Intel HD Integrated Graphics Card,Support 1080P |
|
Network Card |
2*Realtek 8111F WIFI Optional |
|
I/O Port |
4*USB 2.0 1*USB 3.0 1*SPK 1*MIC 1*HDMI 1*VGA 2*RJ 45 Lan 1*WIFI Slot 2*RS232 COM 1*Clear CMOS 1*Power Port 1*TF Slot |
|
Size |
Product Size:19*15*2.6CM Package Size:11.8*18.5*22.8CM |
|
Weight |
Product:0.9KG Package:1.5KG |
|
Power Adapter |
Input 100-240V(AC), Output:12V/5A |
|
Kit Contents |
Main Product, Power Adapter |
|
VEST Mount Bracket |
Optional,Need additional cost |
