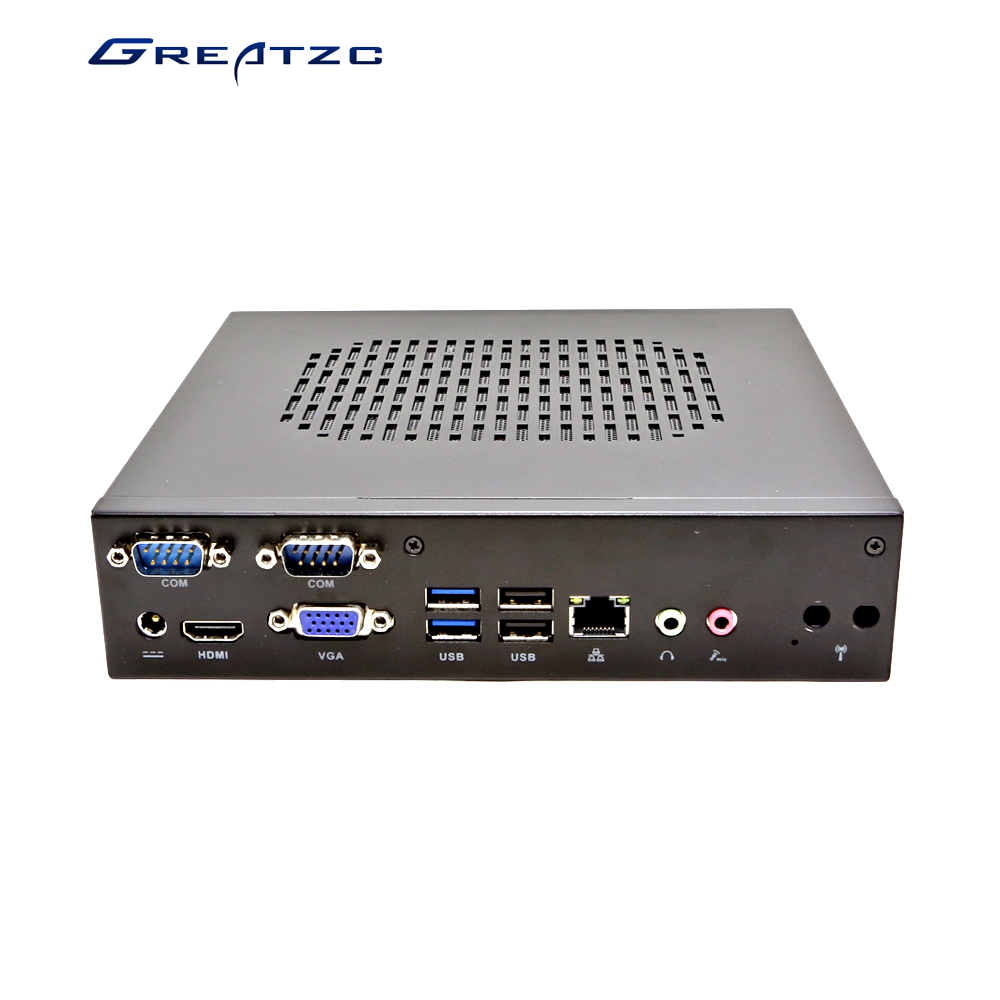

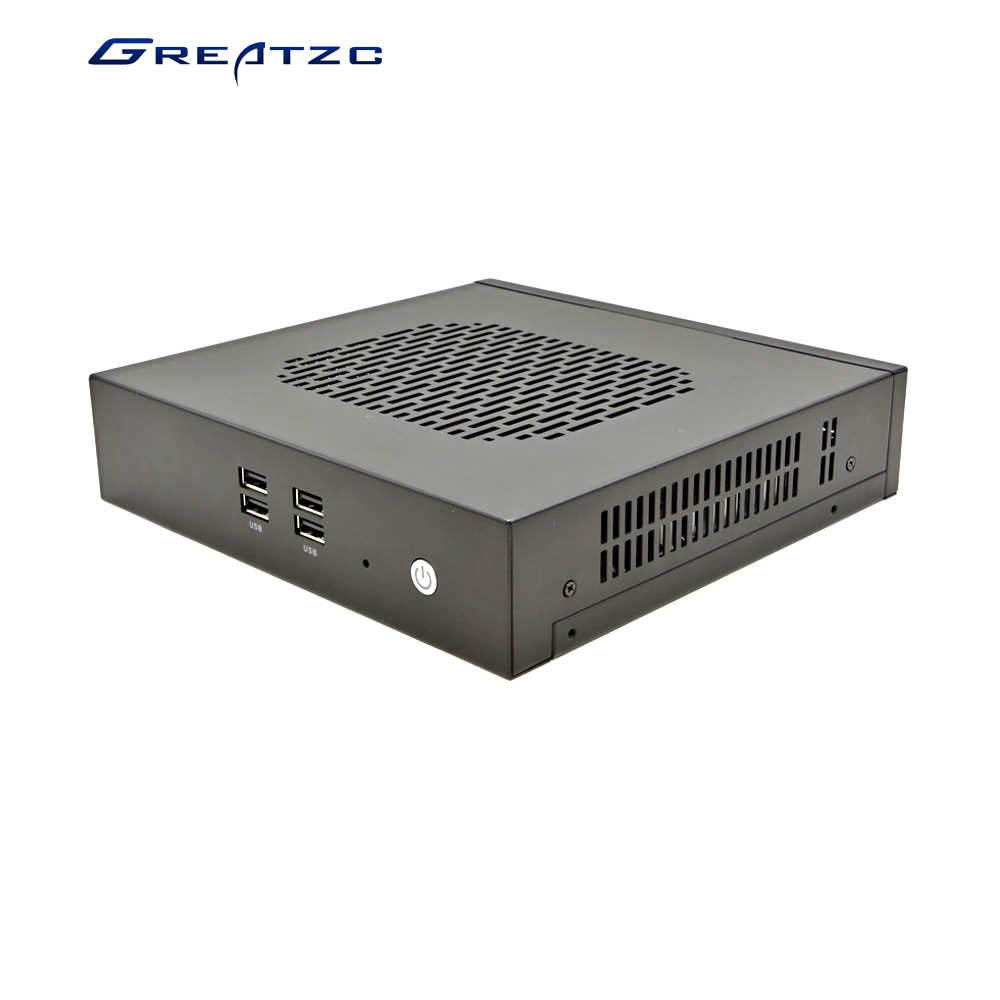

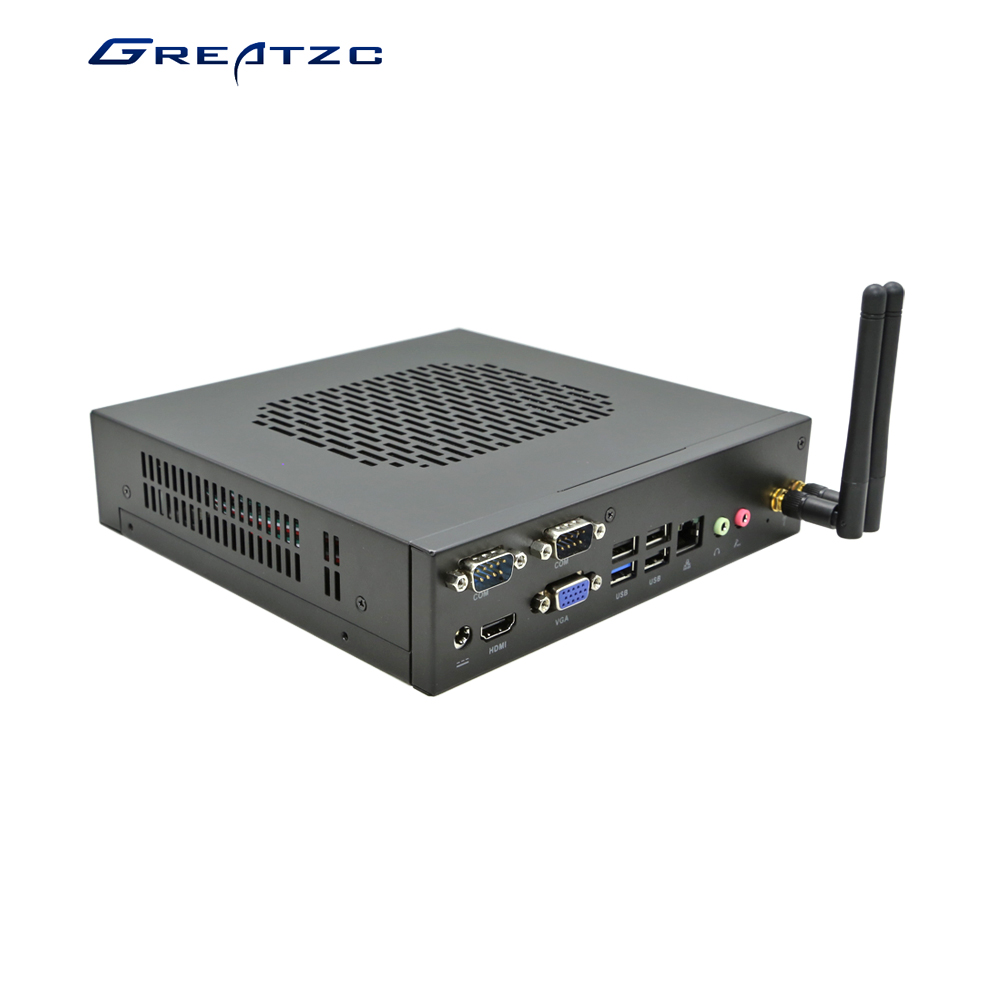

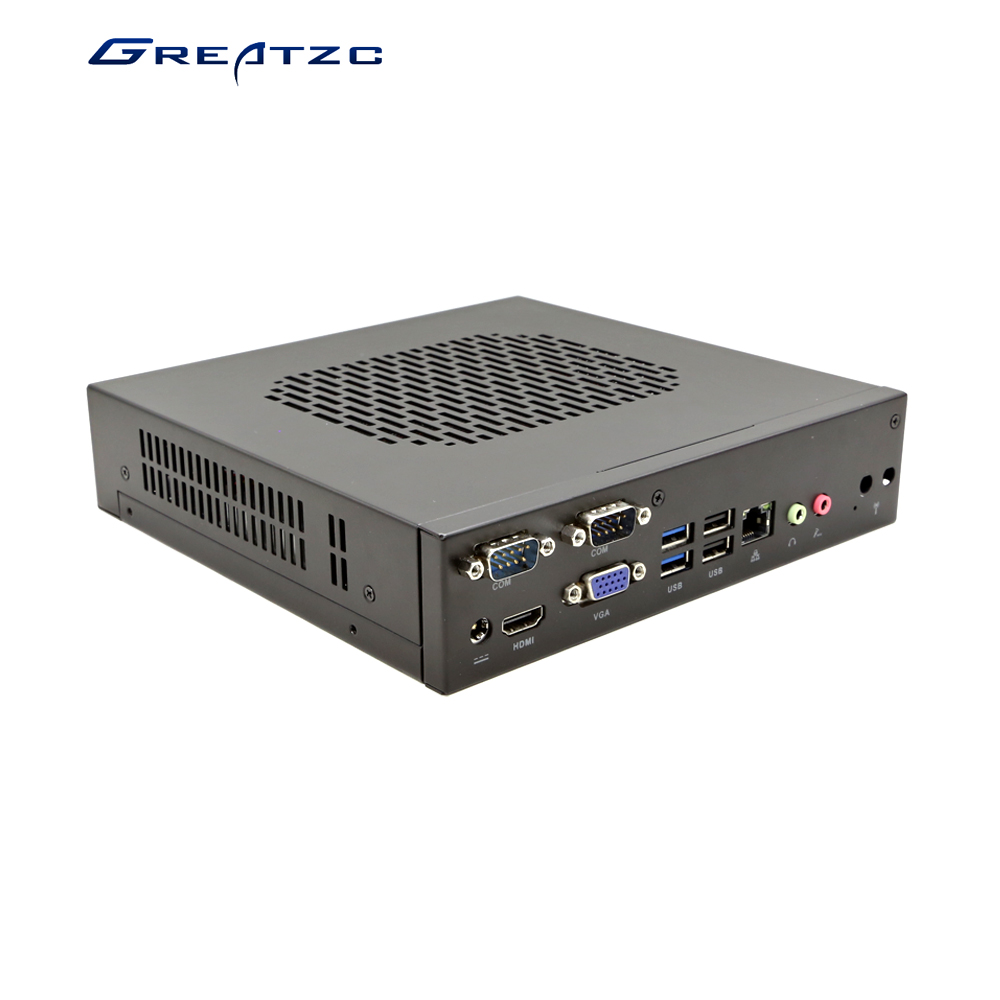

ZC-T42-3217U Mini PC With Intel I3-3217U
- Description
ZC-T42-3217U Mini PC With Intel I3-3217U Dual Core 4 Thread 1.80GHz CPU
With Intel HD 4000 Graphics Card,Support 1080P Playing,1*RJ45
With VGA and HDMI Ports,Support Double Display,1*DC IN
With 2*USB 3.0,6*USB 2.0,1*SPK&1*MIC,WIFI Optional.
Main Features:
1.Ultra-small:size only 190*190*42.5mm,Easy to Put and Move,Saving Space
2.Fast CPU:Intel I3-3217U Dual Core 4 Thread 1.80GHz
3.With Intel HD 4000 Graphics Card,Support 1080P Playing
4.Double Display:With VGA&HDMI,Support Double Display
5.Silent Design:Small Noise,Integrated design.
6.Excellent Heat Exchange:With Many Holes On The Case
7.Good Quality:Industrial Design,All Solid Cap,Stable and reliable performance
ZC-T42-3217U Mini PC Specification
|
CPU |
Onboard Intel Ivy Bridge I3-3217U Dual Core 4 Thread 1.80GHz 3MB L3 Cache TDP only 17W |
|
Memory |
1*SO-DIMM DDR3 1600MHz,Max 8GB |
|
Hard Drive |
1*MSATA SSD 32GB,64GB,128GB,256GB 1*SATA 2.5inch HDD 500GB,1TB,2TB |
|
Graphics Card |
Intel HD Graphics 4000 Support 1080P Playing |
|
Network Card |
1*Gigabit Network Card WIFI Optional(Need addional Cost) |
|
I/O Port |
6*USB 2.0 2*USB 3.0 1*RJ-45 Port 1*HDMI 1*VGA 1*DC12V_JACK 1*AUDIO OUT 1*MIC IN 2*RS232 COM |
|
Size |
Product:190*190*42.5mm |
|
Power Adapter |
Input:100-240V(AC) Output:12V/5A(DC) |
|
Kit Contents |
Main Product,Power Adapter,VESA Mount |
