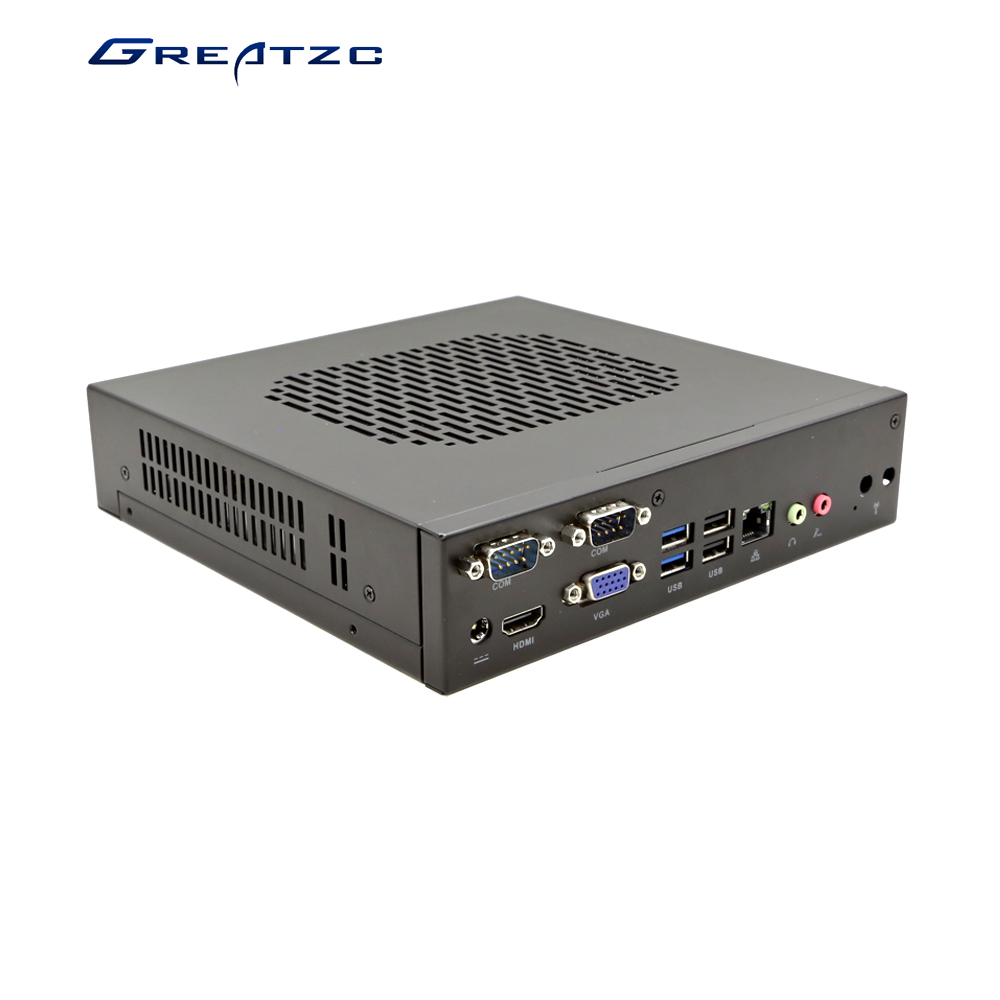

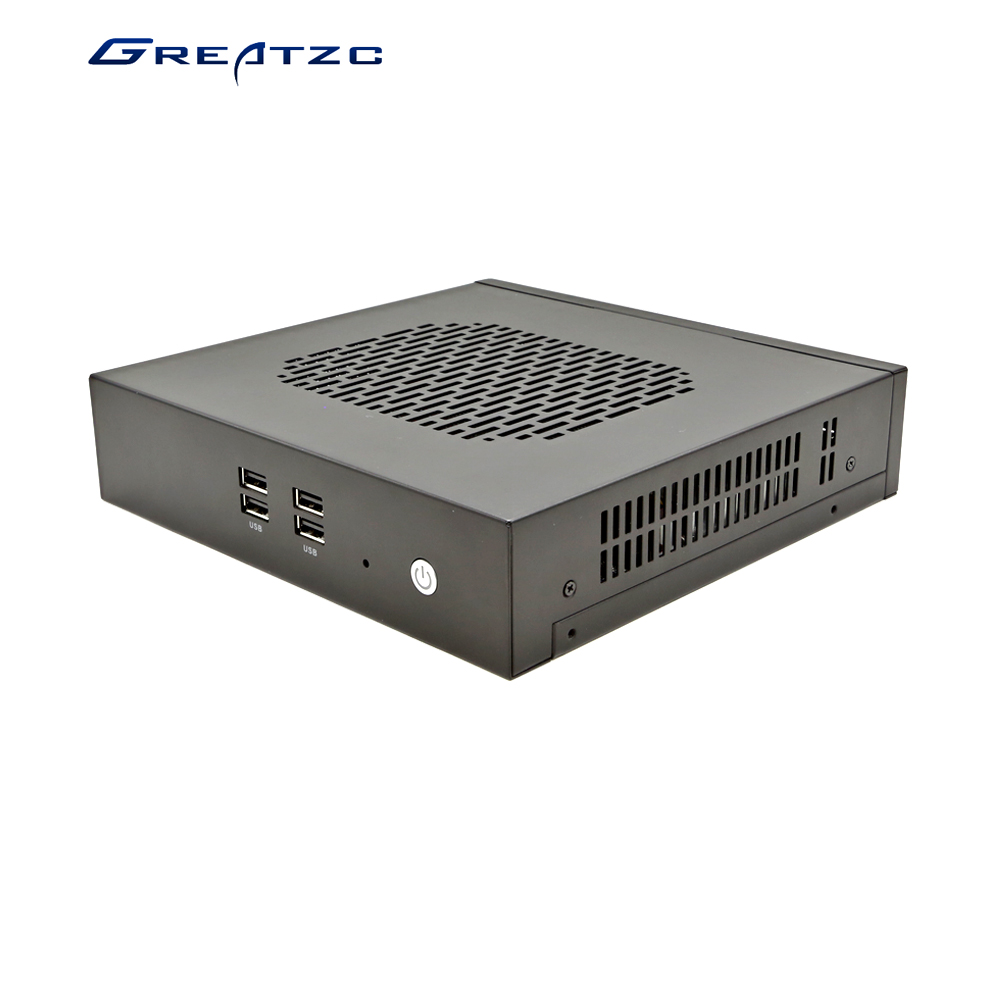

ZC-T42-6100U I3 6100U Mini PC
- Description
ZC-T42-6100U Mini PC With 6th I3-6100u,Dual Core 2.3GHz,INTEL HD520,
With VGA,HDMI,Support 4K,With 2*USB3.0,6*USB 2.0,2*RS232,1*SPK&1*MIC,
WIFI Optional.
Main Features:
1.Ultra-small:Size only 190*190*42.5mm,
2.Intel 6th I3-6100u,Dual Core 2.3GHz,Very fast.
3.With INTEL HD520 Graphics Card,Support 4K Playing
4.Double Display:With VGA&HDMI,Support Double Display
5.Excellent Heat Exchange:With Many Holes On The Case
6.With VESA Mount,Easy to Put and Move,Saving Space
7.Good Quality:Industrial Design,All Solid Cap,Stable and reliable performance
ZC-T42-6100U Mini PC Specification
|
CPU |
INTEL 6th Skylake I3-6100U Dual Core 4 Thread 2.3GHz 3 MB SmartCache TDP Only 15W,14nm |
|
Memory |
1*SO-DIMM DDR4 1600MHz Memory, MAX 8GB |
|
Hard Drive |
1*MSATA SSD 32GB,64GB,128GB,256GB 1*SATA 2.5inch HDD 500GB,1TB,2TB |
|
Graphics Card |
INTEL HD520,Support 4K Playing Graphics Max Dynamic Frequency 1 GHz |
|
Network Card |
1*Realtek 8111F,Gigabit WIFI Optional |
|
I/O Port |

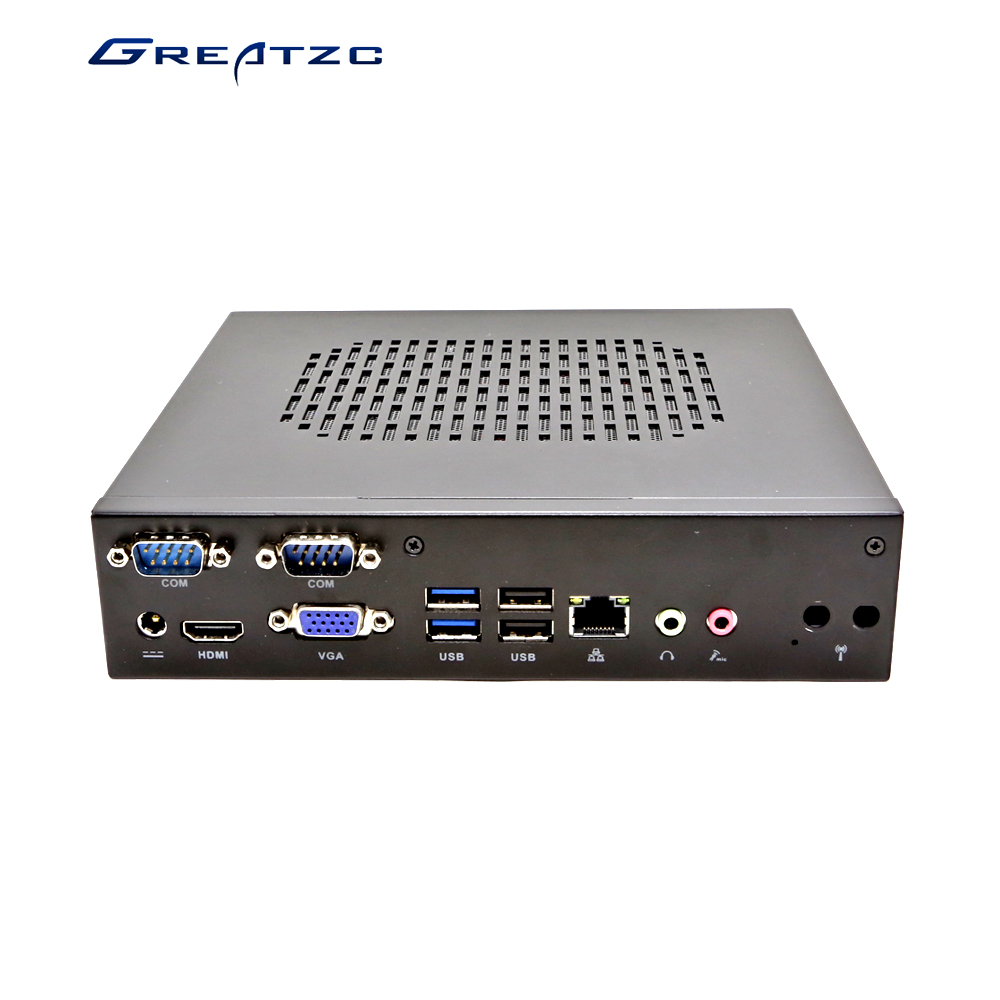

1*RJ-45 1*HDMI 1*VGA 2*USB 3.0 6*USB 2.0 2*RS232 1*SPK Out 1*MIC IN 1*DC12V-19V JACK |
|
Size |
Product:190*190*42.5mm |
|
Power Adapter |
Input 100-240V(AC) Output:19V/2.1(DC) |
|
Kit Contents |
Main Product,Power Adapter |
